Speed Queen
Laundry Center

Model # LTSA7AQN3000 Official Speed Queen stacked laundry center

Here are the diagrams and repair parts for Official Speed Queen LTSA7AQN3000 stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

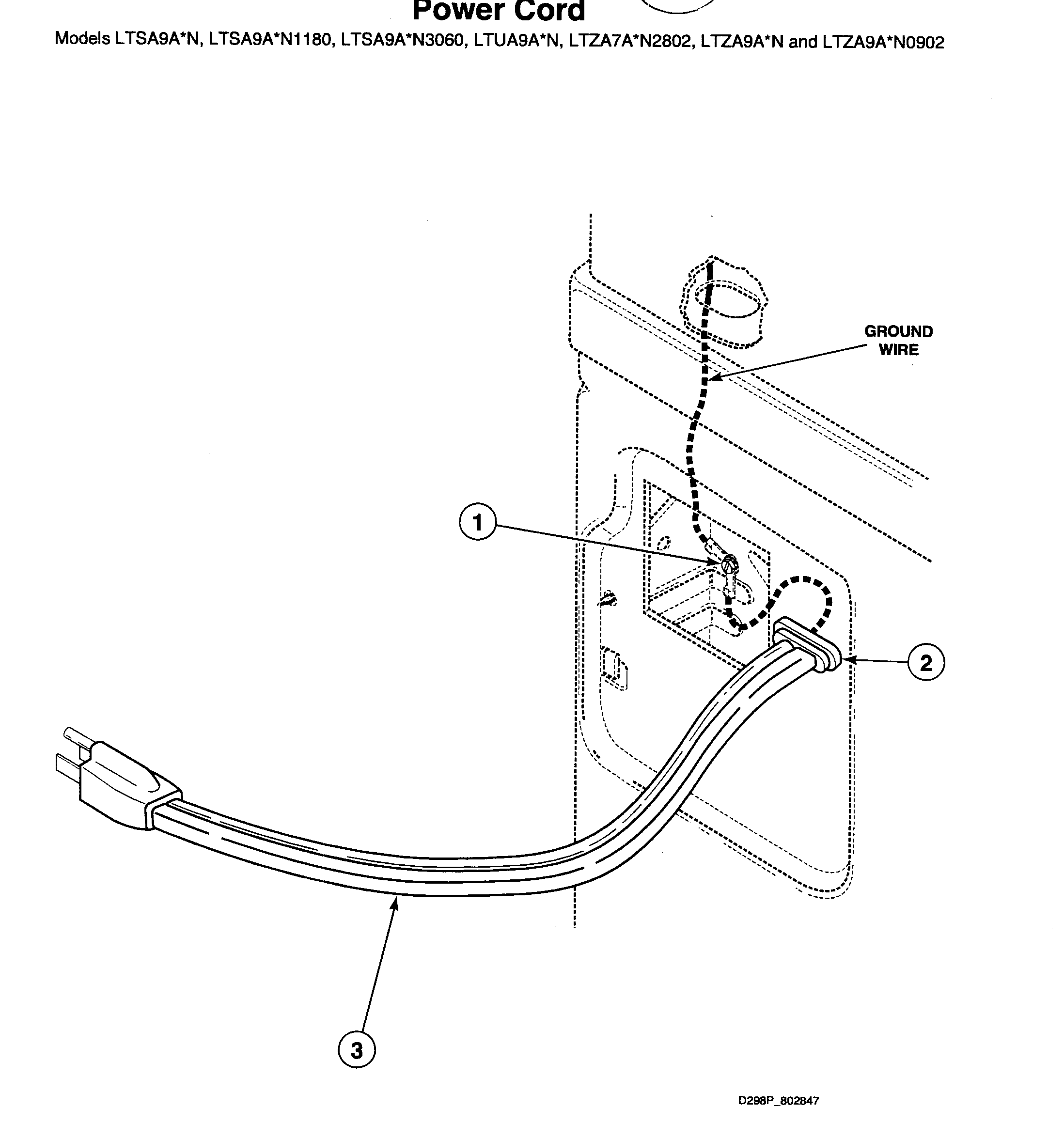

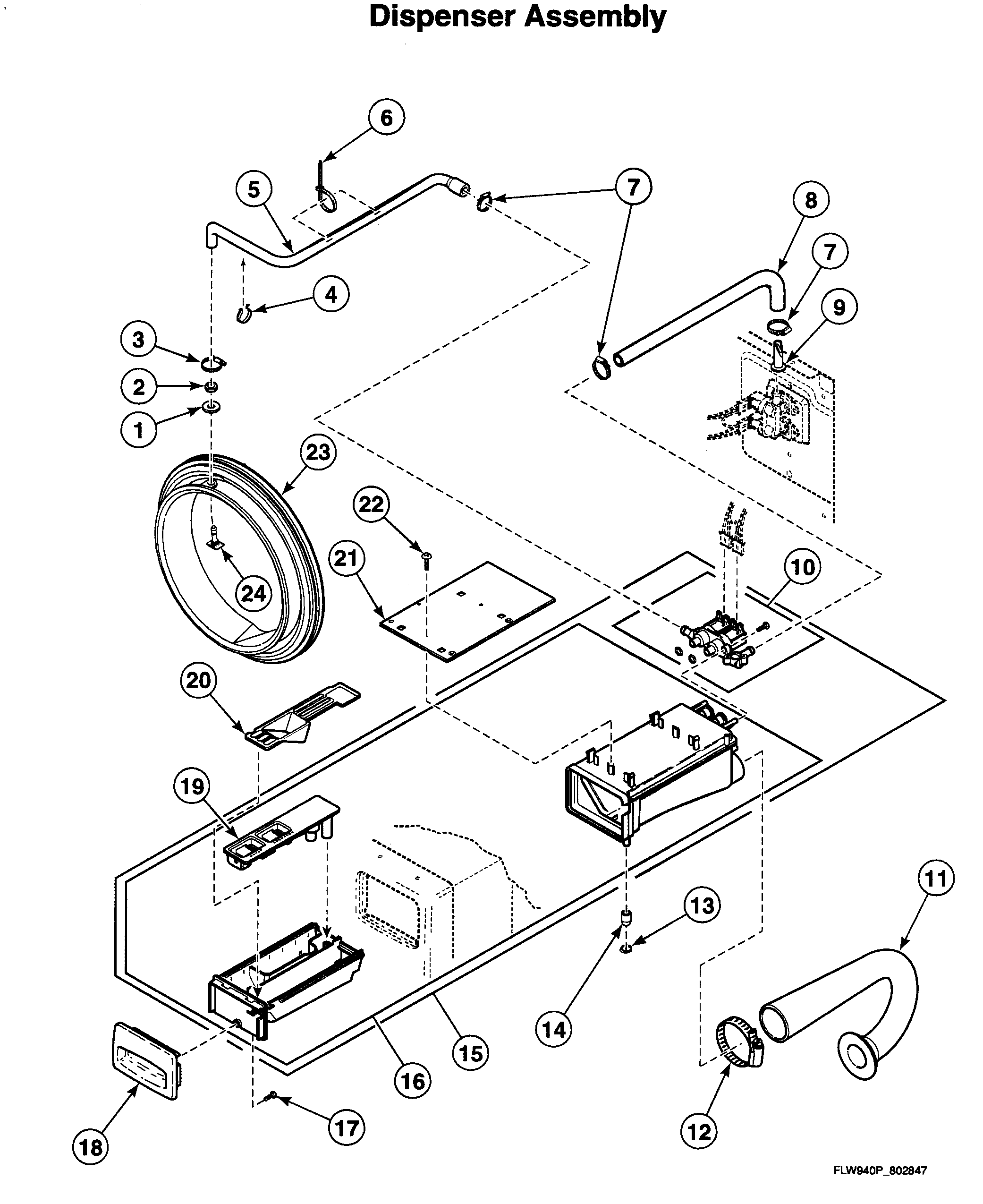

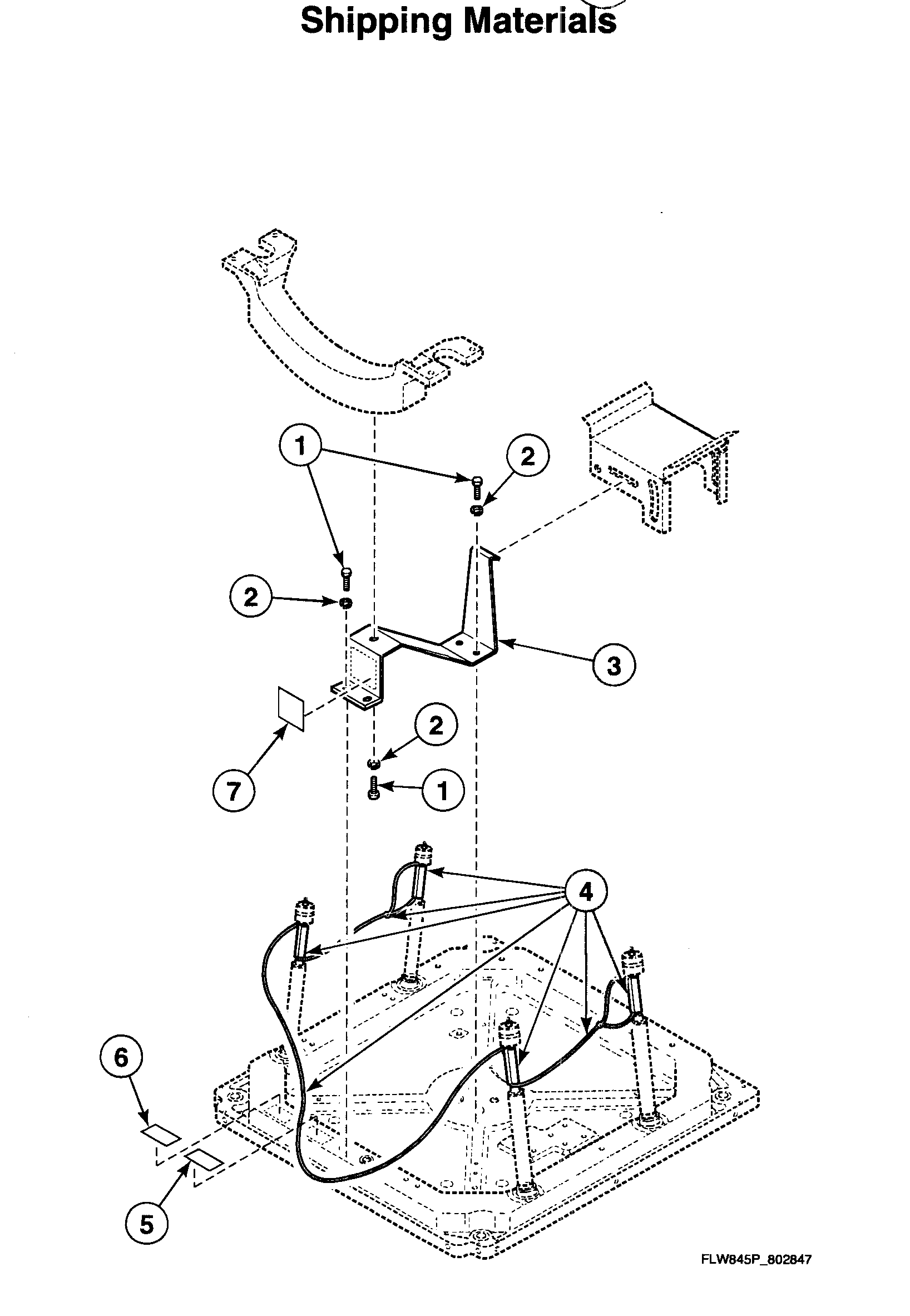

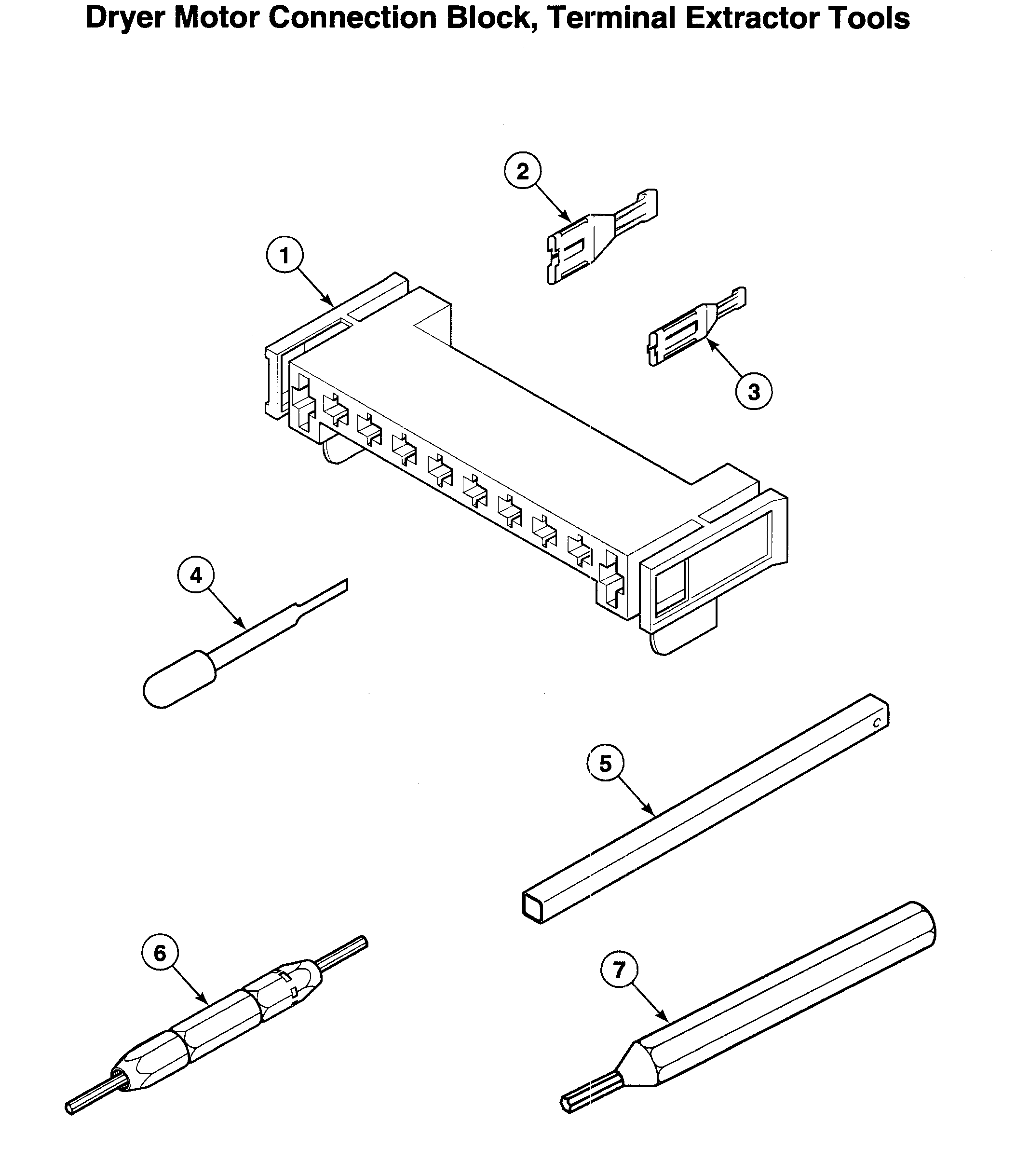

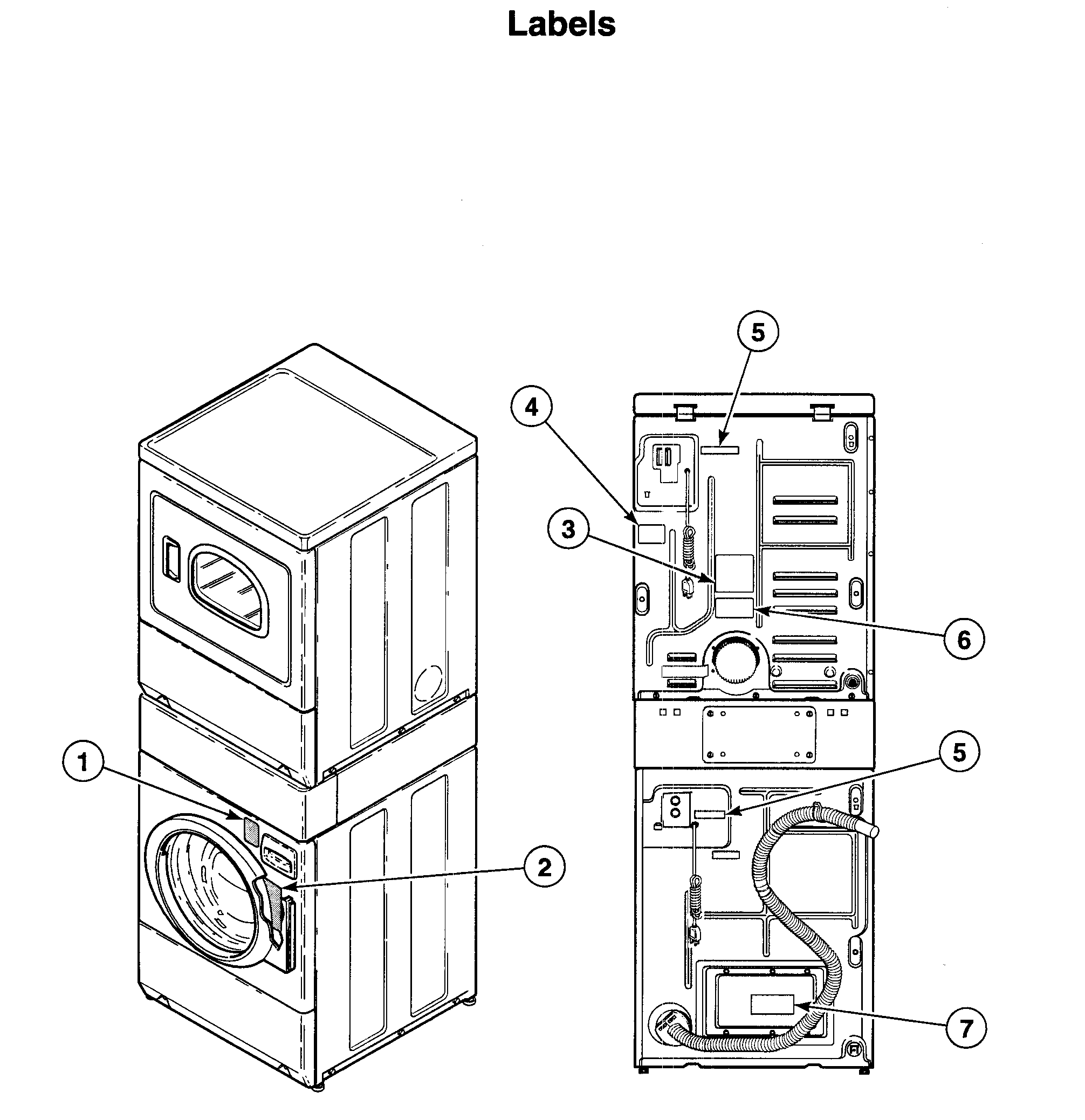

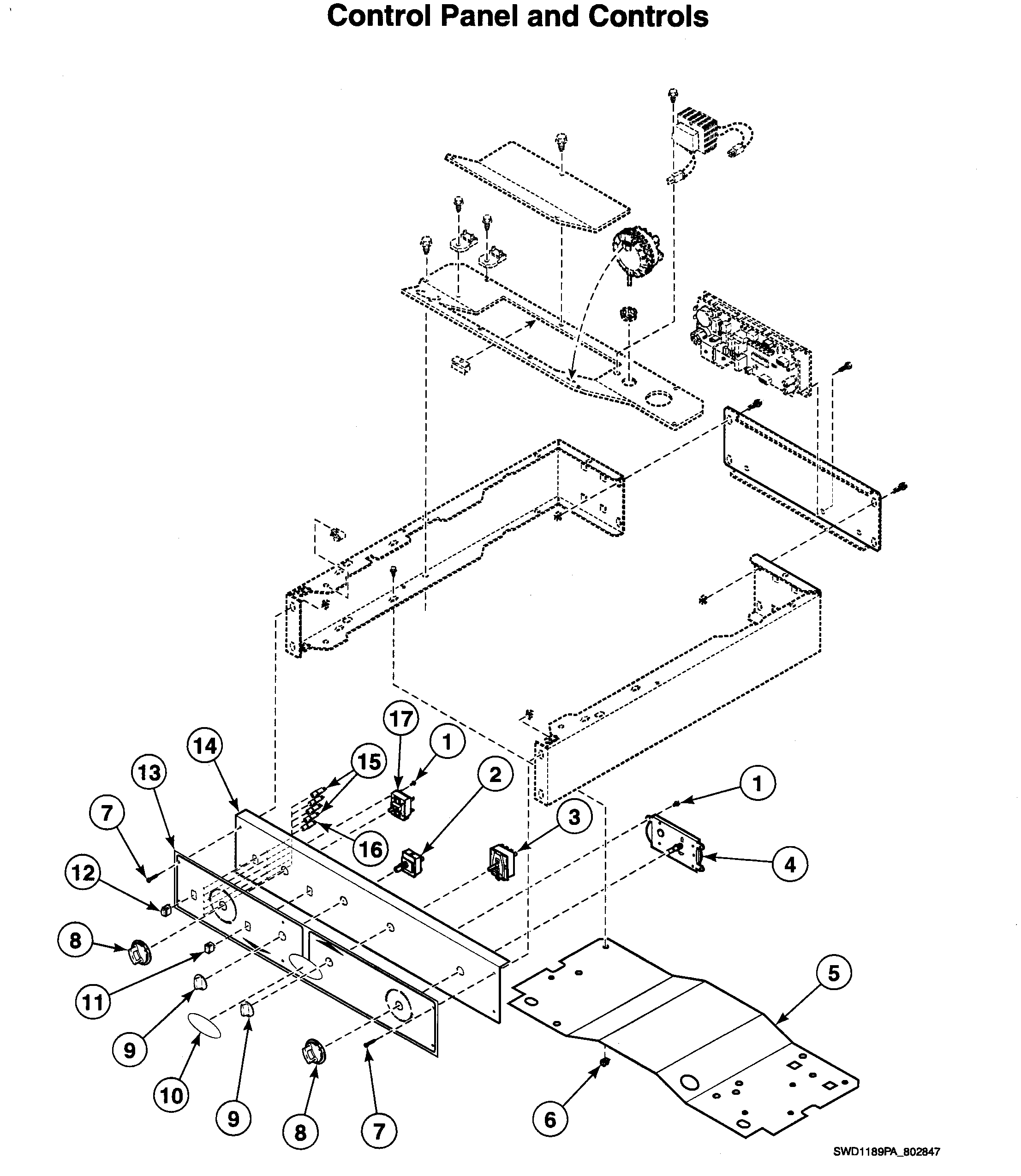

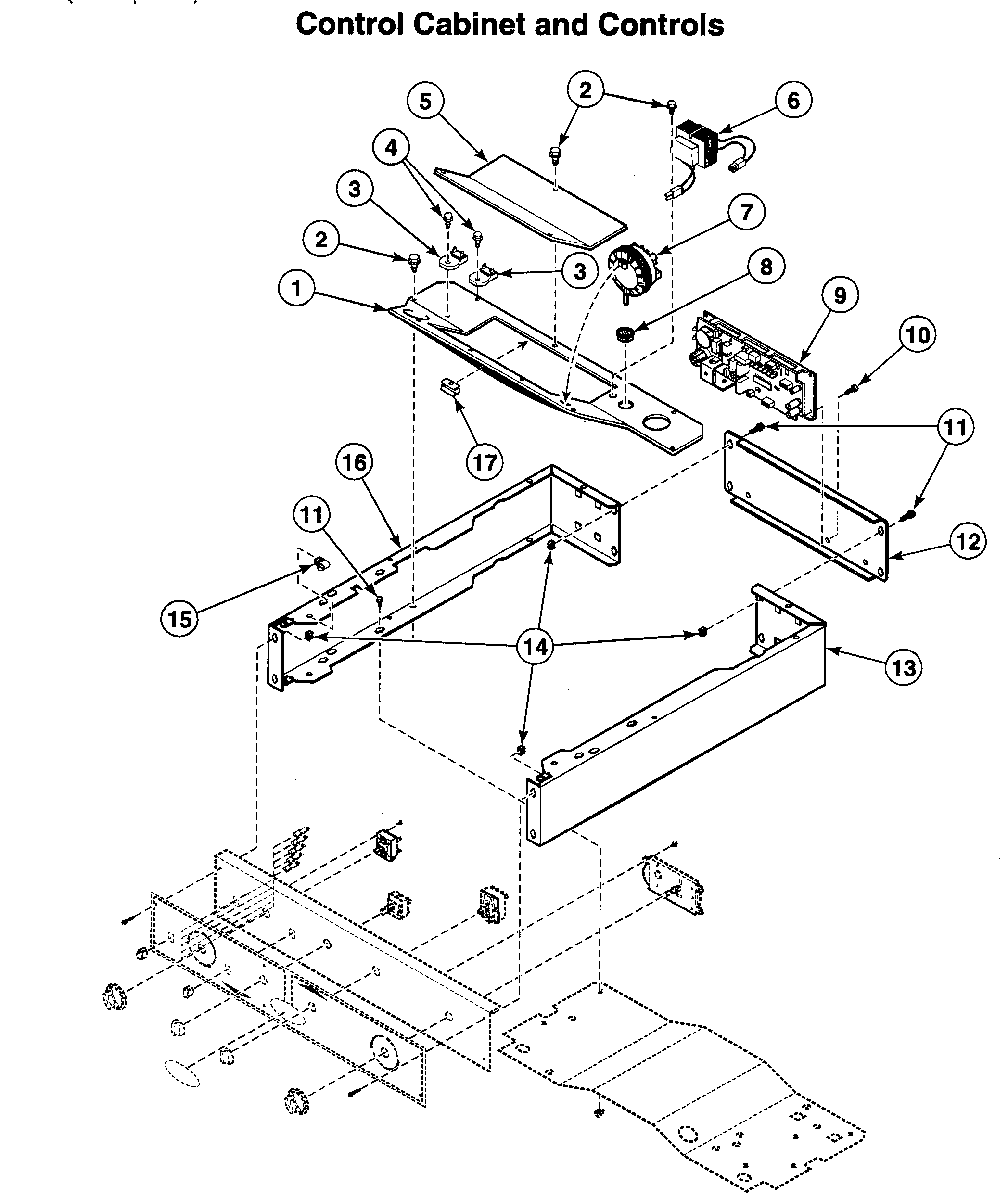

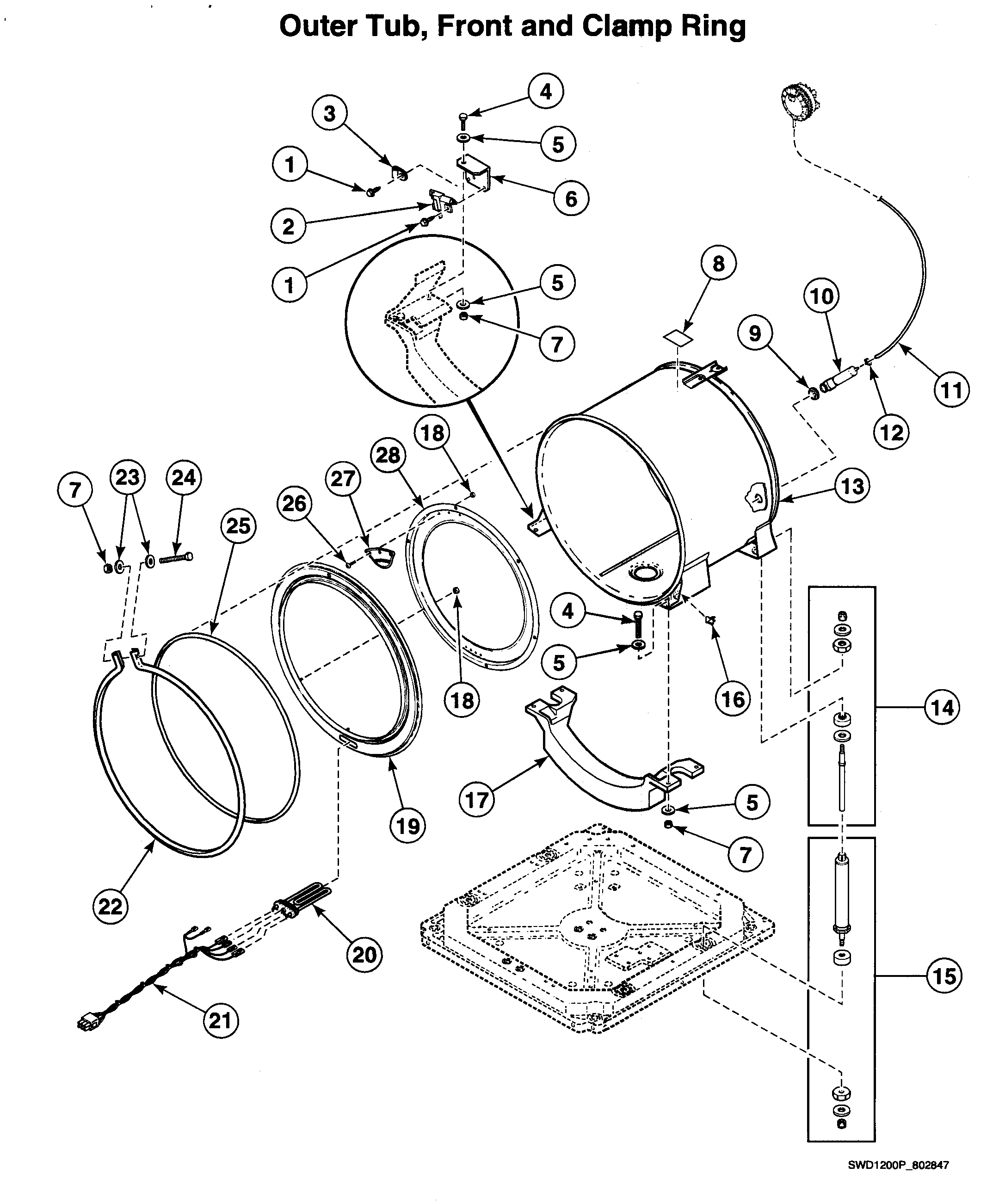

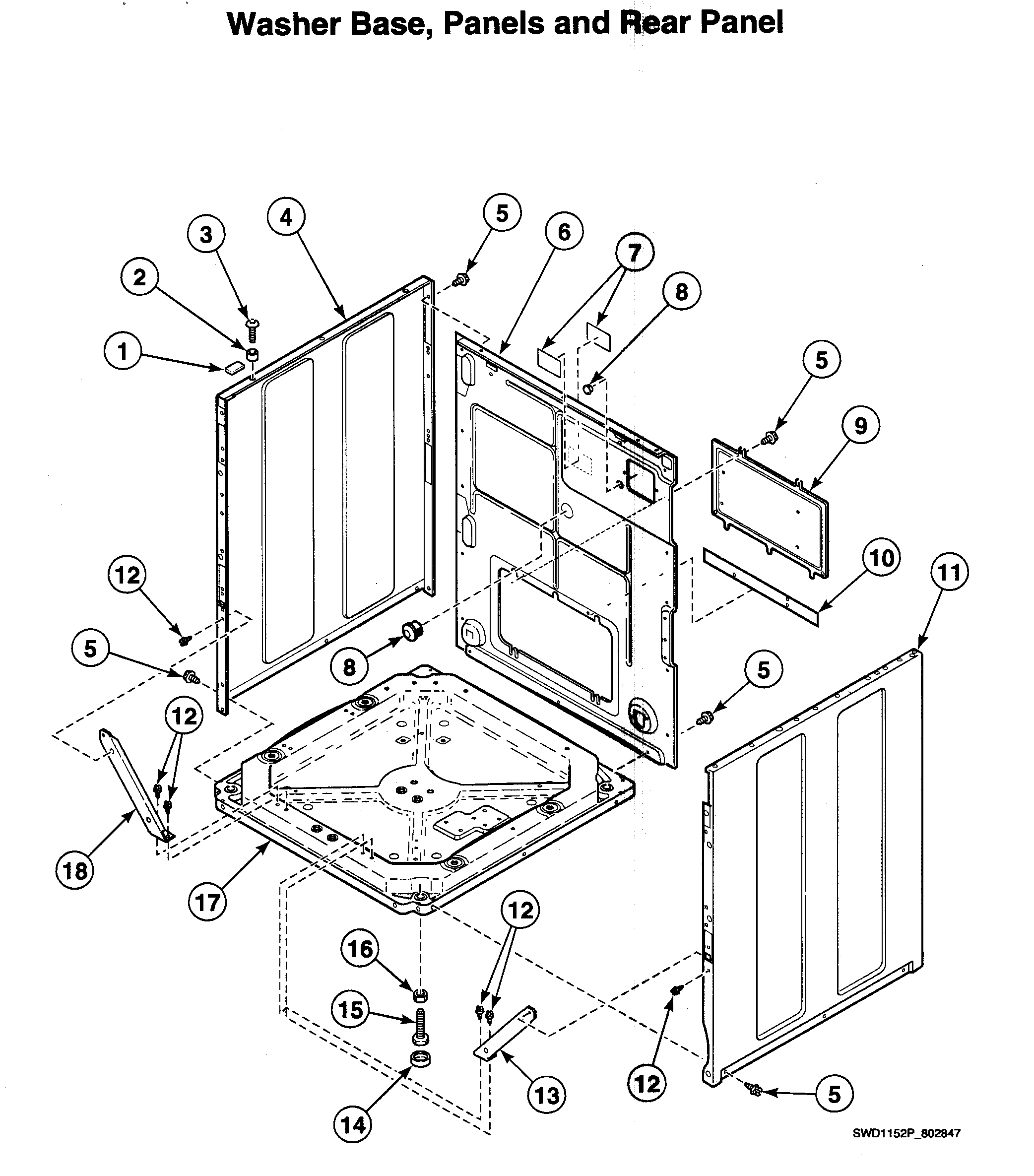

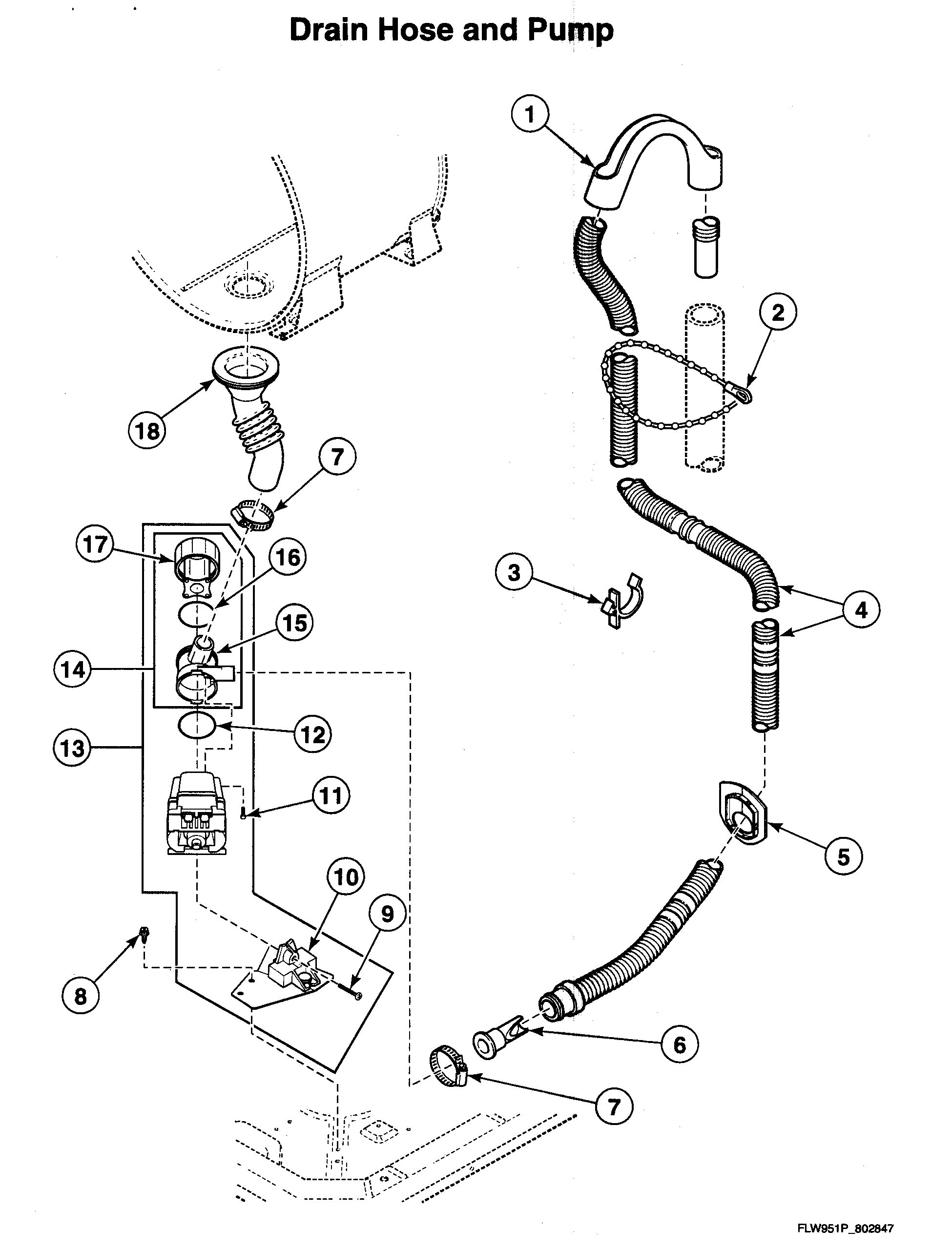

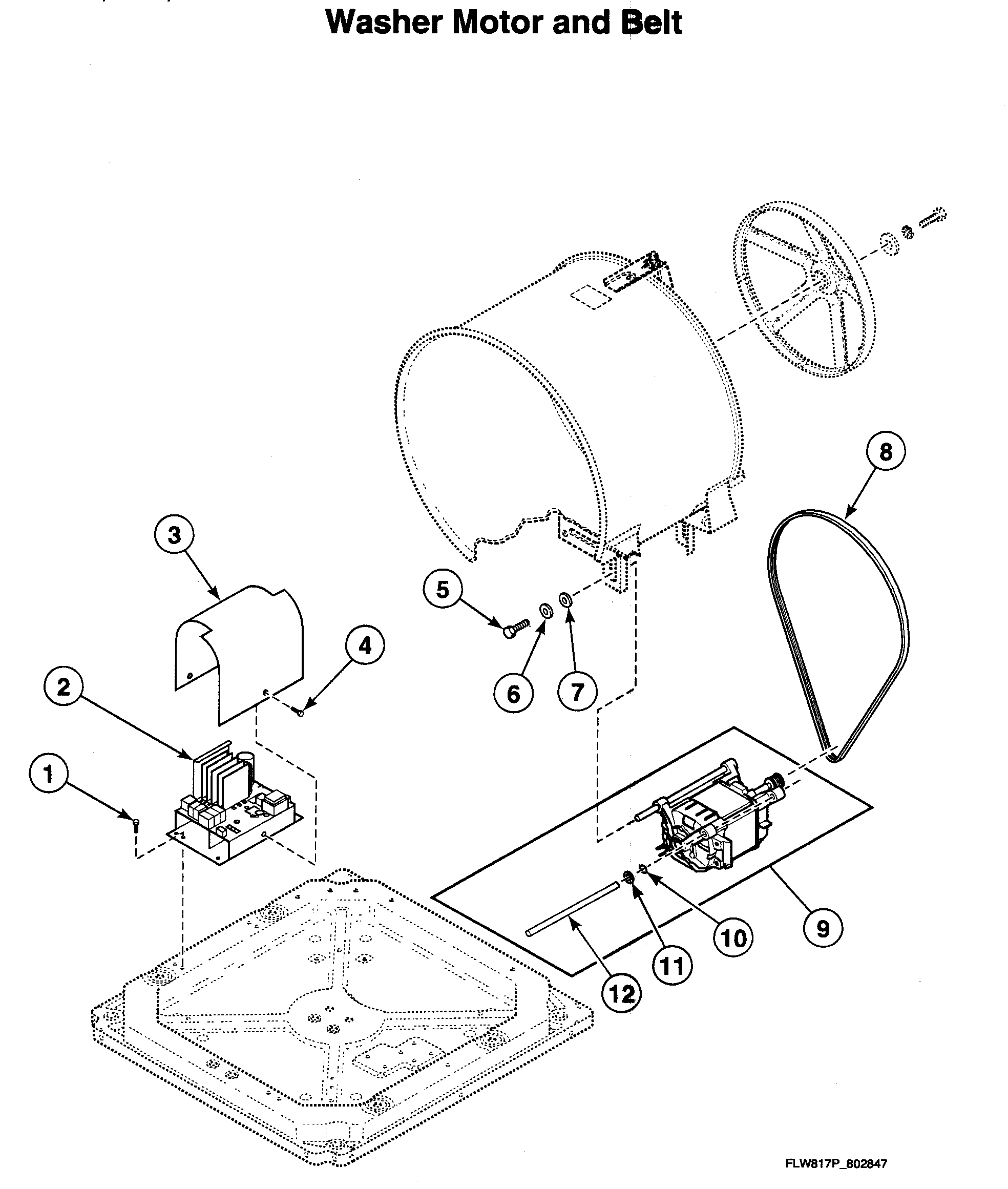

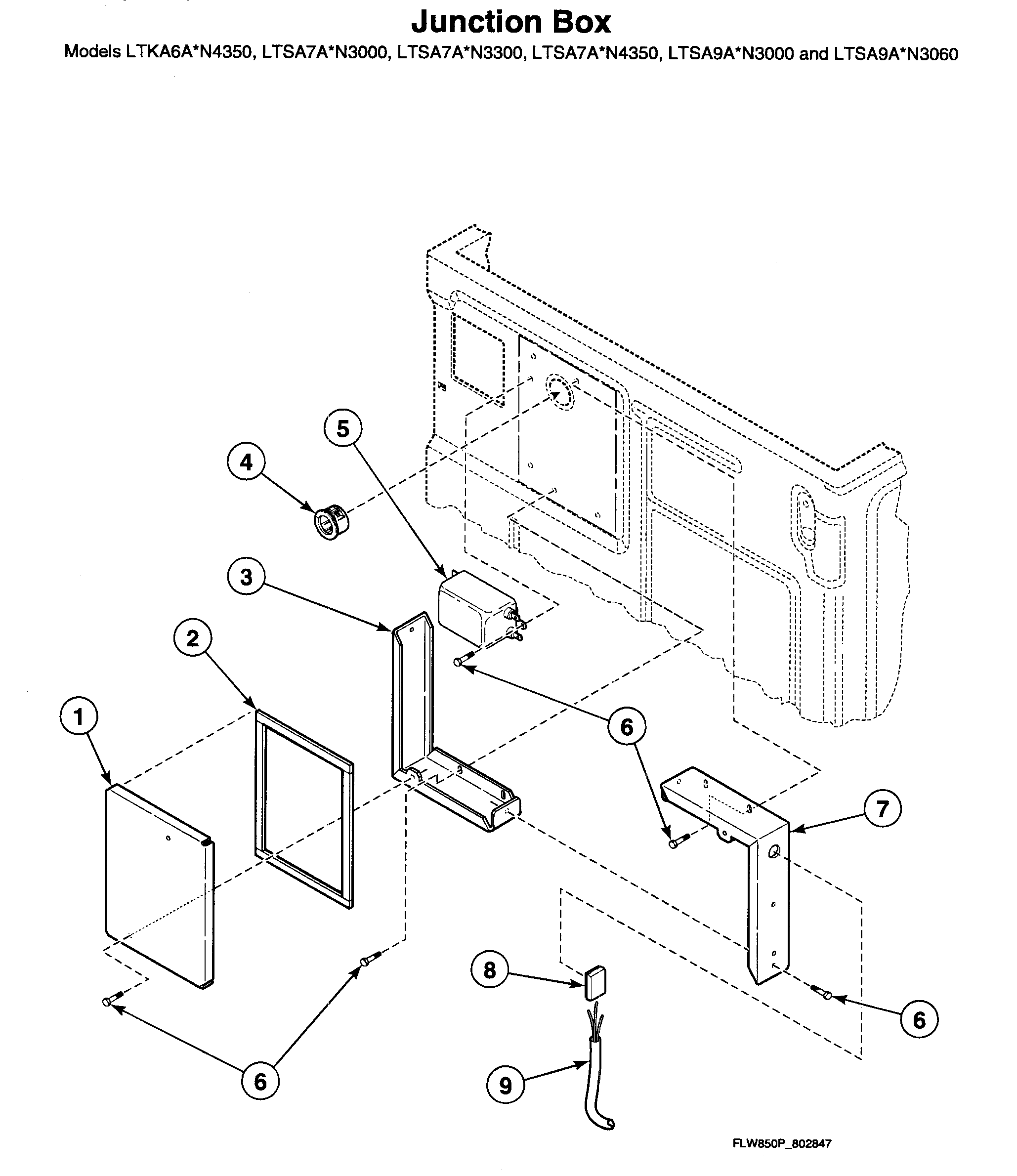

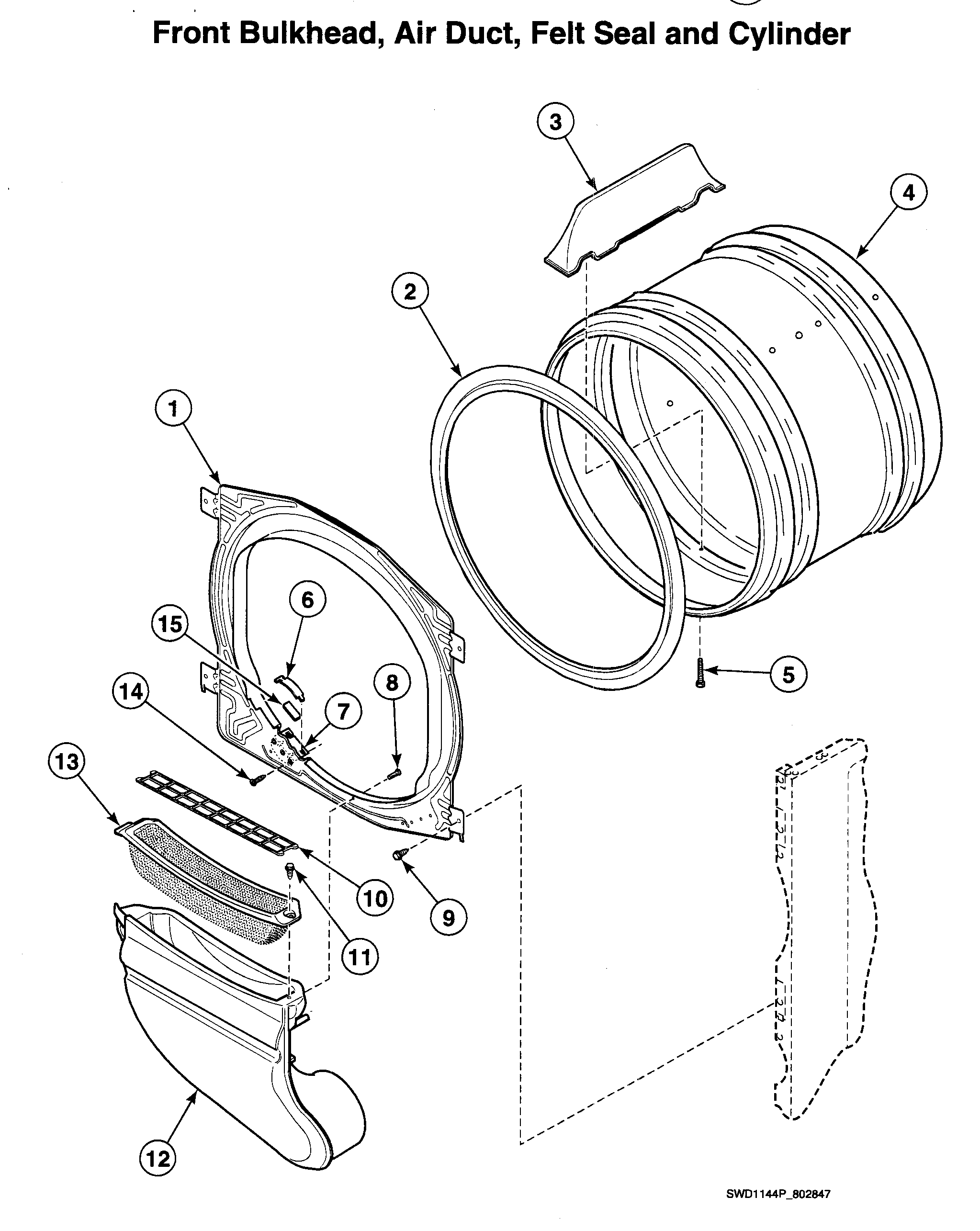

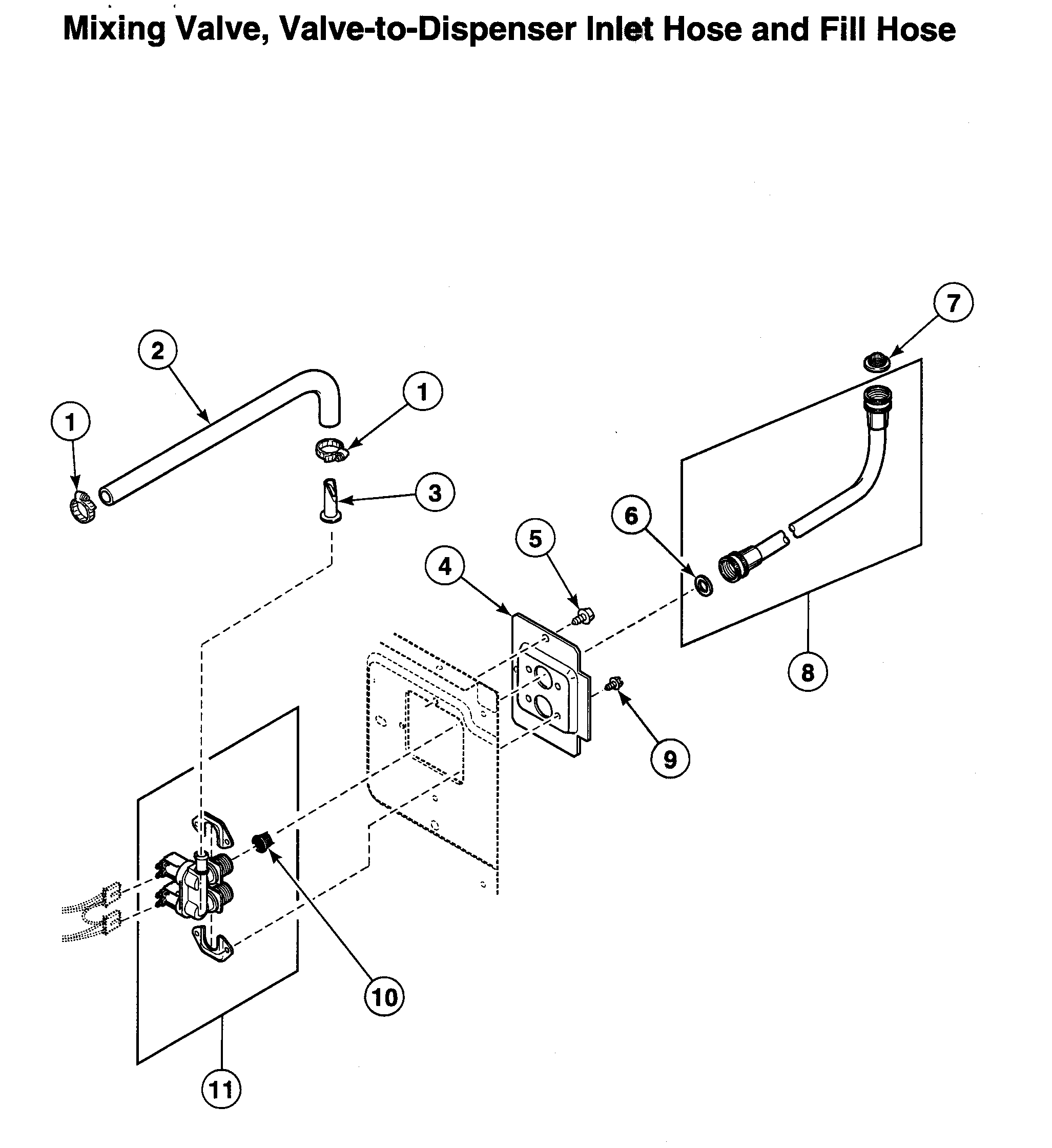

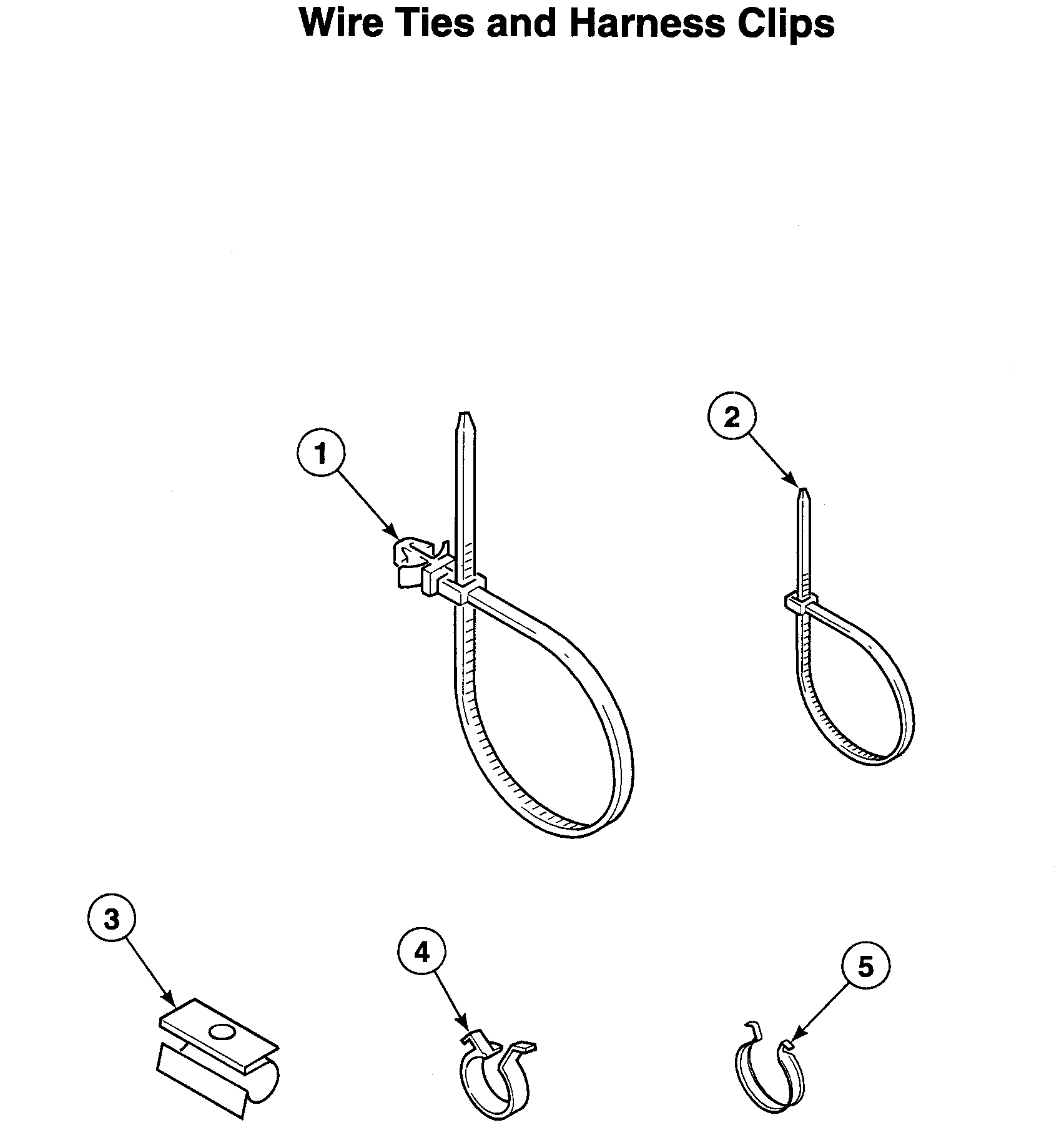

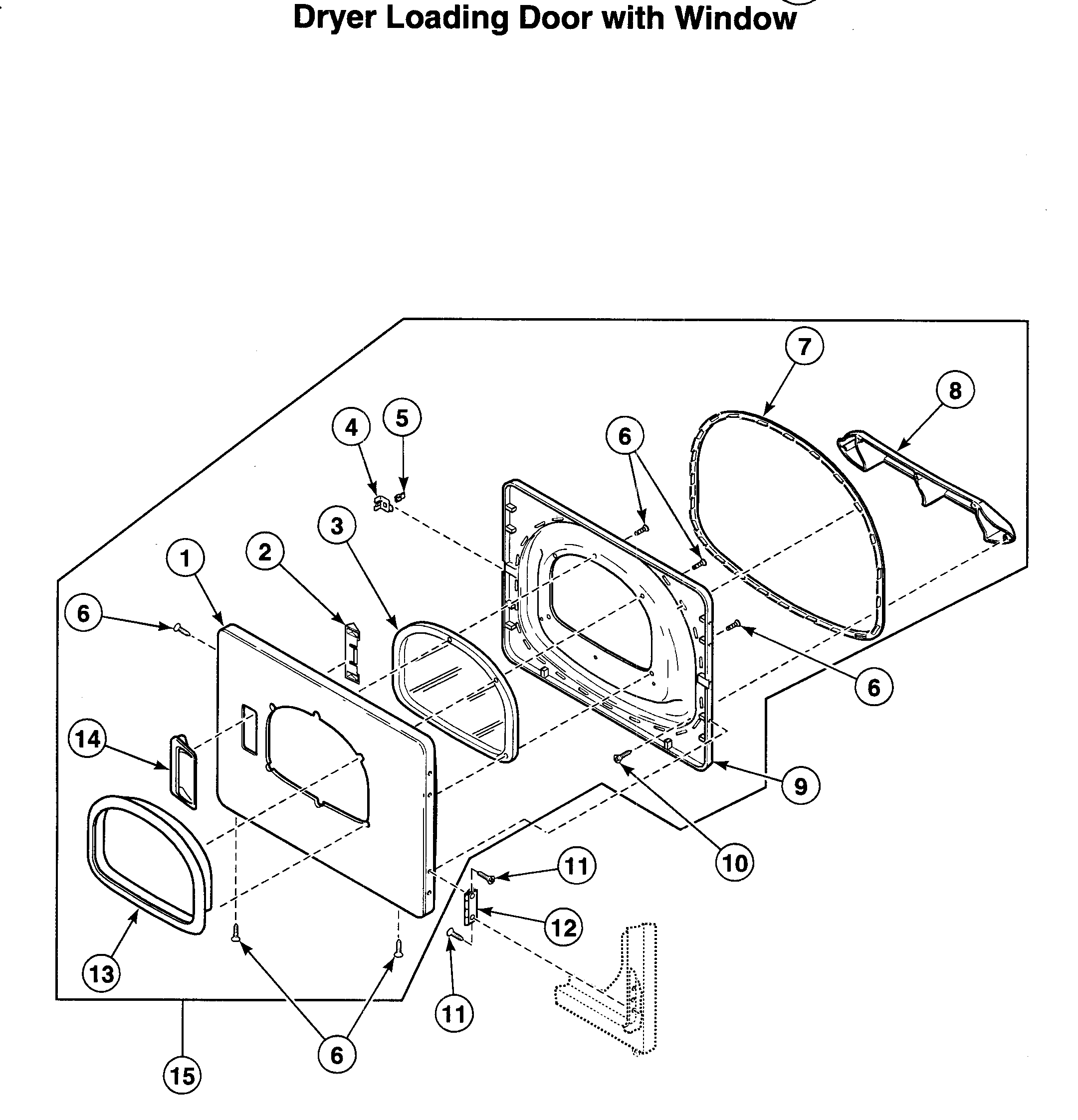

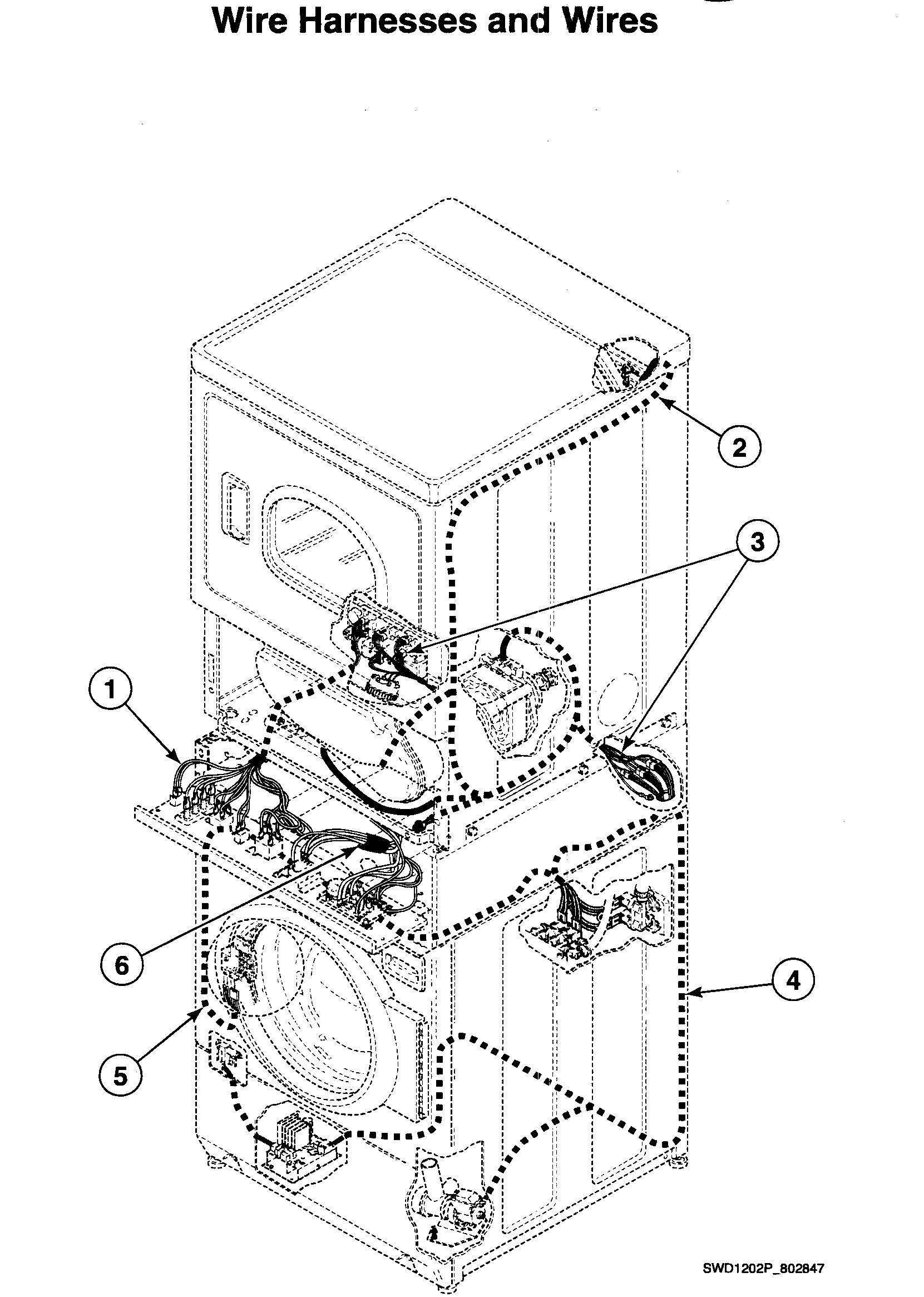

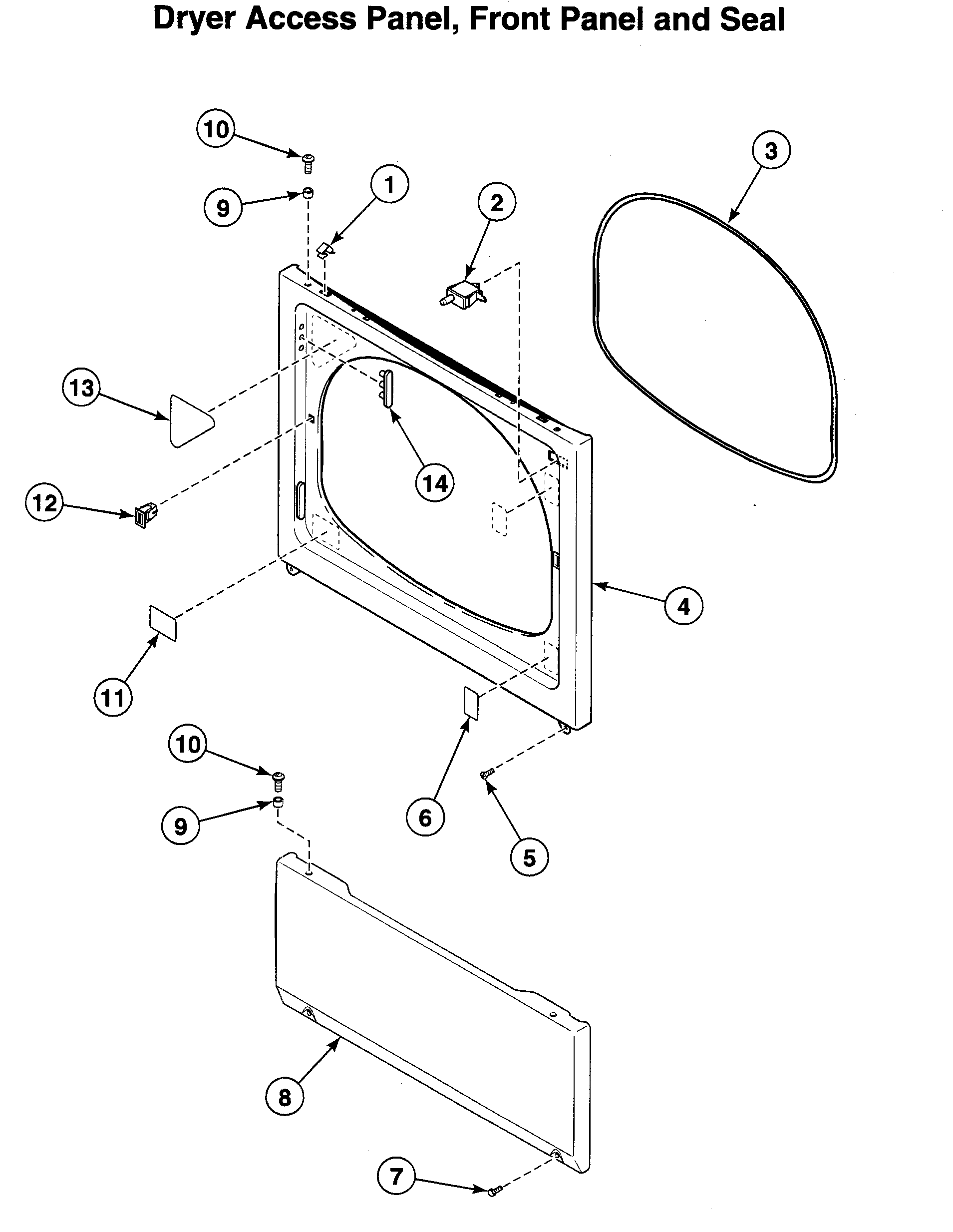

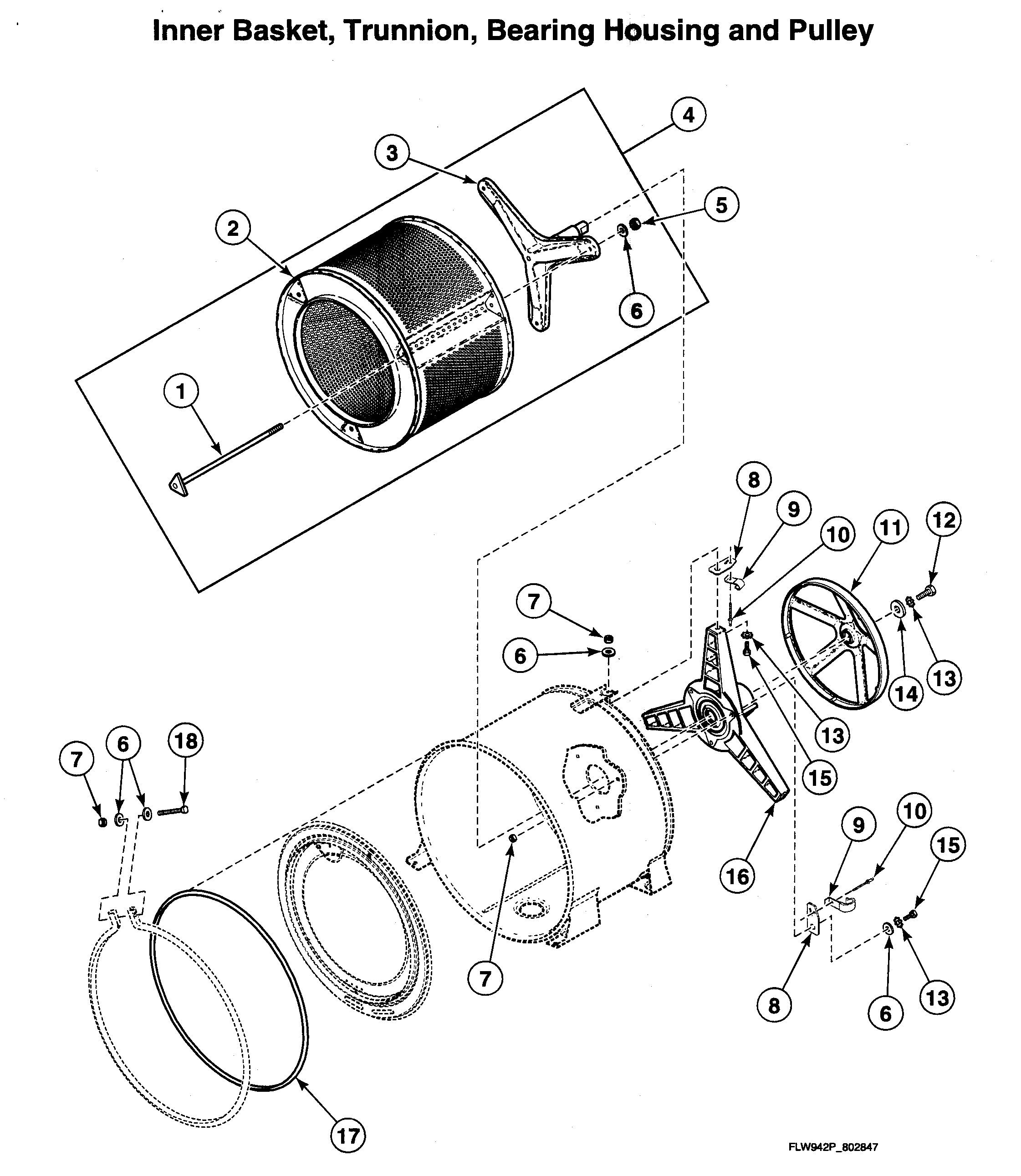

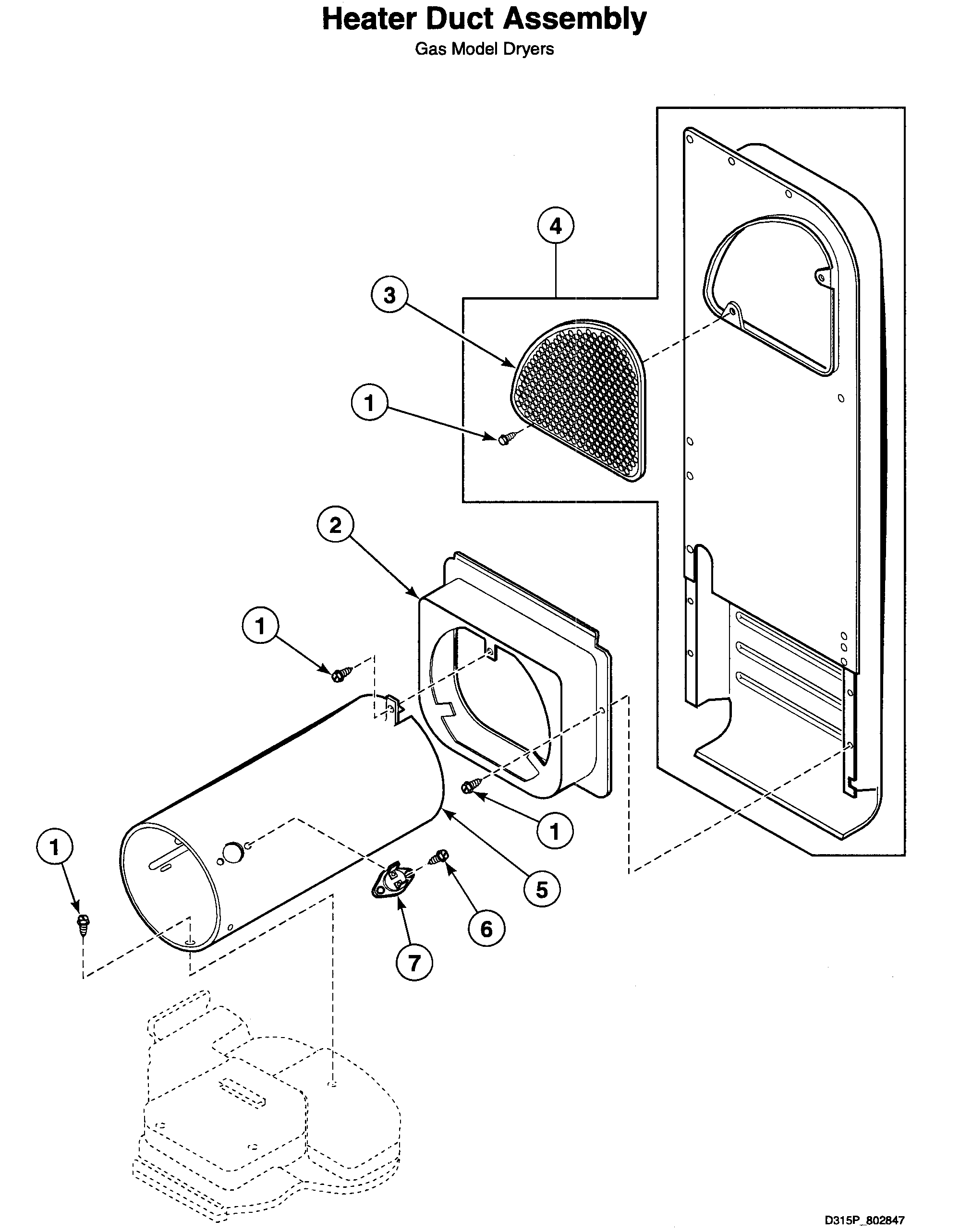

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 326 parts  |
Dryer Blower Fan 510139P
#11

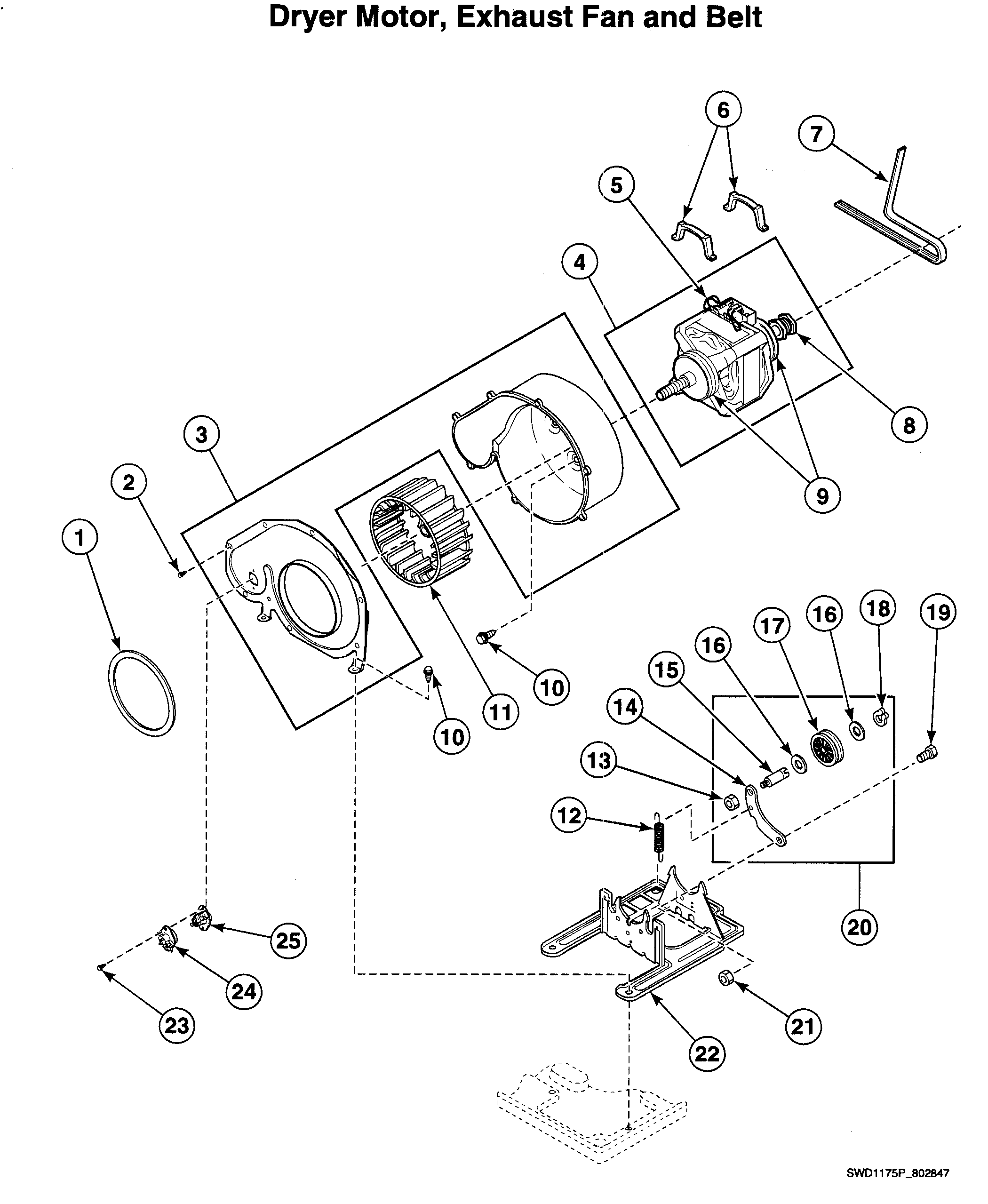

Dryer motor diagram

Dryer blower fan

Part #510139P

The manufacturer no longer makes this part, and there's no substitute part

Dryer Drum Support Roller 510708P
#9

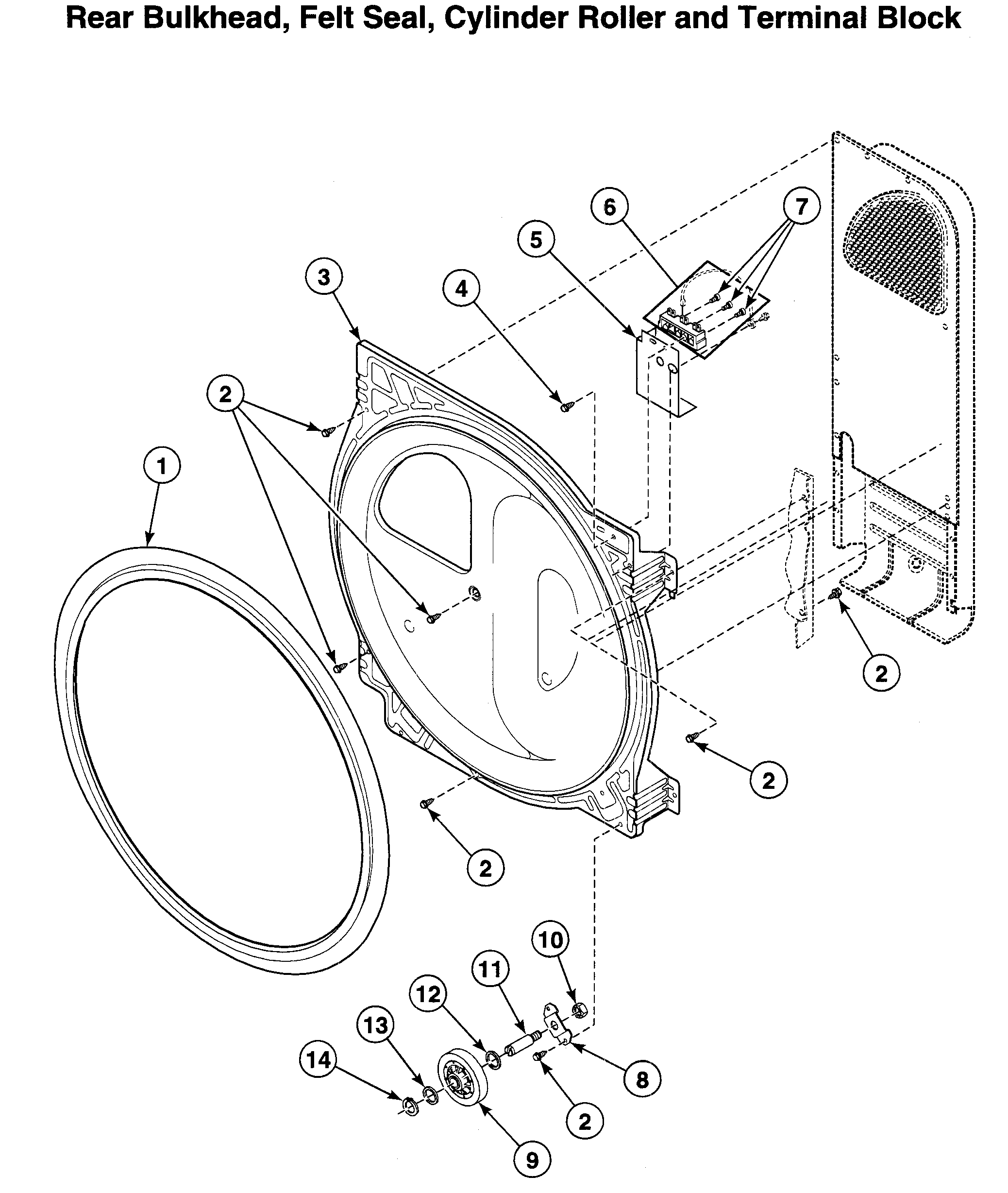

Roller assy diagram

Dryer drum support roller

Part #510708P

The manufacturer no longer makes this part, and there's no substitute part

Dryer Idler Assembly 510158
#20

Dryer motor diagram

Dryer idler assembly

Part #510158

The manufacturer no longer makes this part, and there's no substitute part

Dryer Secondary Valve Coil 58804B
#8

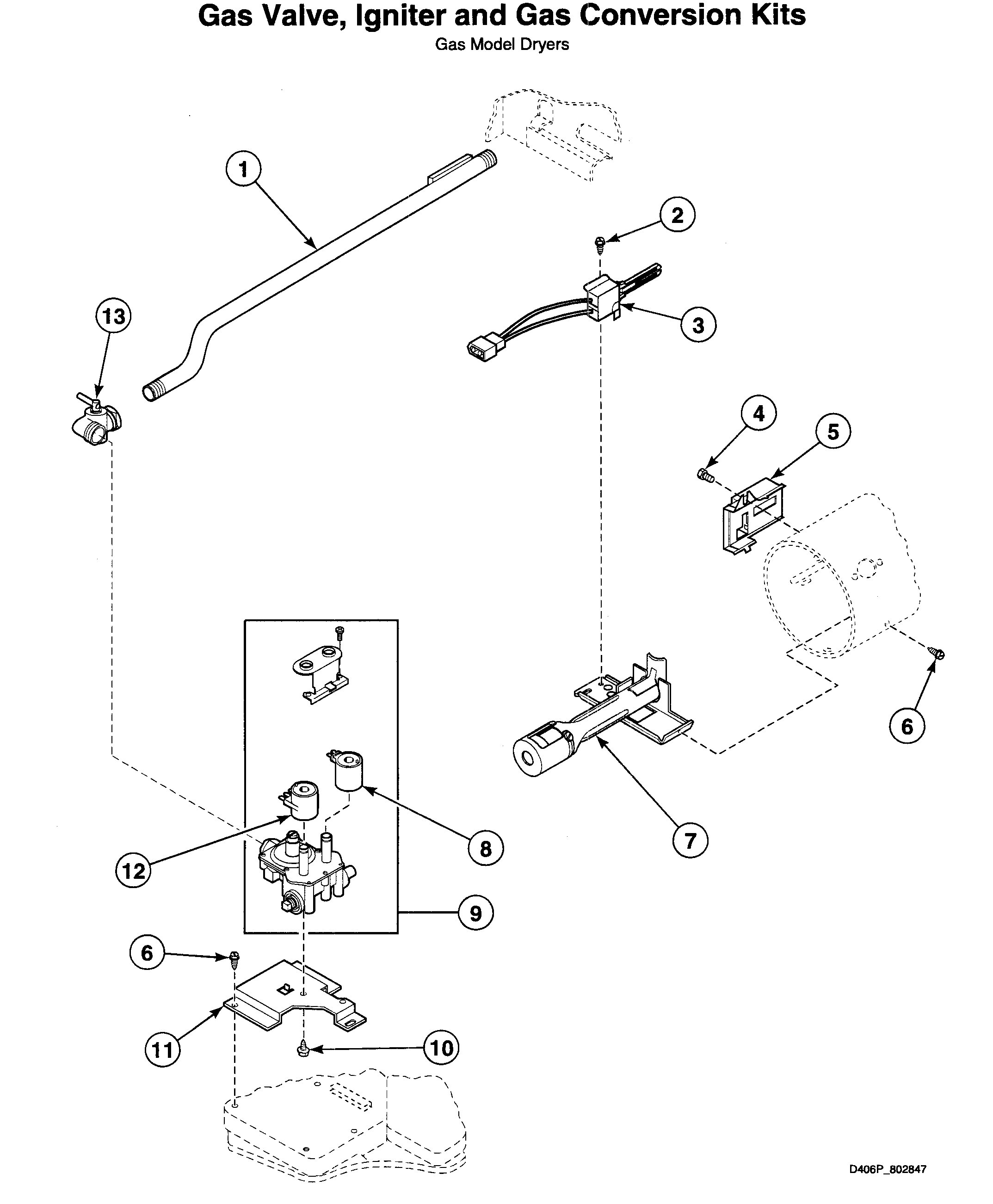

Gas valve diagram

Dryer secondary valve coil

Part #58804B

The manufacturer no longer makes this part, and there's no substitute part

Washer 52549
Washer

Part #52549

The manufacturer no longer makes this part, and there's no substitute part

Dryer Belt 511255P
#7

Dryer motor diagram

Dryer belt

Part #511255P

The manufacturer no longer makes this part, and there's no substitute part

Thermal Fuse 511412
#4

Heater assy diagram

Thermal fuse

Part #511412

The manufacturer no longer makes this part, and there's no substitute part

Ring 23748
Ring

Part #23748

The manufacturer no longer makes this part, and there's no substitute part

Dryer Booster And Holding Valve Coil 58804A
#12

Gas valve diagram

Dryer booster and holding valve coil

Part #58804A

The manufacturer no longer makes this part, and there's no substitute part

Door Seal 802261
Door seal

Part #802261

The manufacturer no longer makes this part, and there's no substitute part
