Model #VTN630C/01 Thermador vent system

Here are the diagrams and repair parts for Thermador VTN630C-01 vent system, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 6 of 6 parts

    Downdraft Vent Power Cord Strain Relief

    #101

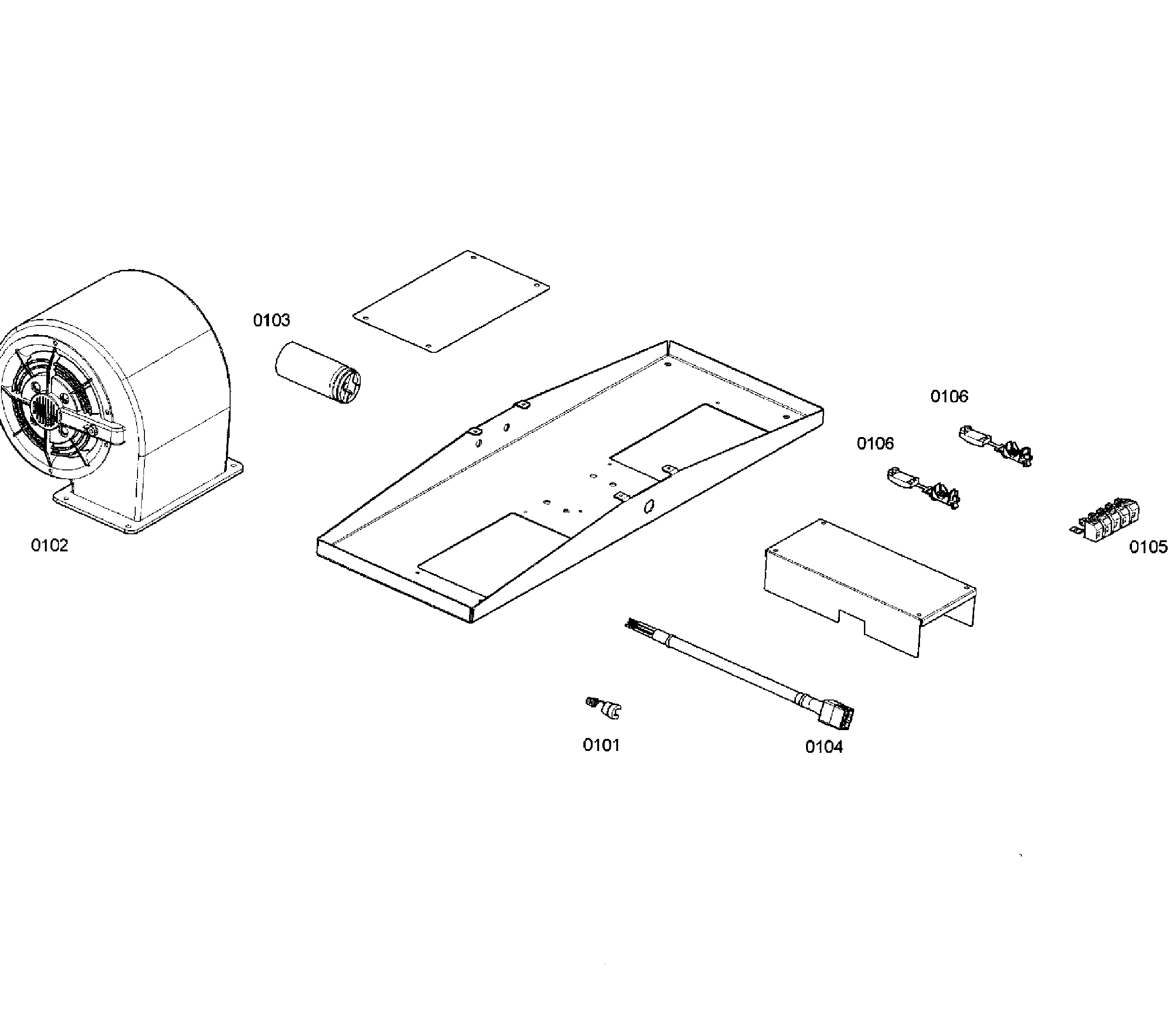

    Range hood Diagram

    Downdraft vent power cord strain relief

    Part #00603588
    ?
    Manufacturer substitution
    This part replaces 603588. Substitute parts can look different from the original.
    This part replaces 603588
    $16.50

    In Stock

    Range Hood Blower Motor Assembly

    #102

    Range hood Diagram

    Range hood blower motor assembly

    Part #00448364
    ?
    Manufacturer substitution
    This part replaces 448364. Substitute parts can look different from the original.
    This part replaces 448364
    $368.94

    Back Order

    Range Hood Run Capacitor

    #103

    Range hood Diagram

    Range hood run capacitor

    Part #00418450
    ?
    Manufacturer substitution
    This part replaces 418450. Substitute parts can look different from the original.
    This part replaces 418450
    $64.45

    In Stock

    Cable Harness

    #104

    Range hood Diagram

    Cable harness

    Part #00448876
    ?
    Manufacturer substitution
    This part replaces 448876. Substitute parts can look different from the original.
    This part replaces 448876
    $57.68

    In Stock

    Terminal

    #105

    Range hood Diagram

    Terminal

    Part #00603982
    ?
    Manufacturer substitution
    This part replaces 603982. Substitute parts can look different from the original.
    This part replaces 603982
    $20.55

    In Stock

    Stress Release

    #106

    Range hood Diagram

    Stress release

    Part #156380

    The manufacturer no longer makes this part, and there's no substitute part
