GE FCM7DNAWH freezer - a series

GE FCM7DNAWH freezer - a series Parts

Here are the diagrams and repair parts for GE FCM7DNAWH freezer - a series, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for FCM7DNAWH Freestanding Freezers

  • Refrigerator Run Capacitor for GE FCM7DNAWH - Part WR55X24064

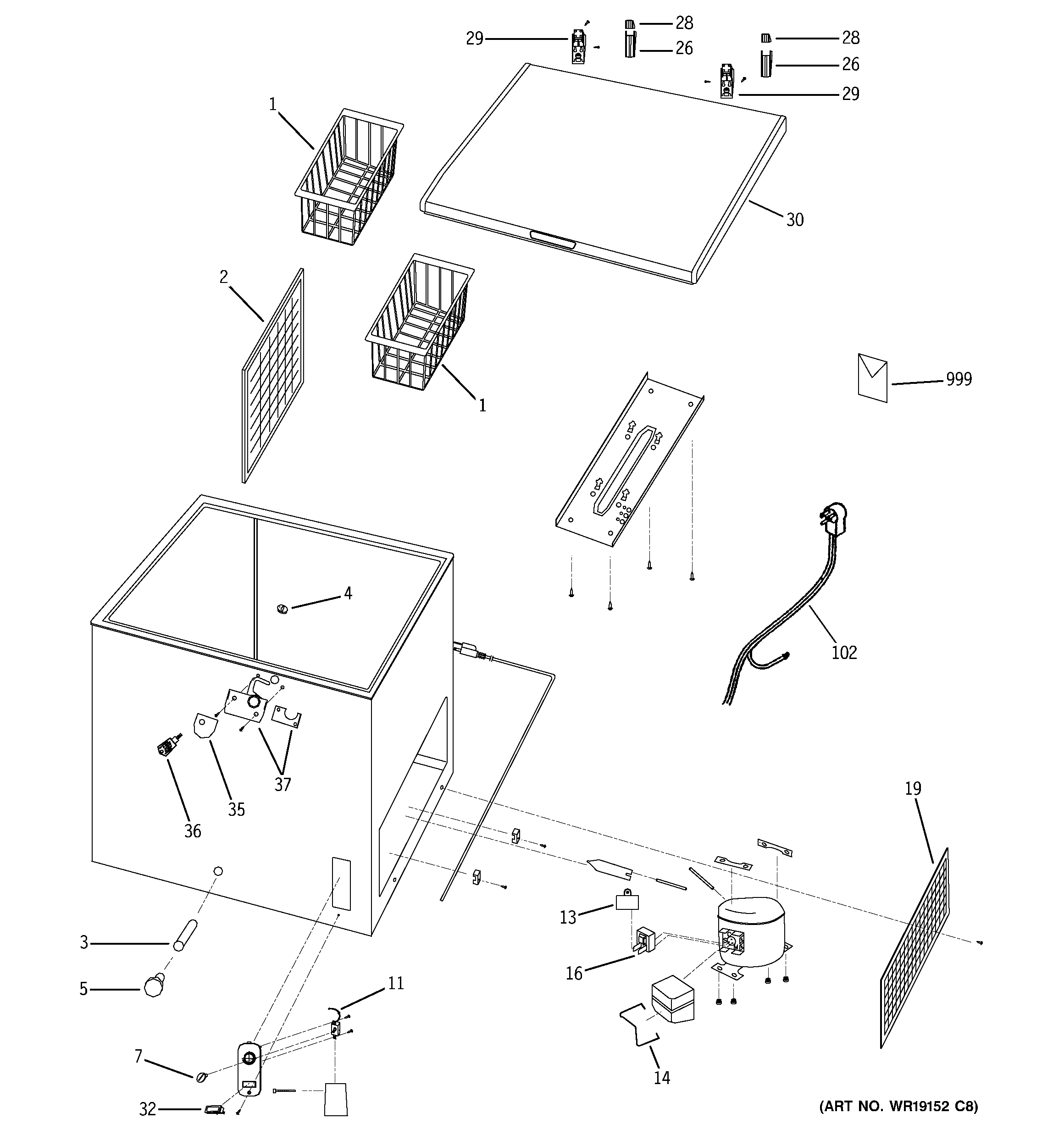

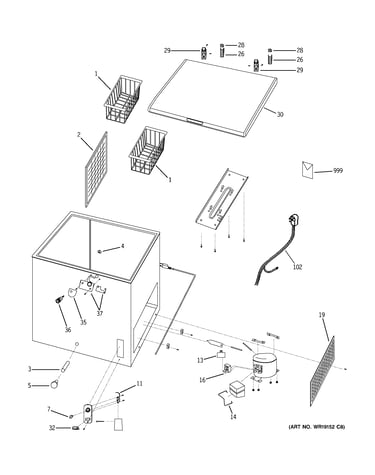

    Freezer parts diagram

    Run Capacitor

    Part #WR62X10022

    Replaced by #WR55X24064

    Info Icon
    Manufacturer substitution
    This part replaces WR62X10022. Substitute parts can look different from the original.
    In Stock
    $64.51
    9% OFF Phone Price : $70.51Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Start Relay for GE FCM7DNAWH - Part WR07X26748

    Freezer parts diagram

    Ptc Relay

    Part #WR07X10064

    Replaced by #WR07X26748

    Info Icon
    Manufacturer substitution
    This part replaces WR07X10064. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.86
    11% OFF Phone Price : $18.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Grille for GE FCM7DNAWH - Part WR17X10821

    Freezer parts diagram

    Grille

    Part #WR17X10821
    In Stock
    $34.79
    Minus Item
    Qty
    Plus Item
  • Drain Plug for GE FCM7DNAWH - Part WR02X10677

    Freezer parts diagram

    Drain Plug

    Part #WR02X10677
    In Stock
    $214.36
    Minus Item
    Qty
    Plus Item
  • Hinge Cover for GE FCM7DNAWH - Part WR13X10264

    Freezer parts diagram

    Hinge Cover

    Part #WR13X10264
    In Stock
    $28.73
    Minus Item
    Qty
    Plus Item
  • Refrigerator Power Cord for GE FCM7DNAWH - Part WR23X10300

    Freezer parts diagram

    Cord Pwr Asm

    Part #WR23X0420

    Replaced by #WR23X10300

    Info Icon
    Manufacturer substitution
    This part replaces WR23X0420. Substitute parts can look different from the original.
    In Stock
    $28.25
    18% OFF Phone Price : $34.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Divider for GE FCM7DNAWH - Part WR02X11339

    Freezer parts diagram

    Divider

    Part #WR02X11339

    The manufacturer no longer makes this part, and there's no substitute part

  • Clamp for GE FCM7DNAWH - Part WR02X10680

    Freezer parts diagram

    Clamp

    Part #WR02X10680

    The manufacturer no longer makes this part, and there's no substitute part

  • Hinge Cover for GE FCM7DNAWH - Part WR02X11341

    Freezer parts diagram

    Hinge Cover

    Part #WR02X11341

    The manufacturer no longer makes this part, and there's no substitute part

  • Lid Foam Asm for GE FCM7DNAWH - Part WR17X11827

    Freezer parts diagram

    Lid Foam Asm

    Part #WR17X11827

    The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Read more

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Read more

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Read more

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Read more

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Read more

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Read more

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Read more

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Read more

Repair guides for chest freezers

View all
How to replace a freezer compressor start relay

How to replace a freezer compressor start relay

The compressor start relay starts the compressor. If the compressor won’t start, follow these steps to replace a defect…

Read more

Repair time and Difficulty

 15 minutes or less
How to replace a freezer temperature control thermostat

How to replace a freezer temperature control thermostat

The cold control thermostat regulates the freezer temperature. A defective cold control thermostat can prevent the compr…

Read more

Repair time and Difficulty

 15 minutes or less
How to replace a freezer lid gasket

How to replace a freezer lid gasket

The lid gasket prevents air and moisture from entering the freezer when the lid is closed. Follow these steps to replace…

Read more

Repair time and Difficulty

 30 minutes or less

Effective articles & videos to help repair your freestanding freezers

Use the advice and tips in these articles and videos to get the most out of your freezer.

View all
Introducing new technical repair content that we’re developing for the Sears Technical Institute

Introducing new technical repair content that we’re developing for the Sears Technical Institute

Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…

Read more
Top questions about Sears and Sears PartsDirect

Top questions about Sears and Sears PartsDirect

Get answers to frequently asked questions about Sears and Sears PartsDirect.…

Read more
Wiring schematic symbols explained video

Wiring schematic symbols explained video

Learn some of the most common symbols found in a wiring diagram and what they mean.…

Read more
