Gas Walk-Behind Mower

Model # 917388391 Official Craftsman 21" 6-hp multi-cut rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388391 21" 6-hp multi-cut rotary lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
917388391 Walk-Behind Mowers
Lock Nut 83923
#39

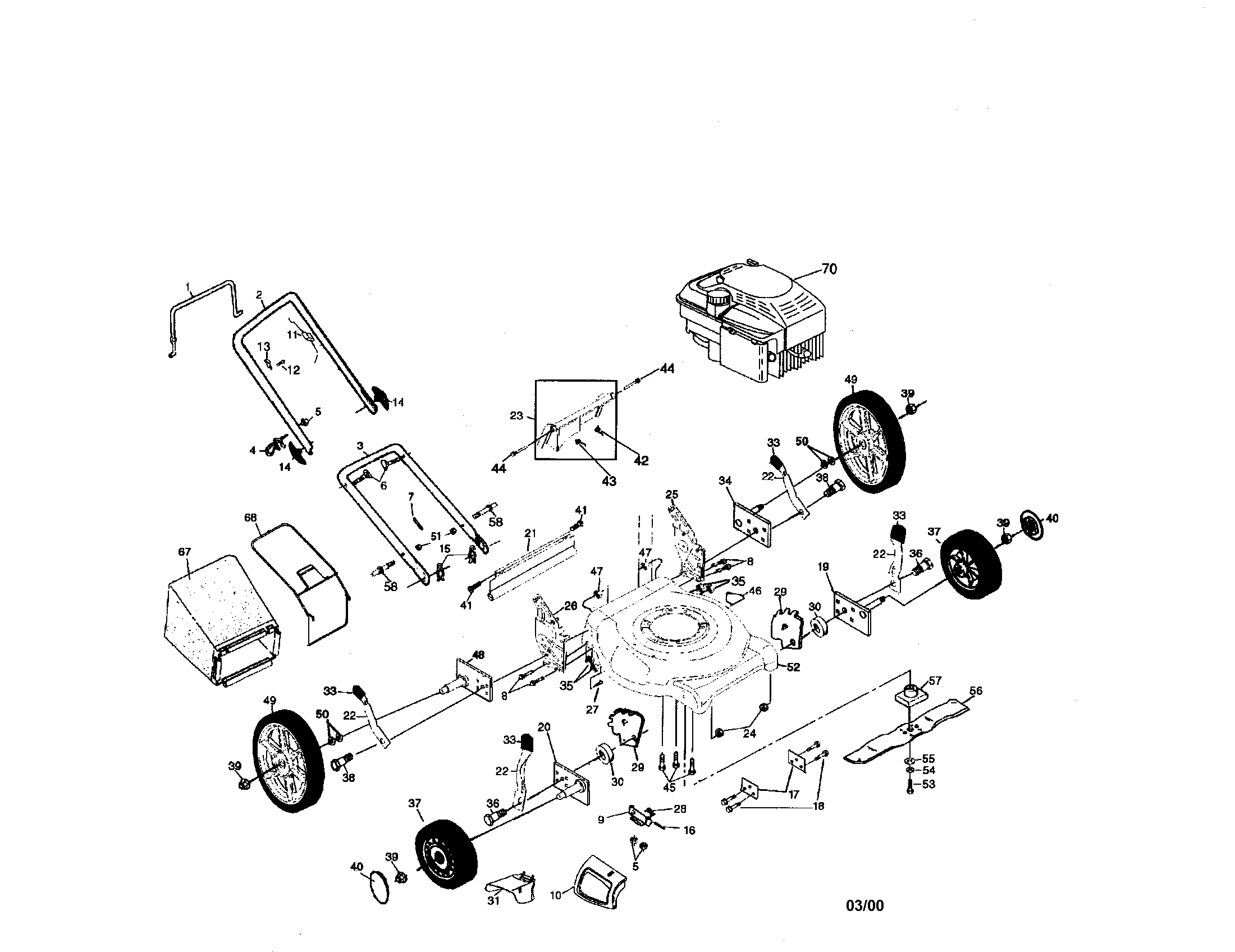

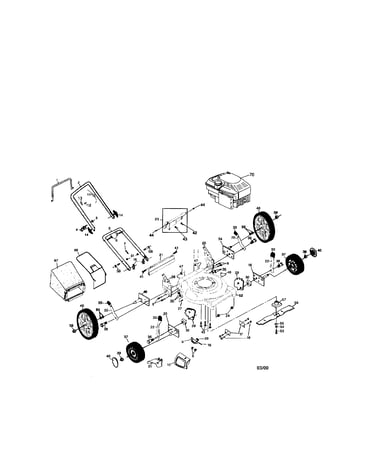

Rotary lawn mower diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.93
14% OFF Phone Price : $6.93
In Stock
Belt, 21-in 165833
#56

Rotary lawn mower diagram

Belt, 21-in

Part #165833

Replaced by #532406712

?
Manufacturer substitution
This part replaces 165833. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$24.70
20% OFF Phone Price : $30.70
In Stock
Handle Knob 136376
#14

Rotary lawn mower diagram

Handle knob

Part #136376

Replaced by #532185577

?
Manufacturer substitution
This part replaces 136376. Substitute parts can look different from the original.
BEST SELLER
$11.93
14% OFF Phone Price : $13.93
In Stock
Grass Bag 166113
#67

Rotary lawn mower diagram

Grass bag

Part #166113

Replaced by #532410666

?
Manufacturer substitution
This part replaces 166113. Substitute parts can look different from the original.
BEST SELLER
$61.72
9% OFF Phone Price : $67.72
In Stock
Discharge Guard 165760
#31

Rotary lawn mower diagram

Discharge guard

Part #165760

Replaced by #589482402

?
Manufacturer substitution
This part replaces 165760. Substitute parts can look different from the original.
BEST SELLER
$14.85
12% OFF Phone Price : $16.85
In Stock
Nut Lck 5/16 73990500
#51

Rotary lawn mower diagram

Nut lck 5/16

Part #73990500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73990500. Substitute parts can look different from the original.
BEST SELLER
In Stock
Skirt 165858
#21

Rotary lawn mower diagram

Skirt

Part #165858

Replaced by #532413160

?
Manufacturer substitution
This part replaces 165858. Substitute parts can look different from the original.
BEST SELLER
$19.10
9% OFF Phone Price : $21.10
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Rotary lawn mower diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.31
19% OFF Phone Price : $5.31
In Stock
Lawn & Garden Equipment Screw 851084
#53

Rotary lawn mower diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532851084

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#55

Rotary lawn mower diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
In Stock
