Kenmore
Room Air Conditioner

Model # 25377106790 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25377106790 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Capacitor 5303313963
#13

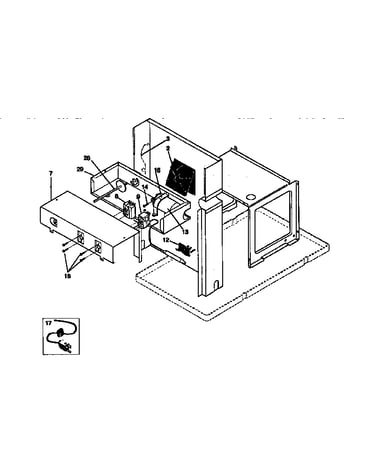

Control panel diagram

Capacitor

Part #5303313963

$104.70
In Stock
Nameplate 5303299902
#24

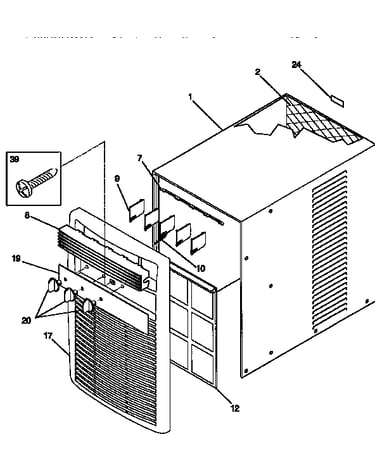

Wrapper diagram

Nameplate

Part #5303299902

This item is not returnable
$3.49
In Stock
Seal Condenser 5303313964
Seal condenser

Part #5303313964

This item is not returnable
$2.16
In Stock
Room Air Conditioner Filter Dryer 5300265301
#17

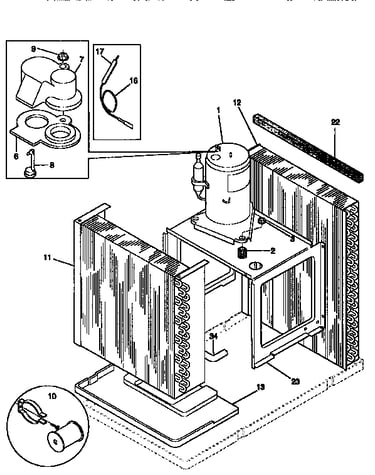

Compressor diagram

Room air conditioner filter dryer

Part #5300265301

$110.08
In Stock
Screw 3202975
#2

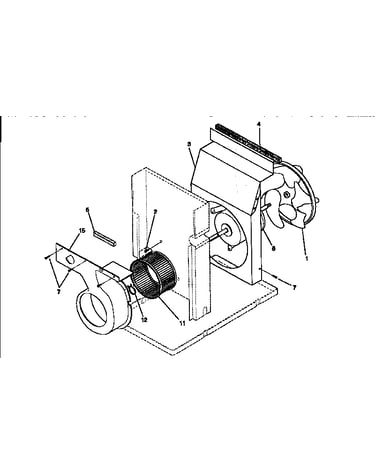

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Screw 5303303691
#7

Air handling diagram

Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$14.69
In Stock
Bracket Screw 3015312
#39

Wrapper diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Gasket 3201668
#6

Compressor diagram

Gasket

Part #3201668

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Foot 309622401
#17

Wrapper diagram

Cabinet foot

Part #309622401

The manufacturer no longer makes this part, and there's no substitute part

Cord Electrical 5303313974
#17

Control panel diagram

Cord electrical

Part #5303313974

The manufacturer no longer makes this part, and there's no substitute part
