Model #S3003--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Hoover S3003- canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 36 parts

    Connector#18

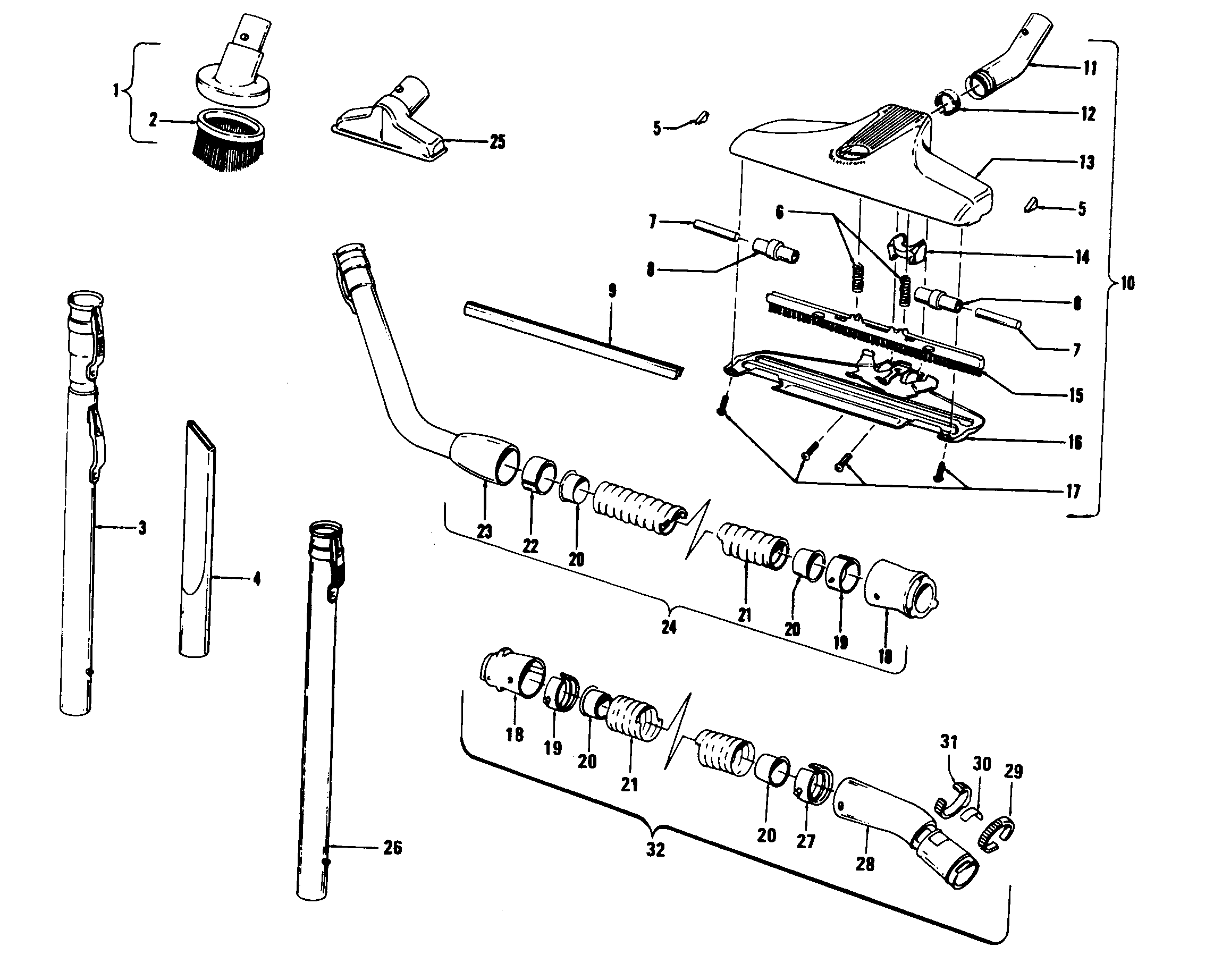

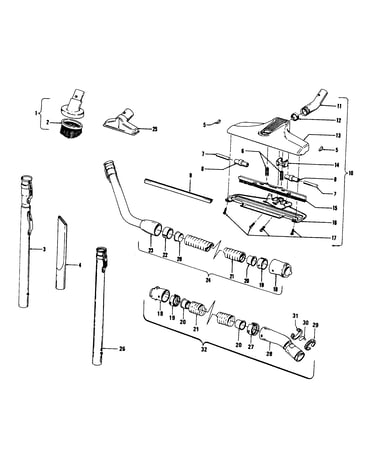

    Hose, cleaningtools Diagram

    Connector

    Part #32855003

    The manufacturer no longer makes this part, and there's no substitute part

    Sleeve Hose#20

    Hose, cleaningtools Diagram

    Sleeve hose

    Part #32156010

    The manufacturer no longer makes this part, and there's no substitute part

    Spring#7

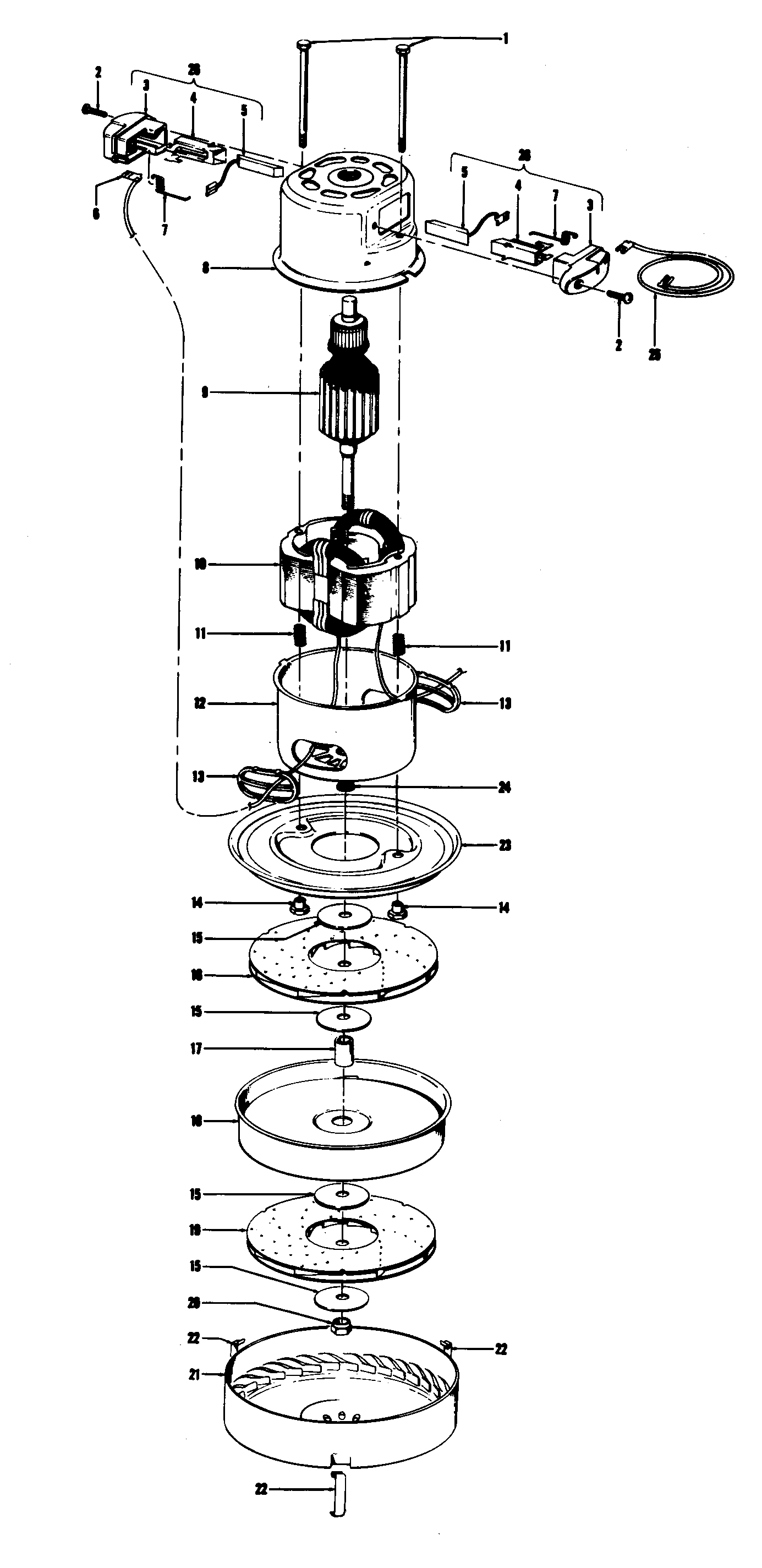

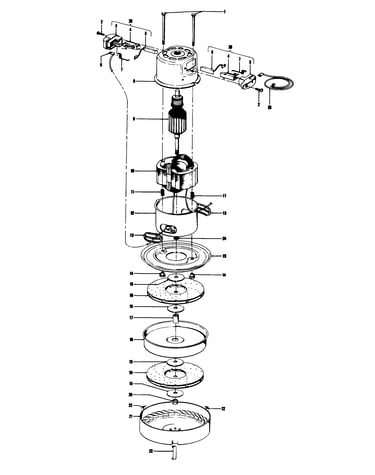

    Motor assembly Diagram

    Spring

    Part #38353004

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Crevice Tool#4

    Hose, cleaningtools Diagram

    Vacuum crevice tool

    Part #38617017

    The manufacturer no longer makes this part, and there's no substitute part

    Commutat Blk#44

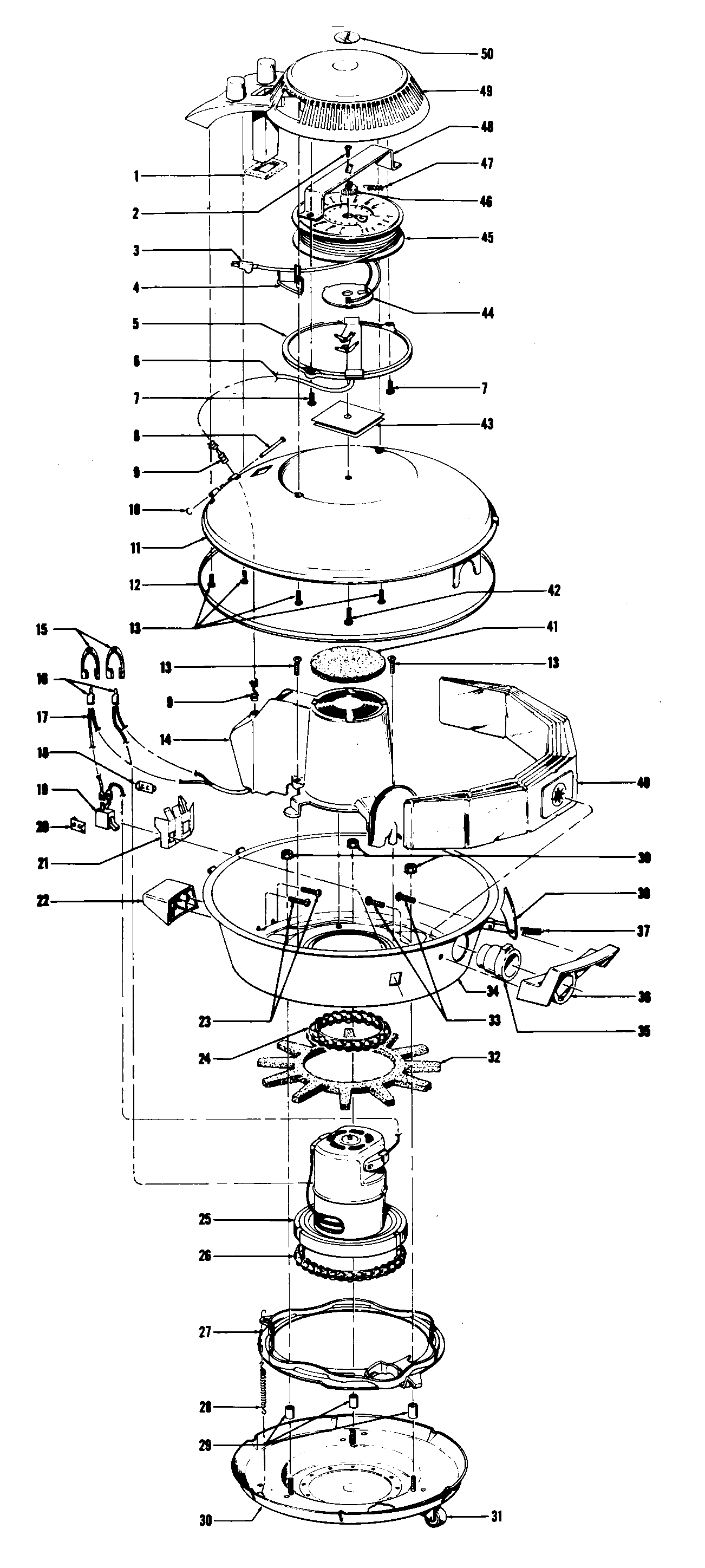

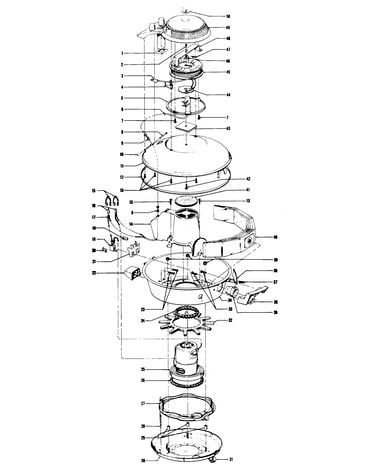

    Cordreel, mainhousing Diagram

    Commutat blk

    Part #46831076

    The manufacturer no longer makes this part, and there's no substitute part

    Screw#2

    Motor assembly Diagram

    Screw

    Part #21429406

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Upholstery Nozzle#25

    Hose, cleaningtools Diagram

    Vacuum upholstery nozzle

    Part #43414057

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Hose Grip Lock Ring#29

    Hose, cleaningtools Diagram

    Vacuum hose grip lock ring

    Part #36153009

    The manufacturer no longer makes this part, and there's no substitute part

    Nut#20

    Motor assembly Diagram

    Nut

    Part #33426001

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Dust Brush#1A

    Hose, cleaningtools Diagram

    Vacuum dust brush

    Part #43414064

    The manufacturer no longer makes this part, and there's no substitute part
