Craftsman
Walk-Behind Mower

Model #13188273 Craftsman rotary power mower

Here are the diagrams and repair parts for Craftsman 13188273 rotary power mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 86 parts

    Lawn & Garden Equipment Washer

    #36

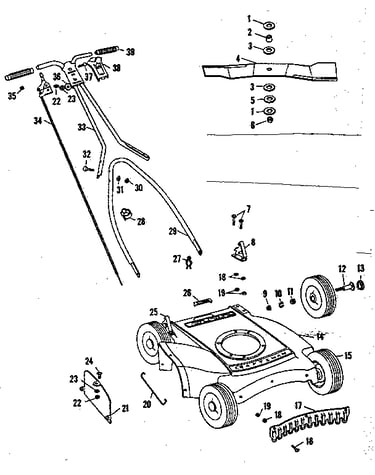

    Replacement parts Diagram

    Lawn & garden equipment washer

    Part #52784
    This item is not returnable
    $2.51

    In Stock

    Nut

    #19

    Replacement parts Diagram

    Nut

    Part #50675

    The manufacturer no longer makes this part, and there's no substitute part

    Bolt

    #24

    Replacement parts Diagram

    Bolt

    Part #26936

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut

    #9

    Replacement parts Diagram

    Hex nut

    Part #50903

    The manufacturer no longer makes this part, and there's no substitute part

    Tiller Shoulder Bolt

    #12

    Replacement parts Diagram

    Tiller shoulder bolt

    Part #532121117
    ?
    Manufacturer substitution
    This part replaces 52246. Substitute parts can look different from the original.
    This part replaces 52246
    This item is not returnable
    $5.94

    In Stock

    Bolt

    #16

    Replacement parts Diagram

    Bolt

    Part #50674

    The manufacturer no longer makes this part, and there's no substitute part

    Nylok Nut

    #35

    Replacement parts Diagram

    Nylok nut

    Part #52850

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer

    #18

    Replacement parts Diagram

    Lock washer

    Part #5081

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer, 8-pack

    #23

    Replacement parts Diagram

    Lock washer, 8-pack

    Part #STD551110
    ?
    Manufacturer substitution
    This part replaces 5080. Substitute parts can look different from the original.
    This part replaces 5080
    This item is not returnable
    $2.58

    In Stock

    Lock Washer

    #10

    Replacement parts Diagram

    Lock washer

    Part #50902

    The manufacturer no longer makes this part, and there's no substitute part
