Whirlpool WZF34X16DW06 upright freezer

Whirlpool WZF34X16DW06 upright freezer Parts

Here are the diagrams and repair parts for Whirlpool WZF34X16DW06 upright freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WZF34X16DW06 Freestanding Freezers

  • Refrigerator Uv Filter Dryer for Whirlpool WZF34X16DW06 - Part WPW10143759

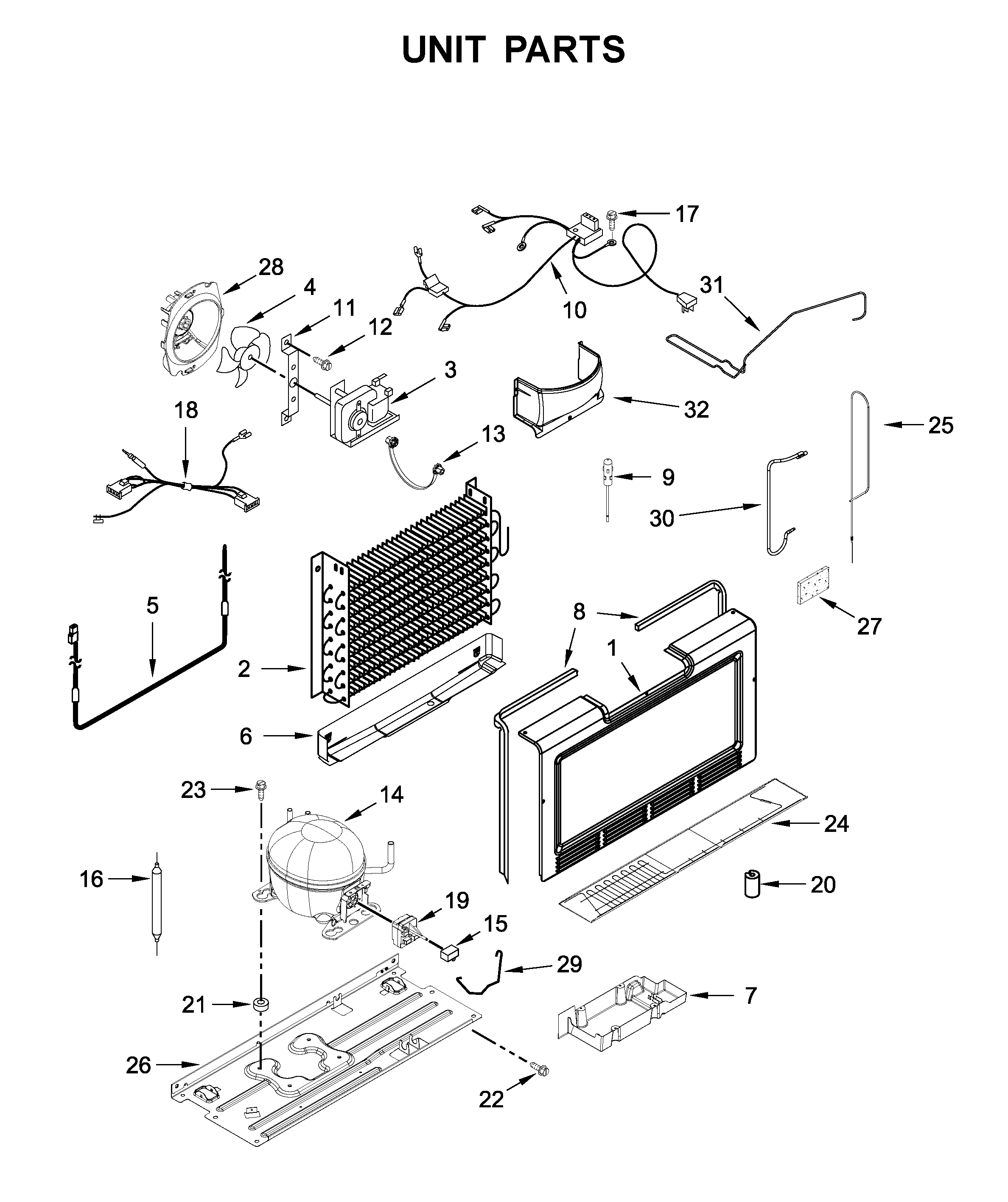

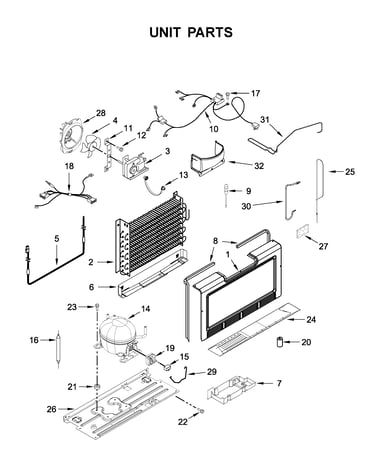

    Unit parts diagram

    Drier Assembly

    Part #W10709968

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces W10709968. Substitute parts can look different from the original.
    In Stock
    $22.16
    21% OFF Phone Price : $28.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for Whirlpool WZF34X16DW06 - Part WP2169142

    Unit parts diagram

    Refrigerator Evaporator Fan Blade

    Part #2169142

    Replaced by #WP2169142

    Info Icon
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    In Stock
    $24.25
    20% OFF Phone Price : $30.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Temperature Sensor for Whirlpool WZF34X16DW06 - Part WPW10383615

    Unit parts diagram

    Refrigerator Thermistor

    Part #W10383615

    Replaced by #WPW10383615

    Info Icon
    Manufacturer substitution
    This part replaces W10383615. Substitute parts can look different from the original.
    In Stock
    $35.06
    15% OFF Phone Price : $41.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Thermistor for Whirlpool WZF34X16DW06 - Part W10384183

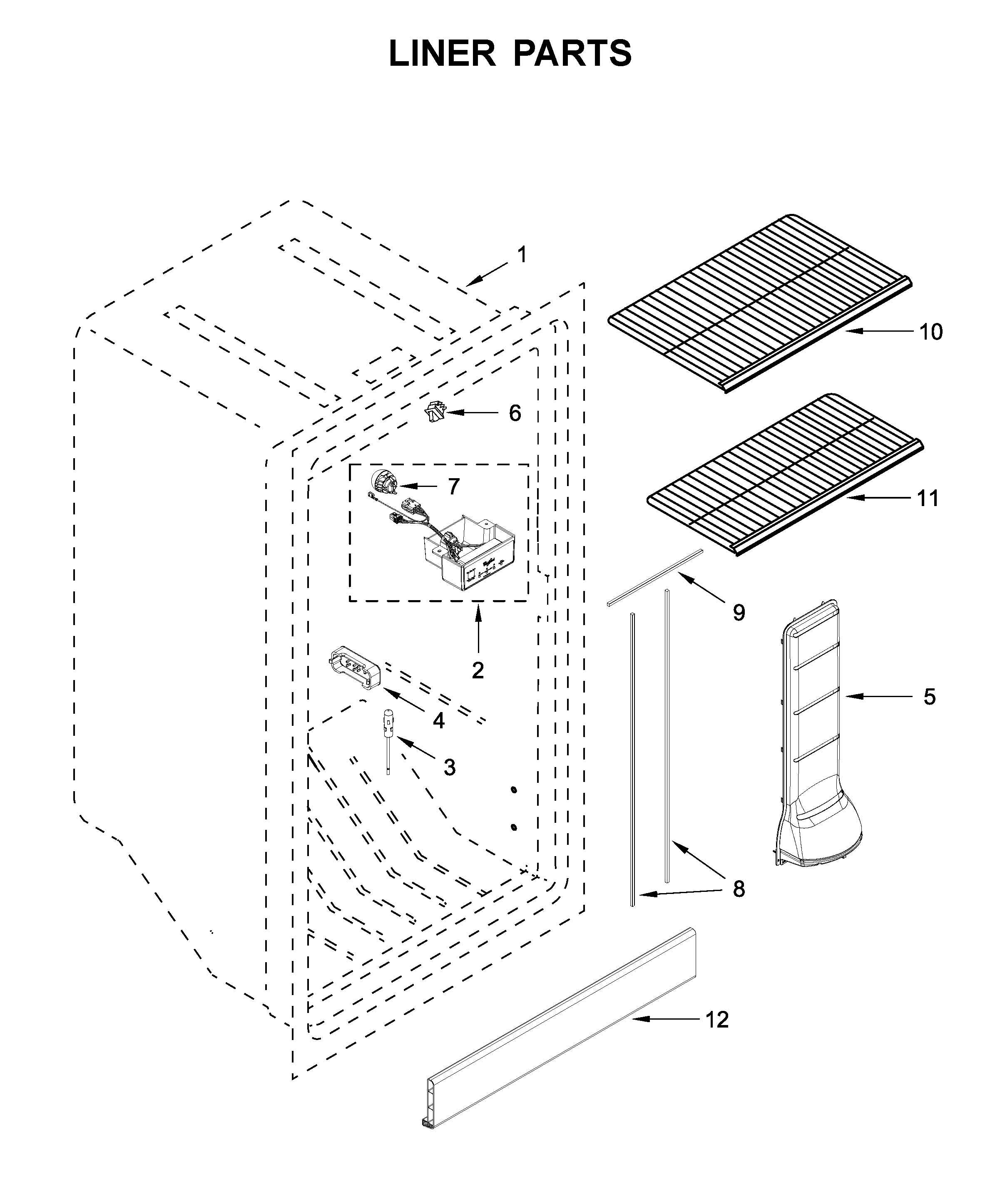

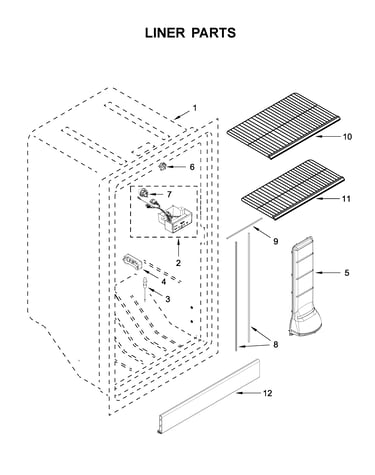

    Liner parts diagram

    Refrigerator Thermistor

    Part #W10384183

    The manufacturer no longer makes this part, and there's no substitute part

  • Whirlpool Refrigerator Run Capacitor for Whirlpool WZF34X16DW06 - Part WPW10350564

    Unit parts diagram

    Refrigerator Run Capacitor

    Part #W10350564

    Replaced by #WPW10350564

    Info Icon
    Manufacturer substitution
    This part replaces W10350564. Substitute parts can look different from the original.
    In Stock
    $59.30
    9% OFF Phone Price : $65.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for Whirlpool WZF34X16DW06 - Part 350930

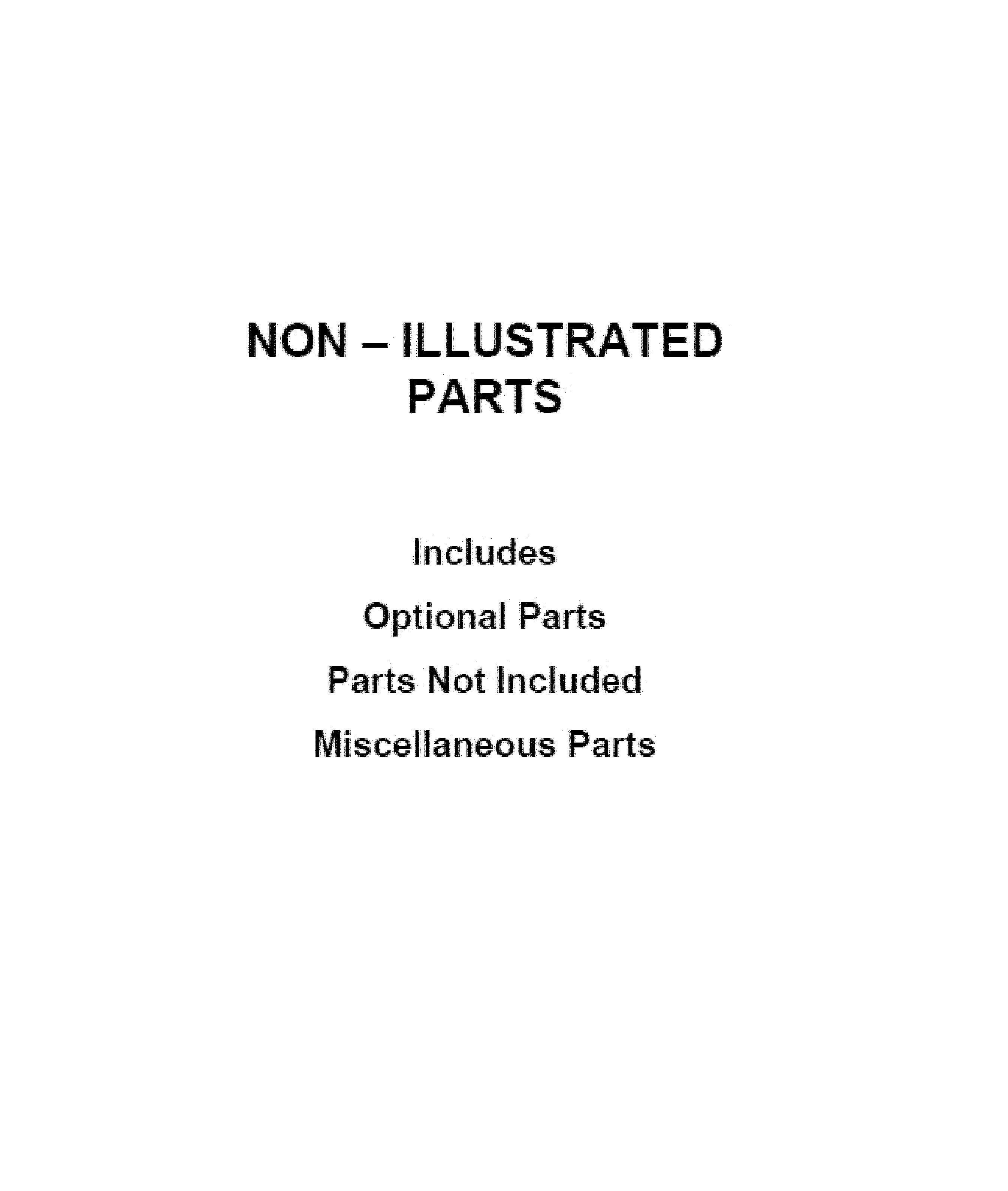

    Optional parts (not included) diagram

    Spray Paint (white)

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Evaporator for Whirlpool WZF34X16DW06 - Part W11507067

    Unit parts diagram

    Evaporator

    Part #W11209261

    Replaced by #W11507067

    Info Icon
    Manufacturer substitution
    This part replaces W11209261. Substitute parts can look different from the original.
    In Stock
    $125.79
    9% OFF Phone Price : $137.79Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Start Relay for Whirlpool WZF34X16DW06 - Part W11092533

    Unit parts diagram

    Combination

    Part #W10798748

    Replaced by #W11092533

    Info Icon
    Manufacturer substitution
    This part replaces W10798748. Substitute parts can look different from the original.
    In Stock
    $88.53
    6% OFF Phone Price : $94.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Whirlpool WZF34X16DW06 - Part WP489497

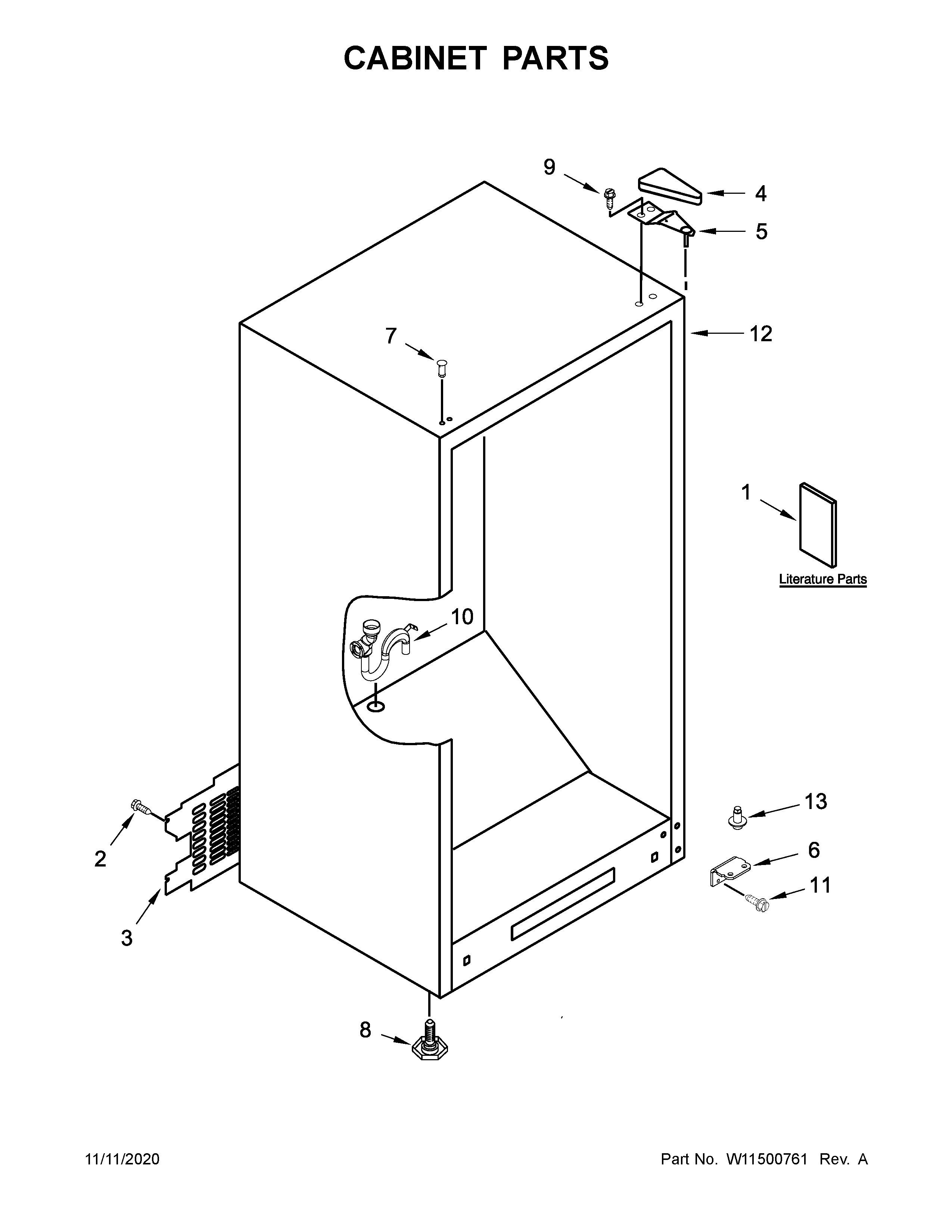

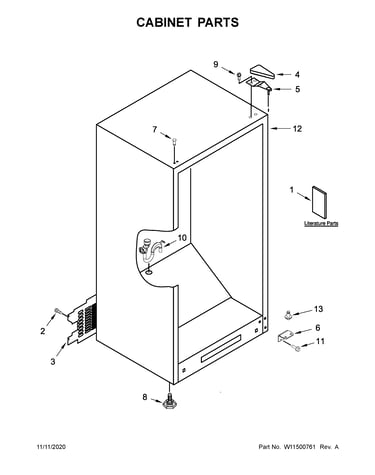

    Cabinet parts diagram

    Screw

    Part #3400113

    Replaced by #WP489497

    Info Icon
    Manufacturer substitution
    This part replaces 3400113. Substitute parts can look different from the original.
    In Stock
    $9.48
    10% OFF Phone Price : $10.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for Whirlpool WZF34X16DW06 - Part 72032

    Optional parts (not included) diagram

    Appliance Touch-up Paint, 0.6-oz (black)

    Part #72032
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item

Whirlpool UPRIGHT FREEZER WZF34X16DW06 FAQs

Most upright freezers last 10 to 20 years, and many land in the 12 to 15 year range with normal household use. For your Whirlpool WZF34X16DW06 upright freezer, lifespan depends most on installation conditions (temperature, clearance, airflow) and routine care.

What affects lifespan the most
  • Room temperature and placement: Freezers run harder in hot areas; they also should not be placed where temps drop below about 40°F.
  • Ventilation and clearance: Keep about 3 inches of space at the top and sides and about 1 inch behind the cabinet for airflow.
  • Door seal condition: A leaking gasket causes long run times, frost, and compressor wear.
  • Cleanliness and airflow inside: Overpacking and blocked vents reduce circulation.
  • Electrical stability: Frequent power interruptions and extension cords can stress components.
Quick care checklist (best ROI)
  • Keep the freezer level so the door closes and seals consistently.
  • Keep vents and air paths clear; avoid covering the cabinet with blankets or cloths.
  • Open the door less often and close it firmly each time.
  • Watch for early warning signs: louder fan noise, warming temps, heavy frost, or longer run times.
  • Follow the cleaning and care steps in the WZF34X16DW06 owner’s manual.
Typical lifespan by usage and environment
Situation Typical lifespan What usually shortens it
Climate-controlled indoor space 12 to 20 years Poor airflow, dirty seals
Garage or hot utility area 8 to 15 years High ambient heat, long run times
Heavy use (large family, frequent access) 10 to 15 years Door openings, warm food loads
Why it matters

A freezer that runs hot, lacks clearance, or has a weak door seal can run nearly nonstop. That increases energy use and accelerates wear on the sealed system and controls, which are the most expensive repairs.

Last updated: January 2026

Whirlpool upright freezers like model WZF34X16DW06 are a strong choice for everyday home use because they are built for consistent freezing performance, practical storage, and straightforward ownership. For model-specific features, operating tips, and care guidance, use the WZF34X16DW06 owner’s manual.

What “good” usually means for an upright freezer

Most customers judge an upright freezer on temperature stability, usable space, and how easy it is to live with day to day. For Whirlpool uprights, the common strengths are:

  • Easy organization with shelves, bins, and door storage
  • Consistent freezing when the door seal is tight and airflow is clear
  • Quiet, steady operation in normal conditions
  • Simple controls and predictable maintenance needs
Quick checklist: what to look for in your WZF34X16DW06

Use this list to confirm your freezer is performing like it should:

  • Door closes and seals fully; no gaps or warm air leaks
  • Cabinet is level so the door self-closes reliably
  • Air vents are not blocked by boxes or bags
  • Interior temperature holds steady after 24 hours of operation
  • Frost pattern is normal (heavy frost usually points to a door seal or defrost issue)
Common “good vs. needs attention” signs
What you notice Usually means What to do next
Even temps, firm-frozen food Normal operation Keep vents clear, avoid overpacking
Frost building up quickly Moist air entering or defrost problem Check gasket contact and door habits
Warm spots or soft food Airflow or cooling issue Verify settings, clear vents, listen for fan
Loud buzzing/clicking often Compressor start or component issue Inspect for vibration, consider service
Why it matters

A “good” upright freezer protects food quality and reduces energy waste. Small issues like a poor door seal or blocked airflow can make any freezer seem weak even when the sealed system is fine.

Last updated: January 2026

The Whirlpool WZF34X16DW06 upright freezer is designed for convenient, consistent freezing with user-friendly controls and low-maintenance operation. Key highlights include electronic temperature control, frost-free defrost, and storage features that help you organize food while keeping airflow clear (details and operation are covered in the WZF34X16DW06 owner's manual).

Key features customers look for
  • Frost-free defrost: reduces manual defrosting and helps limit heavy frost buildup
  • Electronic temperature controls: makes it easier to set and maintain your target temperature
  • Fast Freeze option (on many versions of this platform): quickly drops temperature for newly added items
  • Adjustable shelving: supports flexible storage for bulk items and smaller packages
  • Reversible door: allows left- or right-swing installation to fit your space
Controls and everyday operation

The manual for this model family covers core operating topics such as using the control, ensuring proper air circulation, and troubleshooting common cooling concerns.

Quick setup checklist
  • Place the freezer where it can meet location and clearance needs
  • Confirm the outlet meets electrical requirements
  • Keep vents and shelves arranged for proper air circulation
  • Avoid overpacking; cold air must move freely to keep temperatures even
Feature summary (at a glance)
Feature What it does Why it helps
Frost-free defrost Automatically manages defrost cycles Less maintenance, steadier performance
Electronic controls Lets you adjust temperature settings Better control and consistency
Adjustable shelves Reconfigures storage space Easier organization
Reversible door Changes door swing direction Better fit in tight layouts
Why it matters

Freezer performance depends on stable temperature control and airflow. Features like electronic controls and frost-free defrost help protect food quality, while adjustable storage and a reversible door make the freezer easier to live with day to day.

Last updated: January 2026

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Repair guides for upright freezers

How to replace a freezer evaporator fan

How to replace a freezer evaporator fan

Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…

Repair time and Difficulty

 45 minutes or less
How to replace a freezer door switch

How to replace a freezer door switch

When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…

Repair time and Difficulty

 15 minutes or less
How to replace a freezer LED light board

How to replace a freezer LED light board

The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…

Repair time and Difficulty

 15 minutes or less
