Model # 1753660 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1753660 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

Wiring Cover 643040-000
#48

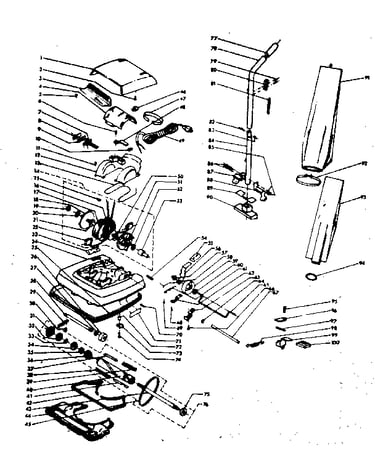

Unit parts diagram

Wiring cover

Part #643040-000

The manufacturer no longer makes this part, and there's no substitute part

Retainer Clip 642408-000
#64

Unit parts diagram

Retainer clip

Part #642408-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-321
#27

Unit parts diagram

Washer

Part #706382-321

The manufacturer no longer makes this part, and there's no substitute part

Screw 640033-005
#82

Unit parts diagram

Screw

Part #640033-005

The manufacturer no longer makes this part, and there's no substitute part

Washer 706239-313
#60

Unit parts diagram

Washer

Part #706239-313

The manufacturer no longer makes this part, and there's no substitute part

Pedal Spring 643013-000
#98

Unit parts diagram

Pedal spring

Part #643013-000

The manufacturer no longer makes this part, and there's no substitute part

Bag 5002
#93

Unit parts diagram

Bag

Part #5002

The manufacturer no longer makes this part, and there's no substitute part

Bristle 641952-003
#39

Unit parts diagram

Bristle

Part #641952-003

The manufacturer no longer makes this part, and there's no substitute part

Pedal Boot 641892-009
#55

Unit parts diagram

Pedal boot

Part #641892-009

The manufacturer no longer makes this part, and there's no substitute part

Beat Bar Bs 641951-005
#41

Unit parts diagram

Beat bar bs

Part #641951-005

The manufacturer no longer makes this part, and there's no substitute part
