Model # 917351090 Official Craftsman sportster chainsaw

Here are the diagrams and repair parts for Official Craftsman 917351090 sportster chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

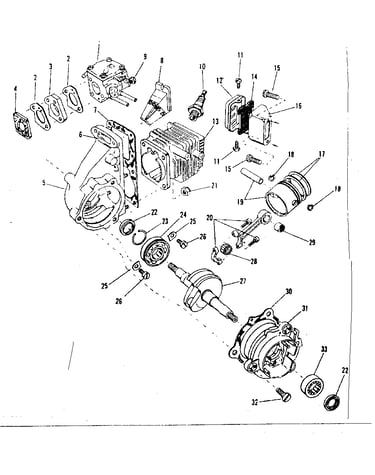

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Huglock Nut 9070H
#14

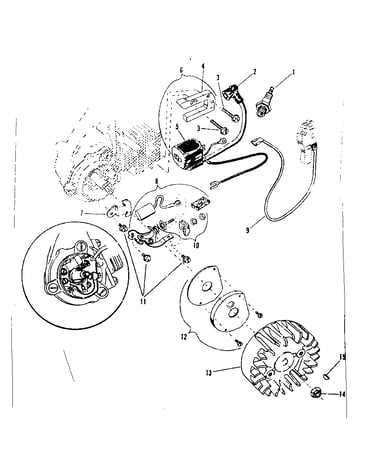

Ignition diagram

Huglock nut

Part #9070H

The manufacturer no longer makes this part, and there's no substitute part

Huglock Nut 9060H
#22

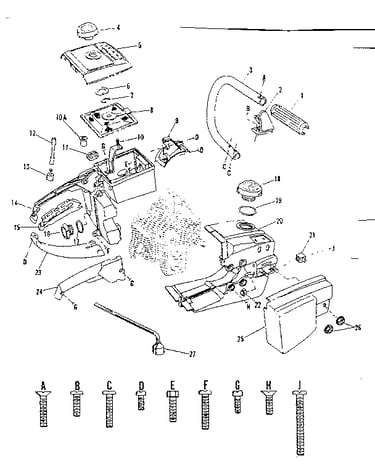

Main frame diagram

Huglock nut

Part #9060H

The manufacturer no longer makes this part, and there's no substitute part

Washer 19080916
#6

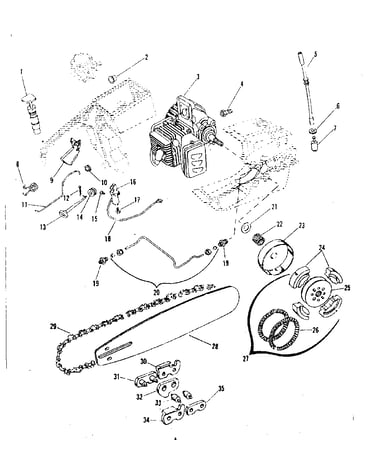

Chain/bar and oil/fuel parts diagram

Washer

Part #19080916

The manufacturer no longer makes this part, and there's no substitute part

Repair Kit 24045

#NI

All parts diagram

Repair kit

Part #24045

Replaced by #24045

?
Manufacturer substitution
This part replaces 24045. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
File Holder 1669H
#3

Optional accessories diagram

File holder

Part #1669H

The manufacturer no longer makes this part, and there's no substitute part

Screw & Lckw 010280
Screw & lckw

Part #010280

The manufacturer no longer makes this part, and there's no substitute part

Screw 17690605
#15

Chain/bar and oil/fuel parts diagram

Screw

Part #17690605

The manufacturer no longer makes this part, and there's no substitute part

Fuel Filter 9057H
#7

Chain/bar and oil/fuel parts diagram

Fuel filter

Part #9057H

The manufacturer no longer makes this part, and there's no substitute part

Screw 21821014
#28E

Main frame diagram

Screw

Part #21821014

The manufacturer no longer makes this part, and there's no substitute part

Coil Spring 9117H
#11

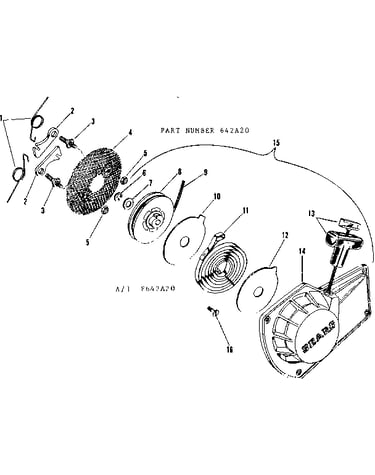

Replacement parts diagram

Coil spring

Part #9117H

The manufacturer no longer makes this part, and there's no substitute part
