Model # DW511 TYPE 1 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW511-TYPE-1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

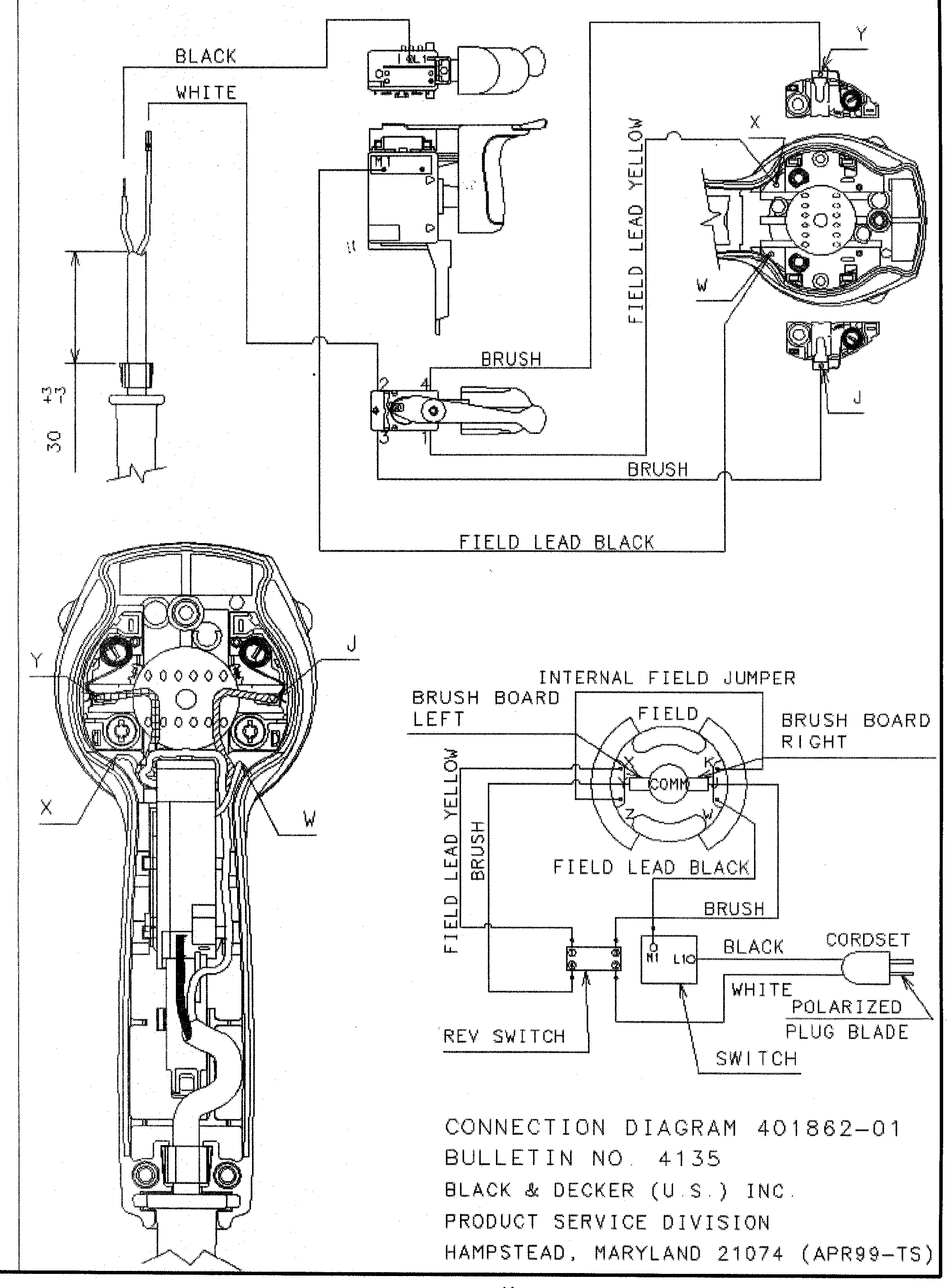

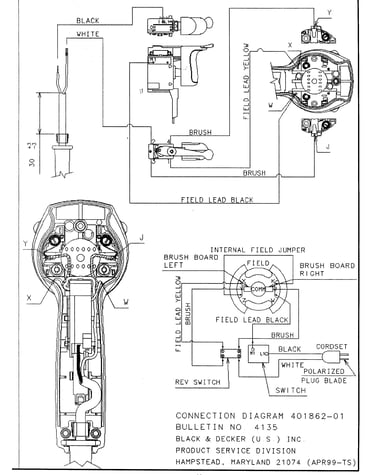

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Grease 283484-01
#801

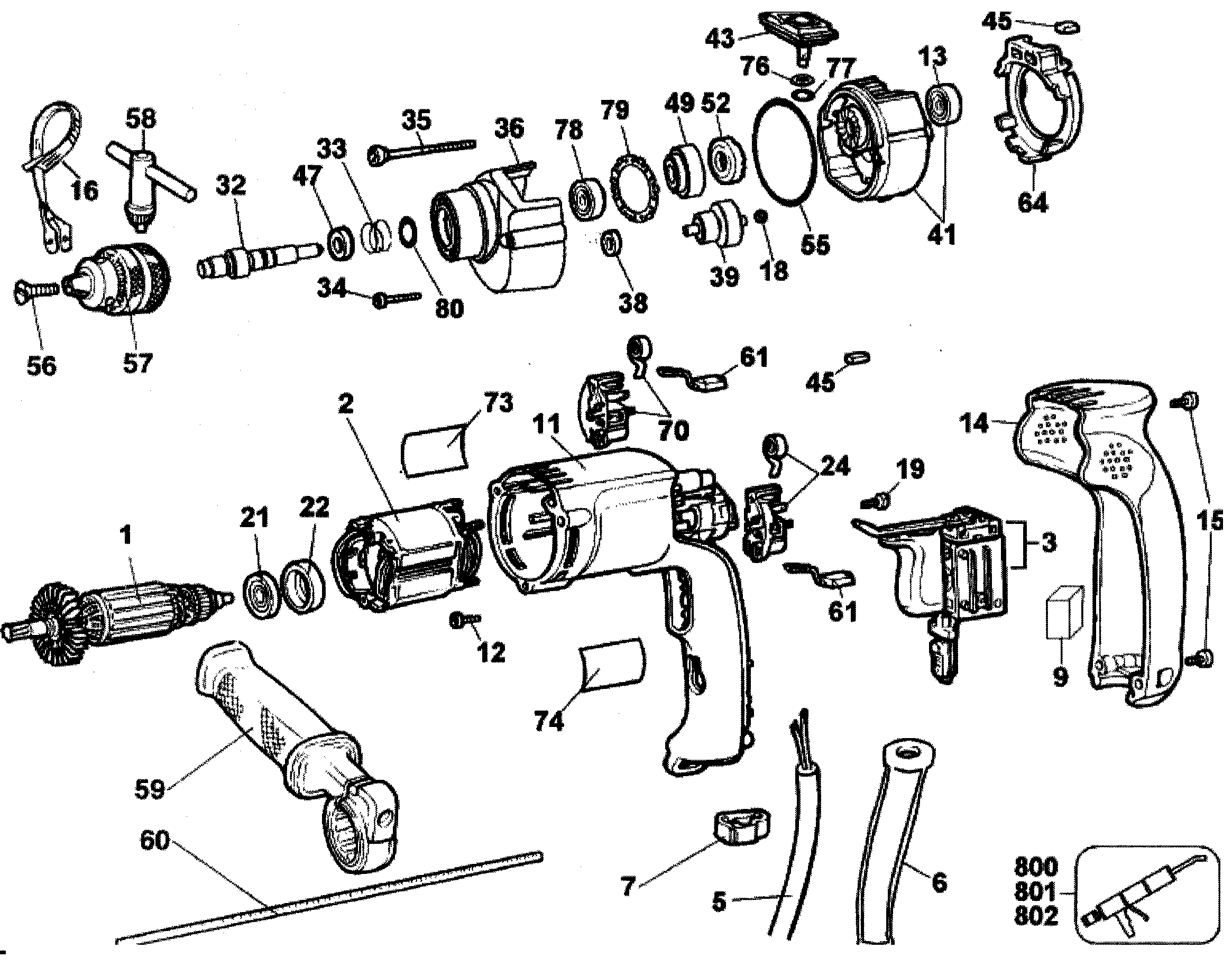

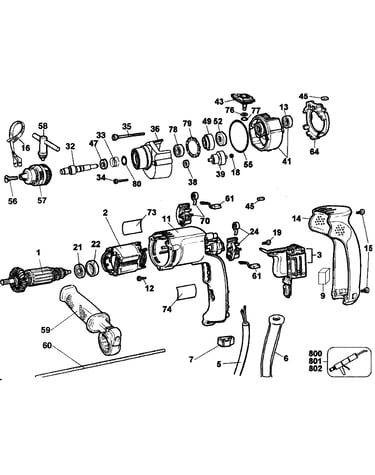

Drill diagram

Grease

Part #283484-01

The manufacturer no longer makes this part, and there's no substitute part

Field Case 396969-03
#11

Drill diagram

Field case

Part #396969-03

The manufacturer no longer makes this part, and there's no substitute part

Holder 390523-00
#24

Drill diagram

Holder

Part #390523-00

The manufacturer no longer makes this part, and there's no substitute part

Gear 395578-00
#49

Drill diagram

Gear

Part #395578-00

The manufacturer no longer makes this part, and there's no substitute part

Clutch 945706-00
#52

Drill diagram

Clutch

Part #945706-00

The manufacturer no longer makes this part, and there's no substitute part

Spindle 392935-00
#32

Drill diagram

Spindle

Part #392935-00

The manufacturer no longer makes this part, and there's no substitute part

Depth-stop 940357-00
#60

Drill diagram

Depth-stop

Part #940357-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 393341-00
#33

Drill diagram

Spring

Part #393341-00

The manufacturer no longer makes this part, and there's no substitute part

Plug 949638-02
#45

Drill diagram

Plug

Part #949638-02

The manufacturer no longer makes this part, and there's no substitute part

Bumper 930026-01
#9

Drill diagram

Bumper

Part #930026-01

The manufacturer no longer makes this part, and there's no substitute part
