Jenn-Air JGC9430BDS16 gas counter unit Parts
Here are the diagrams and repair parts for Jenn-Air JGC9430BDS16 gas counter unit, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JGC9430BDS16 Cooktops

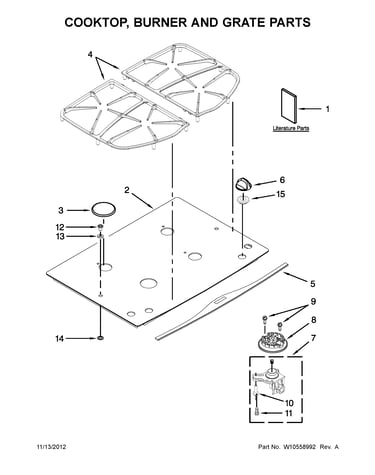

Cooktop, burner and grate parts diagram
Grommet B
Part #8008P071-60Replaced by #WP8008P071-60
Manufacturer substitutionThis part replaces 8008P071-60. Substitute parts can look different from the original.This item is not returnableIn Stock$7.1412% OFF Phone Price : $8.14
Qty

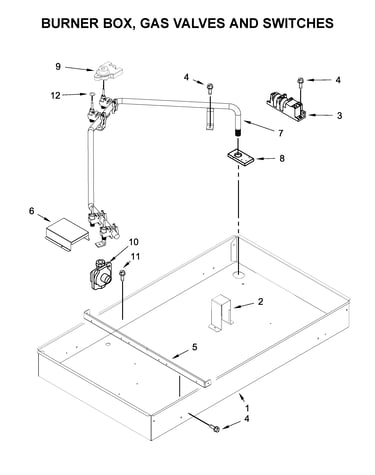

Burner box, gas valves and switches diagram
Gasket- Fi
Part #7201P144-60Replaced by #WP74010776
Manufacturer substitutionThis part replaces 7201P144-60. Substitute parts can look different from the original.In Stock$45.9712% OFF Phone Price : $51.97QtyParts not illustrated diagram
Wire Harness
Part #5171P939-60
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves and switches diagram
Burner Box
Part #4011F526-51
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner and grate parts diagram
Cooking Appliance Safer Cooking Guide
Part #9762761
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves and switches diagram
Support- G
Part #3807F689-51
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner and grate parts diagram
Burner Cap
Part #7504P204-60
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner and grate parts diagram
Ring- Reta
Part #7114P008-60
The manufacturer no longer makes this part, and there's no substitute part
Parts not illustrated diagram
Affresh Kitchen And Appliance Cleaner
Part #W10355010
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves and switches diagram
Pipe Manif
Part #7513P305-60
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your cooktops
Choose a symptom to see related cooktop repairs.
Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure...
Repair guides for gas cooktops
How to replace a spark module on a gas cooktop
