Does Kenmore make gas ranges?
Yes. Kenmore makes gas ranges, and the Kenmore 79074032310 is a gas range model; it uses gas for burner combustion and electric ignition for the oven, as described in the installation guide.
A gas range like 79074032310 typically includes a gas cooktop and a gas oven burner that lights using an electric igniter.
- The range is factory preset for natural gas.
- LP conversion is possible using the correct conversion kit.
- The oven uses electric ignition; power failures affect oven ignition.
- Surface burners can be match-lit during an outage (use extreme caution).
- Proper combustion air flow around the oven vent and base is required.
Your range is set up for natural gas from the factory. If you need LP (propane), follow the conversion instructions and use the correct kit.
| Setup topic | What to expect on 79074032310 | Why it matters |
|---|---|---|
| Factory fuel setting | Natural gas | Incorrect fuel setup causes poor flames and unsafe operation |
| LP conversion | Requires correct LP kit and qualified service | Protects the regulator, orifices, and burner performance |
| Ventilation | Do not block oven vent or airflow | Supports safe, steady burner combustion |
Gas ranges are safe when installed and used correctly.
- If you smell gas: do not light appliances or touch switches; call your gas supplier from a neighbor’s phone.
- Do not try to operate the electric-ignition oven during a power failure; turn oven controls OFF.
- Keep flames adjusted so they do not extend past the cookware edge.
- Do not use the oven for storage.
- Installation and service should be performed by a qualified installer or service agency.
Knowing Kenmore makes gas ranges helps you shop the right parts and follow the right procedures for gas supply, ignition, and LP conversion on model 79074032310. For part replacement related to ignition, a common repair item is the tappan range oven burner igniter 316489403.
Last updated: February 2026

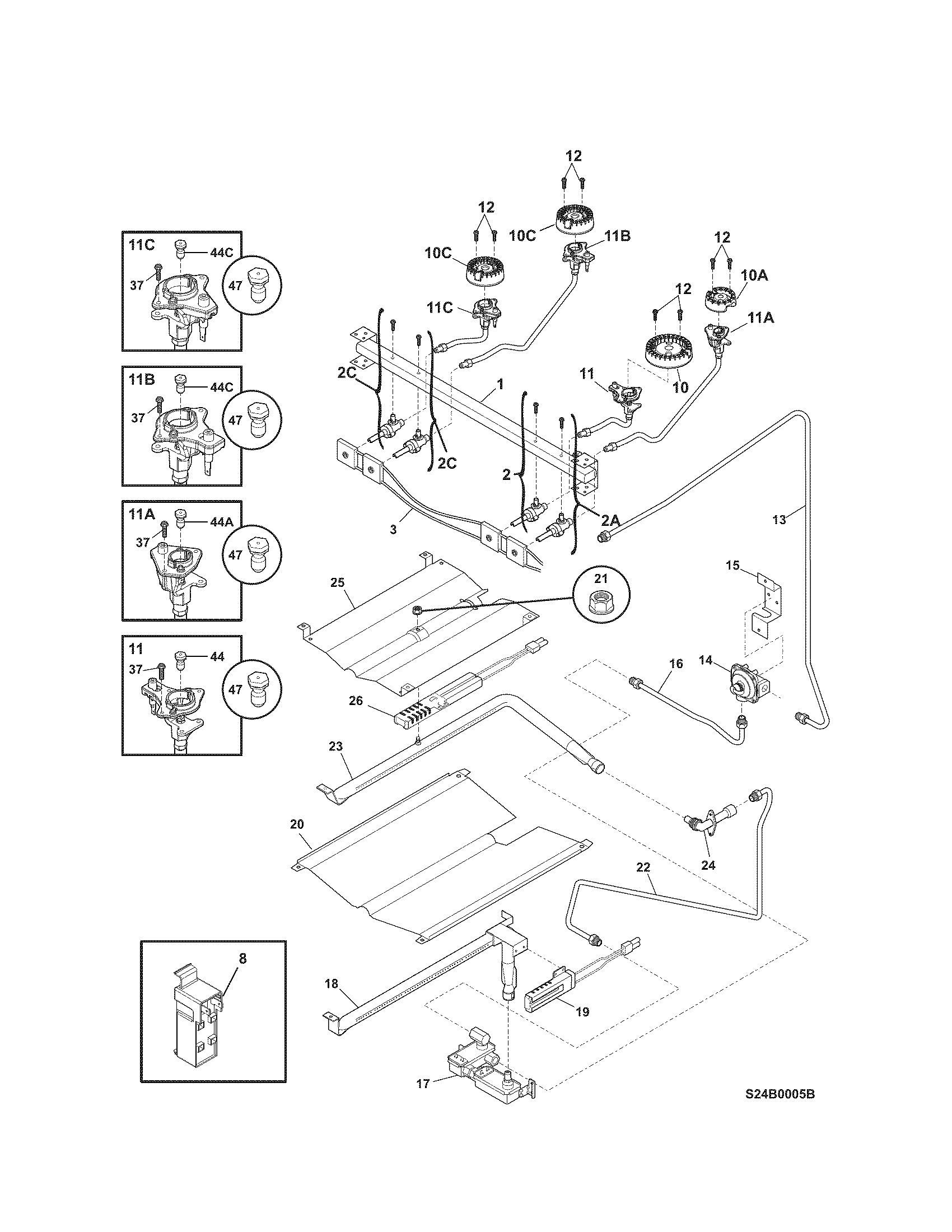

How to change Kenmore spark electrode igniter?
To change a spark electrode igniter on a Kenmore gas range model 79074032310, we replace the electrode at the burner, reconnect the igniter wire securely, then verify the burner lights and sparks correctly at the LITE position. Use the 79074032310 installation guide for burner and ignition checks.
- Turn all burner knobs to OFF and let the cooktop cool completely.
- Shut off the gas supply valve before disassembly.
- Unplug the range (spark ignition uses electricity).
- Work in good light; keep screws and small parts organized.
- If you smell gas at any point, stop and have the gas connection checked.
- Remove the burner grate, burner cap, and burner head from the affected burner.
- Confirm the burner cap seats correctly; it should sit centered and “click” into place when properly seated.
- Access the electrode mounting point at the burner base (next to the orifice area).
- Remove the retaining screw holding the electrode.
- Disconnect the igniter wire from the old electrode.
- Connect the wire to the new electrode; make sure the connector is fully seated and tight.
- Install the new electrode and secure it with the screw.
- Reinstall the burner head and burner cap, then the grate.
The installation instructions for this style of range call for checking ignition after gas and electrical connections are in place:
- Push in and turn the burner knob counterclockwise to LITE; you should hear clicking/sparking.
- The burner should ignite once gas is available; after air is purged, ignition is typically within about 4 seconds.
- After ignition, turn the knob out of LITE and verify a steady flame.
- Repeat for each burner; each burner location uses a separate electrode.
| Symptom | Most common cause | What to check |
|---|---|---|
| Clicking but no flame | Gas not reaching burner, cap/head misaligned | Cap “click” seating, burner head alignment, gas supply |
| No clicking/sparking | Power issue or failed switch/wiring | Outlet power, wiring, switch harness |
| Sparks but lights slowly | Air in line or dirty burner ports | Purge air briefly at LITE, clean ports |
A properly mounted electrode and correctly seated burner cap help the burner light quickly and consistently; misalignment can cause delayed ignition, uneven flame, or repeated clicking.
Last updated: February 2026
Why is my Kenmore oven not igniting?
On the Kenmore 79074032310 gas range, the oven typically won’t ignite when the hot-surface igniter is weak, the oven gas valve is not opening, or airflow/power conditions prevent proper ignition. In normal operation, the igniter should glow and the burner should light within 30 to 60 seconds.
- Confirm the range has electrical power; the oven’s electric ignition will not operate during a power failure.
- Wait a full 60 seconds after setting Bake; a short delay is normal.
- Make sure the oven vent and the area around the lower front panel are not blocked; the burner needs fresh air for combustion.
- Verify the control is set correctly using the owner's manual.
- If the igniter glows but the burner never lights, suspect a weak igniter or a gas valve issue.
From the installation guidance for this model type, current flows to the igniter, it glows like a light bulb, then the gas valve opens and the burner lights.
| What you see | What it usually means | What to do next |
|---|---|---|
| No glow from igniter | No power to igniter, failed igniter, wiring/control issue | Check power, then inspect igniter circuit |
| Igniter glows, no flame after 60 seconds | Igniter too weak to open valve, or valve problem | Test/replace igniter first |
| Flame lights, then cycles off/on | Normal temperature control cycling | No repair needed |
If troubleshooting points to a failed component, these are common fixes for the 79074032310:
- Tappan range oven burner igniter 316489403 (bake ignition)
- Frigidaire range oven gas valve 316031501 (opens to feed gas to the oven burner)
- Frigidaire range oven temperature sensor 316490000 (can cause heating/temperature control problems)
A weak igniter can glow but still fail to draw enough current to open the oven safety valve, so the oven never lights. Also, blocked venting or restricted airflow can interfere with stable combustion and safe operation.
Last updated: February 2026
Where to find Kenmore gas range model number?
For Kenmore gas range model 79074032310, the model and serial number label (identification plate) is located on the right-hand surface of the oven front frame. You can reach it by opening the storage drawer, warmer drawer, or broiler drawer, depending on your range configuration; see the installation guide.
- Pull out and open the bottom drawer (storage, warmer, or broiler drawer).
- Look at the right-hand side of the oven front frame (the front frame area behind the drawer opening).
- Write down model number, serial number, and any lot number/letter shown.
- Use that exact model number when ordering parts like an igniter, temperature sensor, or control board.
- If the label is greasy or faded, wipe gently with a damp cloth and mild dish soap; avoid abrasive cleaners.
Kenmore ranges often have similar-looking versions, and the model number ensures you get the correct fit and electrical or gas-rated component.
| What you need | Where it’s used | Example for this range |
|---|---|---|
| Model number | Identifies the exact range version | 79074032310 |
| Serial number | Tracks production details | On the same ID plate |
| Lot number/letter | Helps match revisions | On the same ID plate |
If you are troubleshooting an oven that will not heat, one common repair item is the tappan range oven burner igniter 316489403. Matching the model number first helps avoid ordering the wrong igniter style.
Using the correct model and serial information speeds up parts lookup and helps ensure safe, proper operation after a repair.
