Model #NNS207FA/5M52B Maytag refrigerator

Here are the repair parts and diagrams for your Maytag NNS207FA-5M52B refrigerator.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 132 parts

Refrigerator Defrost Heater

#36

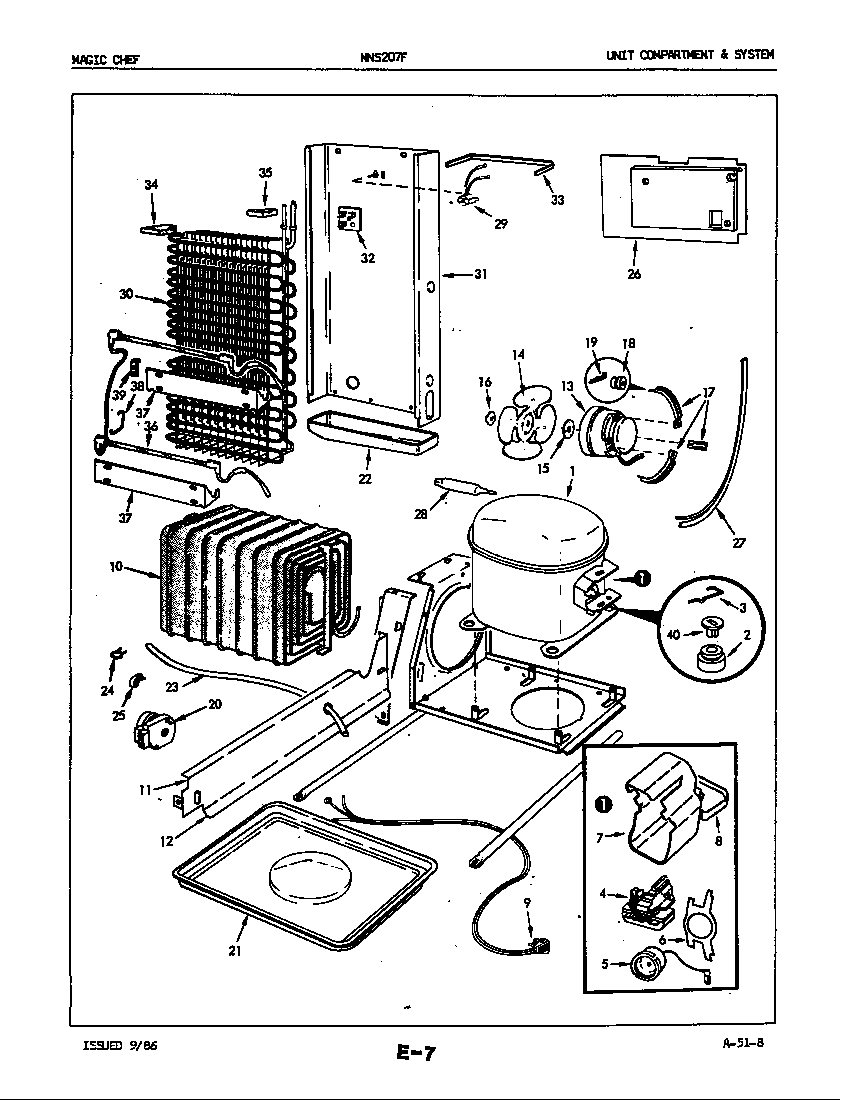

Unit compartment & system Diagram

Refrigerator defrost heater

Part #WP61001846
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  52764-14
This part replaces 52764-14

$22.06

Back Order

Refrigerator Bracket

#18

Unit compartment & system Diagram

Refrigerator bracket

Part #WP61004743
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  56933-1
This part replaces 56933-1
This item is not returnable

$4.89

In Stock

Refrigerator Defrost Bi-Metal Thermostat

#29

Unit compartment & system Diagram

Refrigerator defrost bi-metal thermostat

Part #WP52085-29
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  52085-13
This part replaces 52085-13

$17.96

In Stock

Refrigerator Screw

#19A

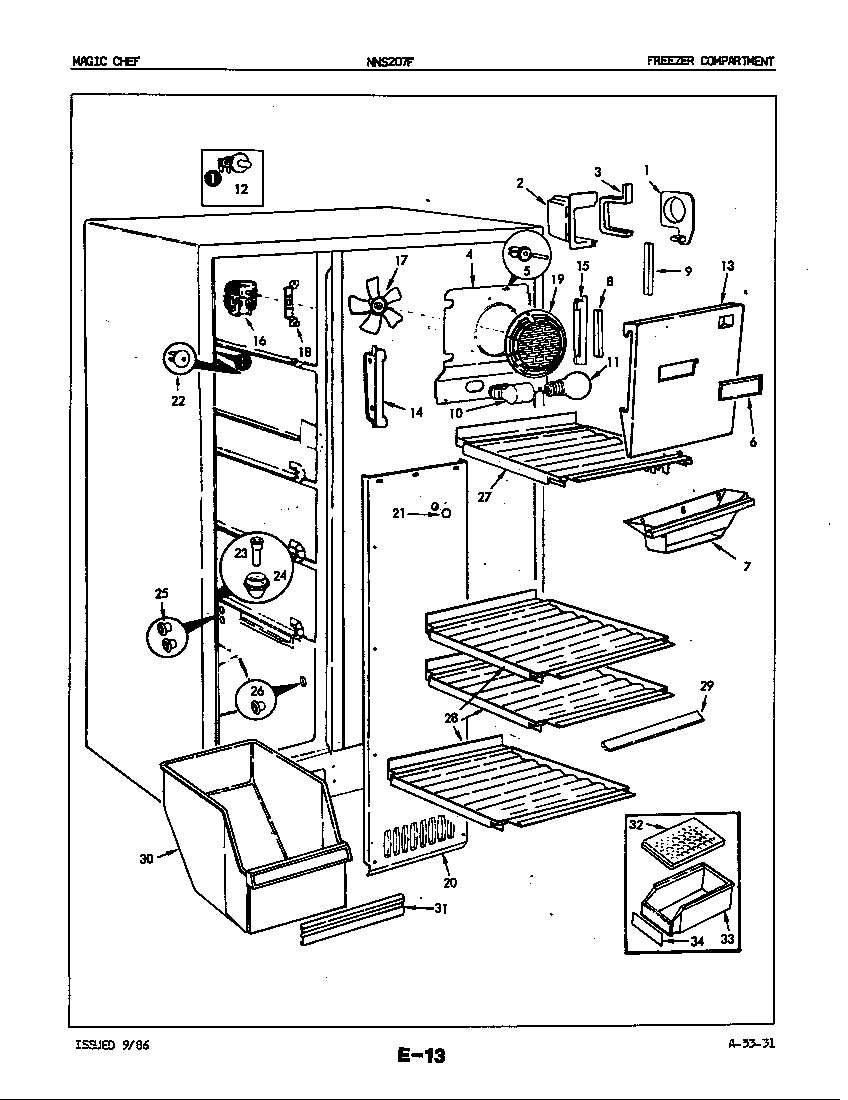

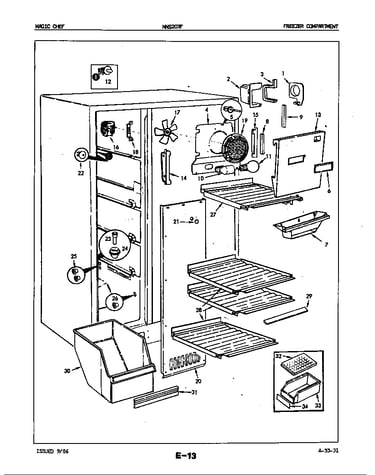

Freezer compartment Diagram

Refrigerator screw

Part #WP67006908
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  400022-1
This part replaces 400022-1
This item is not returnable

$3.29

In Stock

Refrigerator Door Hinge Nylon Washer

#21

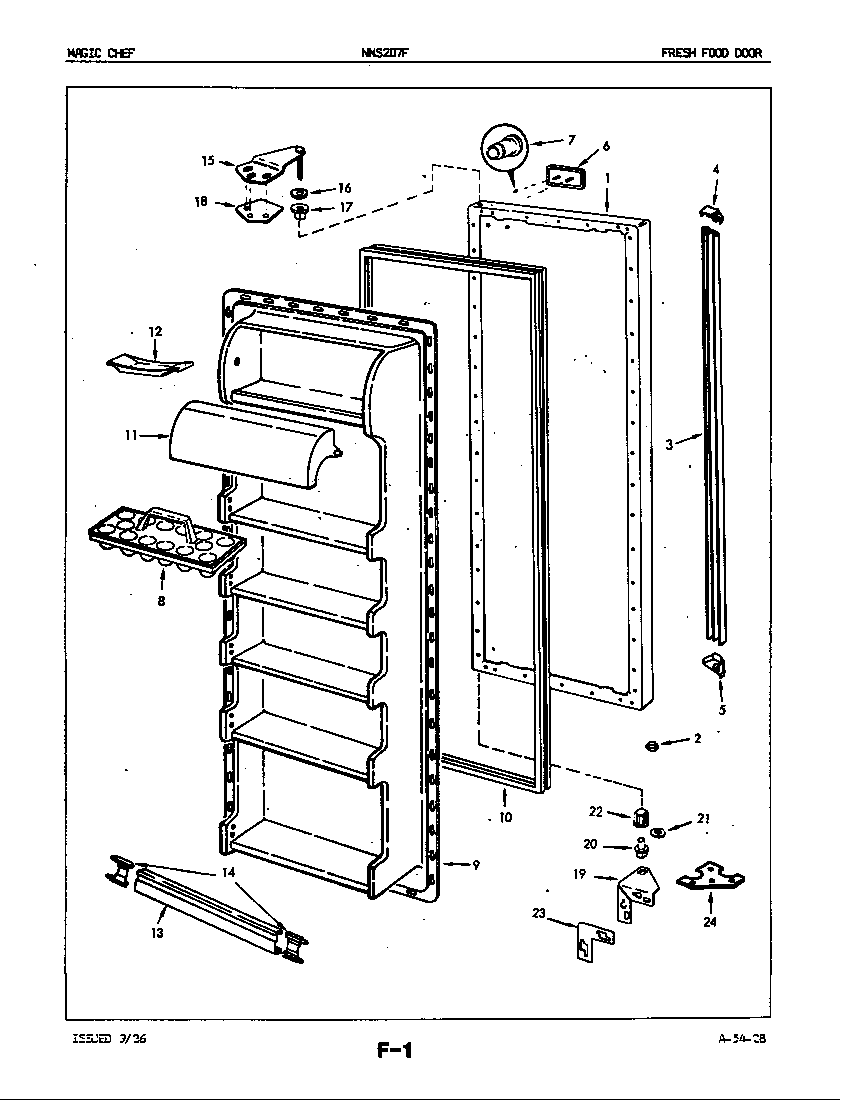

Fresh food door Diagram

Refrigerator door hinge nylon washer

Part #WP54233-1
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  54233-1
This part replaces 54233-1
This item is not returnable

$1.65

In Stock

Refrigerator Ice Cube Tray

#32

Freezer compartment Diagram

Refrigerator ice cube tray

Part #WP61002140
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  60112-1
This part replaces 60112-1

$17.88

Back Order

Refrigerator Compressor

#1

Unit compartment & system Diagram

Refrigerator compressor

Part #W10619807
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  RA996
This part replaces RA996

$253.55

In Stock

Refrigerator Screw

#12A

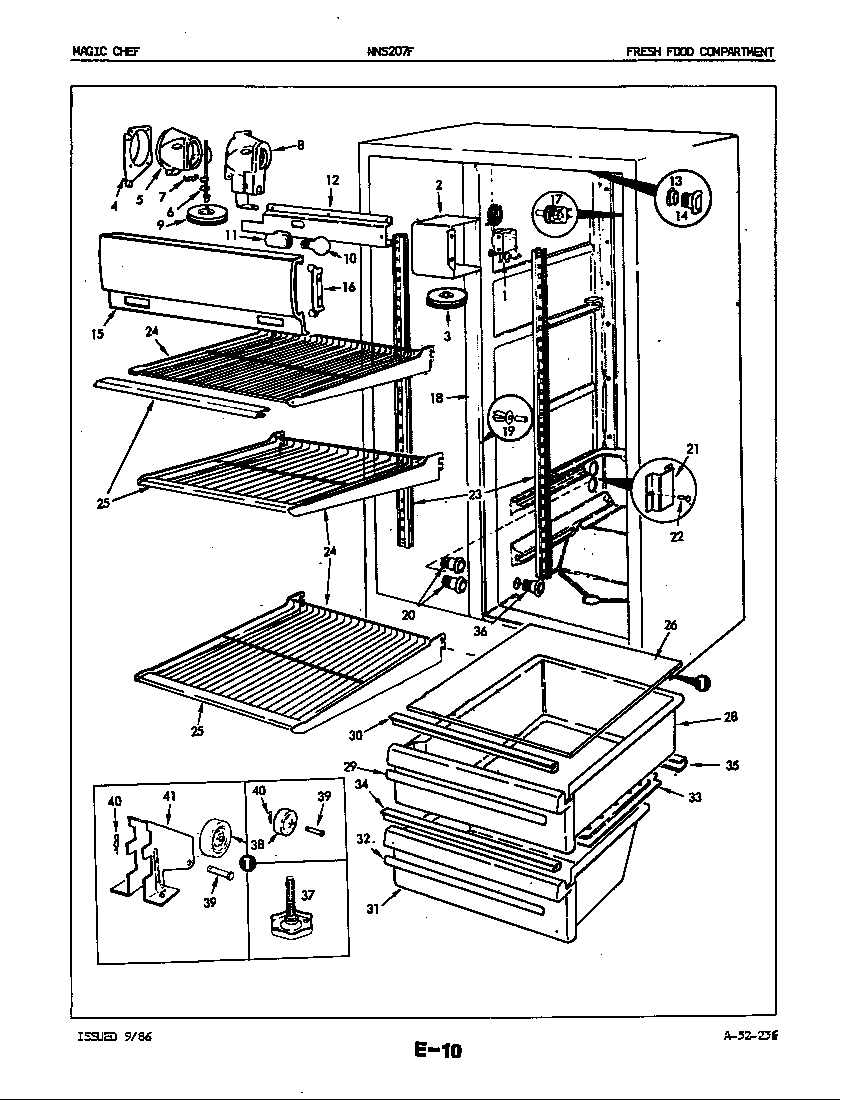

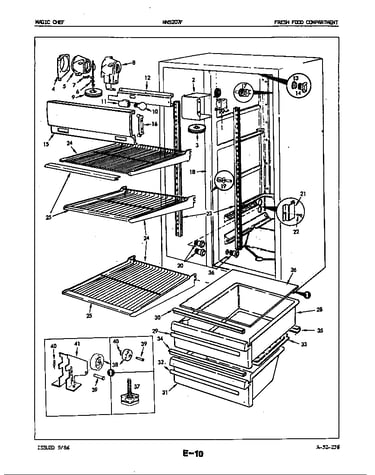

Fresh food compartment Diagram

Refrigerator screw

Part #WP489478
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  400017-1
This part replaces 400017-1
This item is not returnable

$3.40

In Stock

Refrigerator Screw

#20B

Unit compartment & system Diagram

Refrigerator screw

Part #61005388
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  405007-1
This part replaces 405007-1

$12.49

In Stock

Refrigerator Condenser Fan Blade

#14

Unit compartment & system Diagram

Refrigerator condenser fan blade

Part #WP12587601
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  62934-2
This part replaces 62934-2

$31.08

In Stock

Symptoms common to all refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
