Maytag MHW8630HW4 washer Parts

Yes, a Maytag MHW8630HW4 front-load washer can wash a king-size comforter if the comforter fits loosely in the drum and can tumble freely. We recommend using a Bulky or Bedding-type cycle and the correct detergent amount to prevent poor rinsing.

How to load a king comforter (so it actually gets clean)

• Put the comforter in by itself (no sheets or towels in the same load).
• Push it evenly around the drum; do not pack it tightly.
• Leave space at the top so the item can lift and tumble.
• If it feels “stuffed” or won’t move, use a laundromat oversized washer.
• If the comforter is down or very thick, plan on an extra rinse.

Cycle, settings, and detergent tips

Most Maytag front-load washers do best with these choices for bulky items:

What you’re washing	Best cycle type	Water temp	Extra options
King comforter (synthetic)	Bulky/Bedding	Warm or cold	Extra rinse
King comforter (down)	Bulky/Bedding	Cold or warm	Extra rinse, low spin
Duvet cover only	Normal	Warm	Extra rinse if needed

• Use HE detergent only; too much detergent traps suds and can leave residue.
• Choose a lower spin if the comforter becomes unbalanced.
• If the washer stops to rebalance repeatedly, the load is too bulky or uneven.

Common problems and what they usually mean

• Comforter still soapy after the cycle: too much detergent; run a rinse and spin.
• Washer shakes or bangs: load is too heavy or not tumbling; redistribute or reduce load.

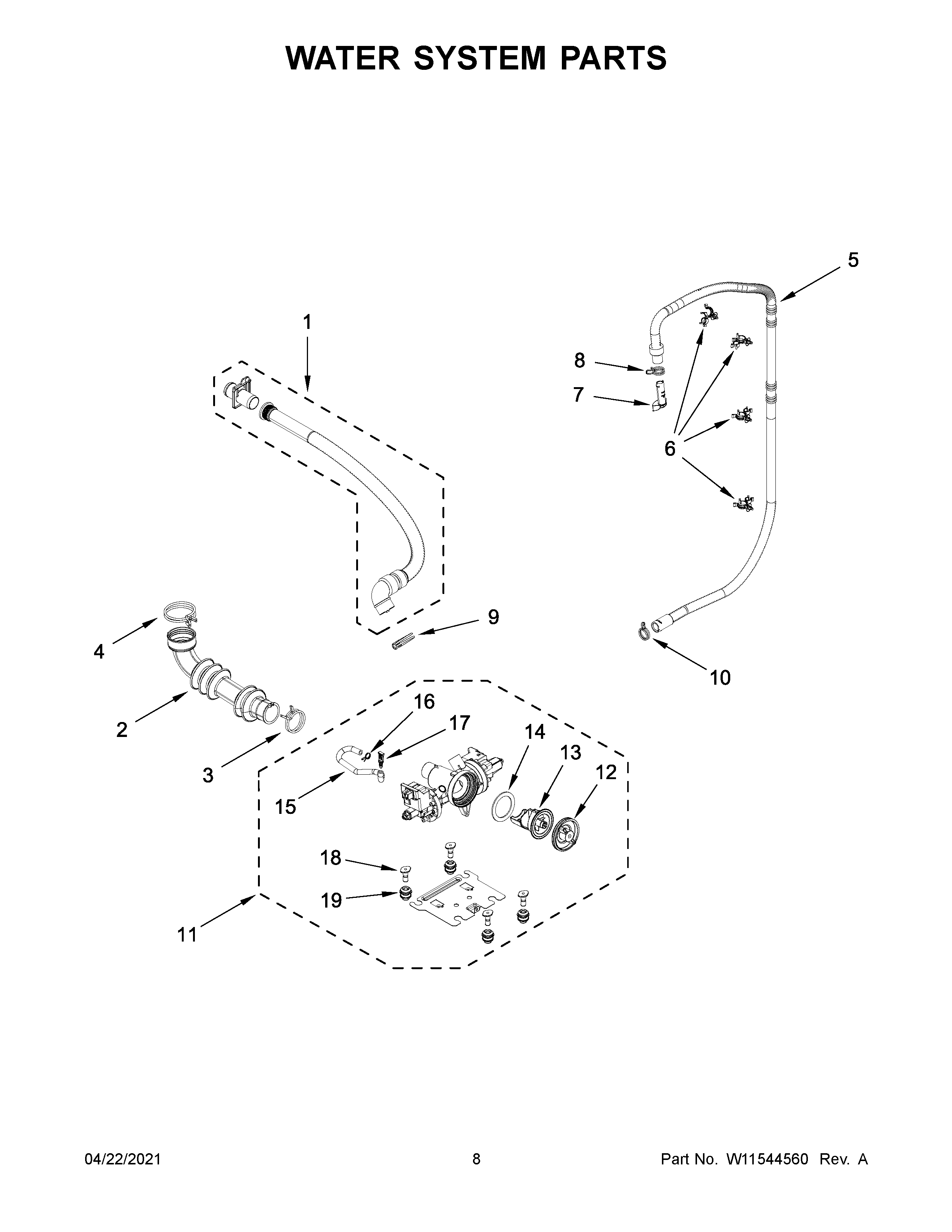

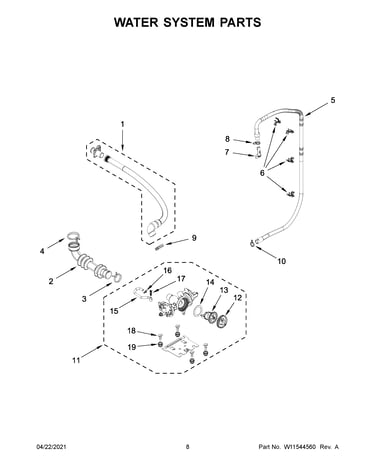

• Not draining well after bulky loads: check for a partial drain restriction; the washer drain pump assembly W11458345 is the key draining component.

Why it matters

Bulky items need room to tumble so water and detergent can move through the fabric. When a comforter is packed too tightly, cleaning performance drops and the washer is more likely to go out of balance during spin.

Last updated: January 2026

Spin and drain complaints are the most common issues we see on Maytag top-load washers: the washer won’t spin out, leaves clothes wet, or won’t drain. On your Maytag MHW8630HW4 (a front-load model), the closest equivalent is a drain or door-lock problem that prevents high-speed spin.

Most common top-load washer causes

These are the frequent root causes when a Maytag top loader won’t spin or drains poorly:

• Unbalanced or overloaded load (spin stops to protect the washer)
• Drain restriction (clogged hose, standpipe, or pump area)
• Lid switch or lid lock not proving closed (top-load specific)
• Drive system wear (belt, clutch, or coupling depending on design)
• Too many suds from excess HE detergent (spin may slow or stop)

How the same symptom shows up on MHW8630HW4 (front load)

Front-load Maytag washers do not use a lid switch; they rely on a door lock and fast draining to allow high-speed spin.

• If water remains in the tub, check the drain path and consider the washer drain pump assembly W11458345.

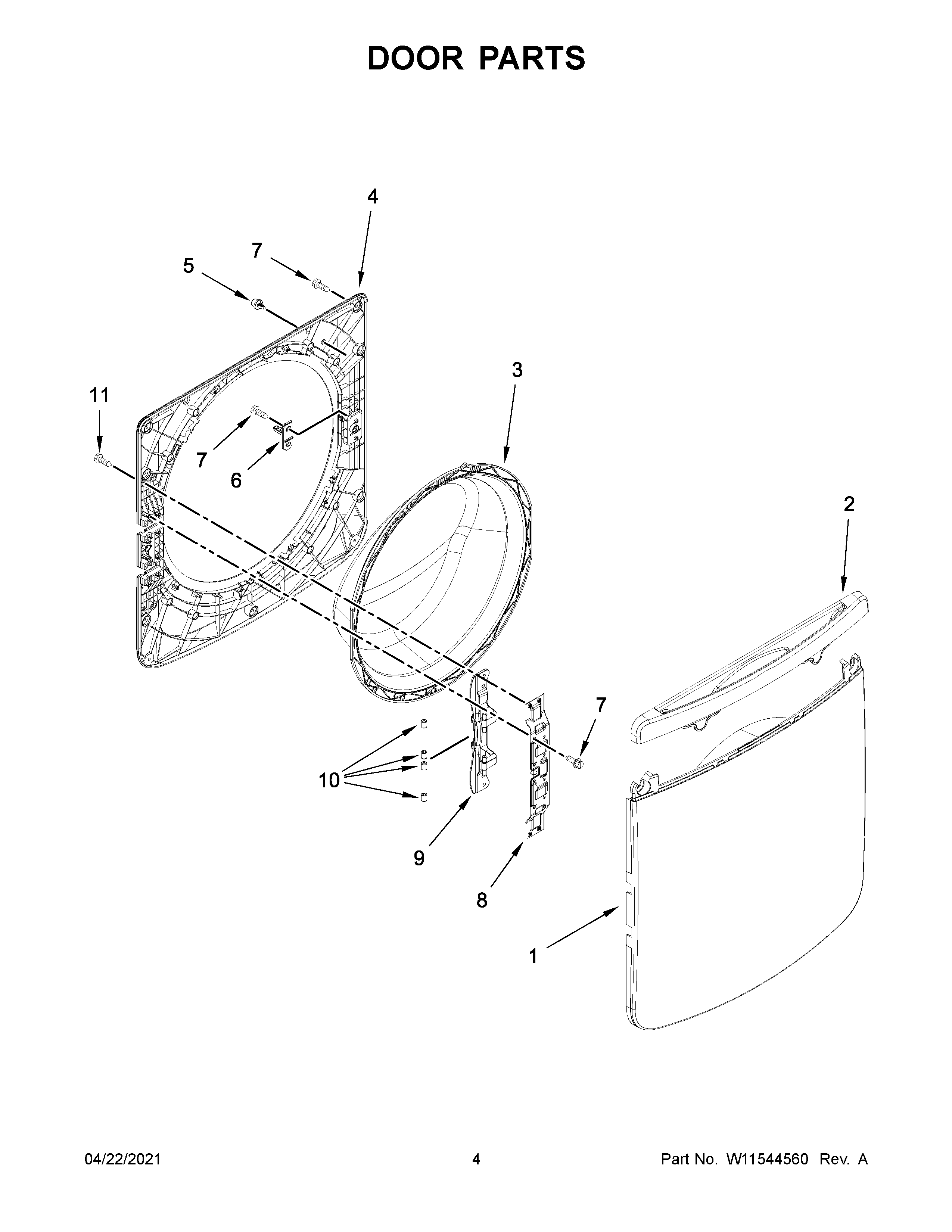

• If the door won’t lock or the cycle won’t advance to spin, inspect the latch area and consider the ha15g janus- W11565030 and the strike, door W11316914.

Quick symptom-to-check table

Symptom	Top-load common cause	MHW8630HW4 common check
Clothes wet at end	Unbalanced load, lid switch	Door lock proving, drain speed
Water left in tub	Drain restriction	Pump, drain hose, standpipe
Stops mid-cycle	Suds, lid lock	Suds, door lock, drain

Why it matters

Maytag washers often block high-speed spin when they cannot drain quickly or confirm the lid or door is secured. Fixing the drain or lock issue restores normal spin and helps prevent repeat wet loads.

For code-based troubleshooting on front-load Maytag models, use Maytag maxima front load washer error codes.

Last updated: January 2026

On your Maytag washer, the model number is printed on the appliance’s rating label. For model MHW8630HW4, check the door opening area first; the label is typically on the door frame or just inside the opening.

Where to look on a Maytag front-load washer

Check these common label locations in this order:

• Around the door opening on the cabinet frame
• On the inside edge of the washer door
• Behind the lower front access panel area (if your unit has one)
• On the back panel near the power cord entry

What the label looks like and what to copy

The rating label usually includes multiple identifiers. We recommend copying these exactly:

• Model number (example: MHW8630HW4)
• Serial number (helps match production changes)
• Type or engineering code (if listed)
• Electrical ratings (volts/amps) for reference

Why it matters for parts and troubleshooting

Maytag often uses similar-looking washers with different internal parts. Using the exact model number helps us match the correct diagrams and replacement parts (like a water valve, drain pump, or door strike) for your specific washer.

If you see…	Use it for…
Model number (MHW8630HW4)	Finding the correct parts list and diagrams
Serial number	Confirming the right version of a part
Brand (Maytag)	Narrowing repair and error-code resources

Next step once you find it

If you are ordering a part or diagnosing a symptom, start with the parts list for MHW8630HW4 and match by description and diagram callout. For example, common service parts include the water valve W11688995 and the washer drain pump assembly W11458345.

Last updated: March 2026
