Amana
Chest Freezer

Model # AFC0701AW-PAFC0701AW0 Official Amana freezer

Here are the diagrams and repair parts for Official Amana AFC0701AW-PAFC0701AW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Drier B2150504
#8

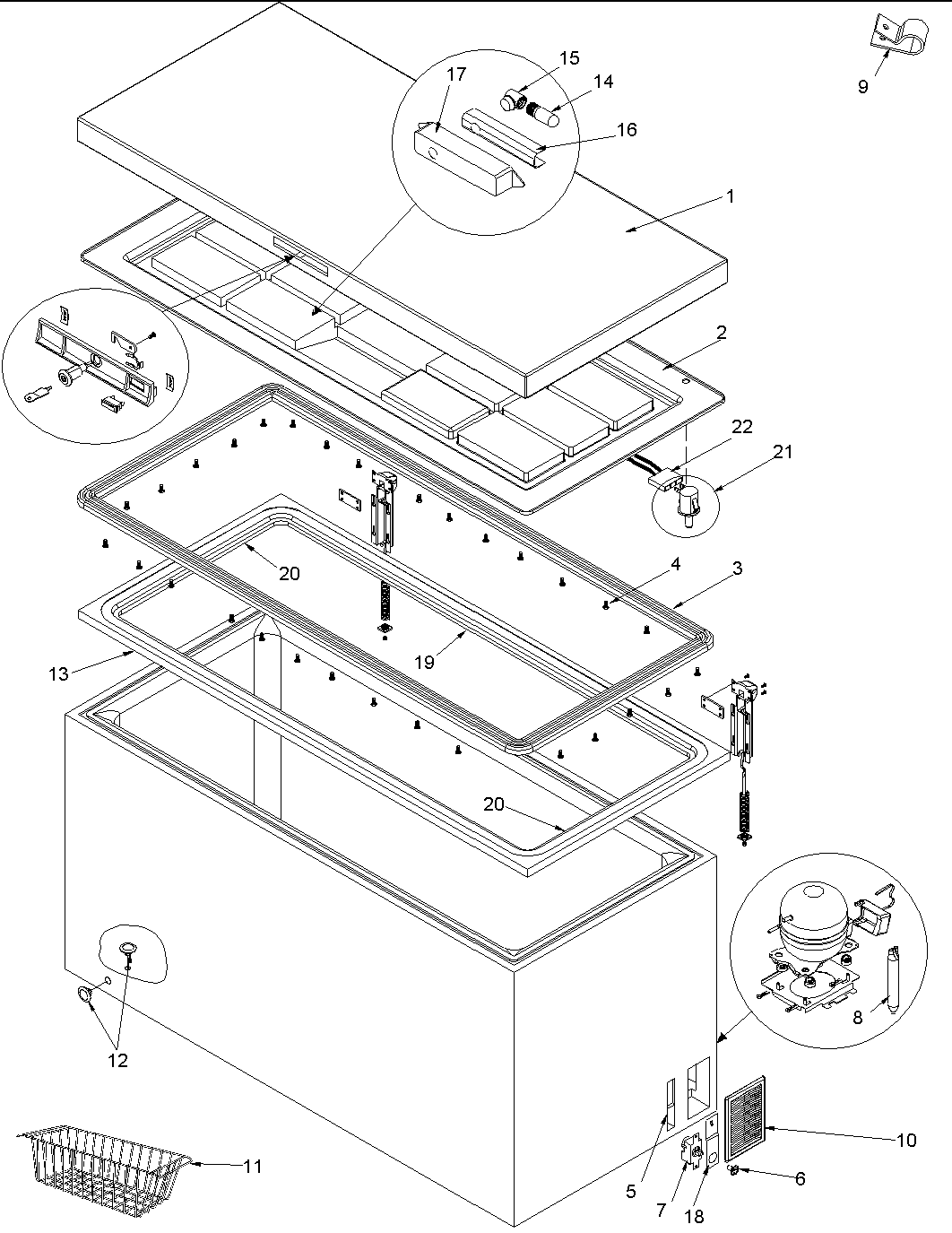

Door gasket, liner & hardware diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
15% OFF MSRP : $90.00
In Stock
Control,ther R0131223
#7

Door gasket, liner & hardware diagram

Control,ther

Part #R0131223

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces R0131223. Substitute parts can look different from the original.
$118.93 |
8% OFF Phone Price : $128.93
In Stock
Overload R0000126
#9999

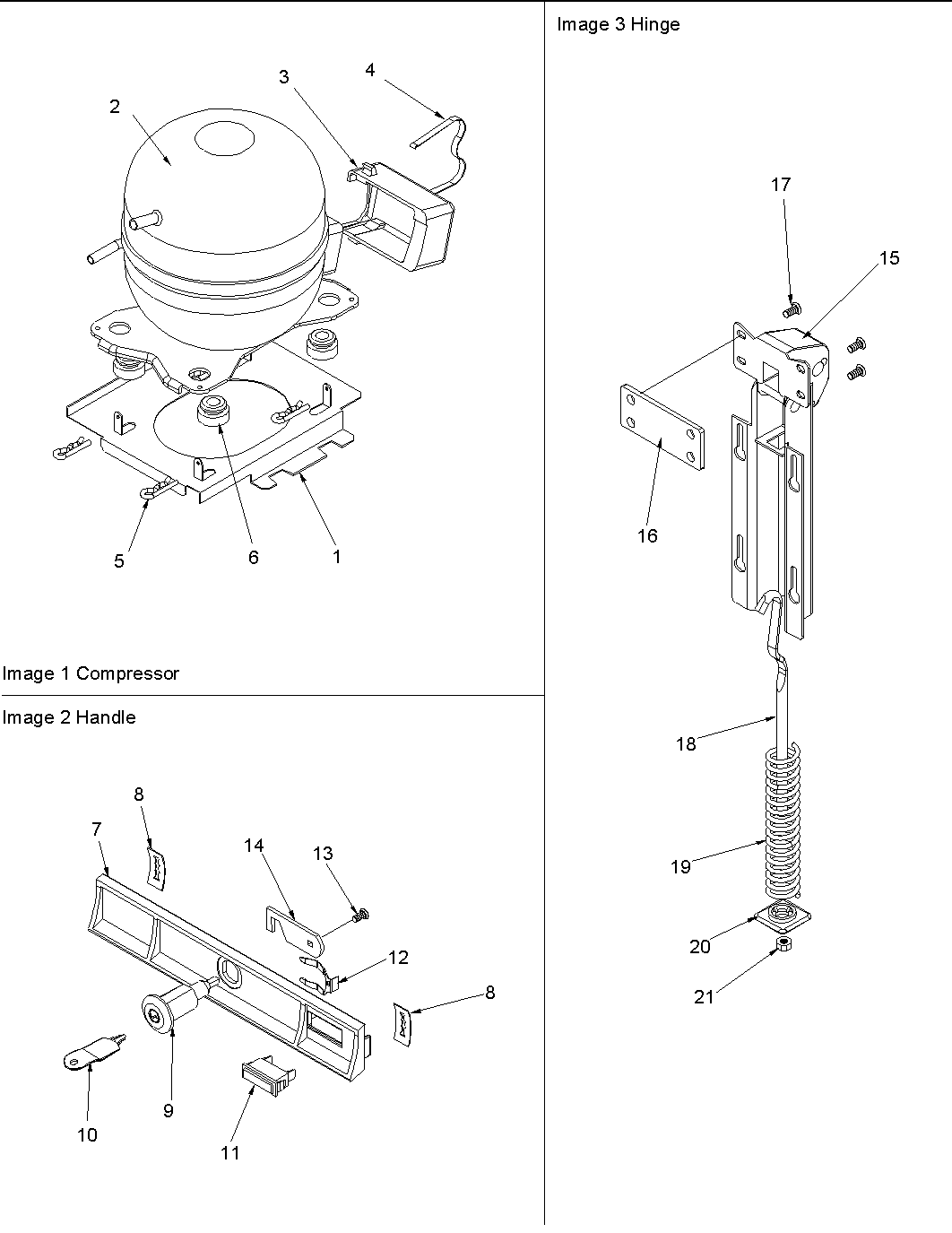

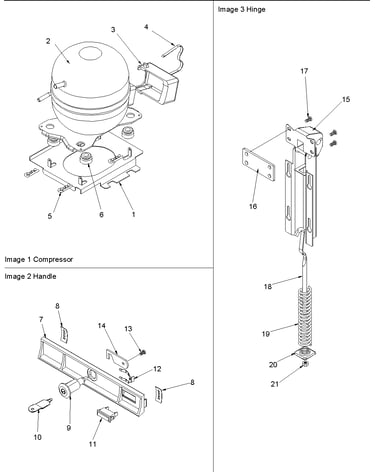

Compressor, hinge & lock diagram

Overload

Part #R0000126

Replaced by #2264602

?
Manufacturer substitution
This part replaces R0000126. Substitute parts can look different from the original.
$71.78
In Stock
Access Panel R0660036
#10

Door gasket, liner & hardware diagram

Access panel

Part #R0660036

Replaced by #4356622

?
Manufacturer substitution
This part replaces R0660036. Substitute parts can look different from the original.
$32.87
In Stock
Control Box R9800516
#5

Door gasket, liner & hardware diagram

Control box

Part #R9800516

Replaced by #W10682894

?
Manufacturer substitution
This part replaces R9800516. Substitute parts can look different from the original.
$26.49 |
16% OFF Phone Price : $31.49
In Stock
Bracket, Com R9800535
#1

Compressor, hinge & lock diagram

Bracket, com

Part #R9800535

Replaced by #3-81556-001

?
Manufacturer substitution
This part replaces R9800535. Substitute parts can look different from the original.
$10.80
In Stock
Handle Clip R0651501
#8A

Compressor, hinge & lock diagram

Handle clip

Part #R0651501

Replaced by #3-24059-024

?
Manufacturer substitution
This part replaces R0651501. Substitute parts can look different from the original.
$9.79
In Stock
Freezer Basket R0660007
#11

Door gasket, liner & hardware diagram

Freezer basket

Part #R0660007

Replaced by #8210434A

?
Manufacturer substitution
This part replaces R0660007. Substitute parts can look different from the original.
$35.36 |
12% OFF Phone Price : $40.36
In Stock
Screw, Mtg H R0651507
#17

Compressor, hinge & lock diagram

Screw, mtg h

Part #R0651507

Replaced by #4356491

?
Manufacturer substitution
This part replaces R0651507. Substitute parts can look different from the original.
$11.59
In Stock
Screw Control R0660022
#9999

Door gasket, liner & hardware diagram

Screw control

Part #R0660022

Replaced by #3-24004-049

?
Manufacturer substitution
This part replaces R0660022. Substitute parts can look different from the original.
This item is not returnable
$7.29
In Stock
