Model # 200183112 Official Craftsman 2-cycle engine

Here are the diagrams and repair parts for Official Craftsman 200183112 2-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

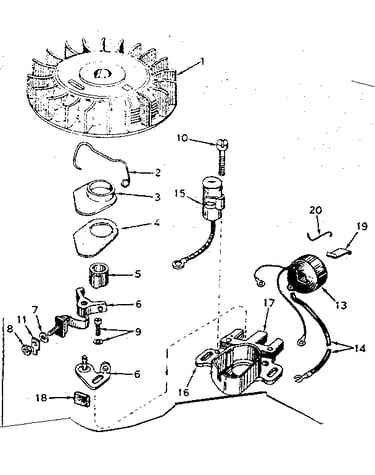

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |

Spark Plug 610120
#16

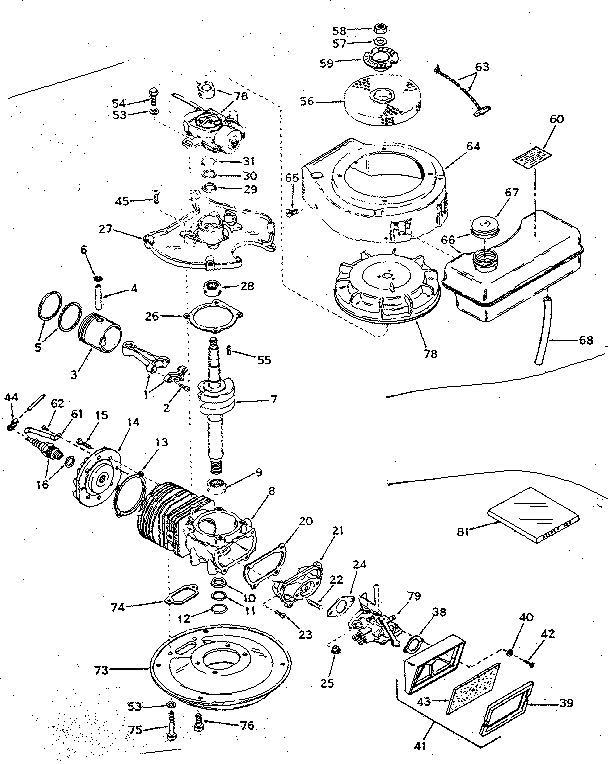

Basic engine diagram

Spark plug

Part #610120

The manufacturer no longer makes this part, and there's no substitute part

Gasket 630750
Gasket

Part #630750

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#5

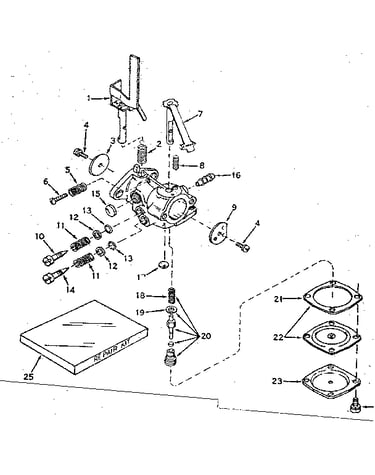

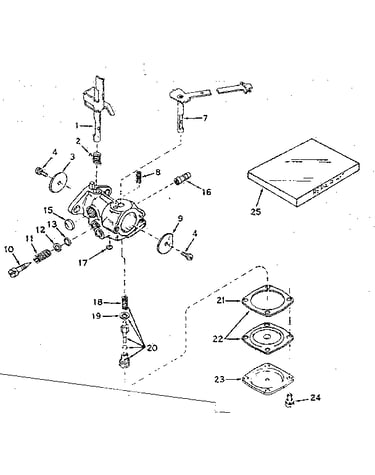

Carburetor no. 631446 diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Cylndr Gskt 510262
#13

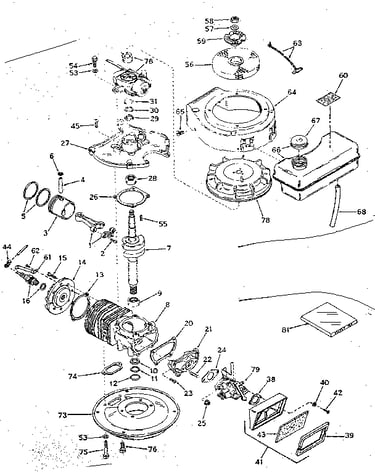

Basic engine diagram

Cylndr gskt

Part #510262

The manufacturer no longer makes this part, and there's no substitute part

Tank Assembly 410232
#66

Basic engine diagram

Tank assembly

Part #410232

The manufacturer no longer makes this part, and there's no substitute part

Gasket 630742
Gasket

Part #630742

The manufacturer no longer makes this part, and there's no substitute part

Gasket 510206
#38

Basic engine diagram

Gasket

Part #510206

The manufacturer no longer makes this part, and there's no substitute part

Seat/gskt 630932
Seat/gskt

Part #630932

The manufacturer no longer makes this part, and there's no substitute part

Screw 650506
Screw

Part #650506

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Owner's Manual 740047

#NI

All parts diagram

Lawn & garden equipment engine owner's manual

Part #740047

In Stock
