Model #S3005--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Hoover S3005- canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 35 parts

Spring#8

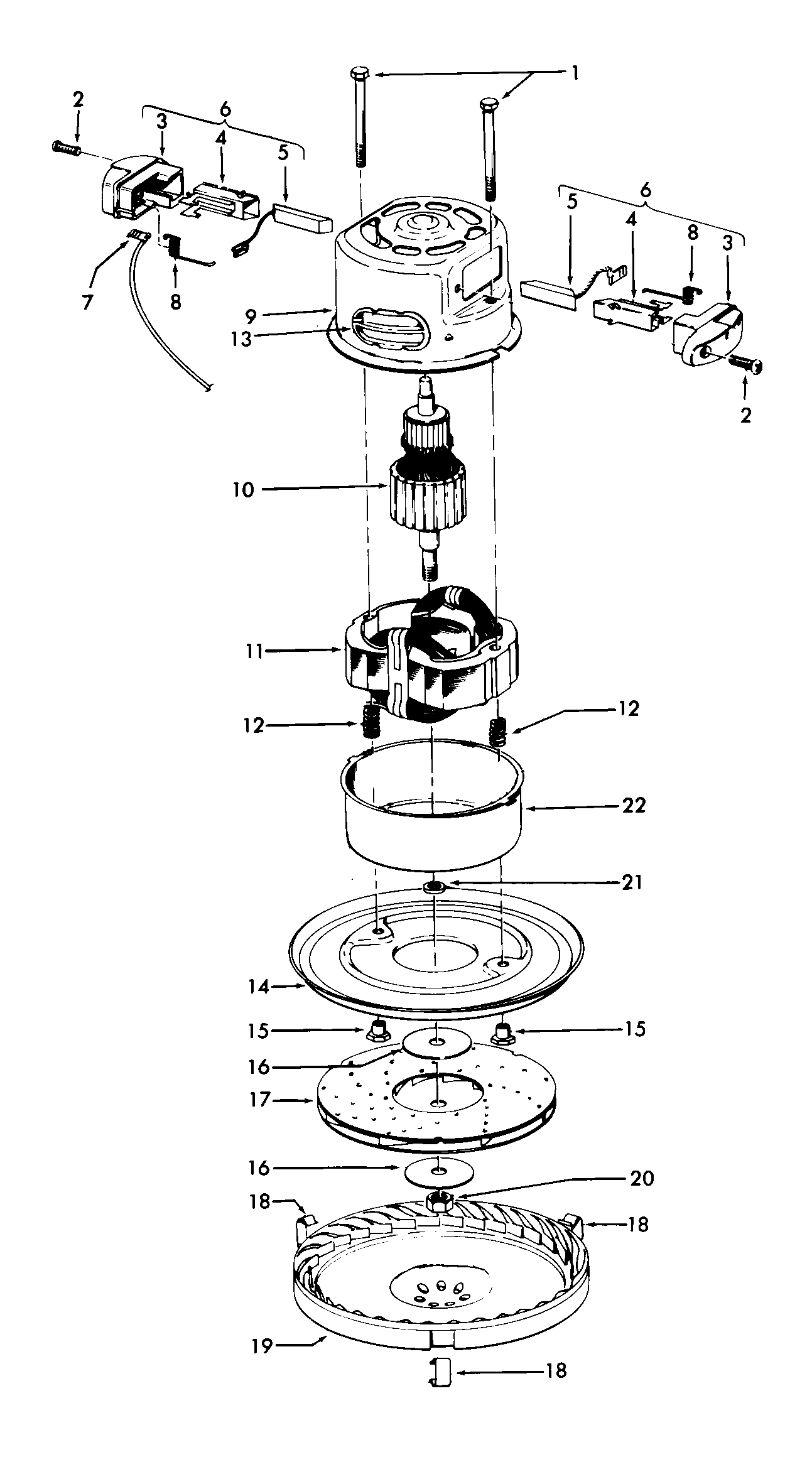

Motor assembly Diagram

Spring

Part #38353004

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring#26

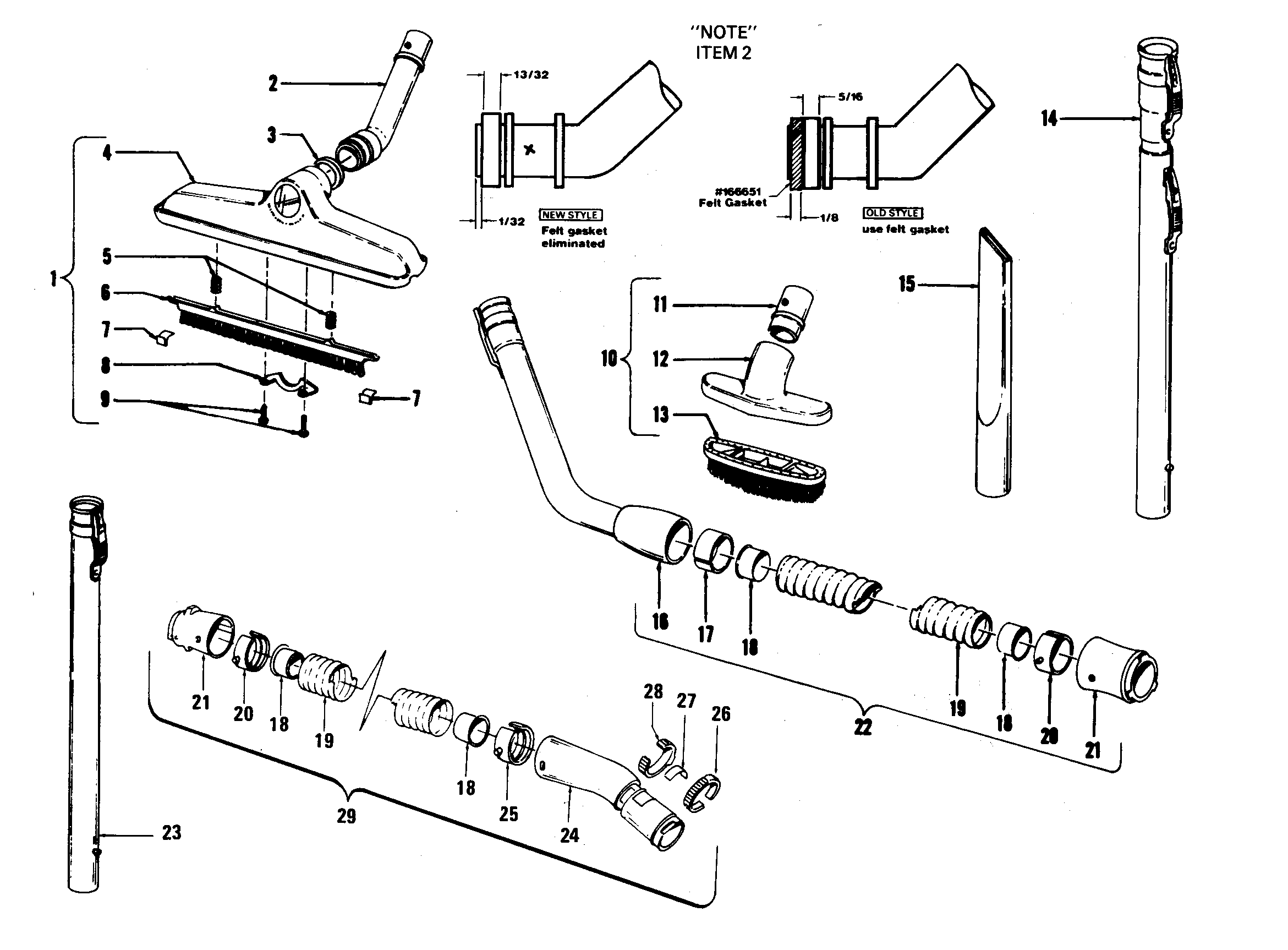

Hose, cleaningtools Diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube#23

Hose, cleaningtools Diagram

Extension tube

Part #43453027

The manufacturer no longer makes this part, and there's no substitute part

Hoover Vacuum Bag, Type H, 3-pack#30

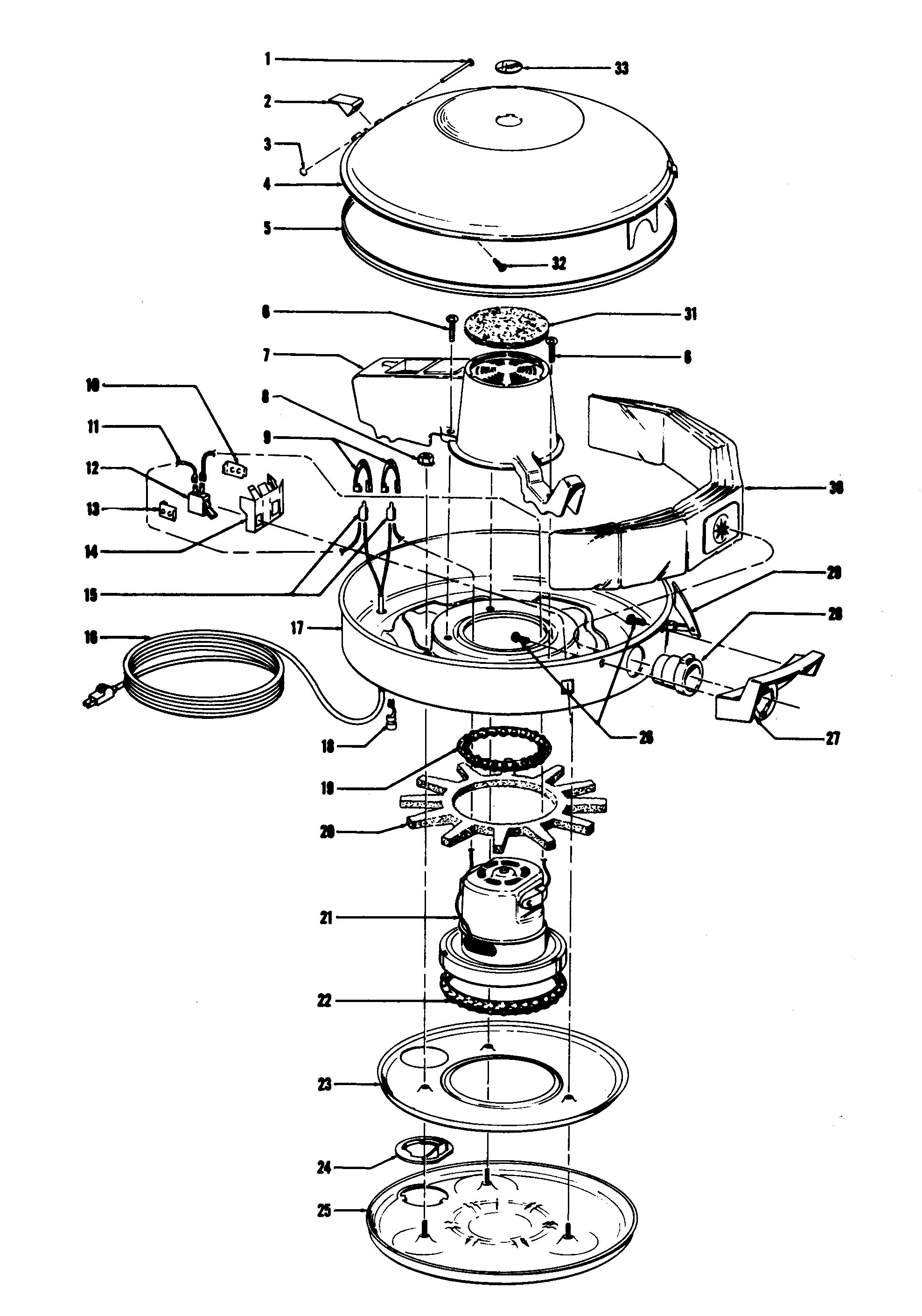

Mainhousing Diagram

Hoover vacuum bag, type h, 3-pack

Part #4010009H

The manufacturer no longer makes this part, and there's no substitute part

Lo Mtr Hsng#22

Motor assembly Diagram

Lo mtr hsng

Part #41823002

The manufacturer no longer makes this part, and there's no substitute part

Nut#20

Motor assembly Diagram

Nut

Part #33426001

The manufacturer no longer makes this part, and there's no substitute part

Twist-On Wire Connector#15

Mainhousing Diagram

Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

Screw#2

Motor assembly Diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

Connector#21

Hose, cleaningtools Diagram

Connector

Part #32855003

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Hose#18

Hose, cleaningtools Diagram

Sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part
