Kenmore 6289467810 electric range Parts
Here are the diagrams and repair parts for Kenmore 6289467810 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

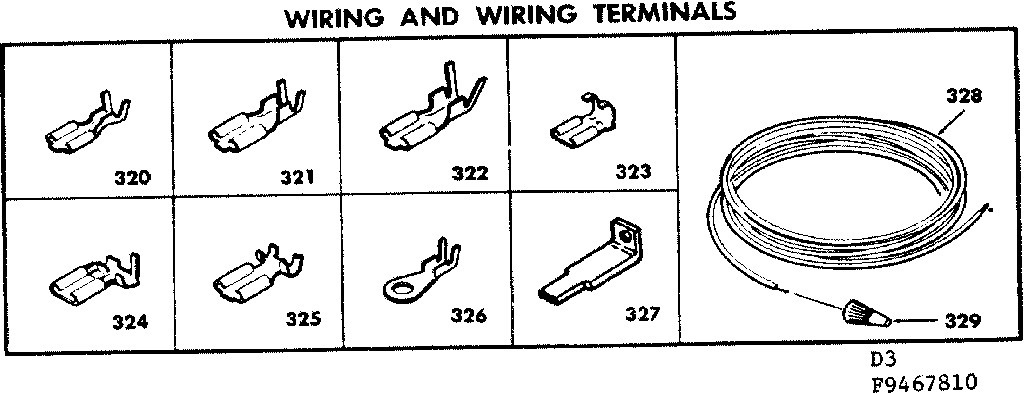

SELECT DIAGRAM
Browse Parts for 6289467810 Ranges
Body assembly diagram
Broil Unit
Part #1311770
The manufacturer no longer makes this part, and there's no substitute part
Body assembly diagram
Drawer Guide
Part #1315216Replaced by #318161600
Manufacturer substitutionThis part replaces 1315216. Substitute parts can look different from the original.In Stock$112.09
Qty

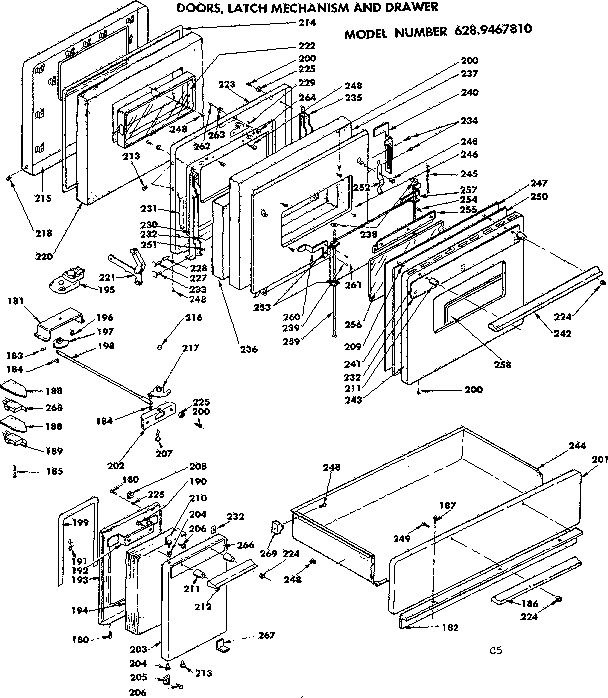

Doors, latch mechanism and drawer diagram
Door Window
Part #1314829Replaced by #5301167855
Manufacturer substitutionThis part replaces 1314829. Substitute parts can look different from the original.In Stock$281.03QtyBody assembly diagram
Drawer Rail
Part #1315218Replaced by #318161600
Manufacturer substitutionThis part replaces 1315218. Substitute parts can look different from the original.In Stock$112.09QtyBody assembly diagram
Speed Nut
Part #1164480Replaced by #5308000126
Manufacturer substitutionThis part replaces 1164480. Substitute parts can look different from the original.In Stock$27.48QtyBody assembly diagram
Vent Tube
Part #1311297Replaced by #5305055002
Manufacturer substitutionThis part replaces 1311297. Substitute parts can look different from the original.In Stock$68.58QtyDoors, latch mechanism and drawer diagram
Clip
Part #1309666Replaced by #5301309666
Manufacturer substitutionThis part replaces 1309666. Substitute parts can look different from the original.In Stock$28.64QtyBody assembly diagram
Insulation
Part #1313863Replaced by #5301167905

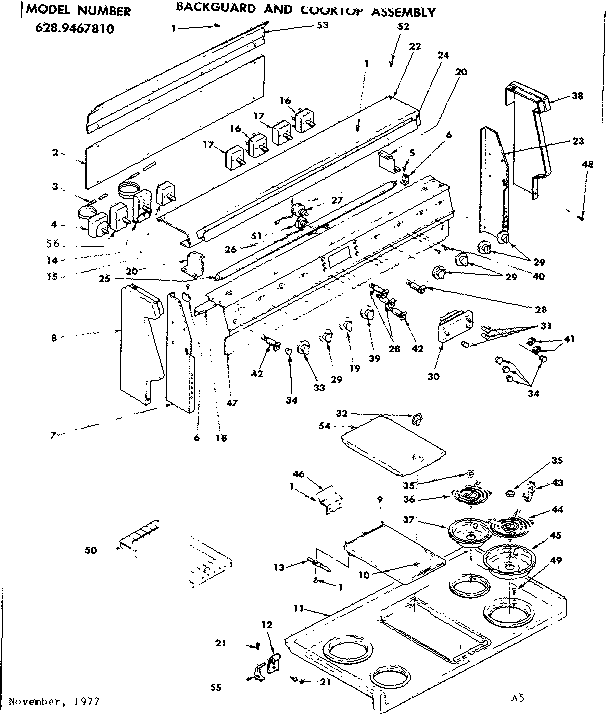

Manufacturer substitutionThis part replaces 1313863. Substitute parts can look different from the original.In Stock$40.14QtyBackguard and cooktop assembly diagram
Selector Switch
Part #1314788Replaced by #5301314788
Manufacturer substitutionThis part replaces 1314788. Substitute parts can look different from the original.In Stock$255.29QtyBackguard and cooktop assembly diagram
Lifter
Part #1306271Replaced by #318355400
Manufacturer substitutionThis part replaces 1306271. Substitute parts can look different from the original.In Stock$205.73Qty
