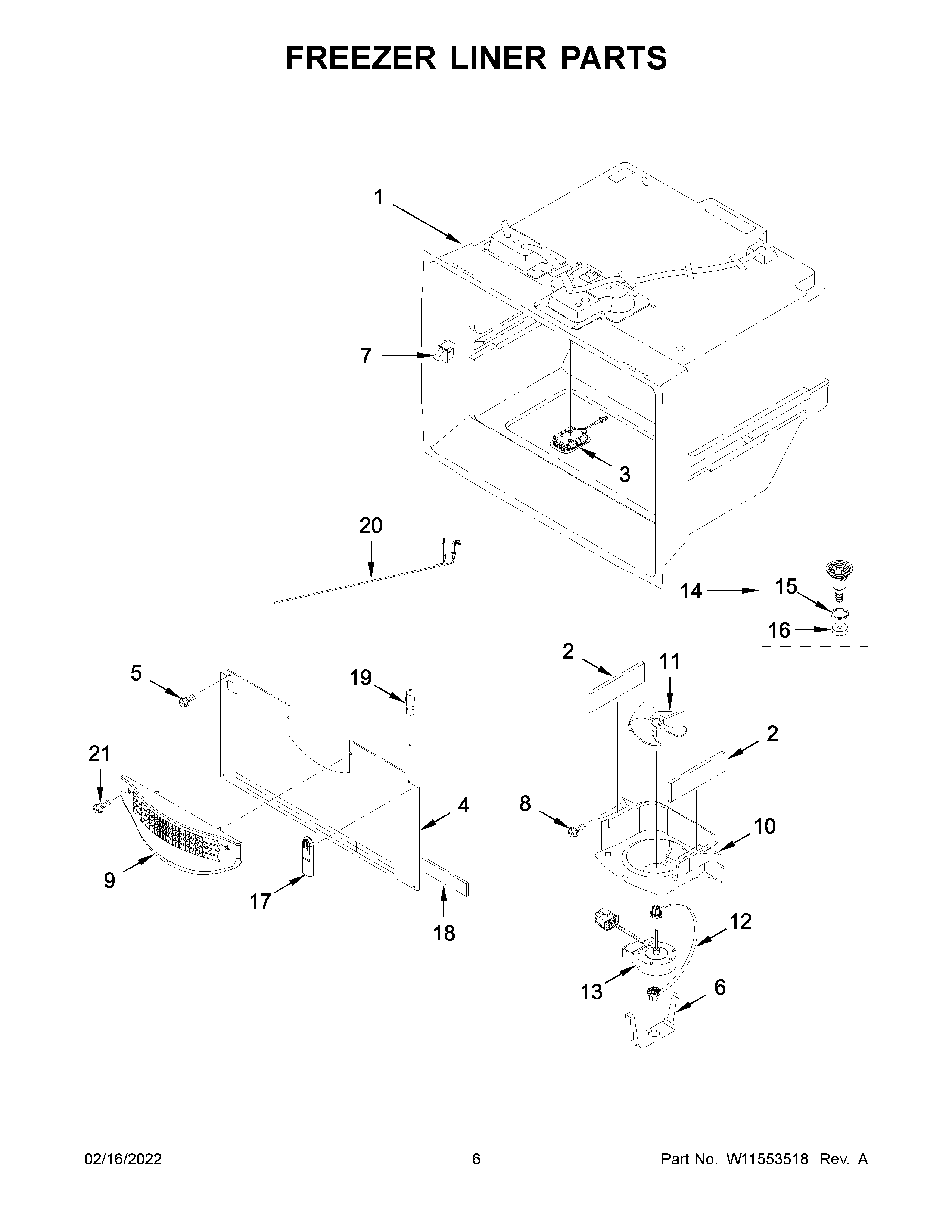

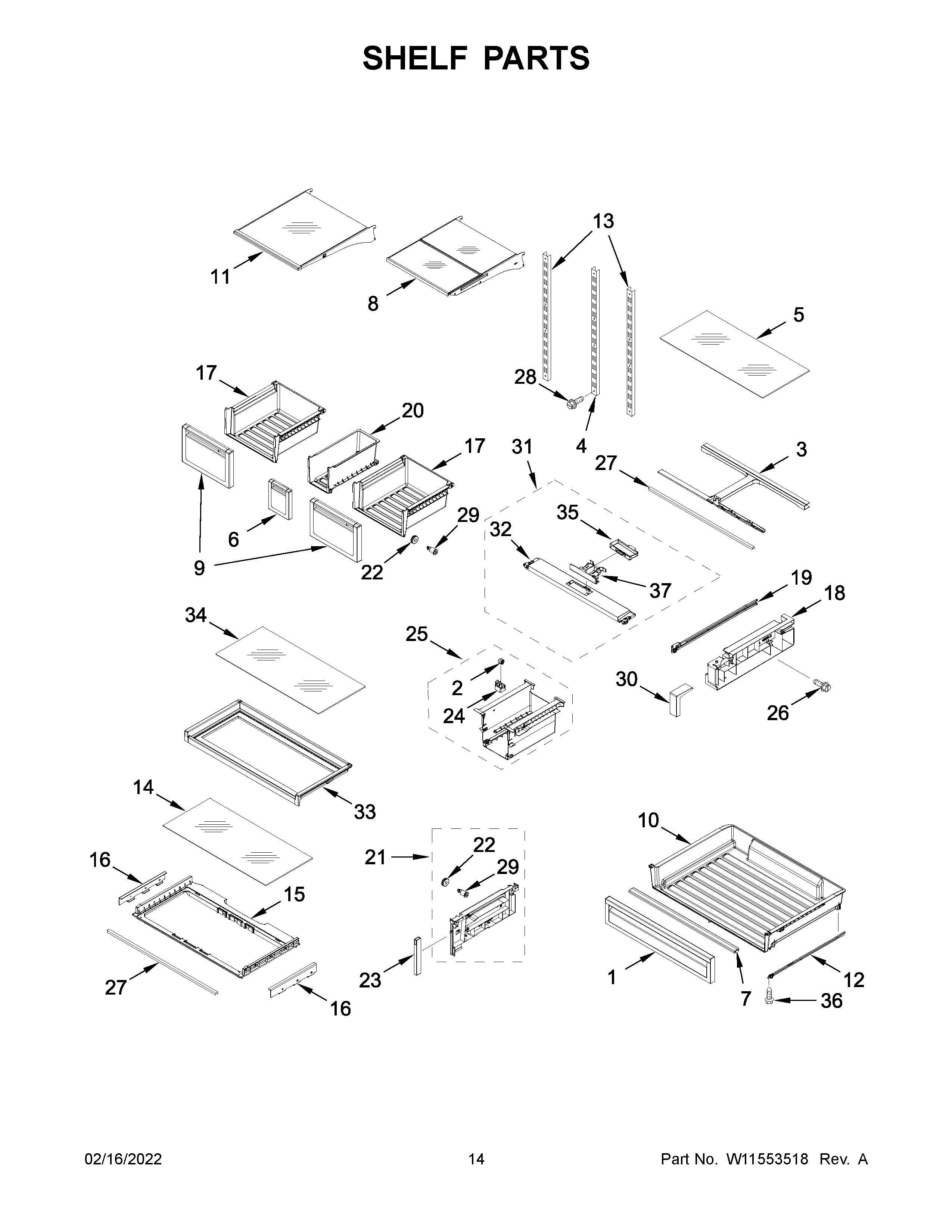

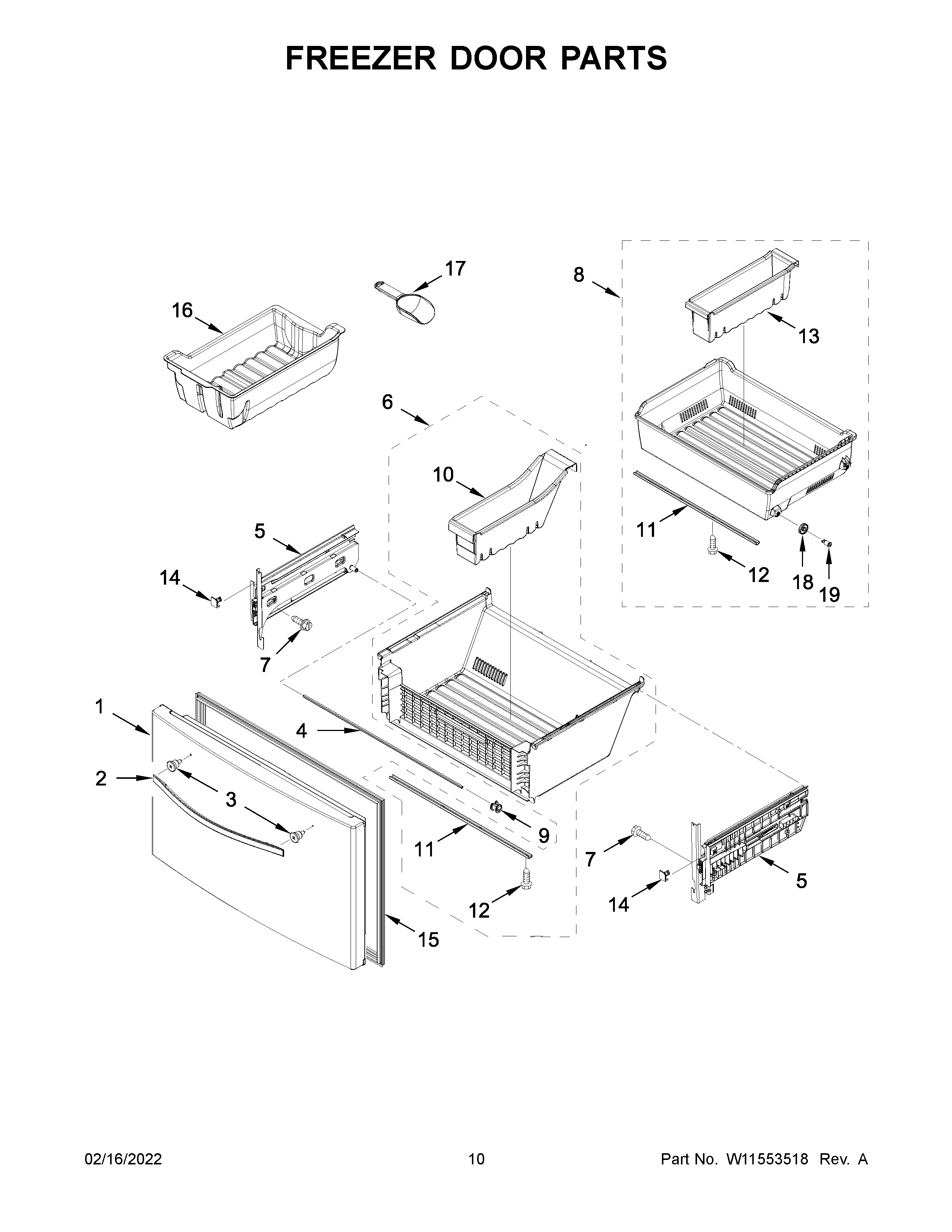

Whirlpool WRF767SDHZ03 refrigerator Parts

On the Whirlpool WRF767SDHZ03, you typically do not remove the cardboard-like panel or cover at the bottom/rear area. That piece is usually a protective air-flow baffle and safety cover for the machine compartment; removing it can reduce cooling efficiency and expose components.

What you should do on WRF767SDHZ03

Use the steps in the WRF767SDHZ03 owner's manual when you need access for cleaning or service.

• Leave the bottom cover in place during normal operation.

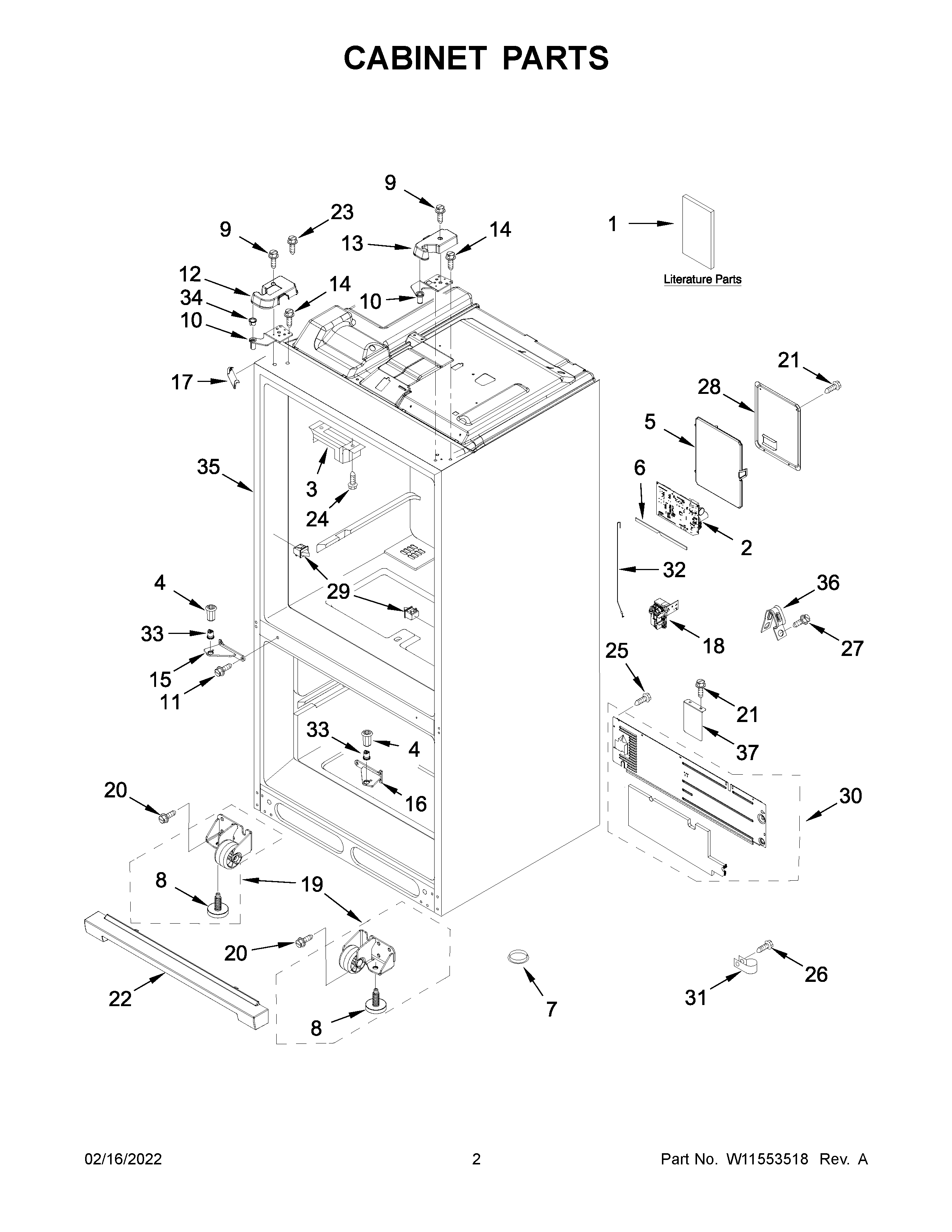

• If you need to clean the condenser area, remove only the base grille (the front toe-kick style grille), not the rear/bottom cover.
• Unplug the refrigerator before cleaning around the condenser area.
• Use a vacuum with a soft brush to remove dust and pet hair.
• Reinstall the base grille when finished.

Cardboard vs. packaging: quick identification

Not everything that looks like cardboard is “packing material.” Use this quick check:

What you see	Usually means	Remove it?
Loose cardboard sheets, corner blocks, tape, foam	Shipping protection	Yes

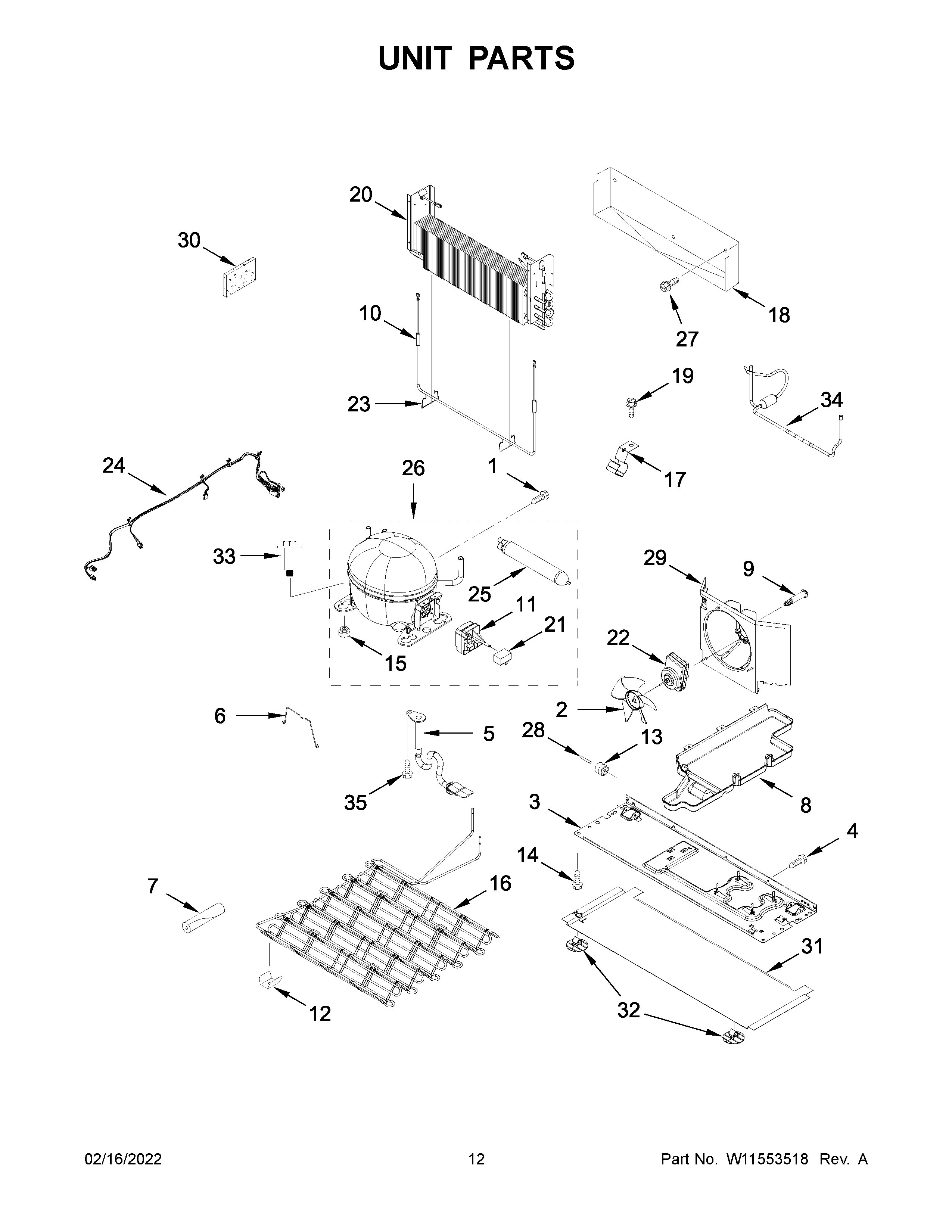

A fitted panel attached with screws/clips near the compressor/condenser area	Air-flow baffle or machine compartment cover	No
Front snap-on grille at the bottom front	Base grille for access/airflow	Remove only for cleaning

Why it matters

That bottom cover helps direct airflow across the condenser and protects wiring and moving parts. Keeping it installed helps your Whirlpool refrigerator cool properly and run efficiently.

Last updated: January 2026

For the Whirlpool WRF767SDHZ03, the most common issues we see customers troubleshoot are cooling problems (warm fridge or freezer), ice maker and dispenser problems, and water leaks. Many of these start with airflow restrictions, dirty condenser areas, or water system restrictions described in the WRF767SDHZ03 owner’s manual.

Most common problem categories (and what to check first)

• Not cooling well or temperature swings: check door sealing, airflow vents, and condenser area cleanliness.

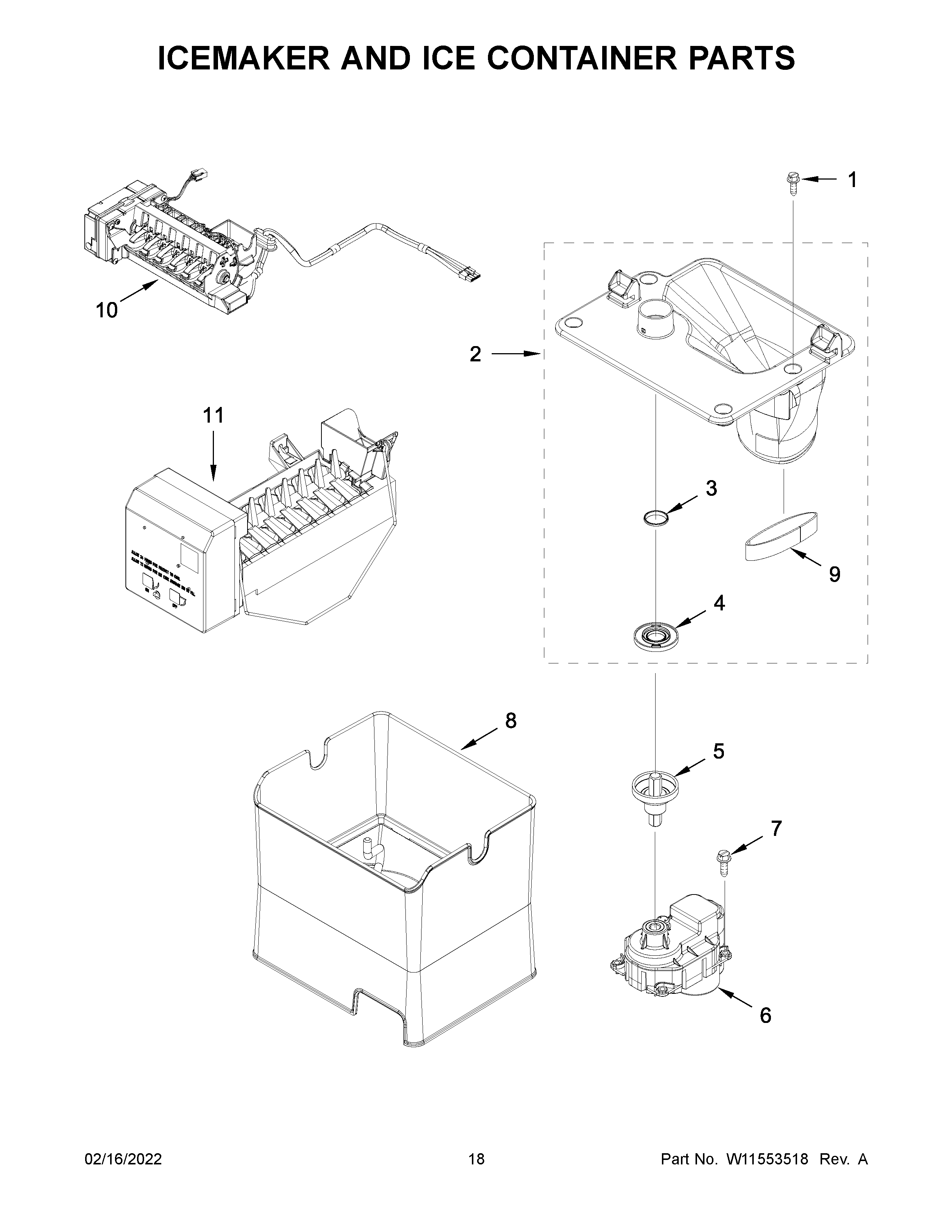

• Ice maker not making ice or slow ice: confirm water supply is on, allow time after install, and verify freezer temp.

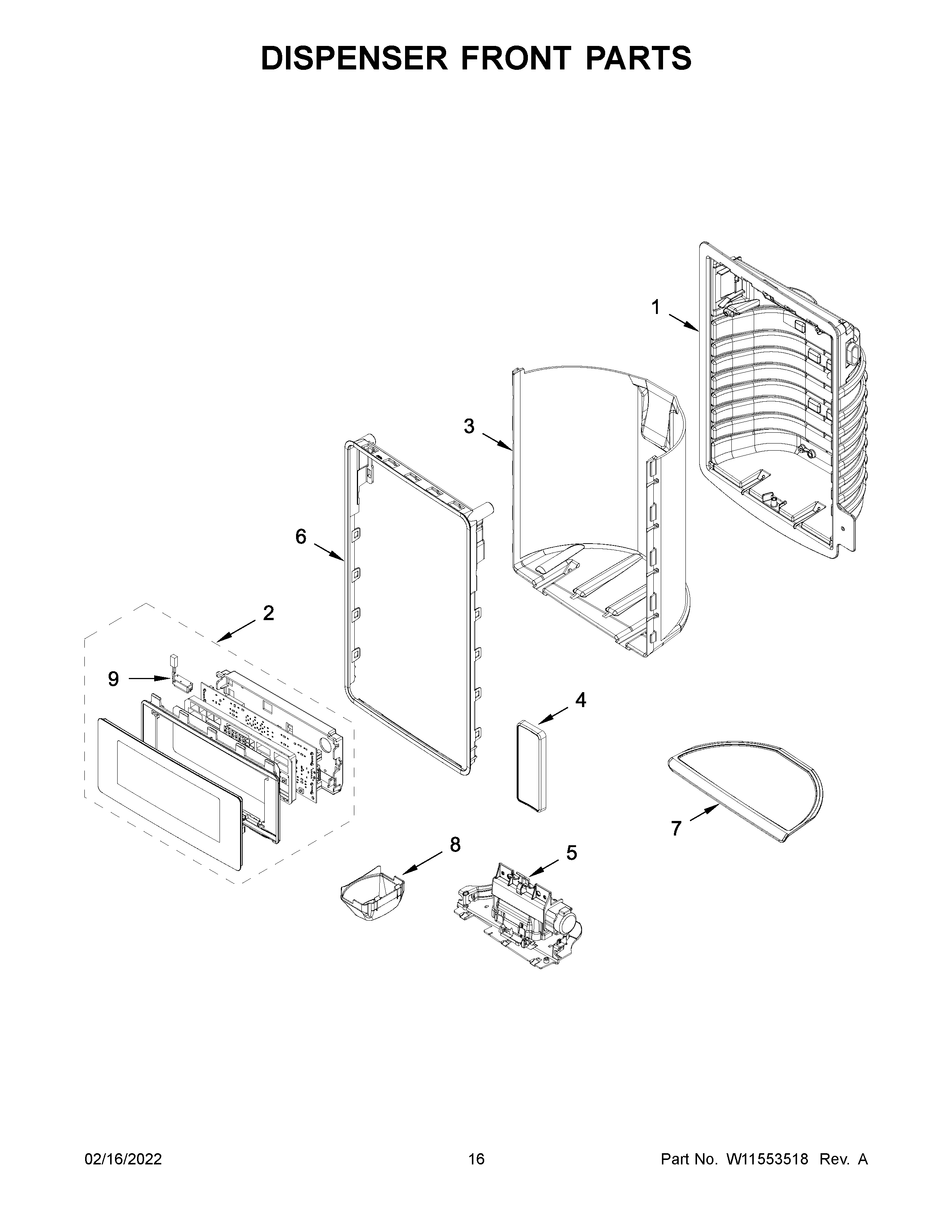

• Water dispenser slow or tastes off: replace the filter and flush the system.
• Water leaks: look for a blocked drain path, loose water line connections, or a leaking valve.
• Noisy operation: fan noise, vibration, or normal refrigerant flow sounds can be mistaken for a failure.

Quick checks that solve a lot of “common problems”

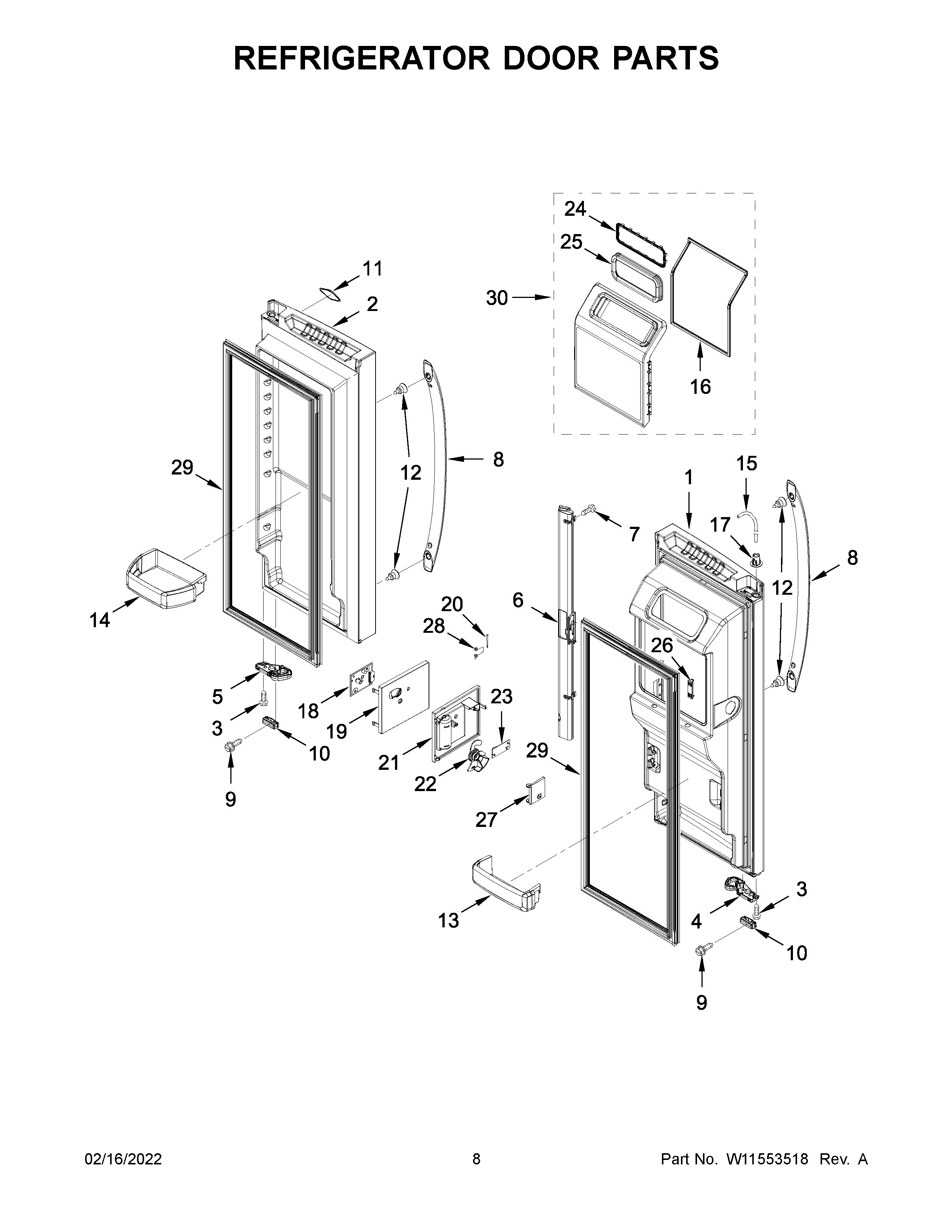

1. Confirm doors close and seal fully (a poor seal causes warm temps, frost, and long run times).
2. Clean the condenser area if your home is dusty, greasy, or has pets (the manual recommends cleaning about every 6 months in those conditions).
3. Replace and flush the water filter if you have dispenser or ice issues; use the correct filter for this model such as the refrigerator cartridge wrap assembly EDR2RXD1.
4. Verify water pressure and supply (low pressure can cause hollow cubes or slow dispensing).

Common symptoms and likely causes

Symptom	Often related to	Typical next step
Fridge warm, freezer OK	Airflow/evaporator fan issue	Inspect airflow and fan operation
No ice	Water supply, fill tube icing, ice maker issue	Check supply, then ice maker components
Slow water	Filter restriction	Replace filter and flush
Puddles inside/outside	Drain restriction or water line leak	Inspect drain path and connections

Why it matters

Catching these issues early helps protect food quality, prevents water damage, and can reduce compressor run time and energy use.

Last updated: January 2026

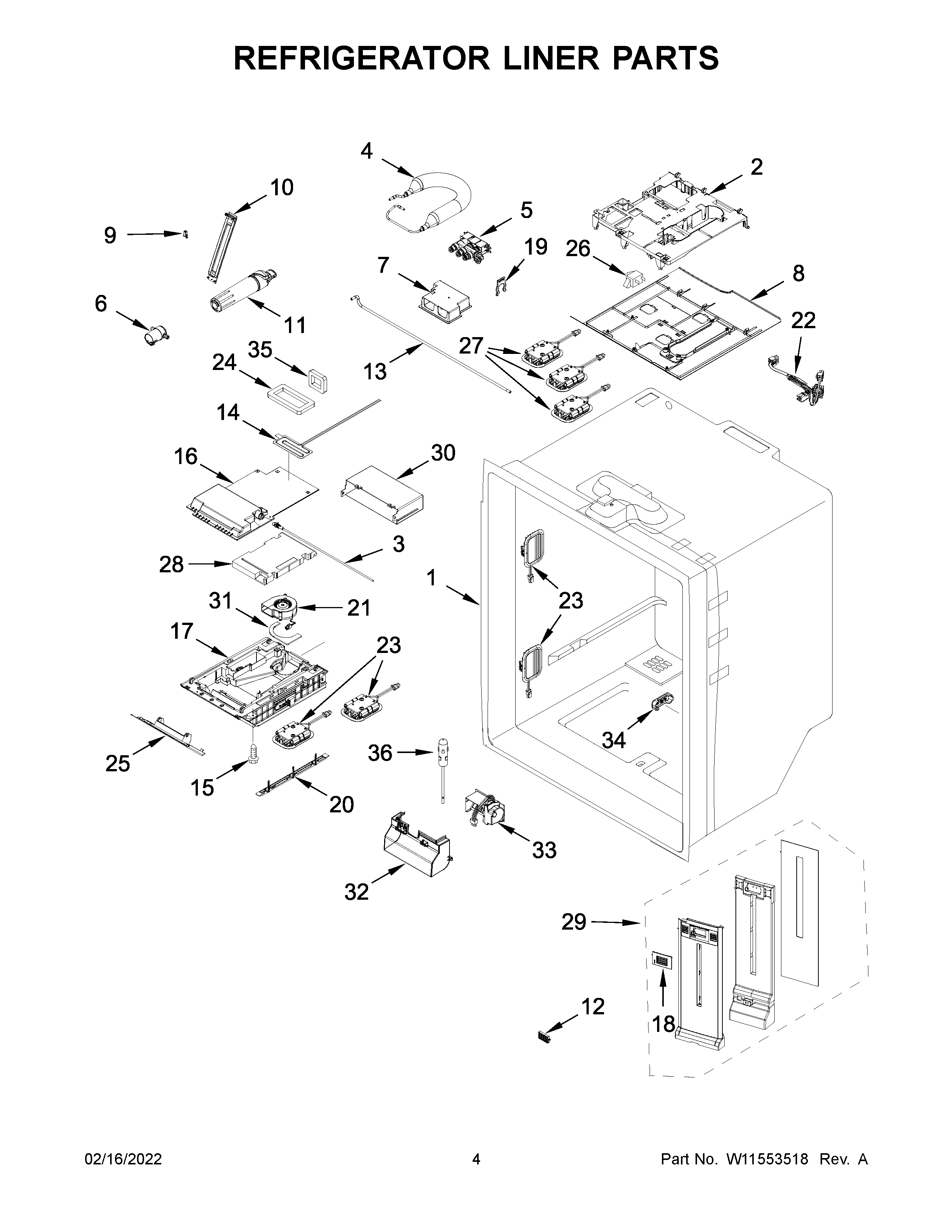

The model number for your Whirlpool refrigerator is printed on the serial tag inside the fresh food (refrigerator) compartment. Open the refrigerator door and look along the interior walls near the crisper drawers or side wall; the tag lists the model and serial number.

Where to look (fast checklist)

• Inside the refrigerator section (not the freezer drawer)
• On a serial tag or rating label
• Common spots:
  • Side wall near the crisper drawers
  • Upper interior side wall
  • Near the ceiling area inside the fresh food compartment

What the label looks like and what to copy

Write down the model number and serial number exactly as shown (letters and numbers).

Item on label	Why you need it
Model number (example: WRF767SDHZ03)	Ensures diagrams and parts match your exact build
Serial number	Helps confirm production series and correct replacement parts

Why it matters

Whirlpool often makes small design changes within the same model family. Using the exact model number (WRF767SDHZ03) helps us match the correct parts list, diagrams, and troubleshooting steps from the WRF767SDHZ03 owner's manual.

Tip if you are ordering parts

Once you find the tag, compare the model number character-by-character before choosing parts like the refrigerator door switch W11396033 or refrigerator cartridge wrap assembly EDR2RXD1.

Last updated: March 2026
