Model #358798280 Craftsman line trimmer

Here are the diagrams and repair parts for Craftsman 358798280 line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

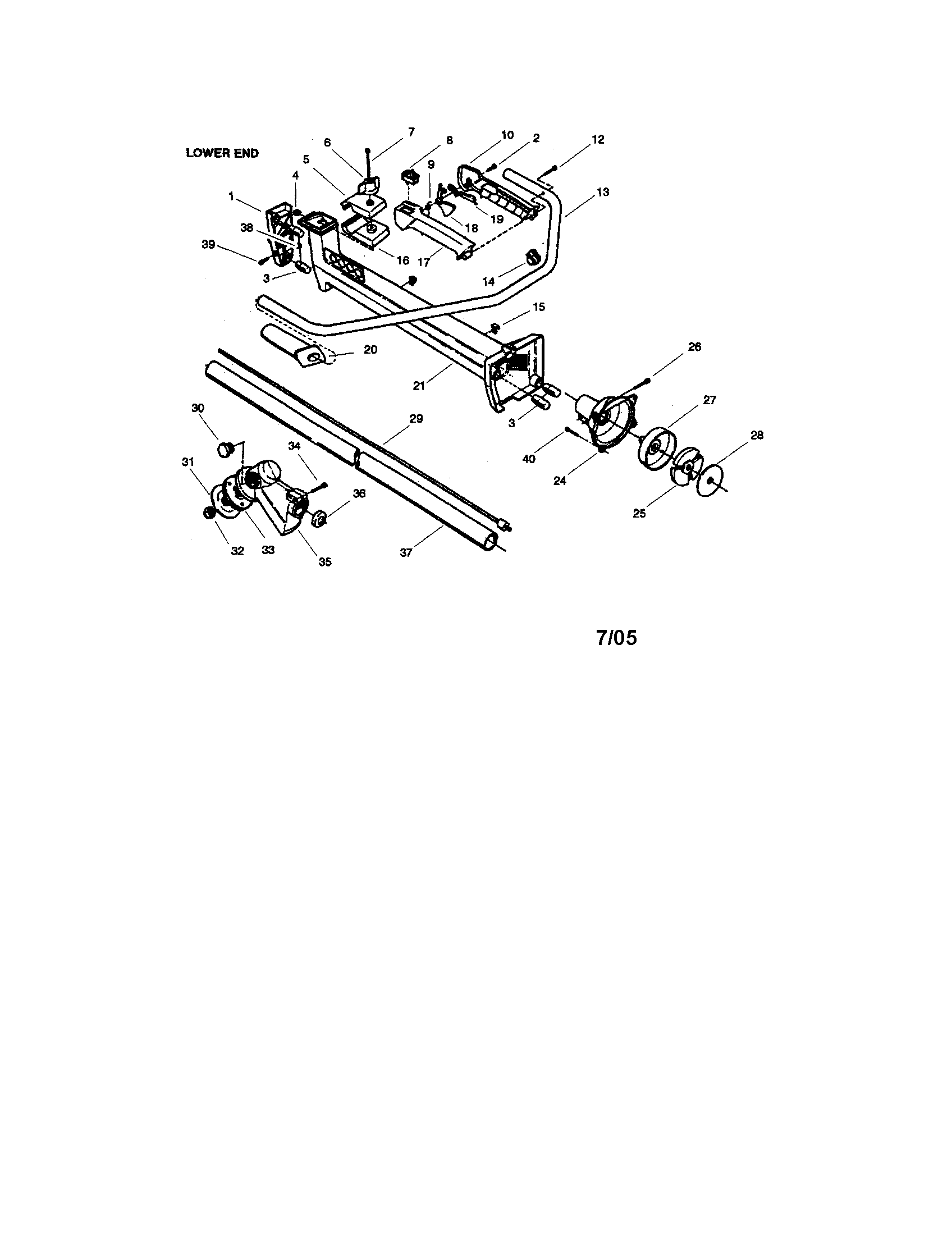

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 151 parts

    Lawn & Garden Equipment Engine Fuel Filter#18

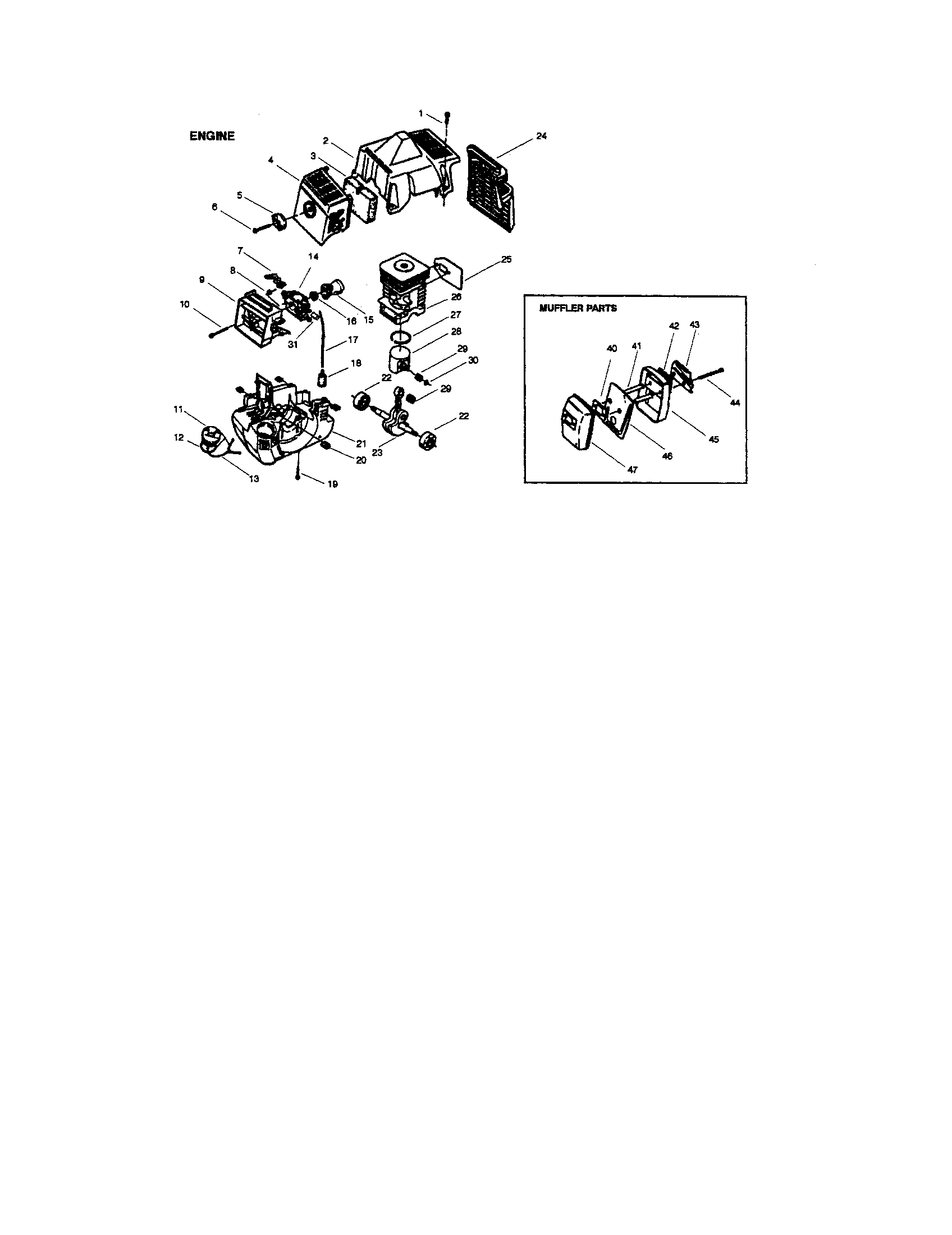

    Engine Diagram

    Fuel filter

    Part #530014362
    Replaced by #530095646
    ?
    Manufacturer substitution
    This part replaces 530014362. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $3.79
    Lawn & Garden Equipment Engine Spark Plug#5

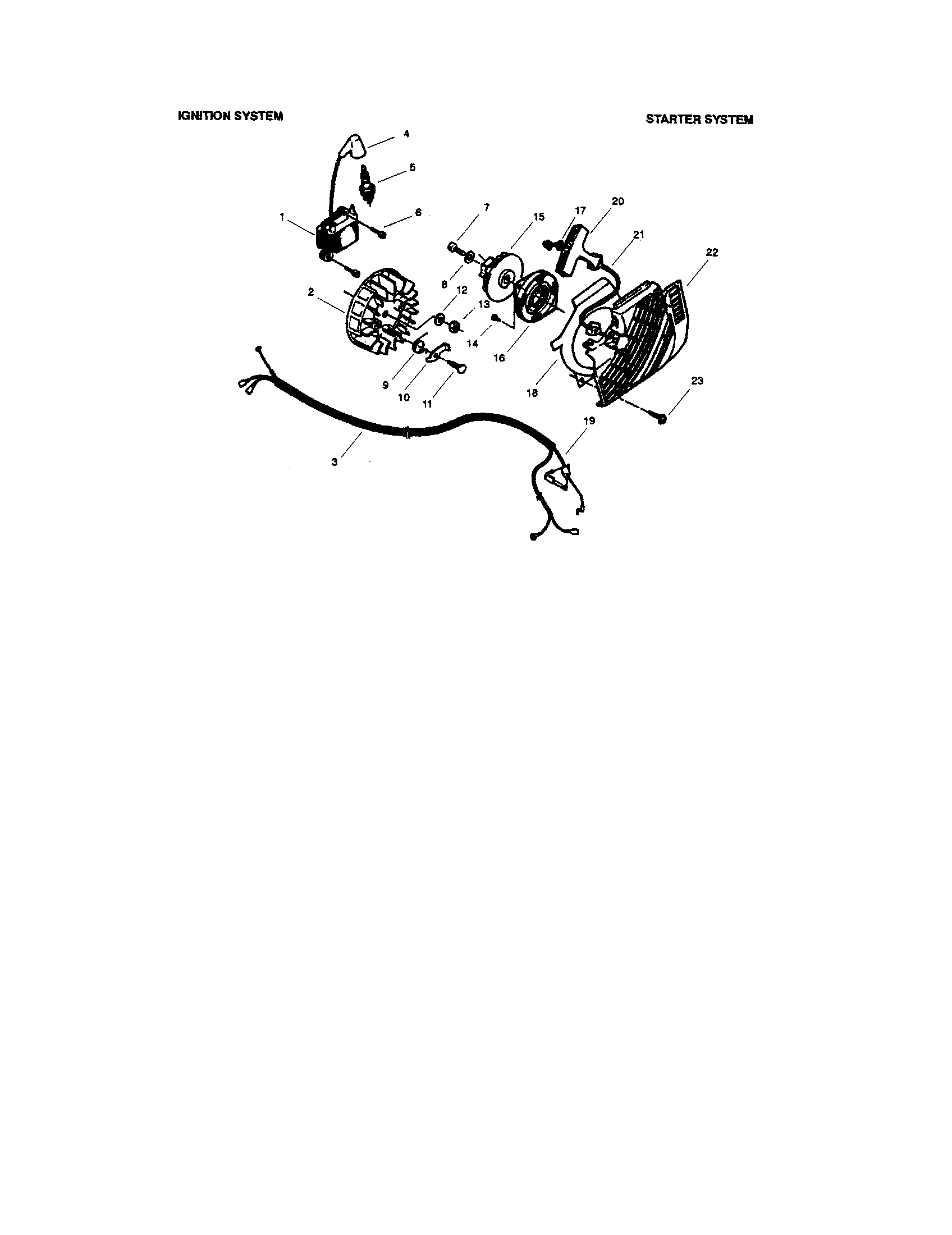

    Ignition and starter system Diagram

    Spark plug

    Part #952030150
    Replaced by #503235111
    ?
    Manufacturer substitution
    This part replaces 952030150. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.09
    Line Trimmer Throttle Linkage#23

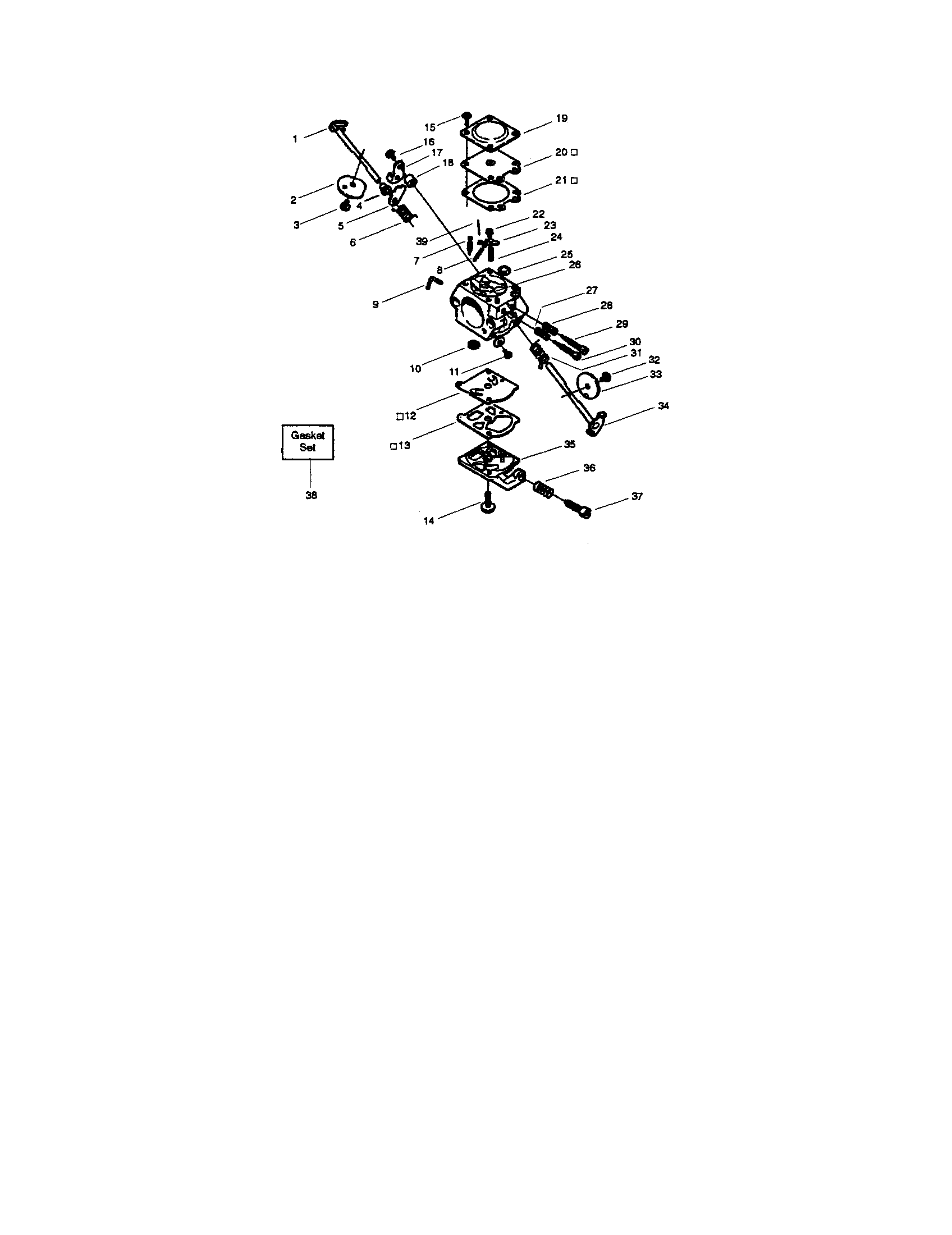

    Choke shaft/fuel system Diagram

    Line trimmer throttle linkage

    Part #530035031
    This item is not returnable
    In Stock
    $2.91
    Starter Pulley#15

    Ignition and starter system Diagram

    Starter pulley

    Part #503775301
    In Stock
    $14.57
    Line Trimmer Bearing#22

    Engine Diagram

    Bearing

    Part #502212701
    Replaced by #503913401
    ?
    Manufacturer substitution
    This part replaces 502212701. Substitute parts can look different from the original.
    In Stock
    $24.16
    Harness Warning#7

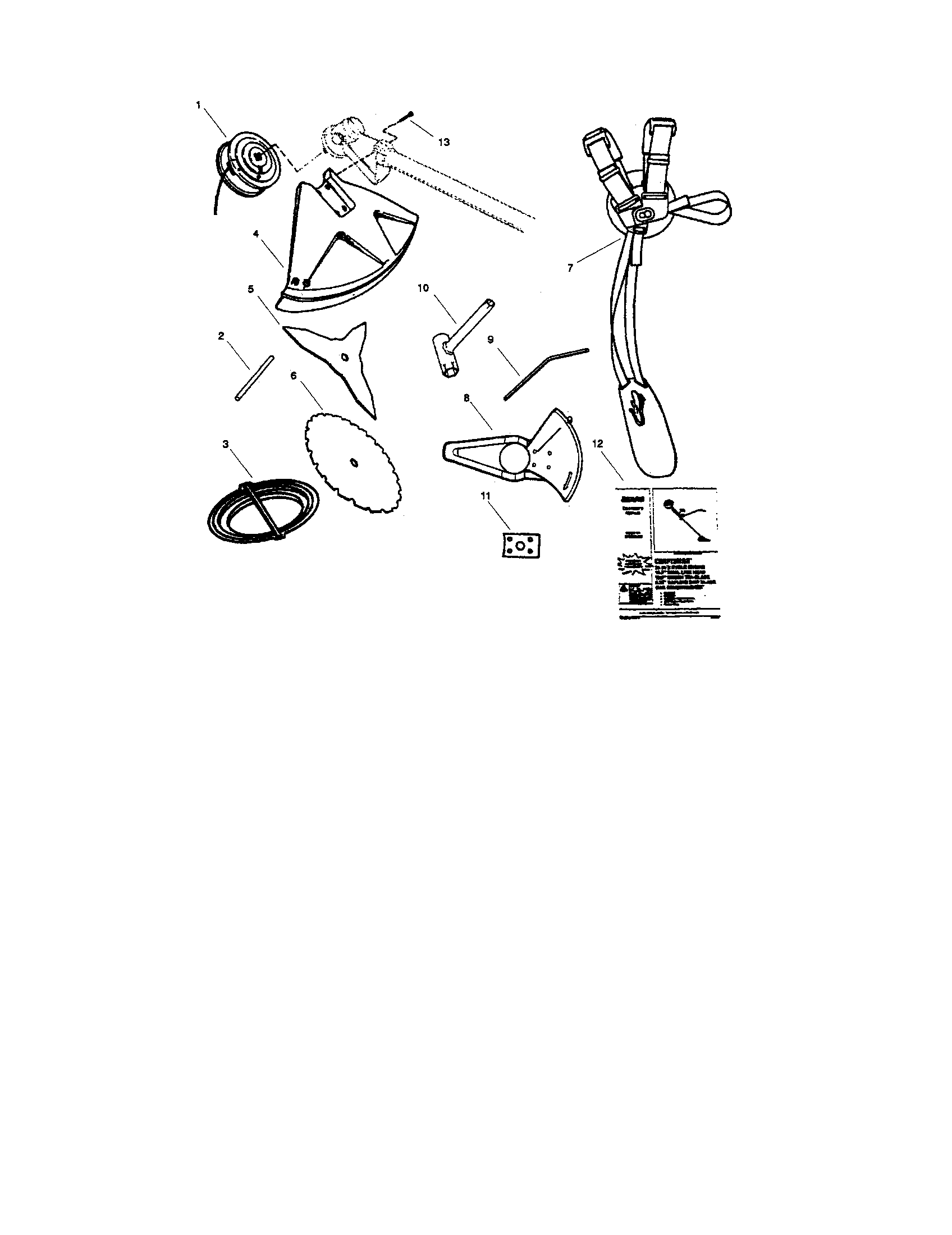

    Dual line cutting head Diagram

    Harness

    Part #503736303
    Replaced by #537216302
    ?
    Manufacturer substitution
    This part replaces 503736303. Substitute parts can look different from the original.
    In Stock
    $12.50
    Hex Wrench

    See All Related Diagrams

    Hex key

    Part #502215801
    Replaced by #530031159
    ?
    Manufacturer substitution
    This part replaces 502215801. Substitute parts can look different from the original.
    This item is not returnable
    Back Order
    $3.77
    Line Trimmer Throttle Cable Assembly#3

    Ignition and starter system Diagram

    In Stock
    $54.99
    Cyl & Pstn A#26

    Engine Diagram

    Cyl & pstn a

    Part #503694601
    In Stock
    $166.87
    Screw#6

    Engine Diagram

    Screw

    Part #502206501
    This item is not returnable
    In Stock
    $2.28
