Kenmore 106741890 air conditioner Parts
Here are the diagrams and repair parts for Kenmore 106741890 air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM

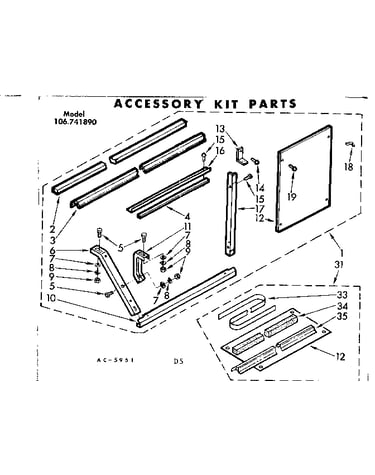

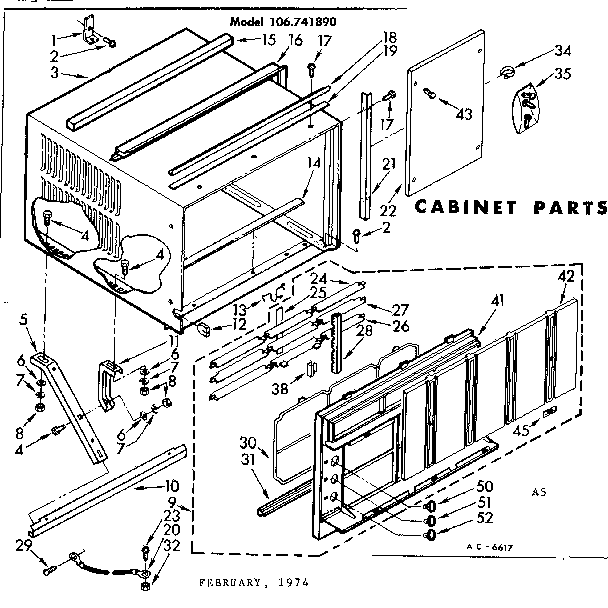

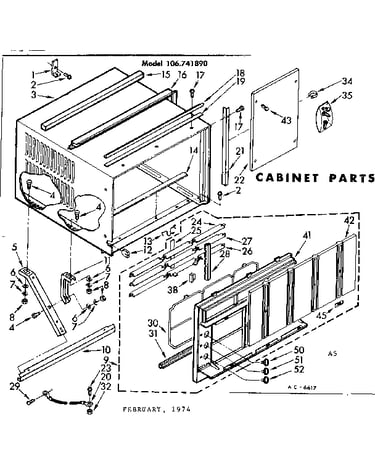

Browse Parts for 106741890 Air Conditioner

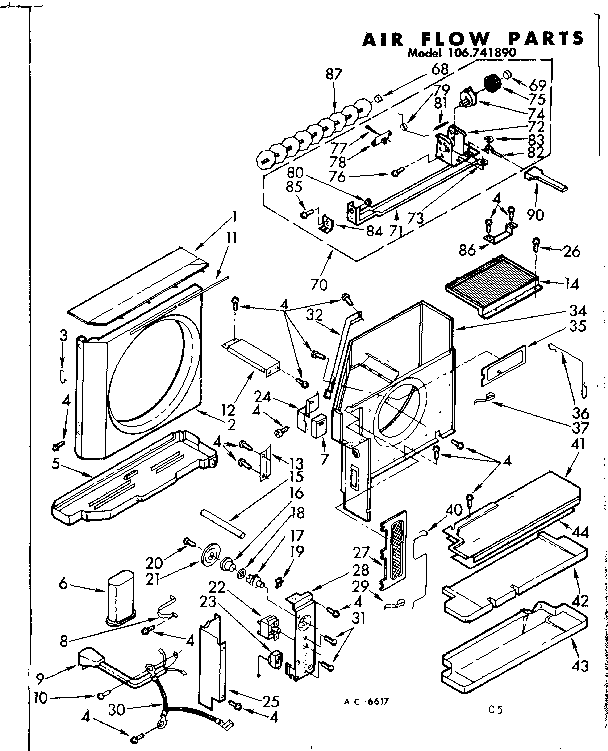

Air flow parts diagram
Screw
Part #487910Replaced by #WP488729
Manufacturer substitutionThis part replaces 487910. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93
Qty
#NI
All parts diagram
Capacitor
Part #470168Replaced by #212643
Manufacturer substitutionThis part replaces 470168. Substitute parts can look different from the original.This item is not returnableIn Stock$28.0336% OFF Was : $43.86QtyBracket
In Stock$45.47QtyBolt, 1/4 X 3
In Stock$27.79QtyScrew
Part #488017Replaced by #WP965173
Manufacturer substitutionThis part replaces 488017. Substitute parts can look different from the original.In Stock$28.72QtyAir flow parts diagram
Screw
Part #488701Replaced by #WP487353
Manufacturer substitutionThis part replaces 488701. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyAir flow parts diagram
Screw, 8 X 1
Part #488480Replaced by #WP489069
Manufacturer substitutionThis part replaces 488480. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyAir flow parts diagram
Screw
Part #487871Replaced by #WPW10141604

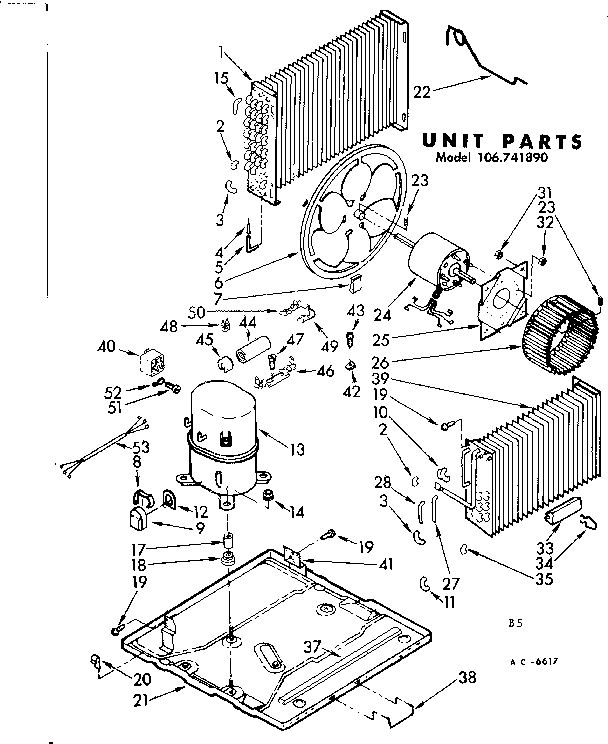

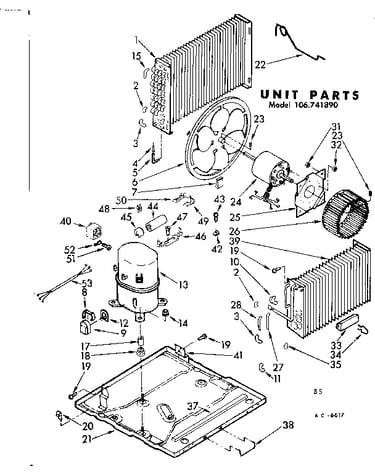

Manufacturer substitutionThis part replaces 487871. Substitute parts can look different from the original.This item is not returnableIn Stock$6.3014% OFF Phone Price : $7.30QtyUnit parts diagram
Nut
Part #488130Replaced by #WP488130
Manufacturer substitutionThis part replaces 488130. Substitute parts can look different from the original.In Stock$28.95QtyUnit parts diagram
Screw
Part #595395Replaced by #WP486579
Manufacturer substitutionThis part replaces 595395. Substitute parts can look different from the original.In Stock$28.99Qty
