Kenmore
Countertop Microwave

Model # 72166464500 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72166464500 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

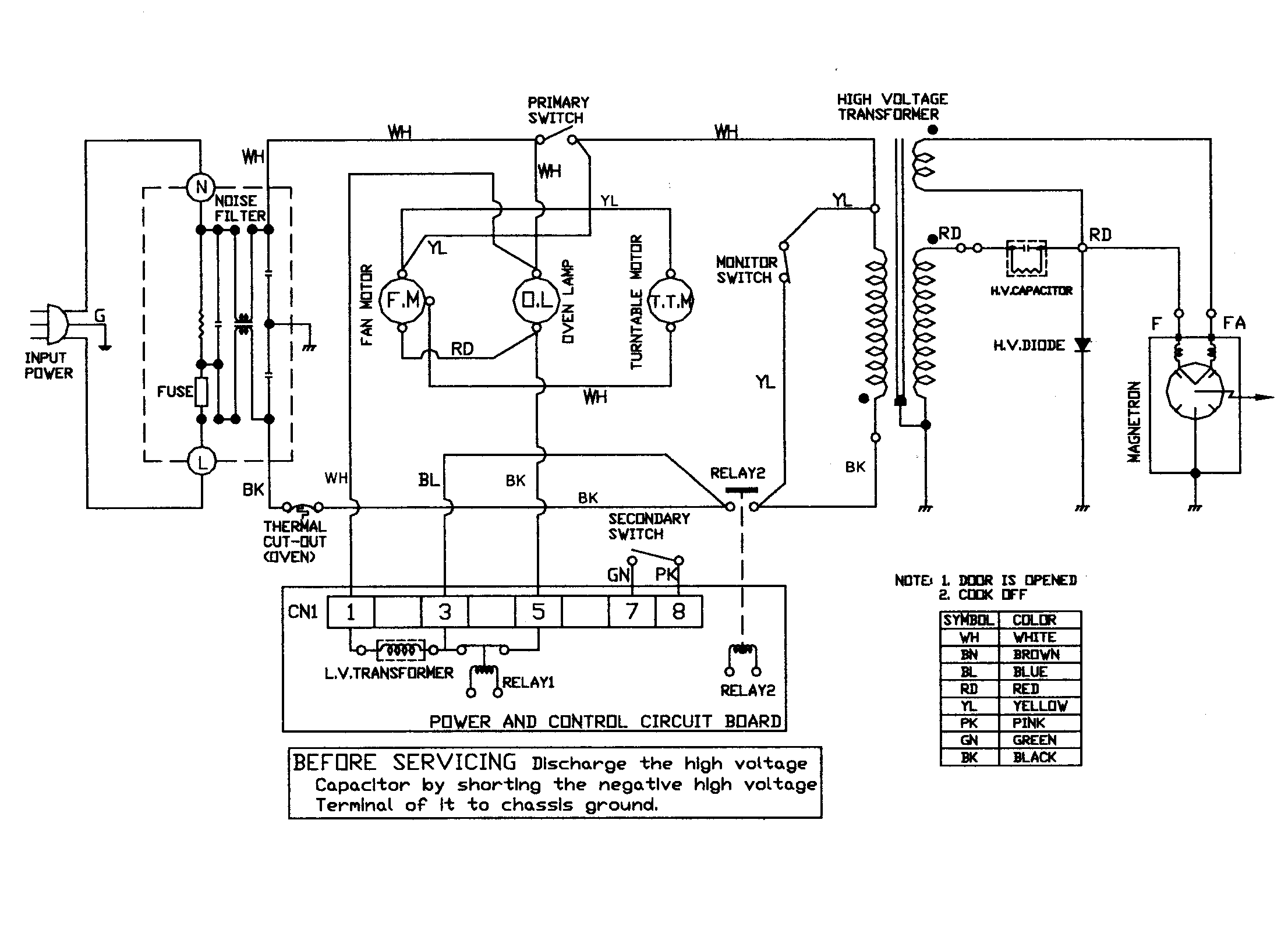

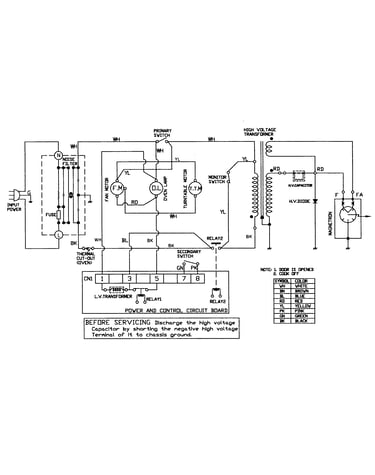

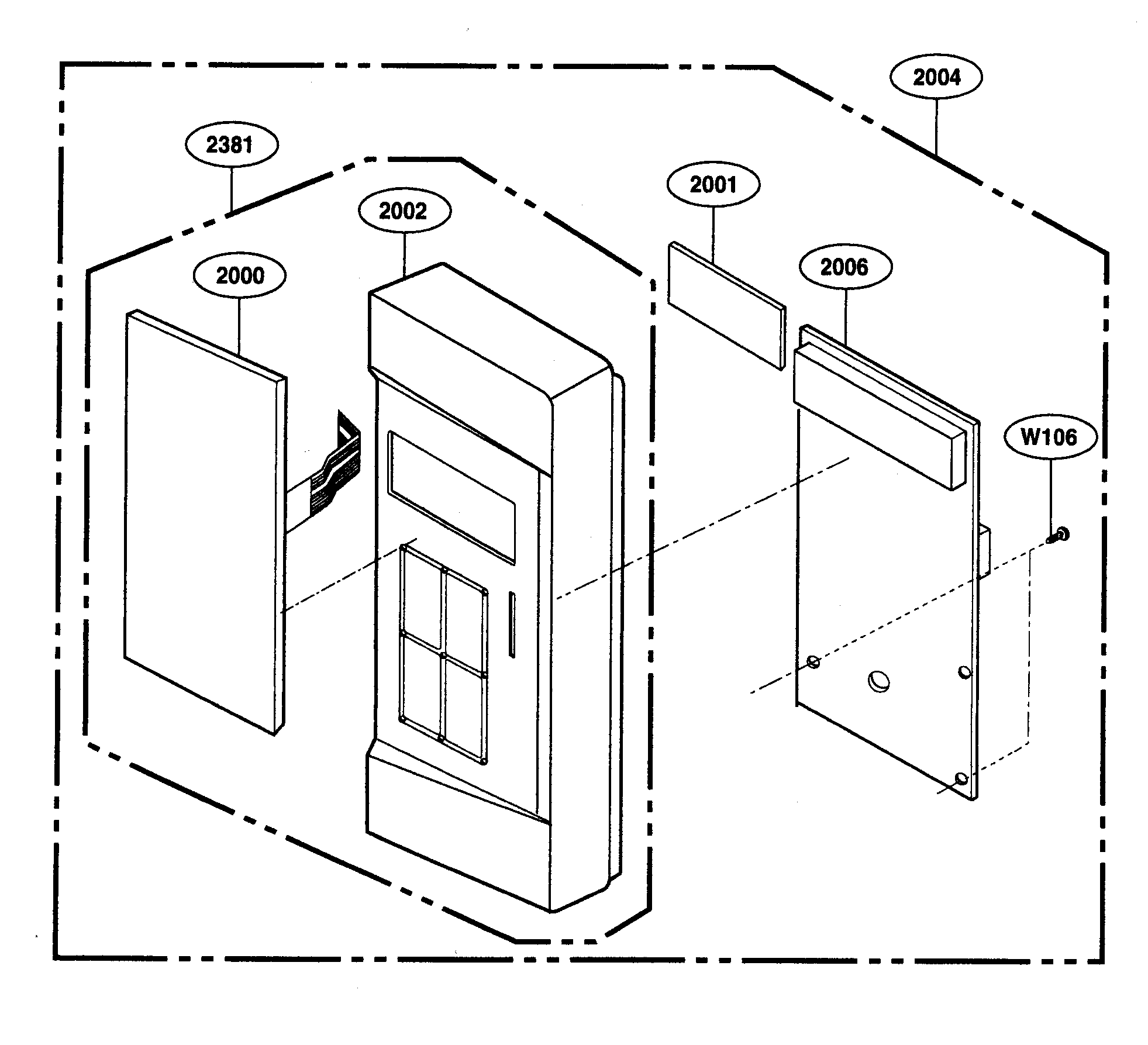

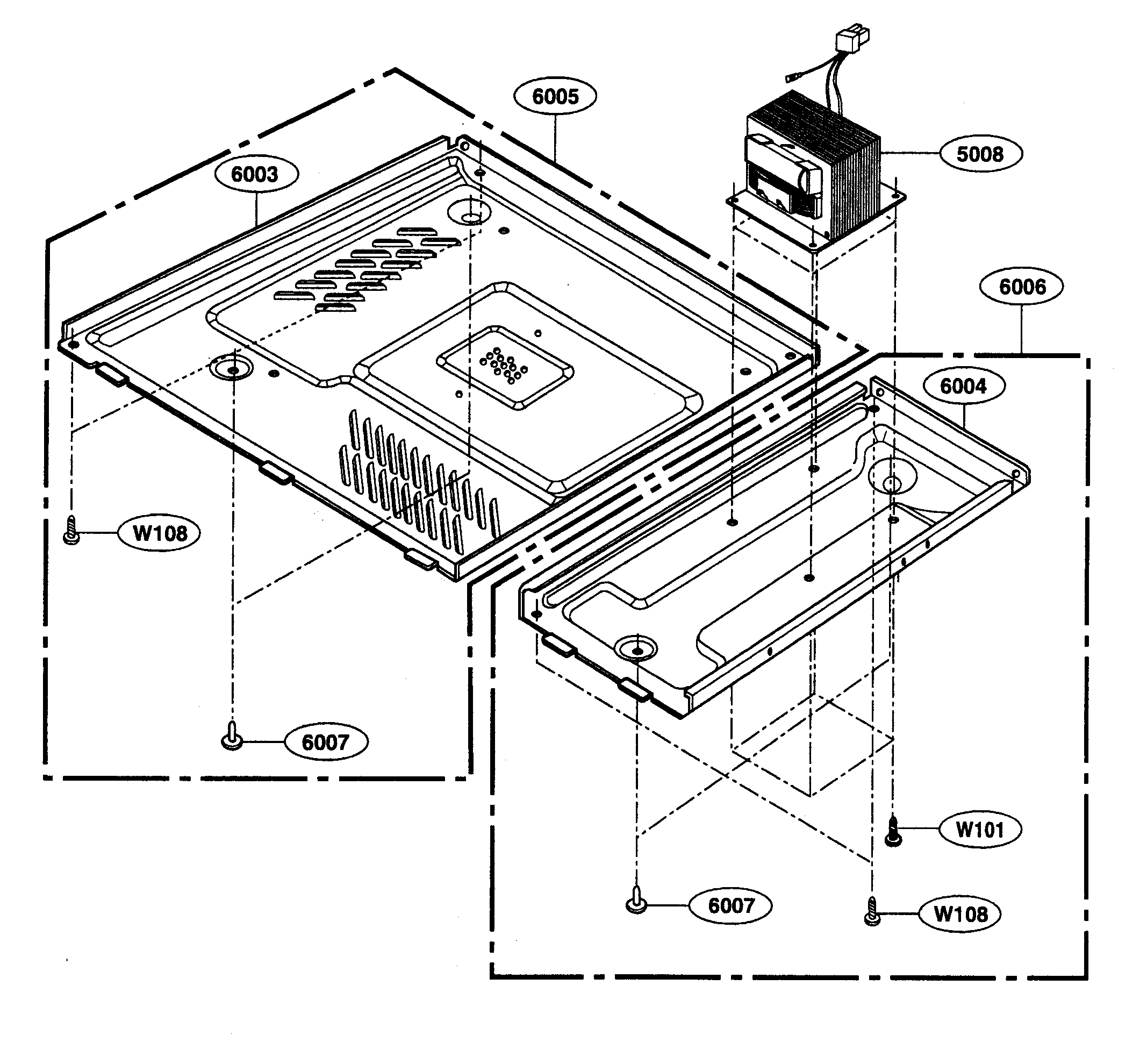

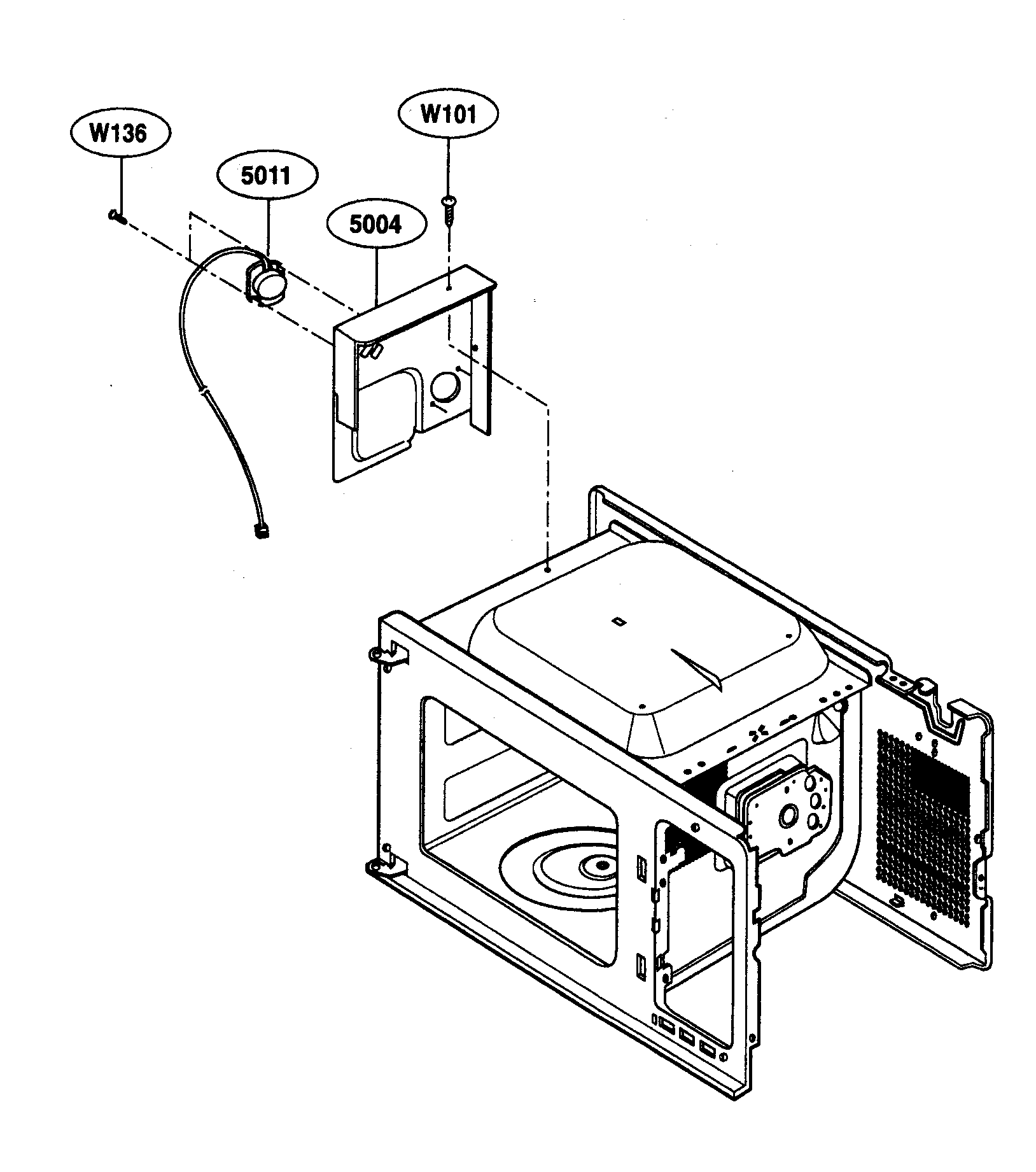

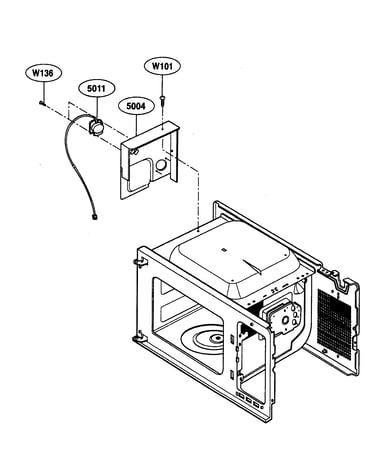

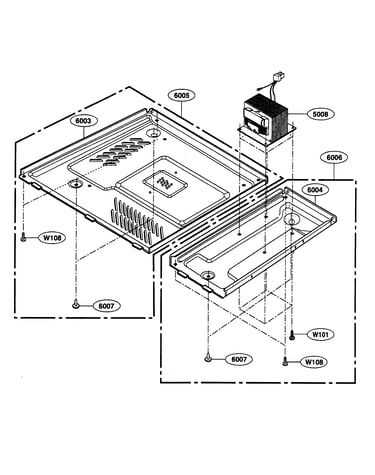

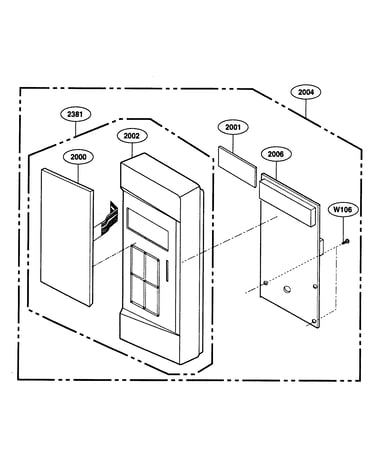

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
#5009

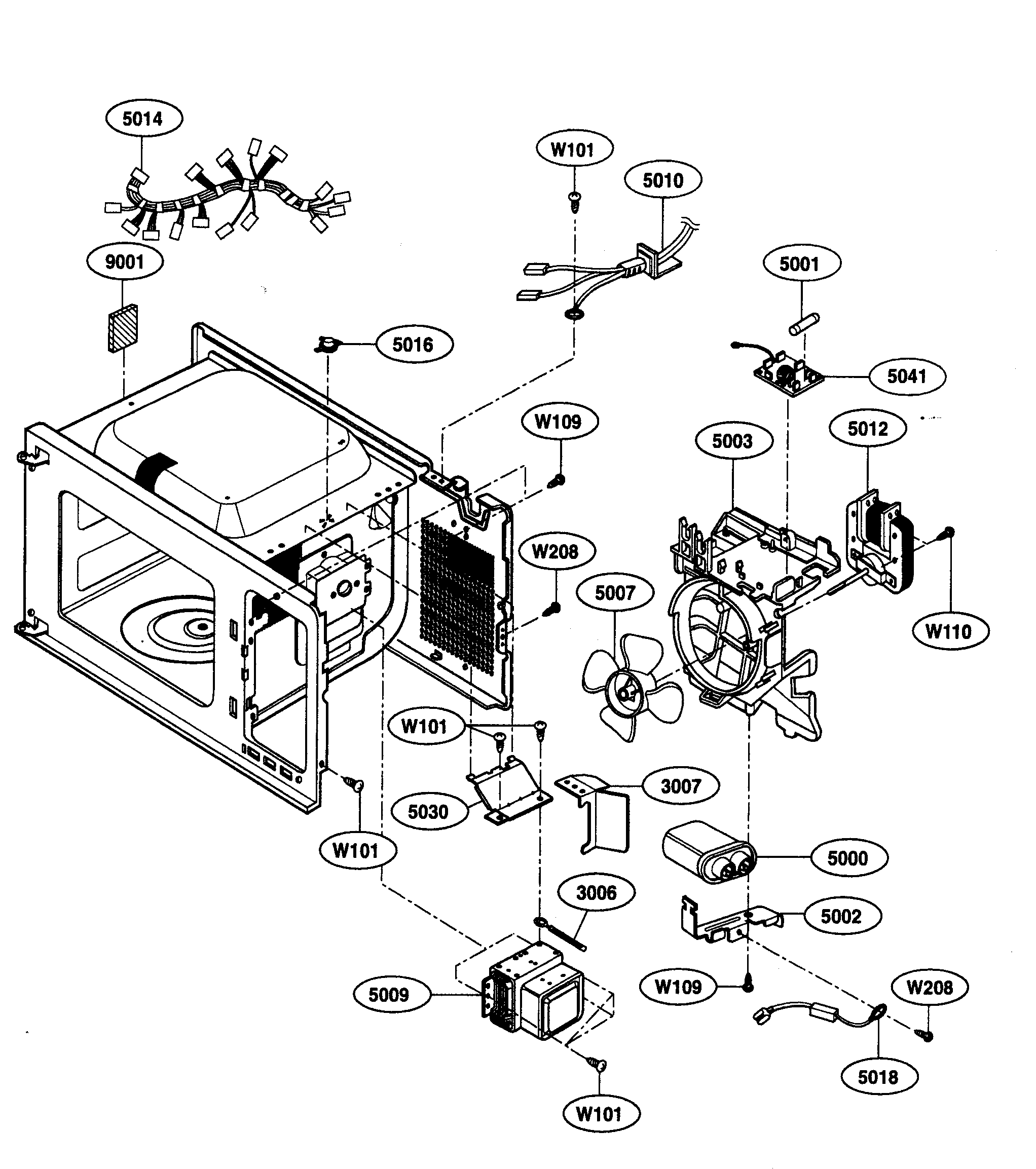

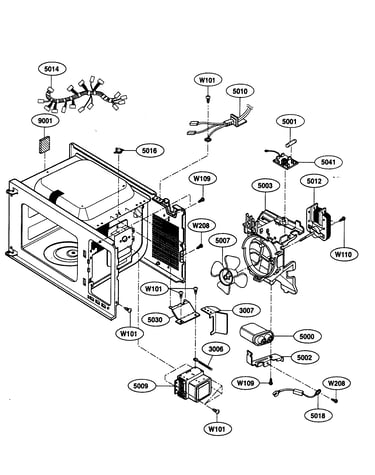

Interior parts diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Capacitor 0CZZW1H005A
#5000

Interior parts diagram

Capacitor

Part #0CZZW1H005A

Replaced by #0CZZW1H004B

?
Manufacturer substitution
This part replaces 0CZZW1H005A. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Fuse 3B74133Q
#5001

Interior parts diagram

Microwave fuse

Part #3B74133Q

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Microwave Turntable Support 5889W0A001A
#3008

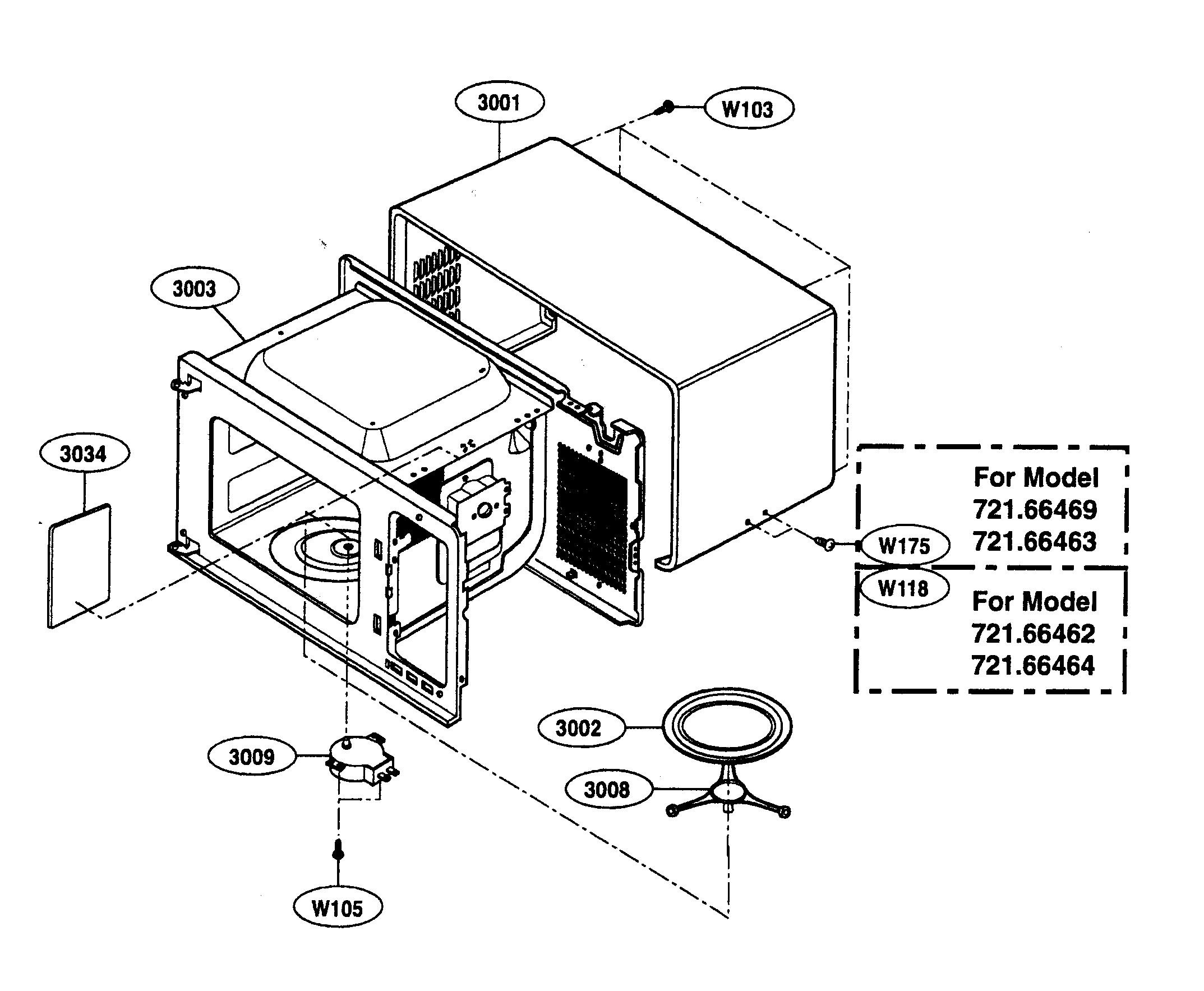

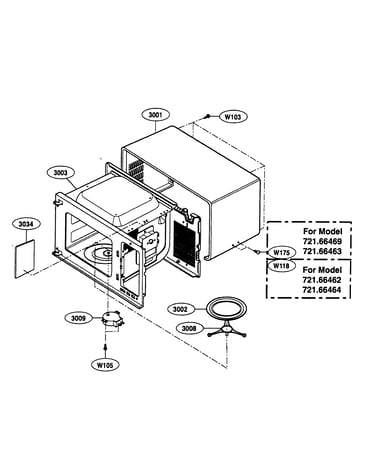

Oven cavity parts diagram

Microwave turntable support

Part #5889W0A001A

Replaced by #AJS73149201

?
Manufacturer substitution
This part replaces 5889W0A001A. Substitute parts can look different from the original.
BEST SELLER
$18.02 |
10% OFF Phone Price : $20.02
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

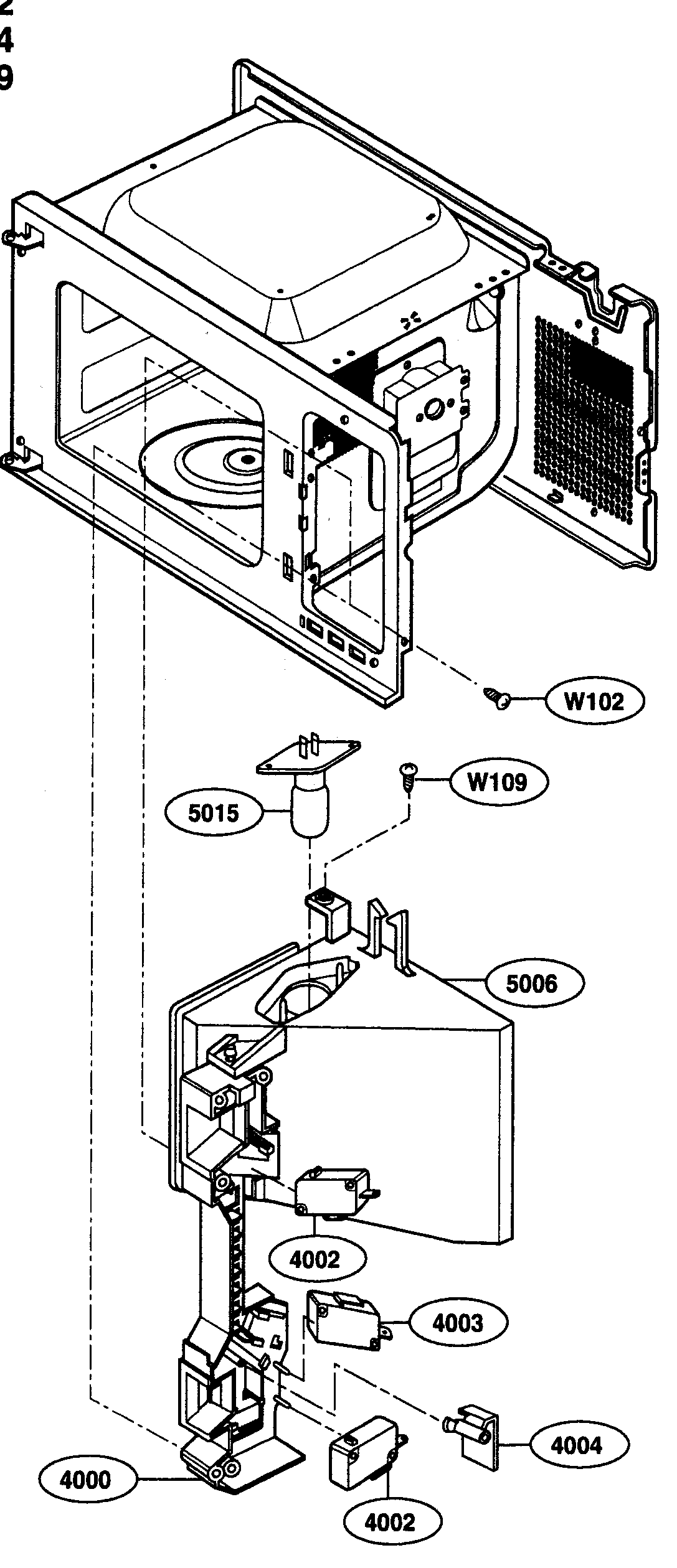

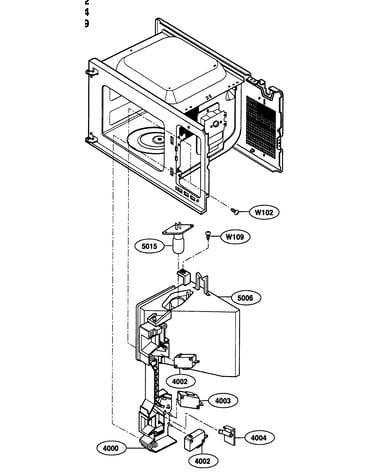

Latch board parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Motor 6549W1S021B
#3009

Oven cavity parts diagram

Motor

Part #6549W1S021B

Replaced by #6549W1S011B

?
Manufacturer substitution
This part replaces 6549W1S021B. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$20.53 |
20% OFF Phone Price : $25.53
In Stock
Microwave Door Latch Spring 4970WRA001E
#1007

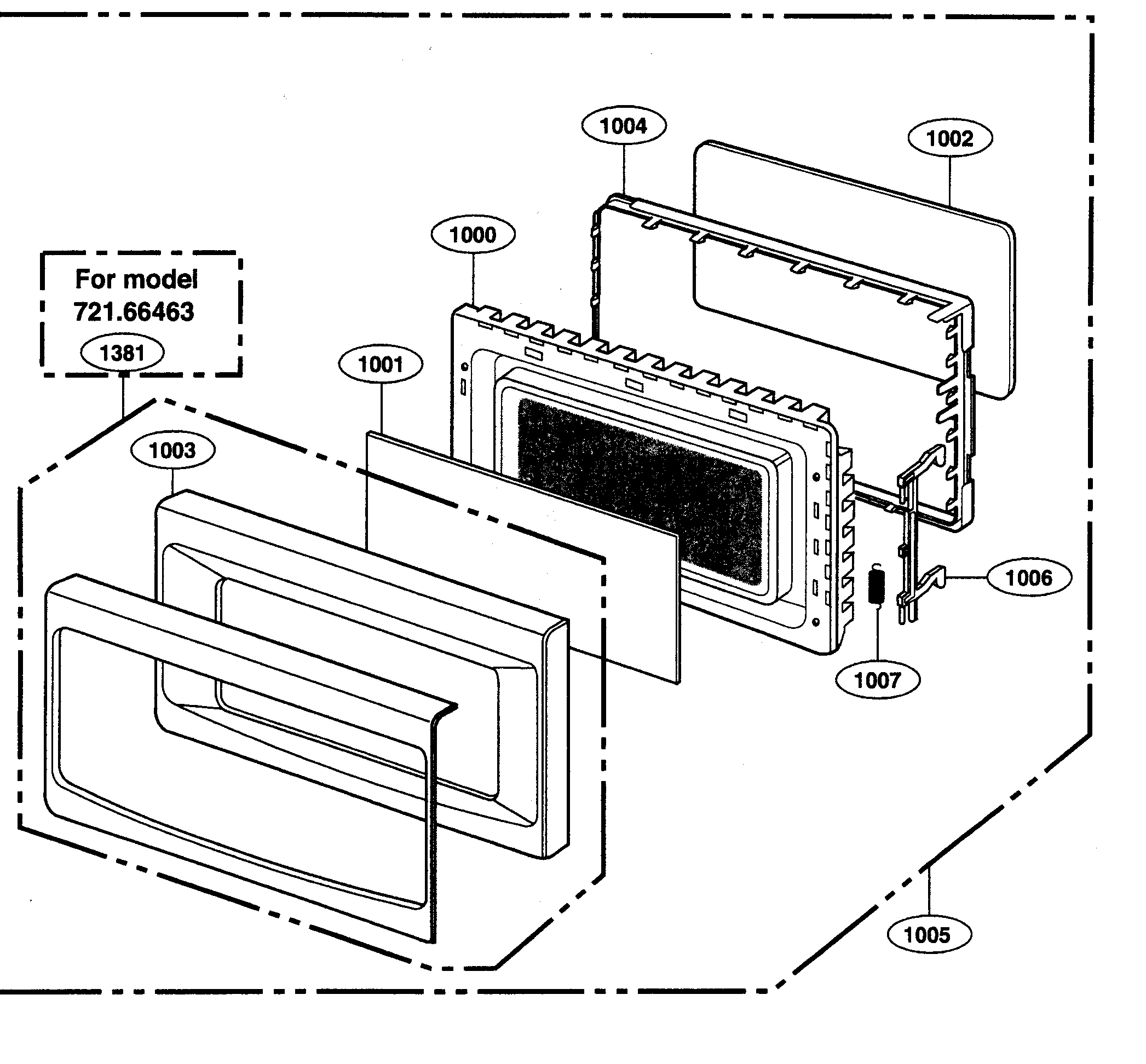

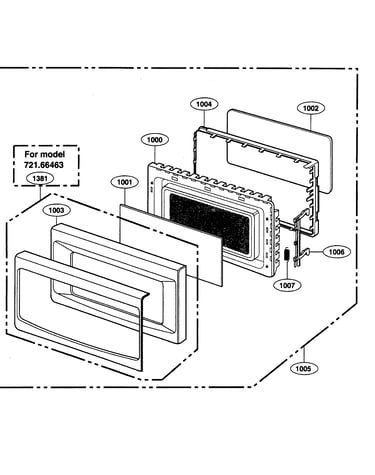

Door parts diagram

Microwave door latch spring

Part #4970WRA001E

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Latch Body (replaces 3500w1a005a) 3500W1A028B
#4000

Latch board parts diagram

Microwave latch body (replaces 3500w1a005a)

Part #3500W1A028B

Replaced by #3500W1A028A

?
Manufacturer substitution
This part replaces 3500W1A028B. Substitute parts can look different from the original.
$20.20 |
20% OFF Phone Price : $25.20
In Stock
Seal Tape 3536W1A009A
#1002

Door parts diagram

Seal tape

Part #3536W1A009A

$10.03 |
17% OFF Phone Price : $12.03
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

$9.76 |
9% OFF Phone Price : $10.76
In Stock
