Model # 48XTN048130300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 48XTN048130300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |

Contactor HN51JD024
#63

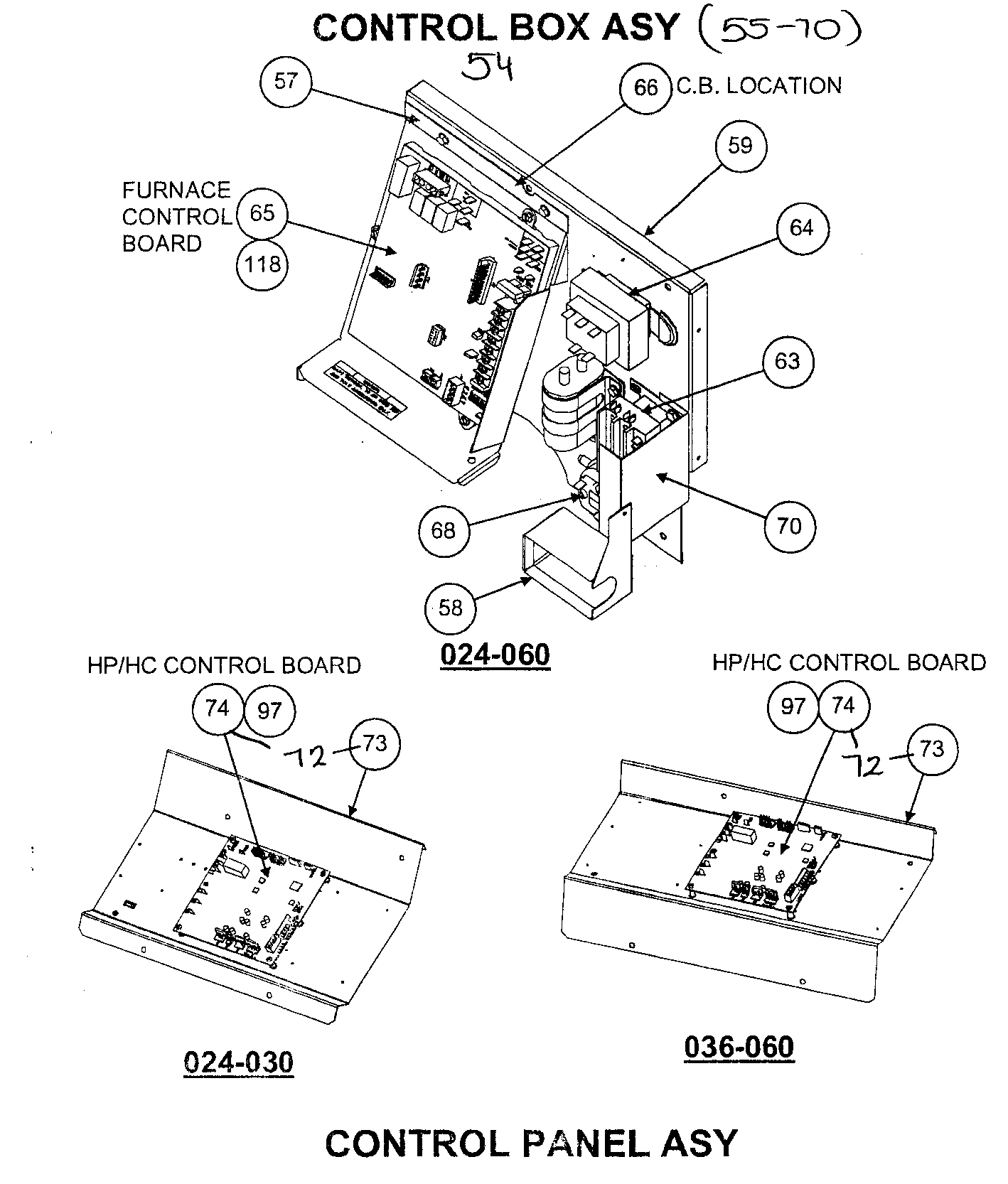

Control box/control panel assy diagram

Contactor

Part #HN51JD024

The manufacturer no longer makes this part, and there's no substitute part

Fan LA01EA025
#90

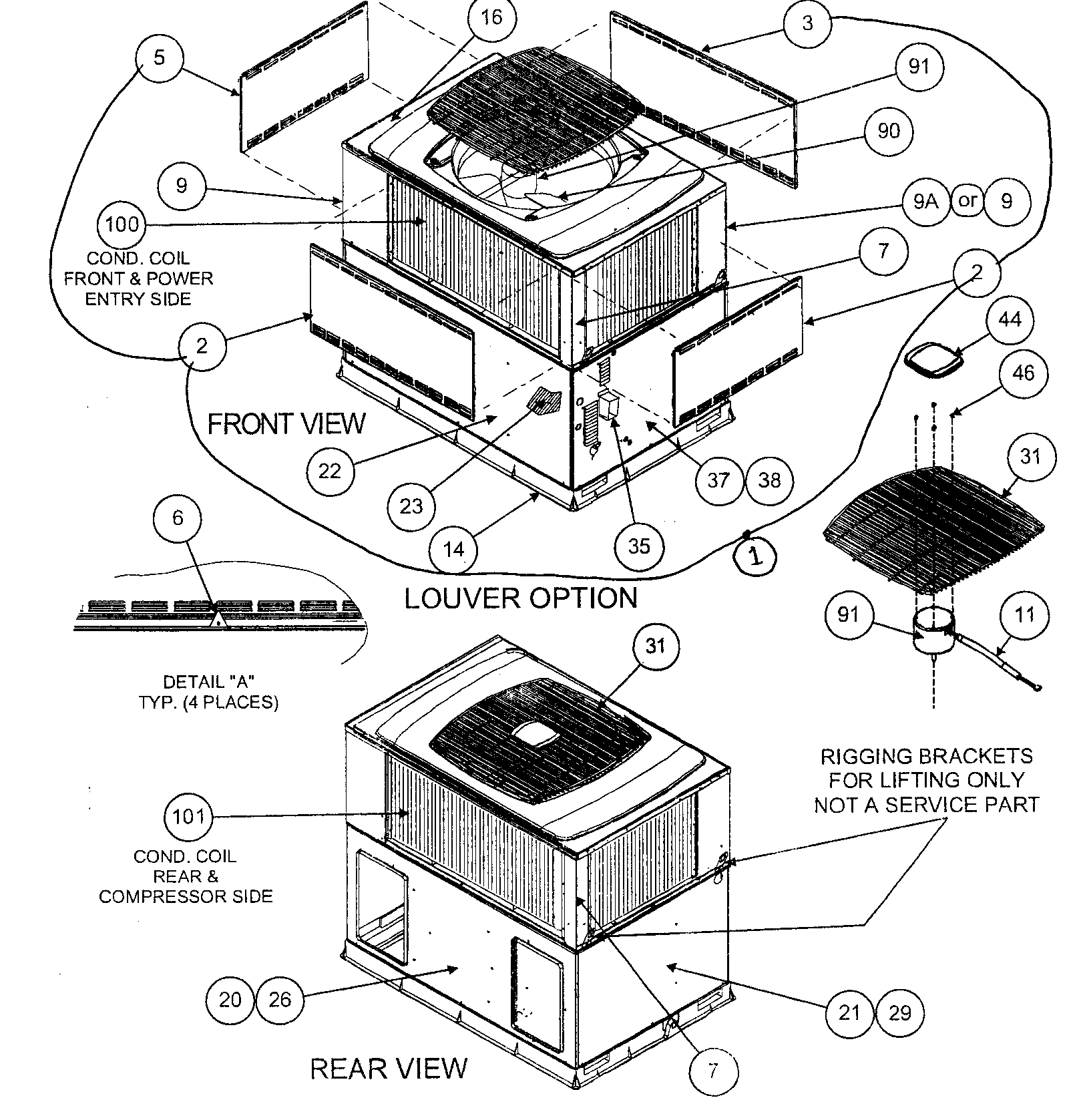

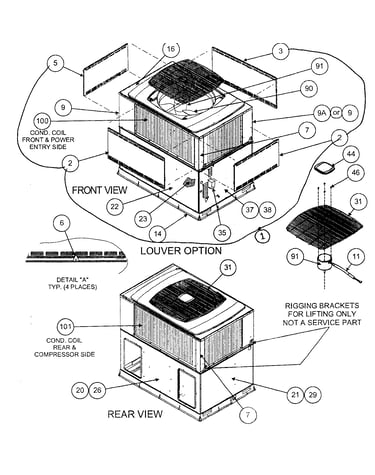

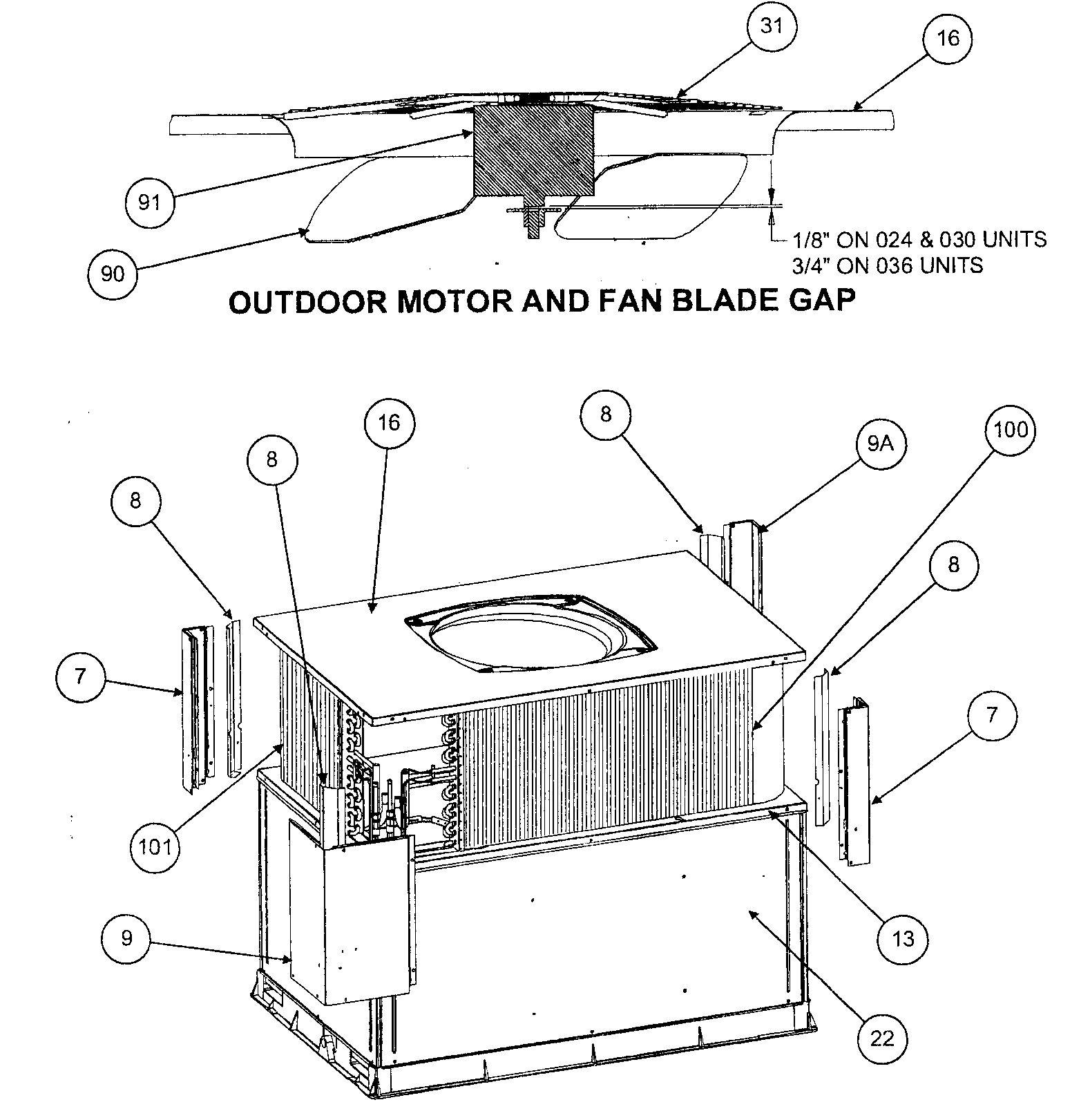

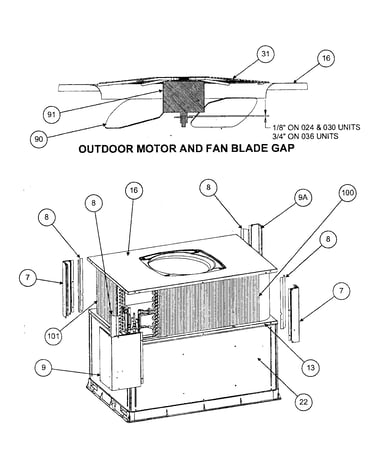

Front view/rear view diagram

Fan

Part #LA01EA025

In Stock
Central Air Conditioner Filter Dryer KH43LG072
#105

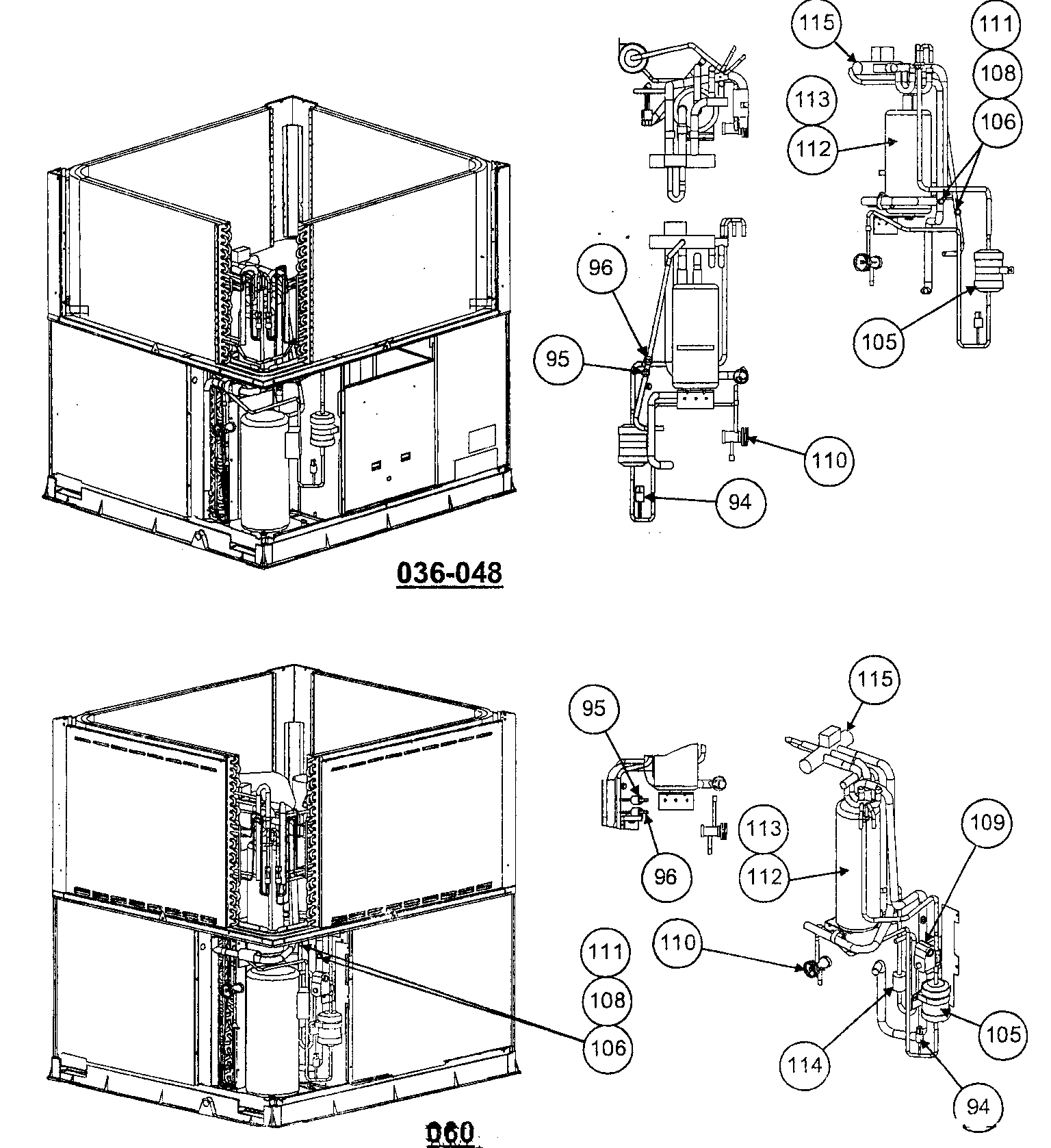

Switch assy diagram

Central air conditioner filter dryer

Part #KH43LG072

In Stock
Control Board HK42FZ024
#65

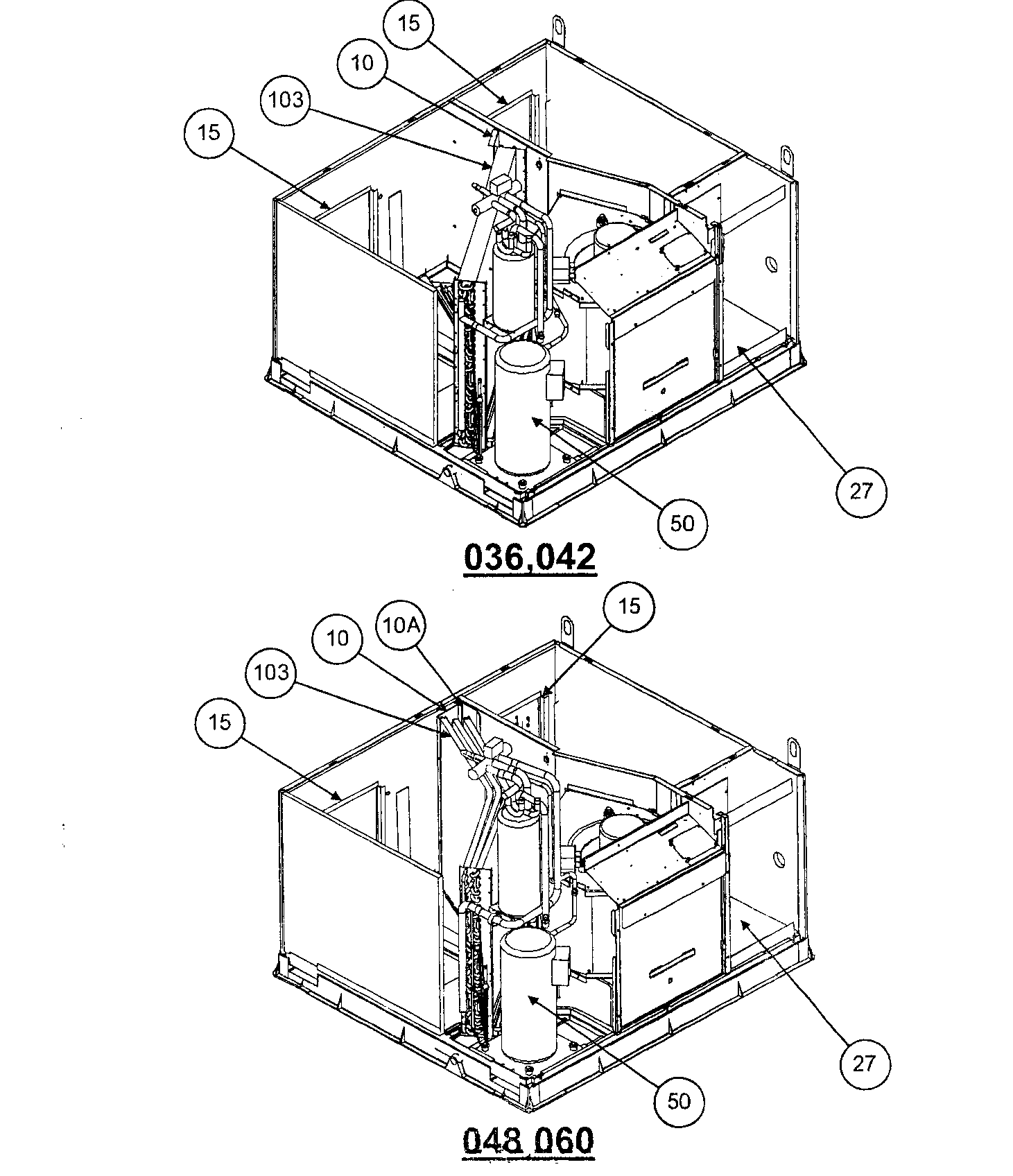

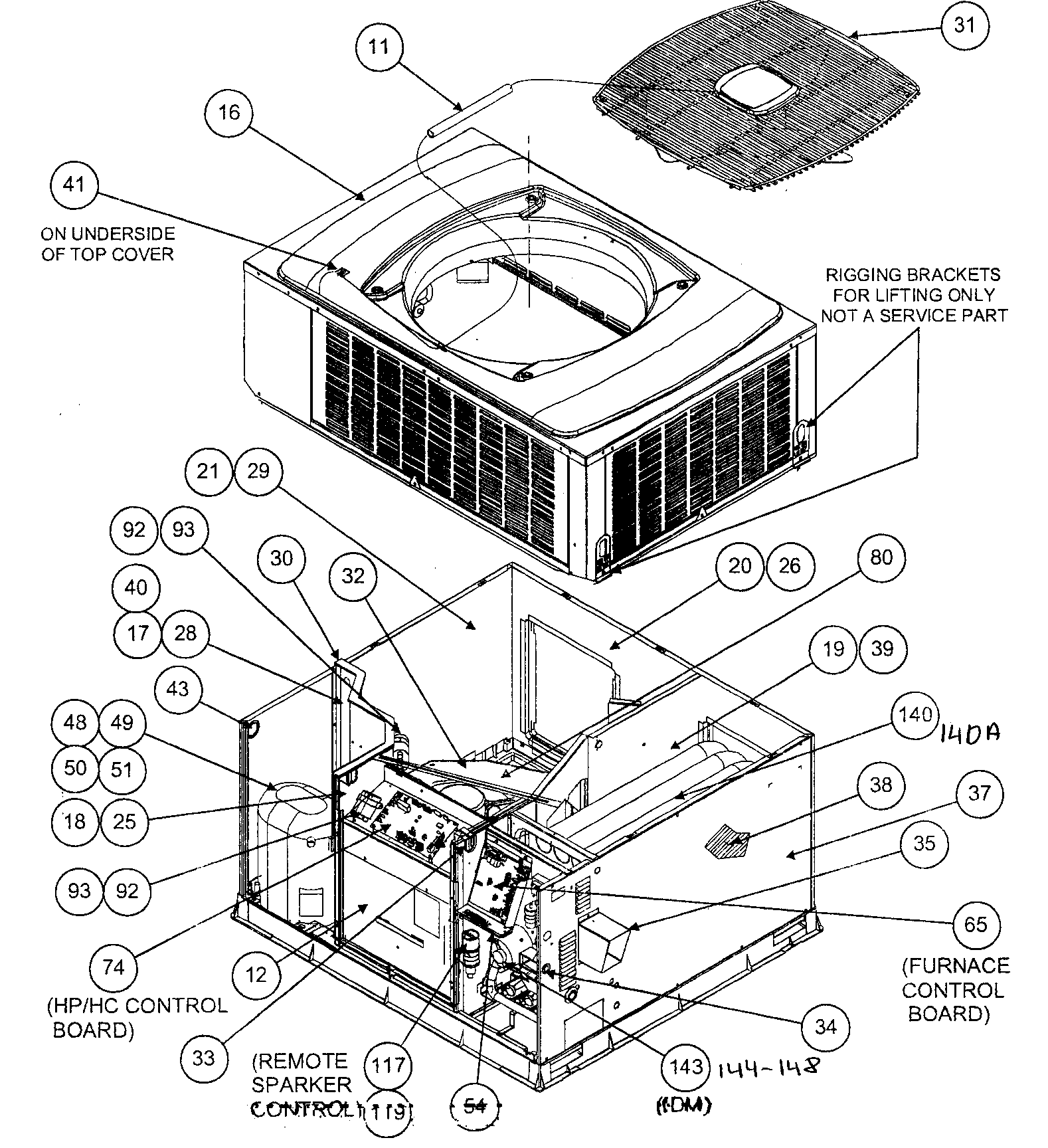

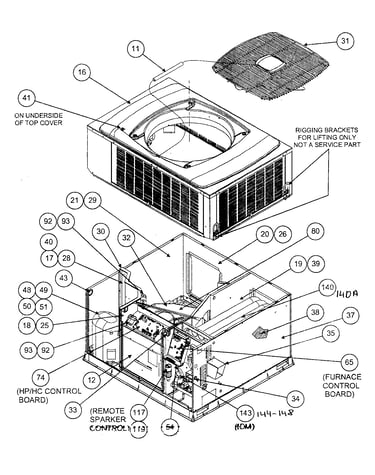

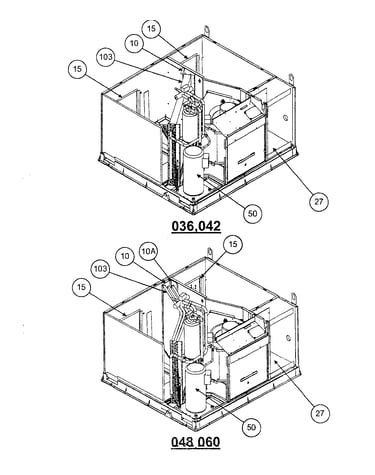

Inside view diagram

Control board

Part #HK42FZ024

Replaced by #HK42FZ035

?
Manufacturer substitution
This part replaces HK42FZ024. Substitute parts can look different from the original.
$809.30
$10.00 OFF Phone Price : $819.30
In Stock
Blower HD46RE120
#87

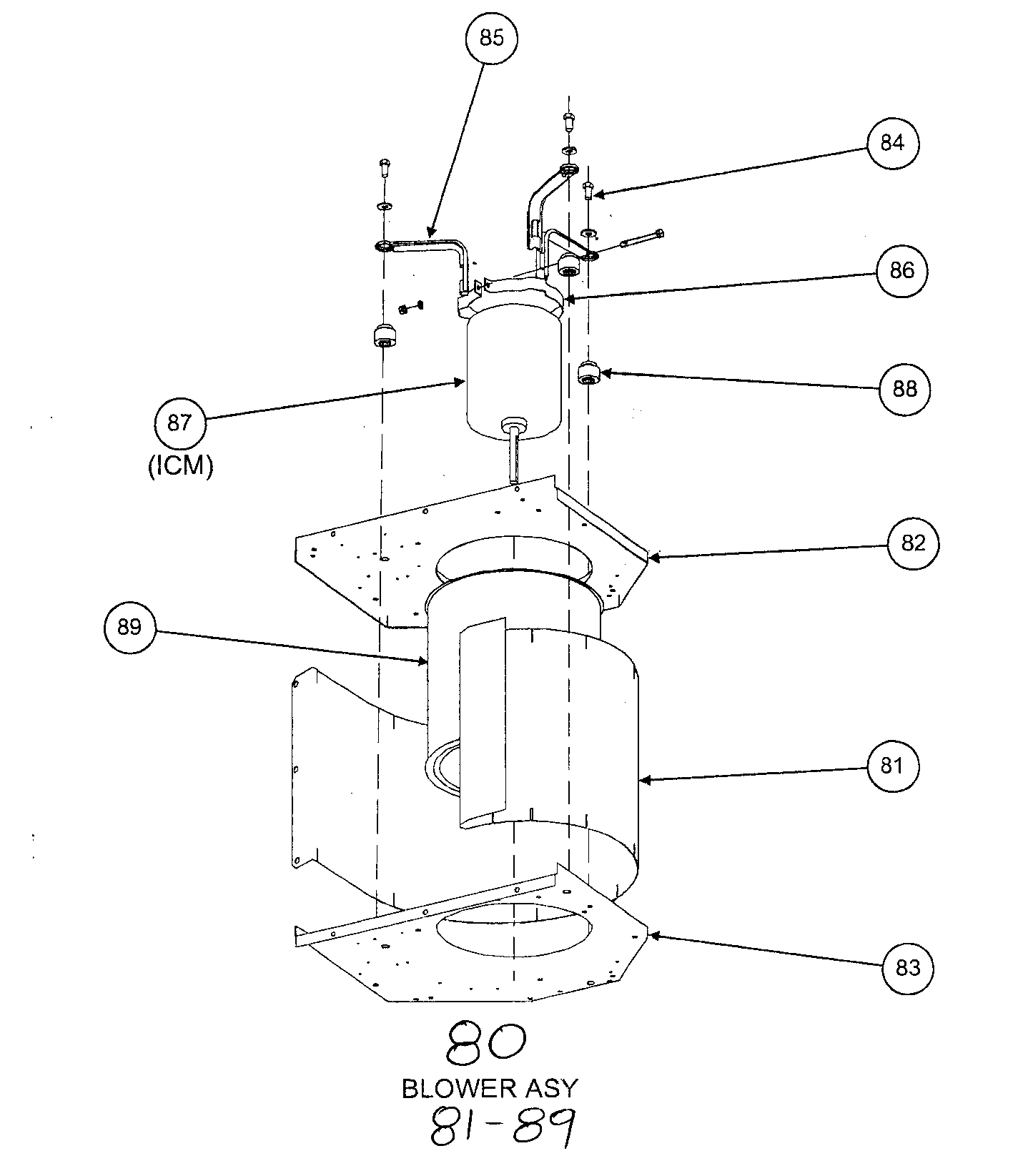

Blower assy diagram

Blower

Part #HD46RE120

Replaced by #58MV660002

?
Manufacturer substitution
This part replaces HD46RE120. Substitute parts can look different from the original.
In Stock
Switch 331055-706
#95

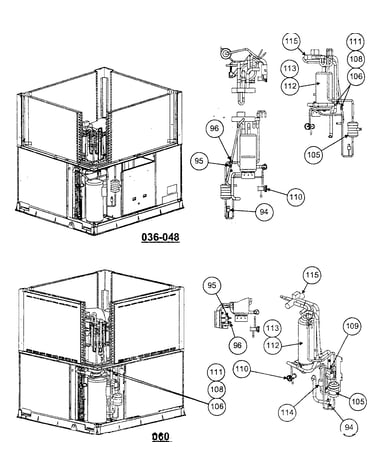

Switch assy diagram

Switch

Part #331055-706

$76.35
6% OFF Phone Price : $81.35
In Stock
Plug Assembly HK70EZ032
#97

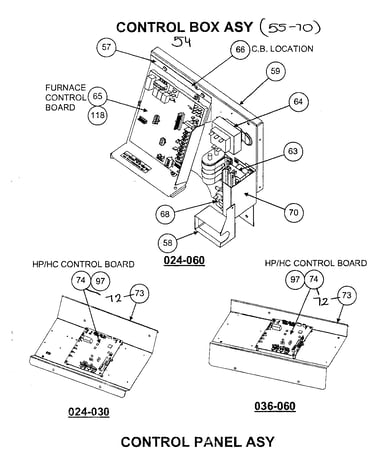

Control box/control panel assy diagram

Plug assembly

Part #HK70EZ032

In Stock
Scroll 48GS500242
#81

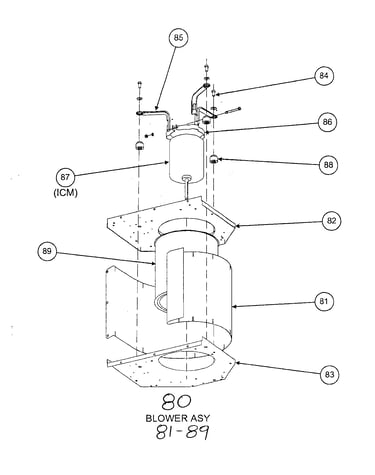

Blower assy diagram

Scroll

Part #48GS500242

In Stock
Bracket 48GS500186
#131

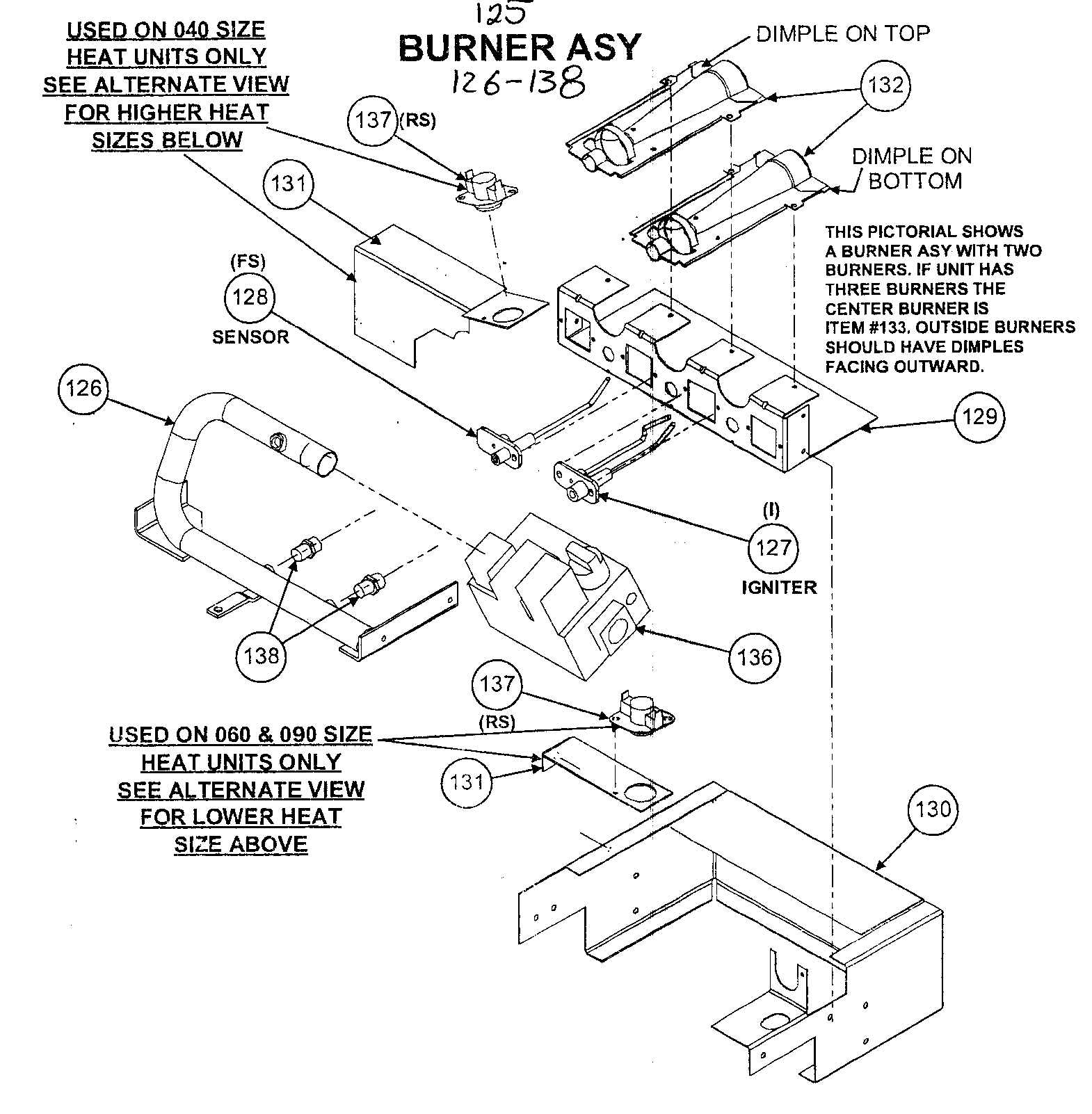

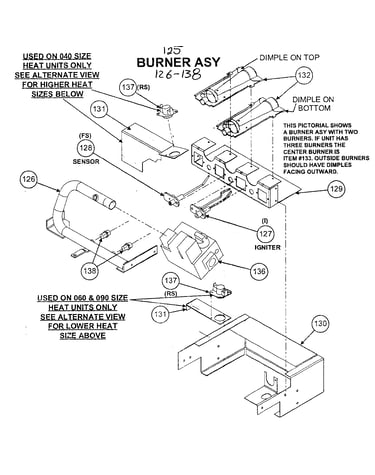

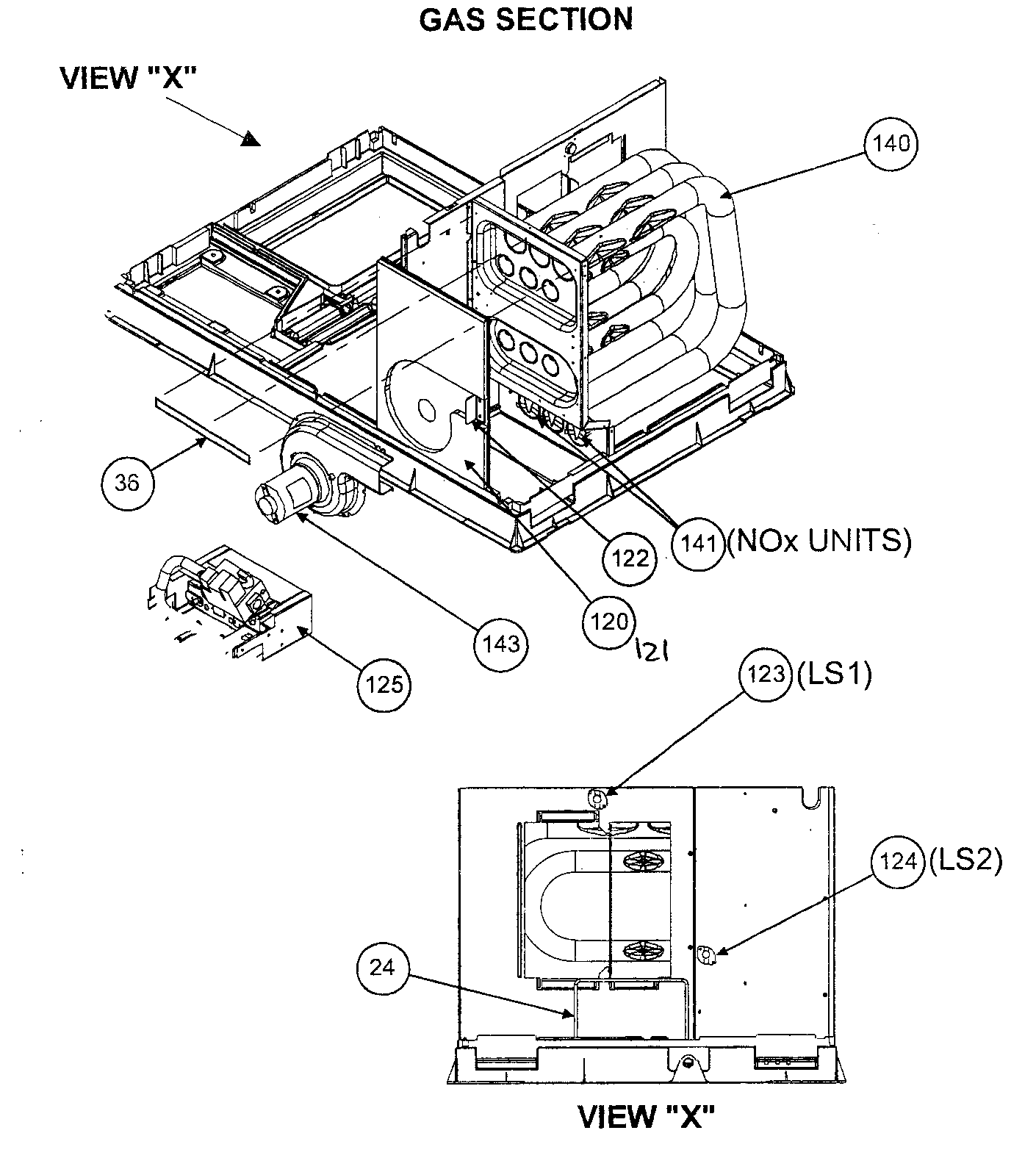

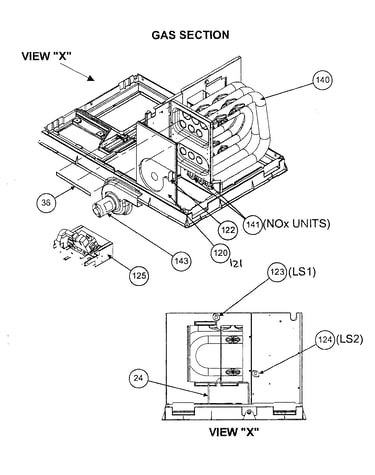

Burner assy diagram

Bracket

Part #48GS500186

In Stock
Igniter 48GS400168
#127

Burner assy diagram

Igniter

Part #48GS400168

In Stock
