Model # HSCU8000B Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover HSCU8000B upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Bag, 6-pack 93001849
#30

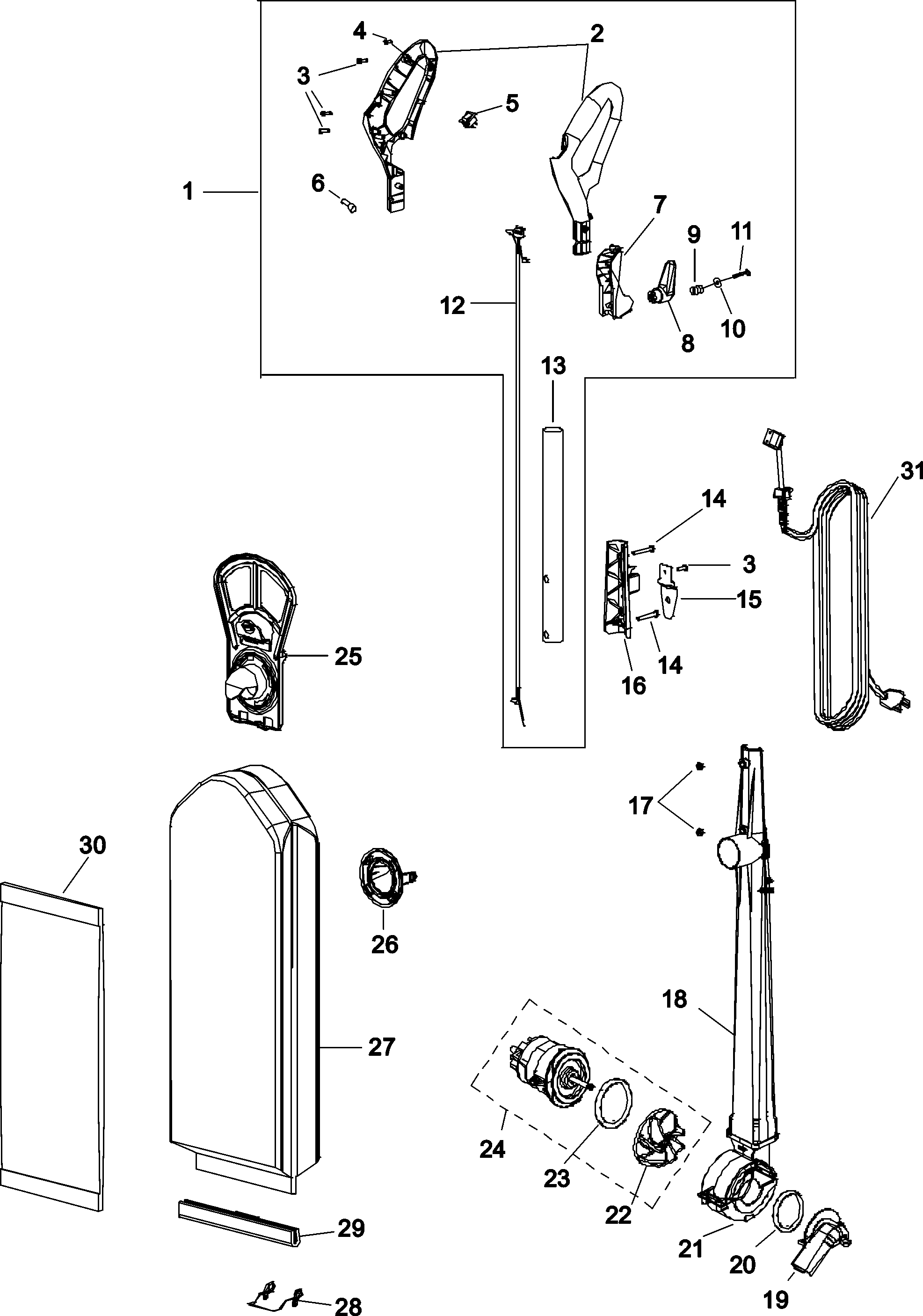

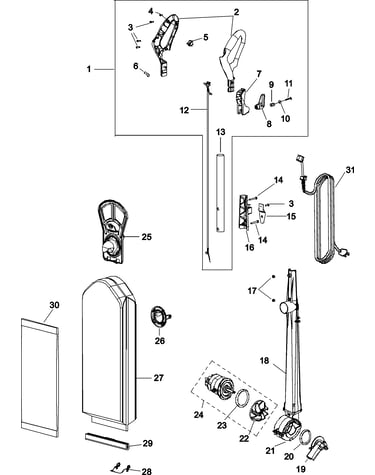

Handle and bag diagram

Bag, 6-pack

Part #93001849

The manufacturer no longer makes this part, and there's no substitute part

Cloth Bag 93001876
#27

Handle and bag diagram

Cloth bag

Part #93001876

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Assembly 93001851
#2

Handle and bag diagram

Vacuum handle assembly

Part #93001851

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 93001873
Fan motor

Part #93001873

The manufacturer no longer makes this part, and there's no substitute part

Upper Cord Hook Spring 93001858
#9

Handle and bag diagram

Upper cord hook spring

Part #93001858

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb Xenon 93001888
#14

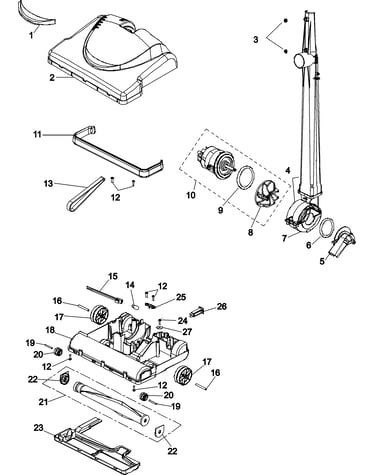

Foot diagram

Light bulb xenon

Part #93001888

The manufacturer no longer makes this part, and there's no substitute part

Combination Screw (m4 X 12) 93001898
#24

Foot diagram

Combination screw (m4 x 12)

Part #93001898

The manufacturer no longer makes this part, and there's no substitute part

Wire Connectors Md. 93001855
#6

Handle and bag diagram

Wire connectors md.

Part #93001855

The manufacturer no longer makes this part, and there's no substitute part

Handle Cord Harness 93001861
#12

Handle and bag diagram

Handle cord harness

Part #93001861

The manufacturer no longer makes this part, and there's no substitute part

Fan Duct Cover 93001868
Fan duct cover

Part #93001868

The manufacturer no longer makes this part, and there's no substitute part
