GE JBS16GS2 range Parts
Here are the diagrams and repair parts for GE JBS16GS2 range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JBS16GS2 Ranges

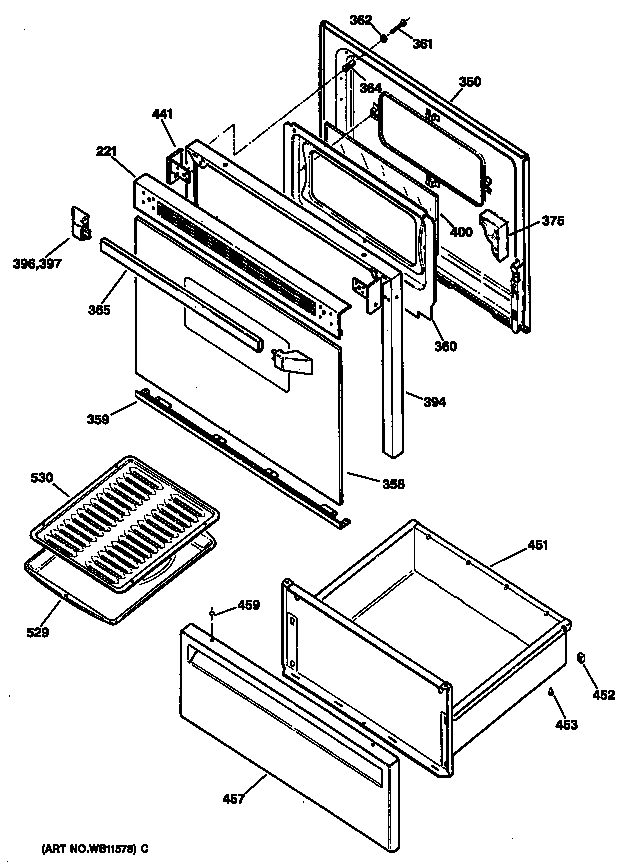

Door/drawer diagram
Trim
Part #WB7X7195Replaced by #WB07K10232
Manufacturer substitutionThis part replaces WB7X7195. Substitute parts can look different from the original.This item is not returnableIn Stock$25.9619% OFF Phone Price : $31.96
Qty
Door/drawer diagram
Range Oven Door Handle End Cap, Right
Part #WB7X7183
The manufacturer no longer makes this part, and there's no substitute part

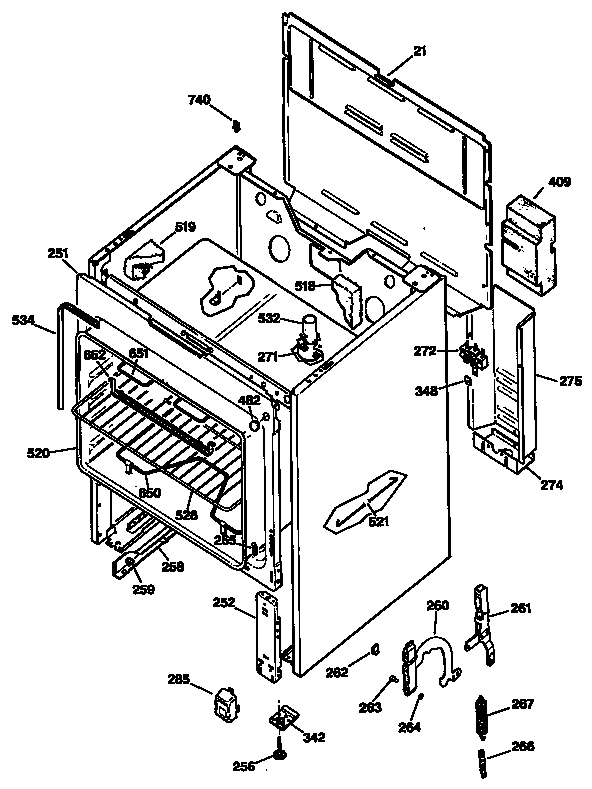

Oven diagram
Insul Bac
Part #WB2X8120
The manufacturer no longer makes this part, and there's no substitute part

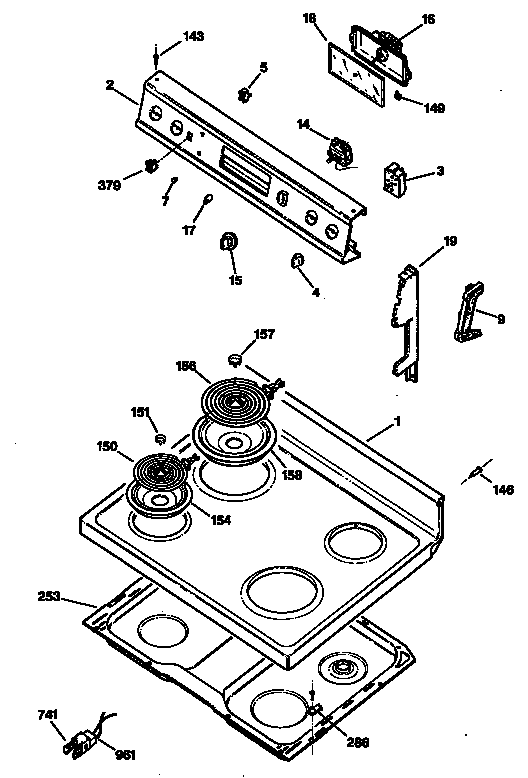

Cooktop diagram
Range Oven Control Thermostat
Part #WB21X5304
The manufacturer no longer makes this part, and there's no substitute part
Door/drawer diagram
End Cap
Part #WB7X7181
The manufacturer no longer makes this part, and there's no substitute part
Door/drawer diagram
Pnl Drwr Wh
Part #WB56X7069
The manufacturer no longer makes this part, and there's no substitute part
Cooktop diagram
Endplt Ad Lh
Part #WB7X7164
The manufacturer no longer makes this part, and there's no substitute part
Oven diagram
Cover Foot
Part #WB2X8106
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Hook
Part #WB9X5118
The manufacturer no longer makes this part, and there's no substitute part
Cooktop diagram
Crystal
Part #WB36X5575
The manufacturer no longer makes this part, and there's no substitute part
