Amana ARDS802E-P1131947NE electric range Parts
Here are the diagrams and repair parts for Amana ARDS802E-P1131947NE electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

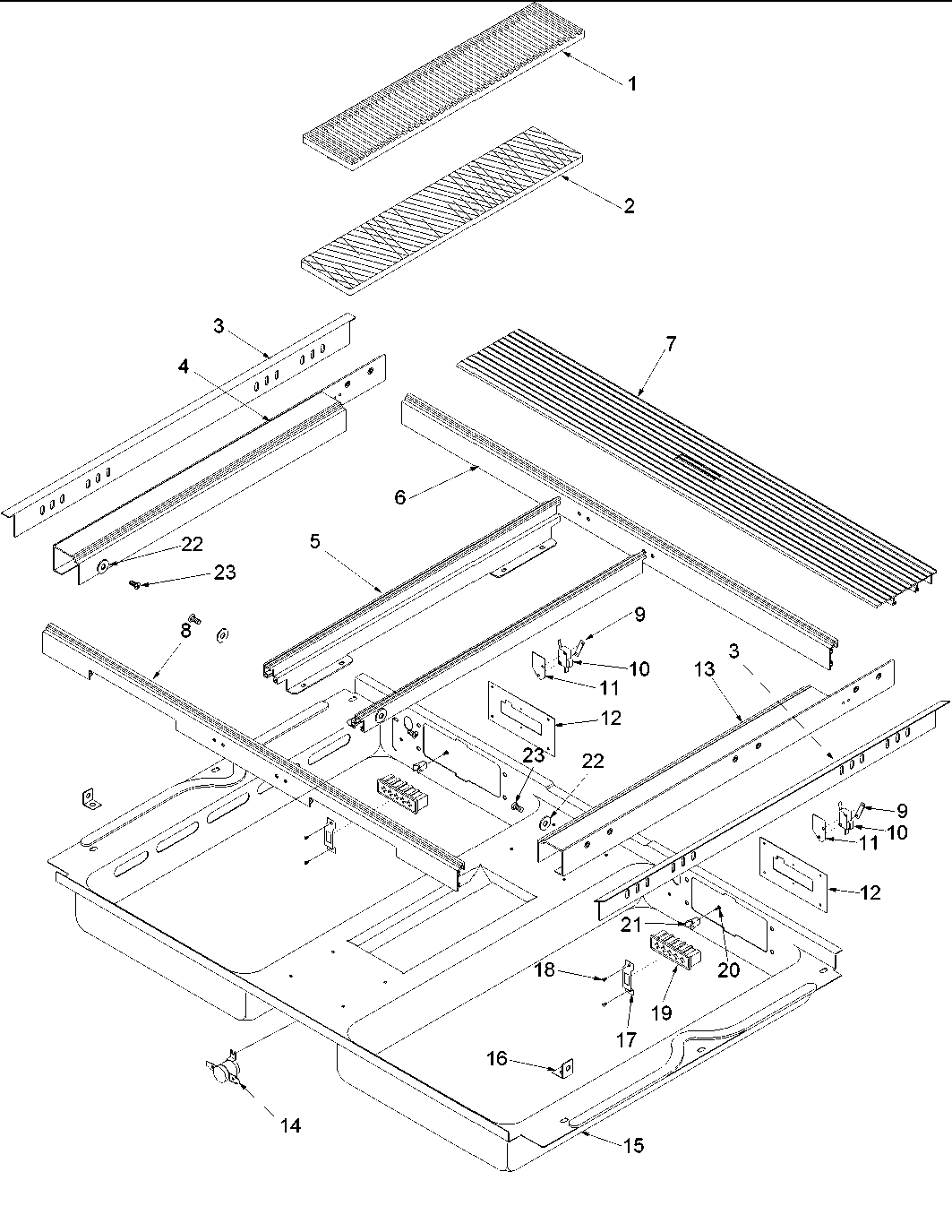

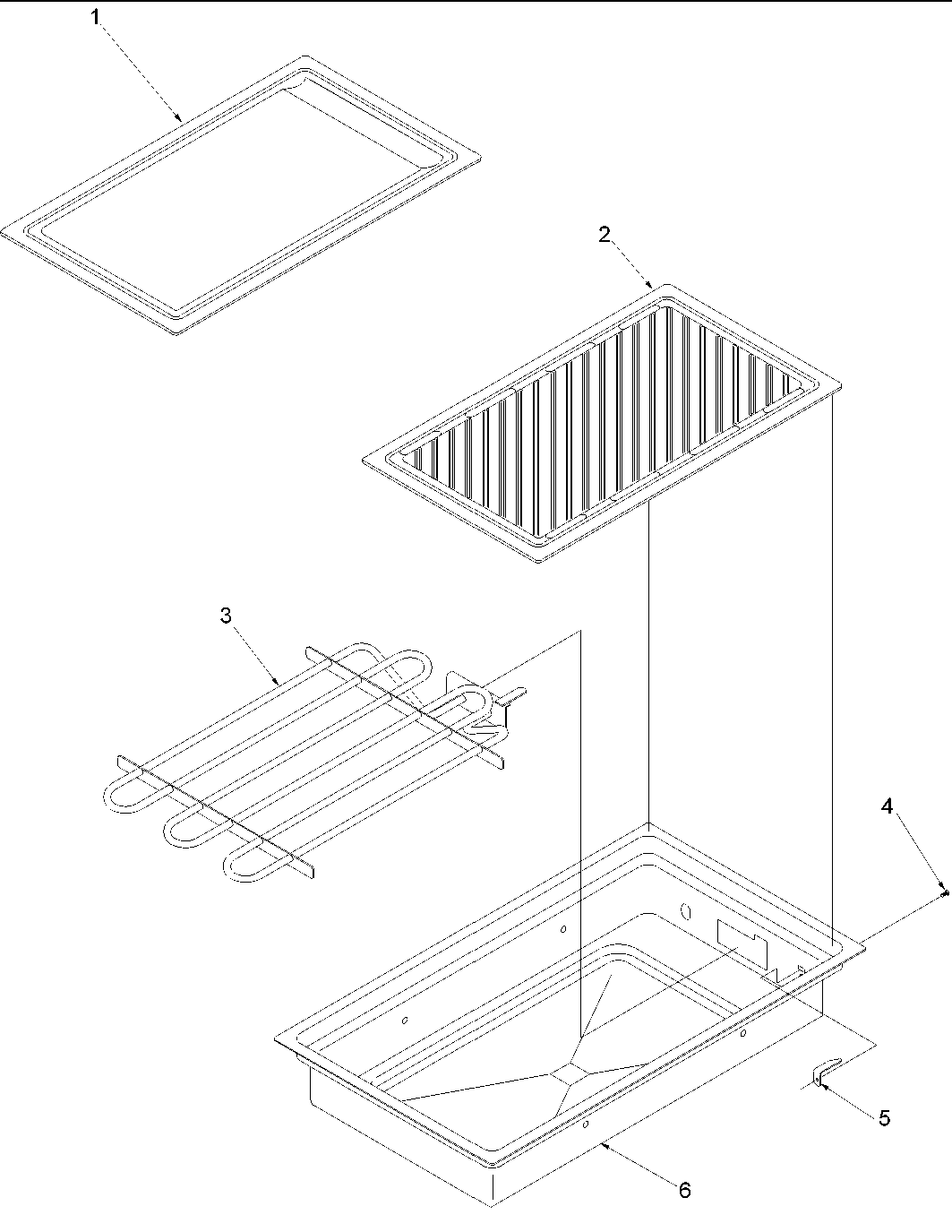

SELECT DIAGRAM
Browse Parts for ARDS802E-P1131947NE Ranges

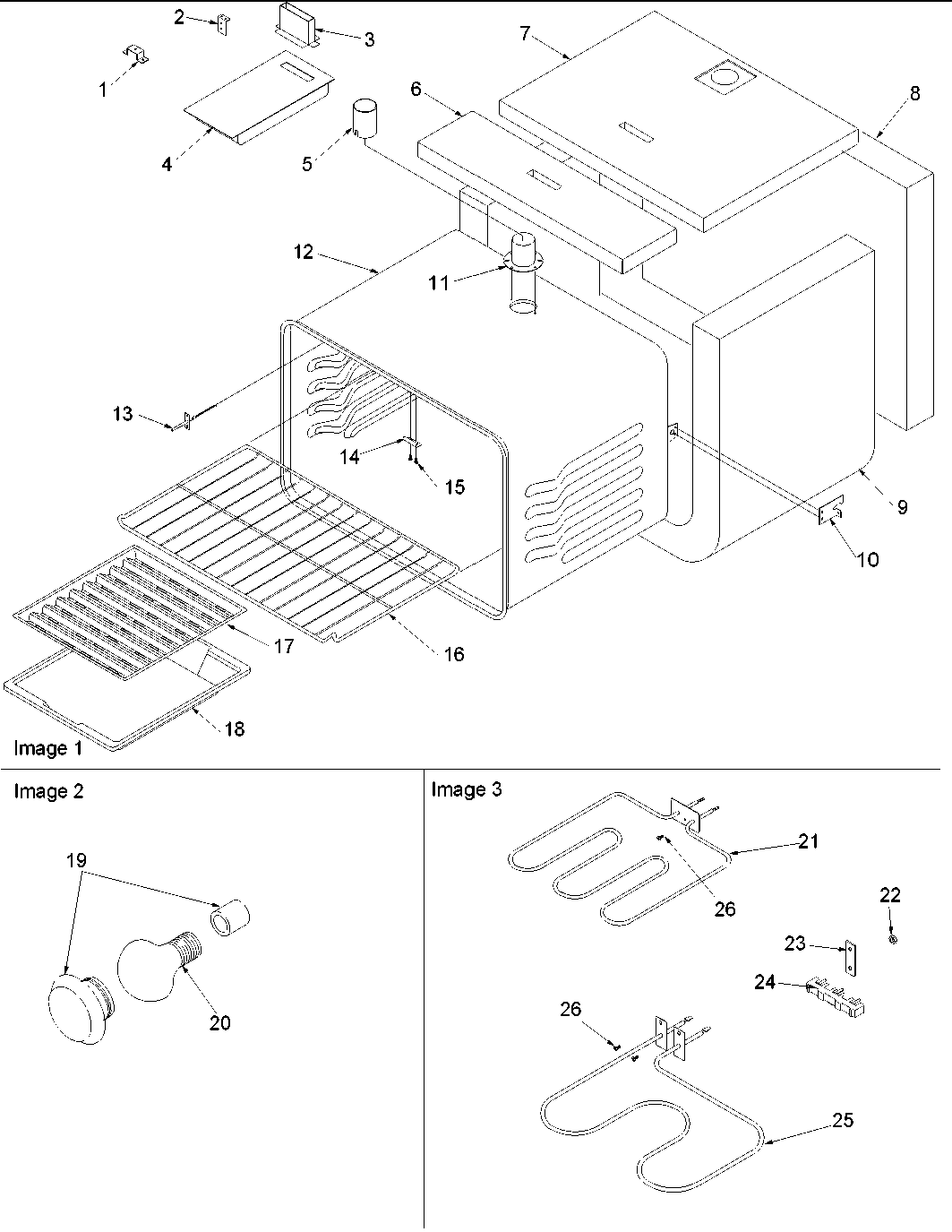

Cavity diagram

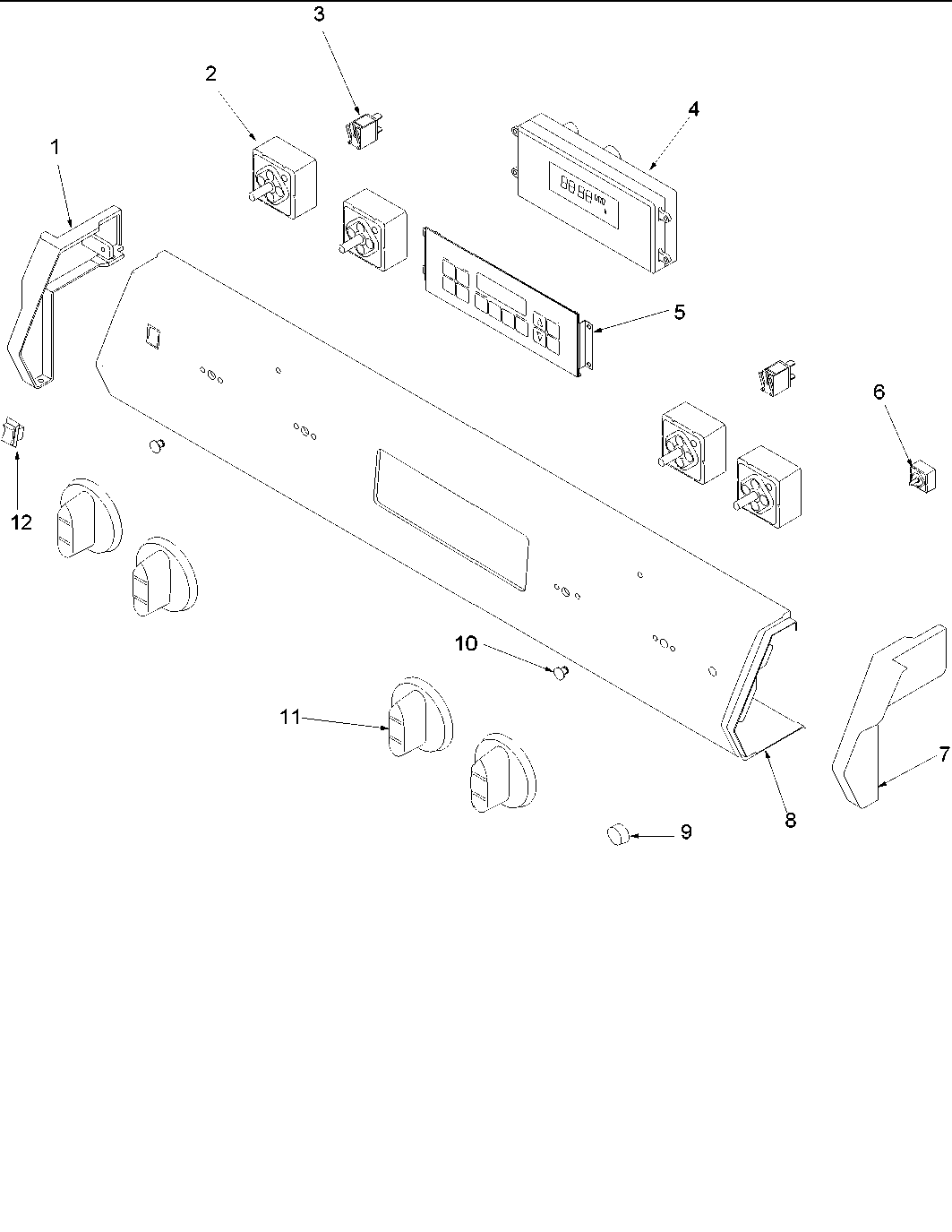

Cover,backgd
Part #0306379Replaced by #WPW10245259
Manufacturer substitutionThis part replaces 0306379. Substitute parts can look different from the original.In Stock$27.9118% OFF Phone Price : $33.91
Qty
Cavity diagram
Oven Rack
Part #314763J
The manufacturer no longer makes this part, and there's no substitute part
Cavity diagram
Oven Light
Part #0314842
The manufacturer no longer makes this part, and there's no substitute part
Insulation
Part #0091523Replaced by #Y0091523
Manufacturer substitutionThis part replaces 0091523. Substitute parts can look different from the original.In Stock$27.79QtyCabinet diagram
Anchor Plastic (qty 2)
Part #0301555
The manufacturer no longer makes this part, and there's no substitute part
Miscellaeous information diagram
Service Manual
Part #RS2320003
The manufacturer no longer makes this part, and there's no substitute part

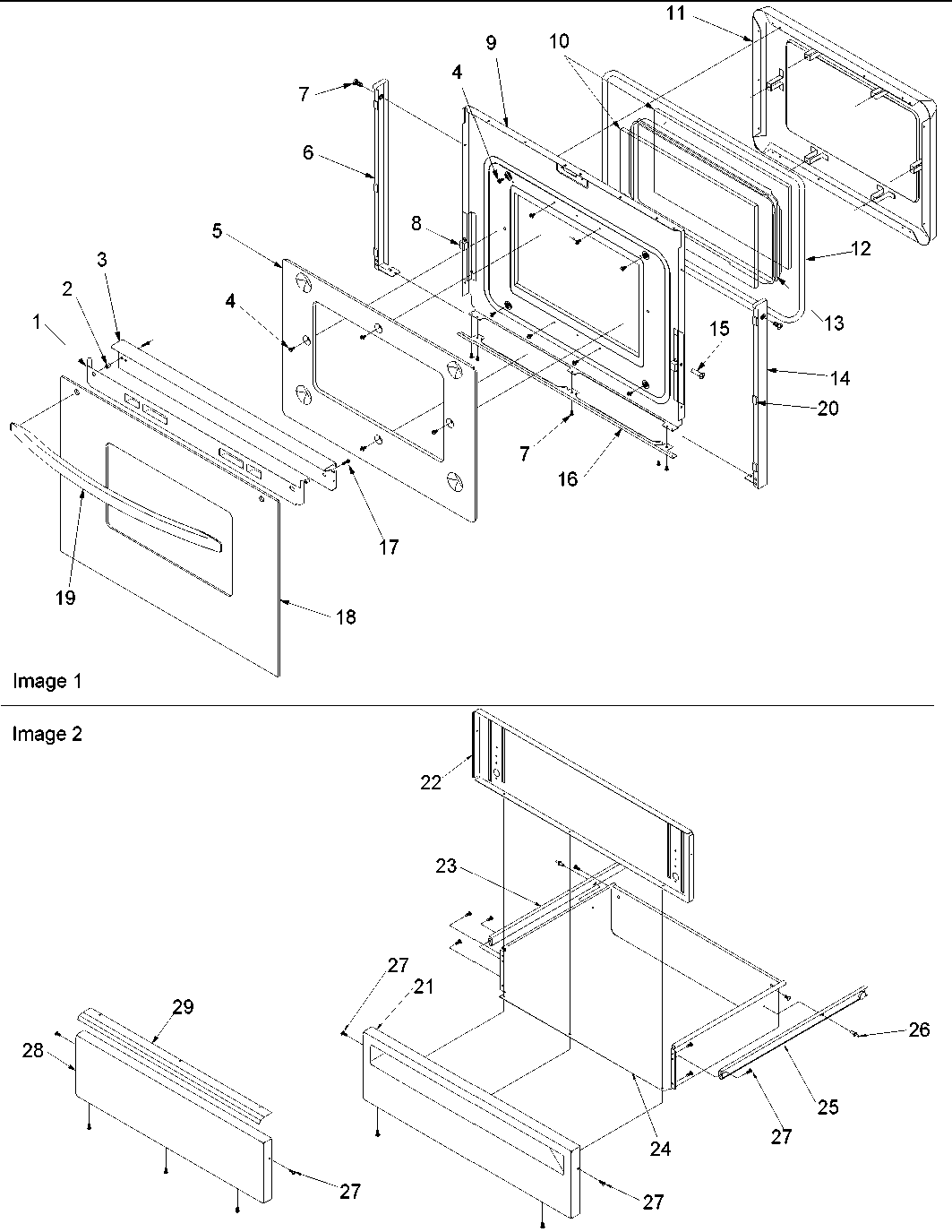

Oven door and storage drawer diagram
Shield
Part #0309068
The manufacturer no longer makes this part, and there's no substitute part

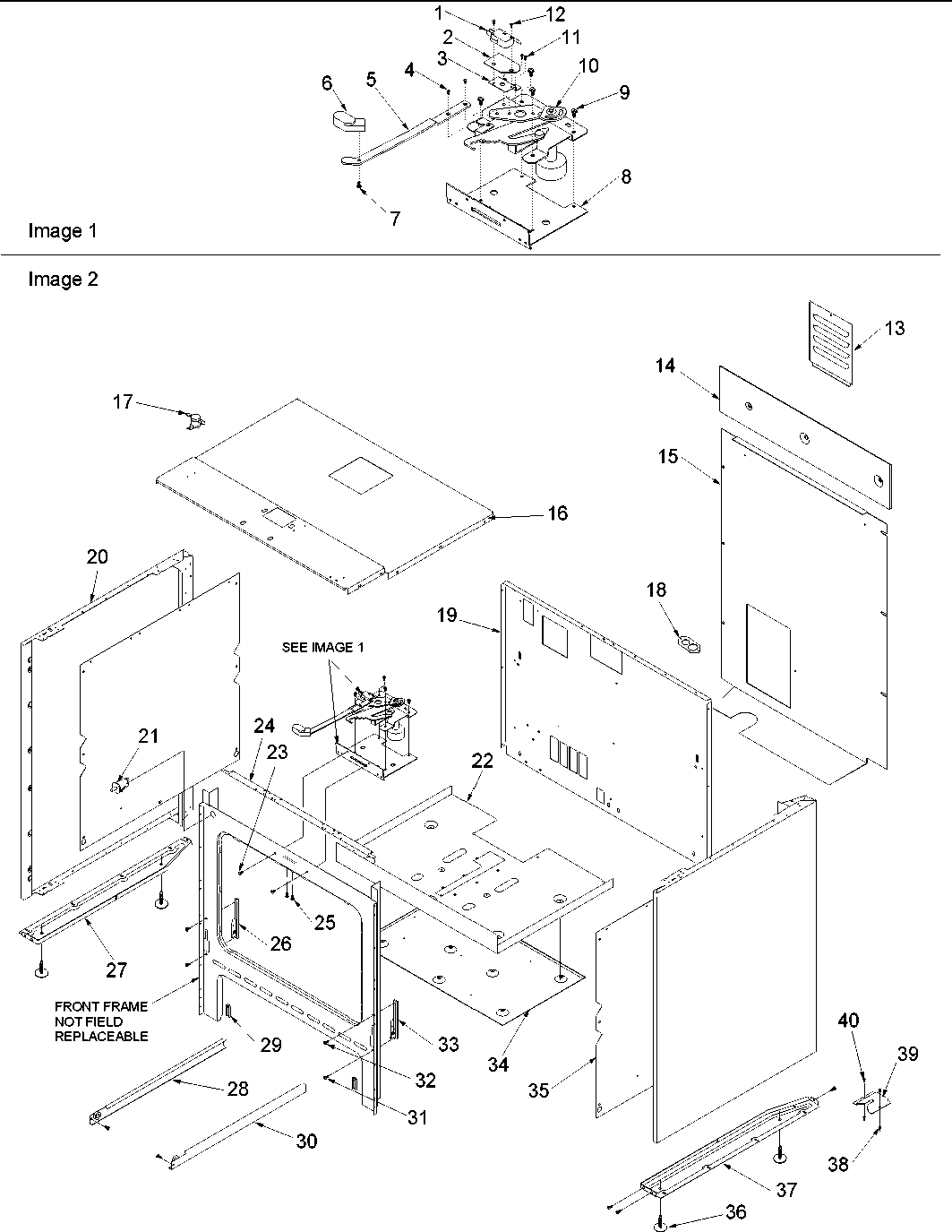

Cabinet diagram
Interlock Switch, Latch
Part #0065780
The manufacturer no longer makes this part, and there's no substitute part
Cavity diagram
Hex Nut (nkl) (qty 6)
Part #31750124
The manufacturer no longer makes this part, and there's no substitute part

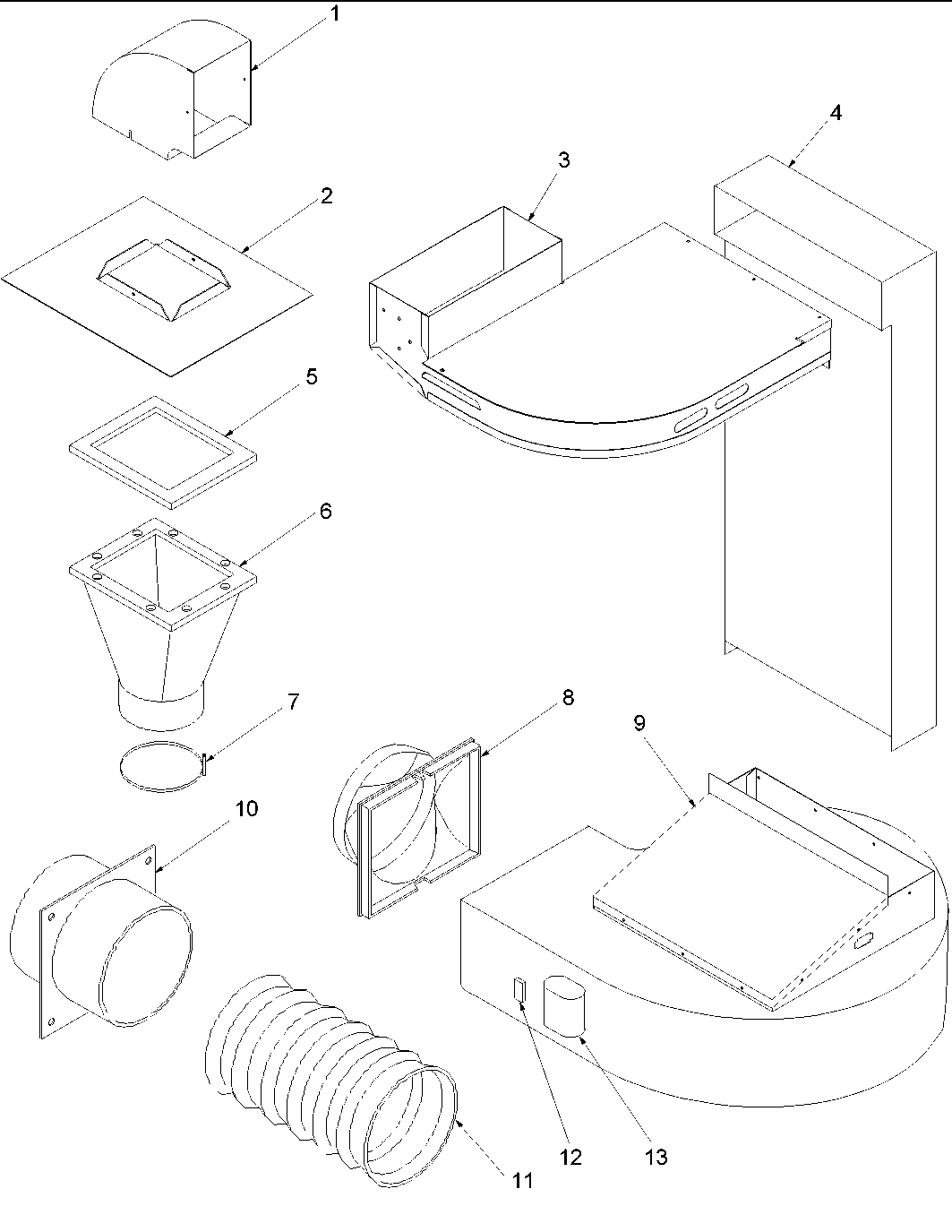

Ventilation parts diagram
Plenum, Rear
Part #0314779
The manufacturer no longer makes this part, and there's no substitute part
