GE
Microwave/Hood Combo

Model # JVM1661BB006 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1661BB006 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |

Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#49

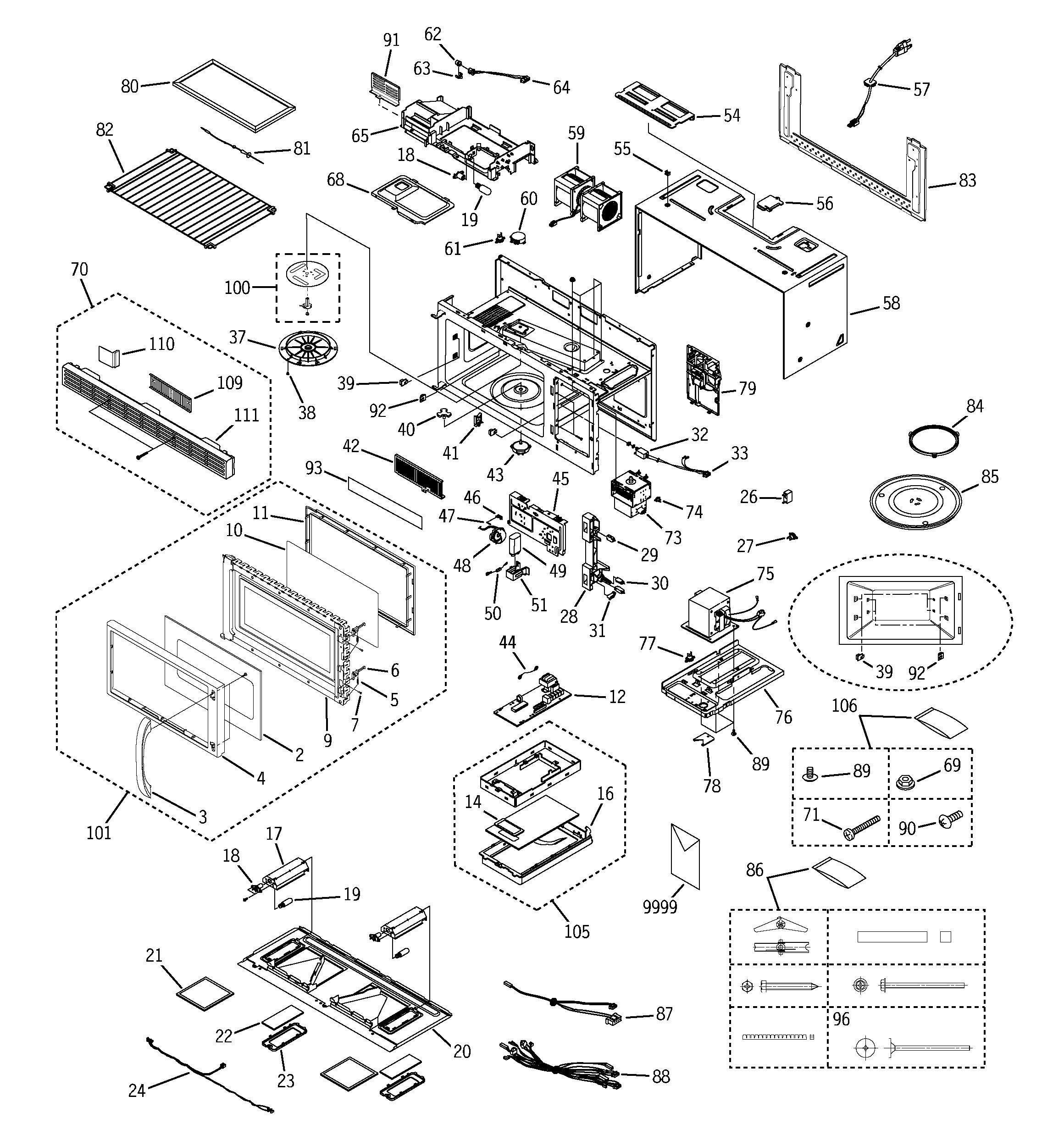

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74
10% OFF Phone Price : $51.74
In Stock
Microwave Vent Grille WB07X10530
#70

Microwave diagram

Microwave vent grille

Part #WB07X10530

$96.44
9% OFF Phone Price : $106.44
In Stock
Microwave Light Bulb (replaces Wb2x4235, Wb36x0898, Wb36x0936, Wb36x10306, Wb36x898, Wb36x936, Wb6x15) WB36X10003
#19

Microwave diagram

Microwave light bulb (replaces wb2x4235, wb36x0898, wb36x0936, wb36x10306, wb36x898, wb36x936, wb6x15)

Part #WB36X10003

This item is not returnable
$13.60
13% OFF Phone Price : $15.60
In Stock
Monitor Switch WB24X0830
#30

Microwave diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
$27.94
15% OFF Phone Price : $32.94
In Stock
Microwave Door Outer Frame WB55X10530
#4

Microwave diagram

Microwave door outer frame

Part #WB55X10530

$98.19
9% OFF Phone Price : $108.19
In Stock
Microwave Turntable Tray Support WB06X10139
#84

Microwave diagram

Microwave turntable tray support

Part #WB06X10139

$34.39
13% OFF Phone Price : $39.39
In Stock
Microwave Turntable Motor WB26X10038
#43

Microwave diagram

Microwave turntable motor

Part #WB26X10038

$54.53
10% OFF Was : $60.59
In Stock
Microwave Vent Motor Capacitor WB27X10170
#26

Microwave diagram

Microwave vent motor capacitor

Part #WB27X10170

$48.79
9% OFF Phone Price : $53.79
In Stock
Stirrer WB06X10416
#100

Microwave diagram

Stirrer

Part #WB06X10416

$41.99
11% OFF Phone Price : $46.99
In Stock
Microwave Door Interlock Switch Lever (replaces Wb6x10128) WB06X10128
#31

Microwave diagram

Microwave door interlock switch lever (replaces wb6x10128)

Part #WB06X10128

$7.88
11% OFF Phone Price : $8.88
In Stock
