Whirlpool RB265PXV0 electric built-in oven Parts

On a Whirlpool electric built-in oven like model RB265PXV0, a failing oven control board typically shows up as a dead or flickering display, buttons that do not respond (or respond randomly), error codes, and heating that is erratic (no heat, intermittent heat, or overheating).

Common symptoms you can expect

• Display is blank, flickers, or resets during use
• Beeping with no clear reason, or the oven starts then shuts off
• Keypad inputs do nothing, or the oven changes settings by itself
• Oven will not bake or broil, or temperature swings widely
• Error codes appear repeatedly after clearing power
• Self-clean cycle triggers problems right after it finishes

Quick checks before blaming the control board

These checks help separate a control issue from a heating-part or power-supply problem.

• Confirm the oven has full power (a 240V electric oven can lose one leg and act “half-dead”)
• Try a hard reset: turn the breaker off for 2 to 5 minutes, then restore power
• If the oven will not heat, inspect and test the heating elements for visible damage or an open circuit
• Look for burned wiring or loose spade terminals at the elements and junctions
• If the oven light is out, replace the bulb so you can better inspect operation inside the cavity

Parts that are often involved in “no heat” complaints

A bad control board is possible, but these parts commonly cause similar symptoms on electric wall ovens.

Symptom	More likely cause	Part to check on this model
No bake heat	Failed bake element	Bake element WP308180
No broil heat	Failed broil element	Range broil element WP660579
Oven light out	Burned-out bulb	Light bulb 8009

Why it matters

A control board problem can create unsafe temperature behavior (overheating) or prevent the oven from regulating heat correctly. Ruling out the bake element, broil element, and wiring first prevents unnecessary part replacement and gets your RB265PXV0 heating reliably again.

You can order replacement parts for your Whirlpool RB265PXV0 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

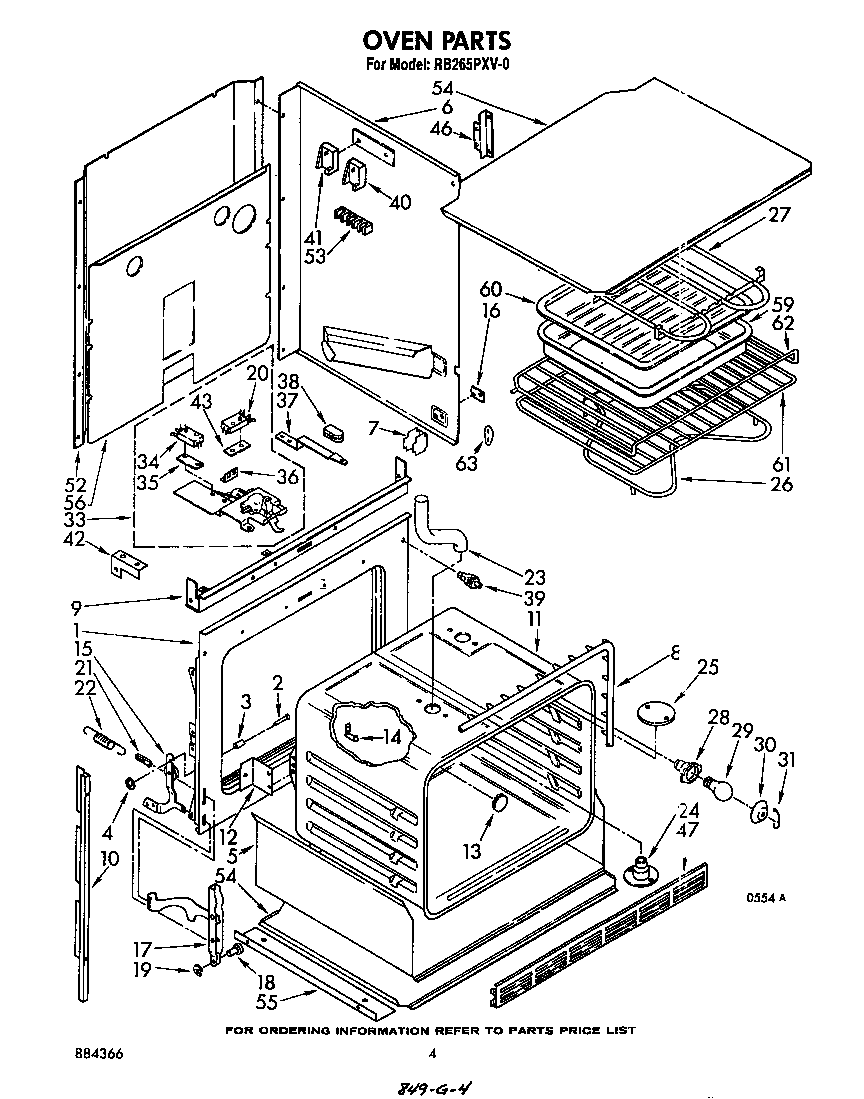

An electric oven like the Whirlpool RB265PXV0 is built around heating, temperature control, and a sealed cooking cavity. The core parts include the bake and broil elements, oven light, door and hinges, controls (knobs/dials), wiring, and insulation that keeps heat in for even baking.

Main parts you will see on most electric wall ovens

These are the most common components and what they do:

• Bake element: bottom heat source for baking and roasting (example: bake element WP308180)
• Broil element: top heat source for broiling and browning (example: range broil element WP660579)
• Oven light and lens/holder: illuminates the cavity (example: light bulb 8009)

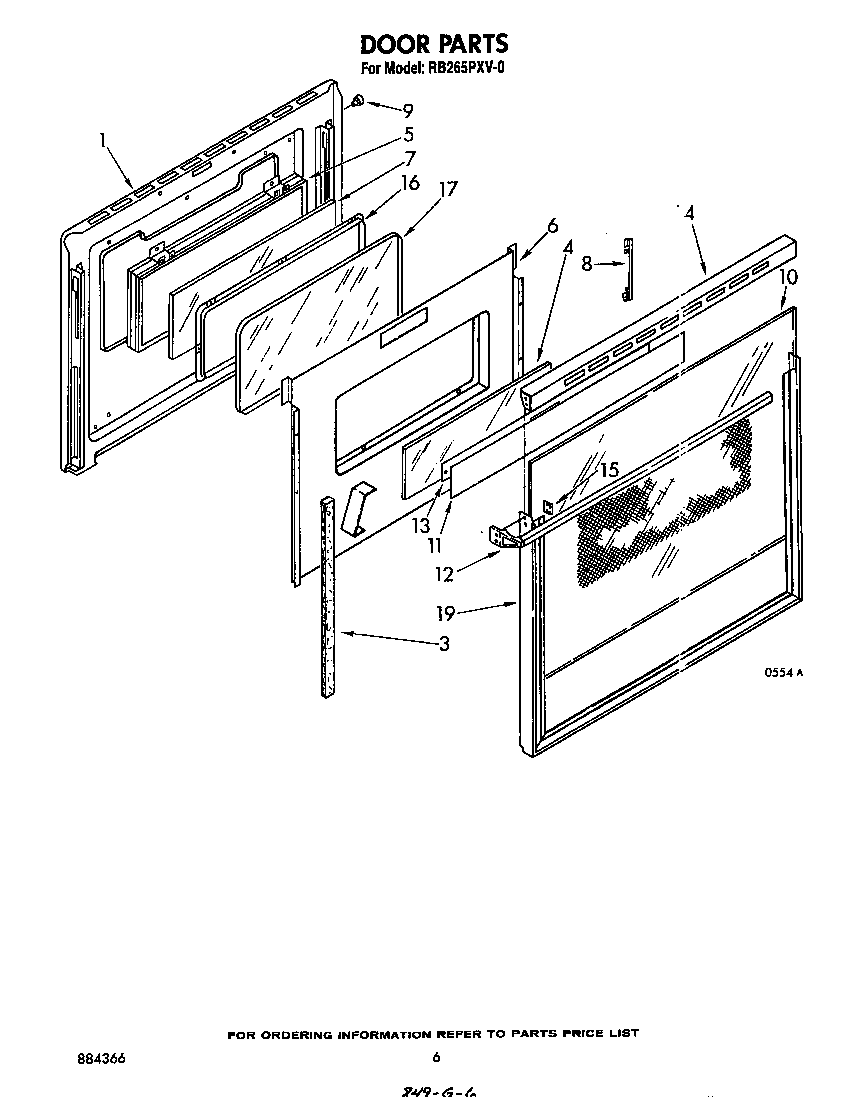

• Door assembly: glass, hinges, springs, and pins that support and seal the door (example: door glass WP3169203)
• Controls: knobs/dials and internal controls that set bake/broil temperature and time (example: oven dial (black) WP311068)
• High-temp wiring and connectors: carry power safely to elements and controls

Quick “part to symptom” guide

If you are troubleshooting, this helps narrow what to check first.

Symptom	Most likely area	Example part on this model
Oven will not bake or bakes unevenly	Bake heating circuit	Bake element
No broil or weak broil	Broil heating circuit	Broil element
Oven light out	Lamp circuit	Light bulb
Heat loss, door won’t close right	Door hardware or glass	Door glass, springs, hinge pins

Why it matters

Knowing the major oven parts helps you diagnose faster and order the right replacement the first time. For example, a failed bake element often causes underbaking, while door spring or hinge issues can cause heat loss that makes cooking times inconsistent.

Ordering the right part for RB265PXV0

• Match your model number RB265PXV0 exactly
• Compare the part name and ID to what is installed
• Replace damaged terminals or heat-stressed wiring at the same time
• Order directly from the parts list for this model, or search by model on Sears PartsDirect

Last updated: February 2026

The “best” electric wall oven depends on your cooking needs, cutout size, and must-have features; for many homes, a reliable 30-inch Whirlpool-style electric built-in oven with strong bake and broil performance is the best value. If you already own a Whirlpool RB265PXV0, keeping it heating evenly and operating safely often delivers the best real-world results.

What to look for when choosing the best wall oven

• Correct fit: match the cabinet cutout and electrical requirements (most built-in ovens are 240V).
• Cooking performance: even baking, consistent broiling, and stable temperature control.
• Features you will actually use: convection, self-clean, delay start, and probe support.
• Serviceability: availability of common wear parts like elements, bulbs, and door hardware.
• Total cost: purchase price plus installation and long-term repair costs.

If you are comparing “new oven” vs “repair your RB265PXV0”

For the Whirlpool RB265PXV0, many “not heating” or “uneven baking” complaints come down to a failed heating element or a weak broil circuit. Replacing a common wear part is often the fastest path back to dependable performance.

Common parts customers replace on this model include:

• Bake element WP308180 (primary heat source for baking)
• Range broil element WP660579 (top heat for broiling and preheat assist)
• Light bulb 8009 (interior visibility)

Quick comparison

Goal	Best move	Typical sign it is needed
Better baking results	Replace bake element	Slow preheat, uneven browning, no heat on bake
Stronger broiling	Replace broil element	No top heat, weak broil, poor browning
Better visibility	Replace oven light bulb	Light does not turn on, bulb is darkened

Why it matters

A wall oven that heats evenly and reaches temperature reliably improves food quality and reduces cooking time. For an existing Whirlpool built-in oven, restoring bake and broil performance with the correct replacement parts is often the most practical way to get “best oven” results without changing cabinetry.

Ordering the right parts

We recommend ordering replacement parts for your Whirlpool RB265PXV0 from the parts list for this model, or using Sears PartsDirect to search by model number when you are shopping across multiple appliances.

Last updated: February 2026

Yes. Whirlpool makes wall ovens, including electric built-in wall ovens like model RB265PXV0. If you are shopping for replacement parts or maintaining your oven, we list common RB265PXV0 parts on this page and you can also search by model on Sears PartsDirect.

What this means for your RB265PXV0

Whirlpool is the brand for RB265PXV0, so parts and troubleshooting guidance should be matched to Whirlpool wall oven designs (heating elements, oven light, door components, and controls).

Common wall-oven parts you may need include:

• Bake element (for baking heat)
• Broil element (for top heat and broiling)
• Oven light bulb and lens/retainers
• Door glass, hinges, and springs
• Control knobs and dials

Popular replacement parts for this model

If your oven is not heating, not broiling, or the light is out, these are frequently replaced items for RB265PXV0:

Symptom	Likely part to check	Example part on this page
Oven will not bake or bakes unevenly	Bake element	Bake element WP308180
Oven will not broil	Broil element	Range broil element WP660579
Oven light not working	Light bulb	Light bulb 8009
Door glass is cracked or damaged	Door glass	Door glass WP3169203

Why it matters

Wall ovens are built-in appliances, so using the correct Whirlpool model number (RB265PXV0) helps ensure the replacement part fits, mounts correctly, and handles the oven’s heat and electrical load.

Last updated: February 2026

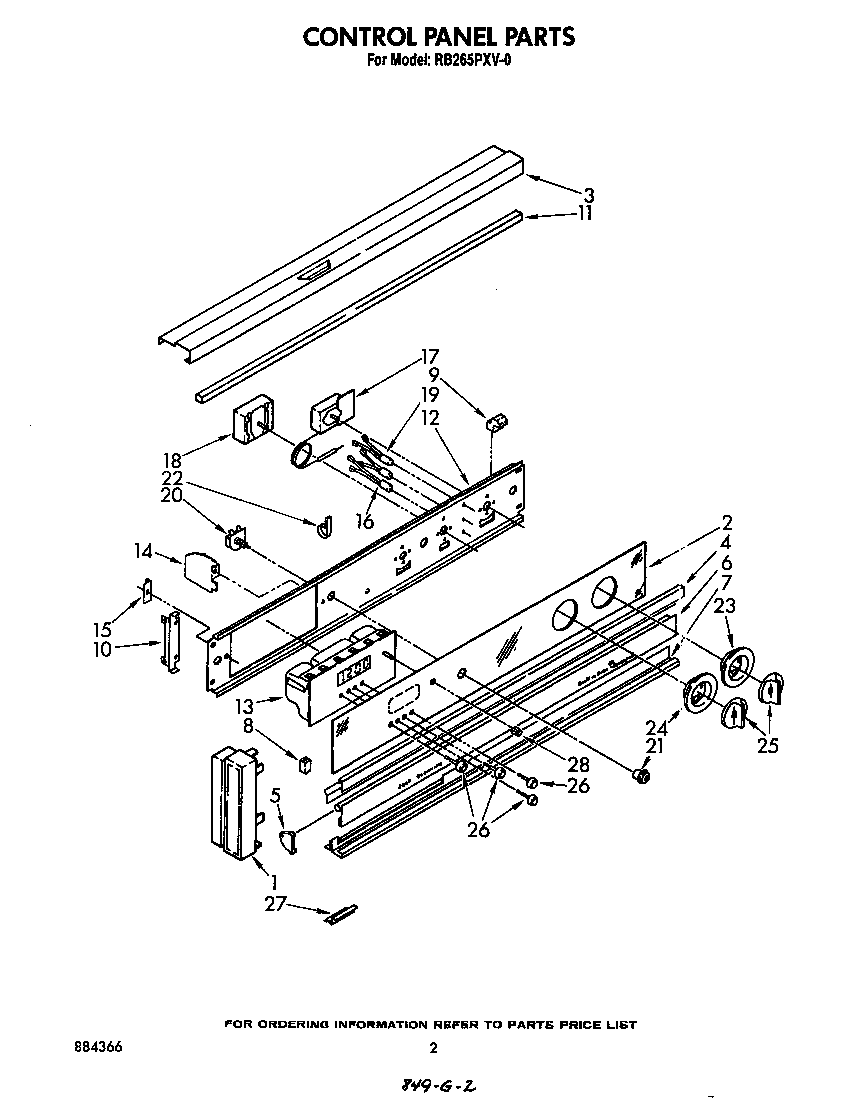

To replace the control panel on your Whirlpool RB265PXV0 electric built-in oven, we shut off power at the breaker, slide the oven out enough to reach the top-front console, then move wiring to the new control one connector at a time before reassembling and testing.

Safety and prep

• Turn OFF the 240V breaker; confirm the display and oven light are off.
• Let the oven cool completely.
• Protect the floor and cabinet edges with cardboard.
• Use a second person; built-in wall ovens are heavy.
• Take clear photos of every connector before unplugging.

Replacement steps (typical for this Whirlpool wall oven)

1. Remove the oven door to reduce weight.
2. Remove the mounting screws securing the oven to the cabinet.
3. Carefully slide the oven forward several inches; support it on a sturdy platform.
4. Remove screws holding the top cover or control trim; lift to access the control area.
5. Transfer wires one at a time from the old control to the new control (match positions to your photos).
6. Reinstall the cover, slide the oven back, reinstall mounting screws, then reinstall the door.
7. Restore power and test Bake, Broil, and the oven light.

Before you order a control panel

Some “control” complaints are caused by a failed heating circuit or a loose connection.

Symptom	Check first	Related part on this page
No bake heat	Element continuity, terminals	Bake element WP308180
No broil heat	Element continuity, terminals	Range broil element WP660579
Oven light out	Bulb and socket	Light bulb 8009

Why it matters

Correctly supporting the oven and moving wiring one connector at a time prevents miswiring and helps you avoid replacing an expensive control when the real issue is a bake element, broil element, or connection.

You can order replacement parts for RB265PXV0 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
