Craftsman 247370105 18" electric rotary lawn mower Parts
Here are the diagrams and repair parts for Craftsman 247370105 18" electric rotary lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 247370105 Walk-Behind Mowers

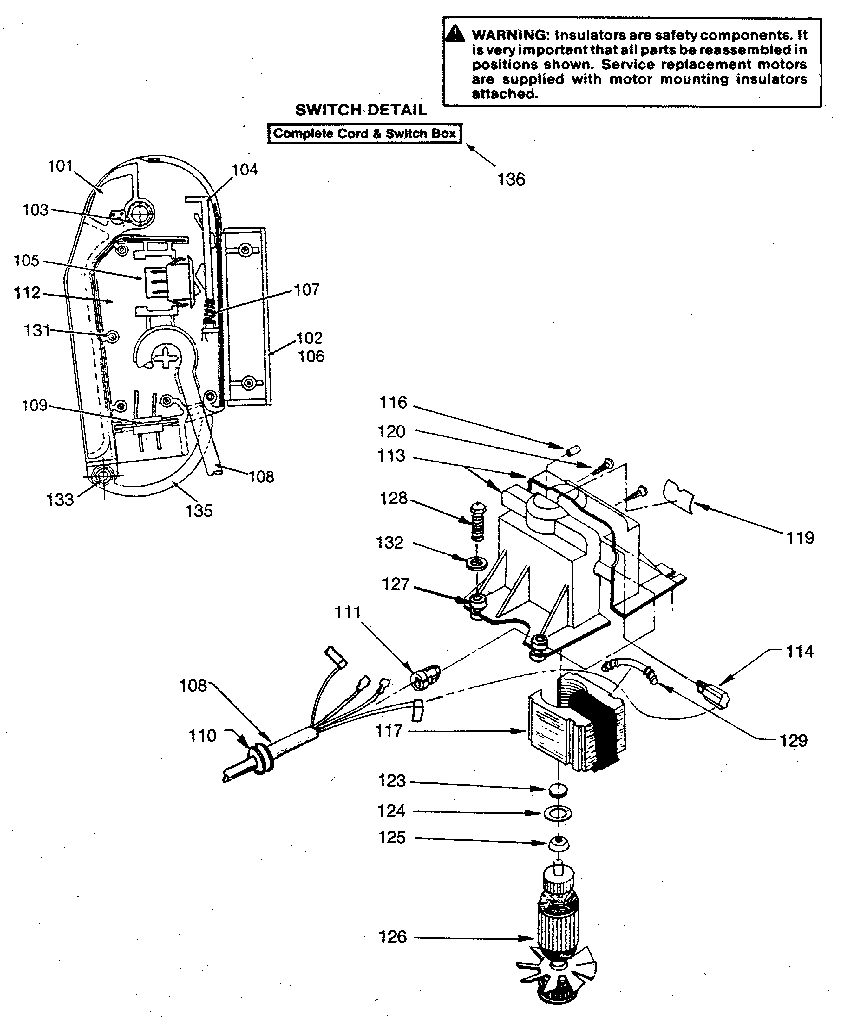

Motor & switch assembly diagram
O-ring
Part #706-10038
The manufacturer no longer makes this part, and there's no substitute part

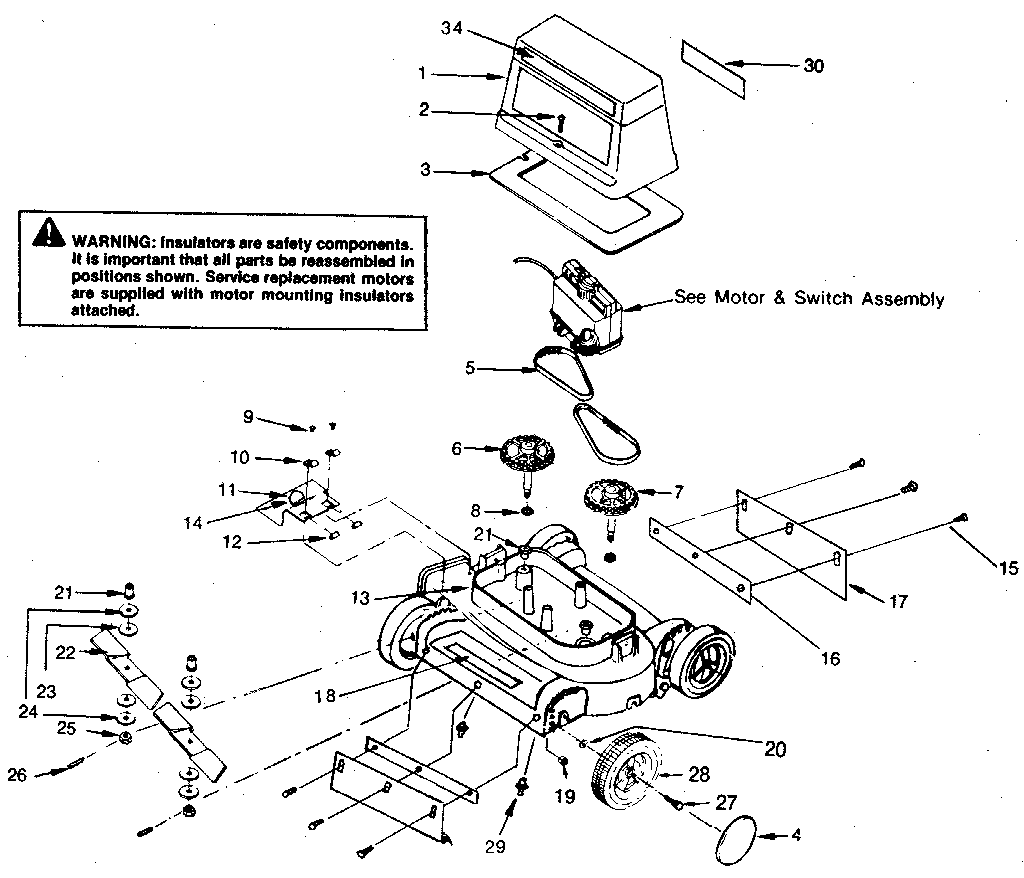

Twin blade electric lawn mower diagram
Strap
Part #706-10420
The manufacturer no longer makes this part, and there's no substitute part
Motor & switch assembly diagram
Field
Part #706-10502
The manufacturer no longer makes this part, and there's no substitute part
Twin blade electric lawn mower diagram
Drag Guard
Part #706-10149
The manufacturer no longer makes this part, and there's no substitute part
Twin blade electric lawn mower diagram
Special Hex Nut
Part #706-10068
The manufacturer no longer makes this part, and there's no substitute part
Motor & switch assembly diagram
Retainer
Part #706-11689-00-90
The manufacturer no longer makes this part, and there's no substitute part
Motor & switch assembly diagram
Motor Kit
Part #706-12904
The manufacturer no longer makes this part, and there's no substitute part

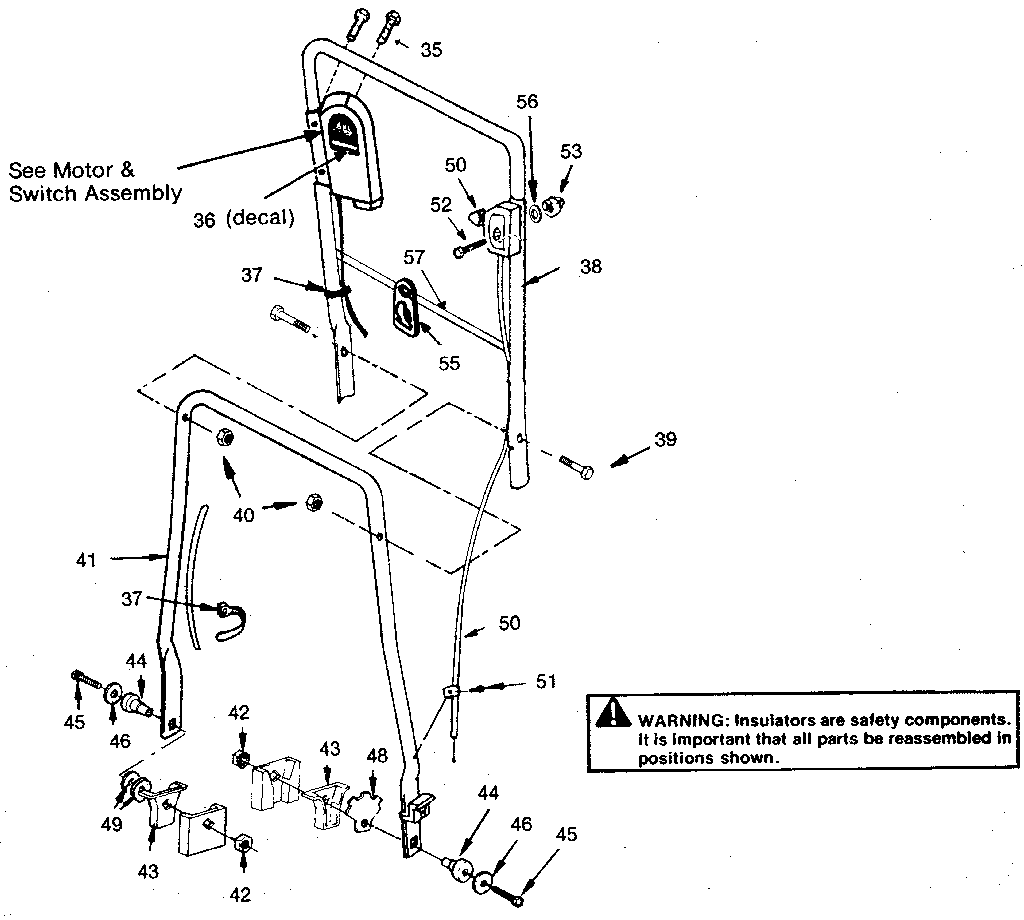

Handle detail diagram
Cable
Part #706-15676
The manufacturer no longer makes this part, and there's no substitute part
Handle detail diagram
Capscr Hx Nc
Part #STD522515
The manufacturer no longer makes this part, and there's no substitute part
Motor & switch assembly diagram
Spring
Part #706-11688
The manufacturer no longer makes this part, and there's no substitute part
