Model # DCF826KL TYPE 1 Official DeWalt cordless impact driver

Here are the diagrams and repair parts for Official DeWalt DCF826KL-TYPE-1 cordless impact driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Label Warn 650676-00
#22

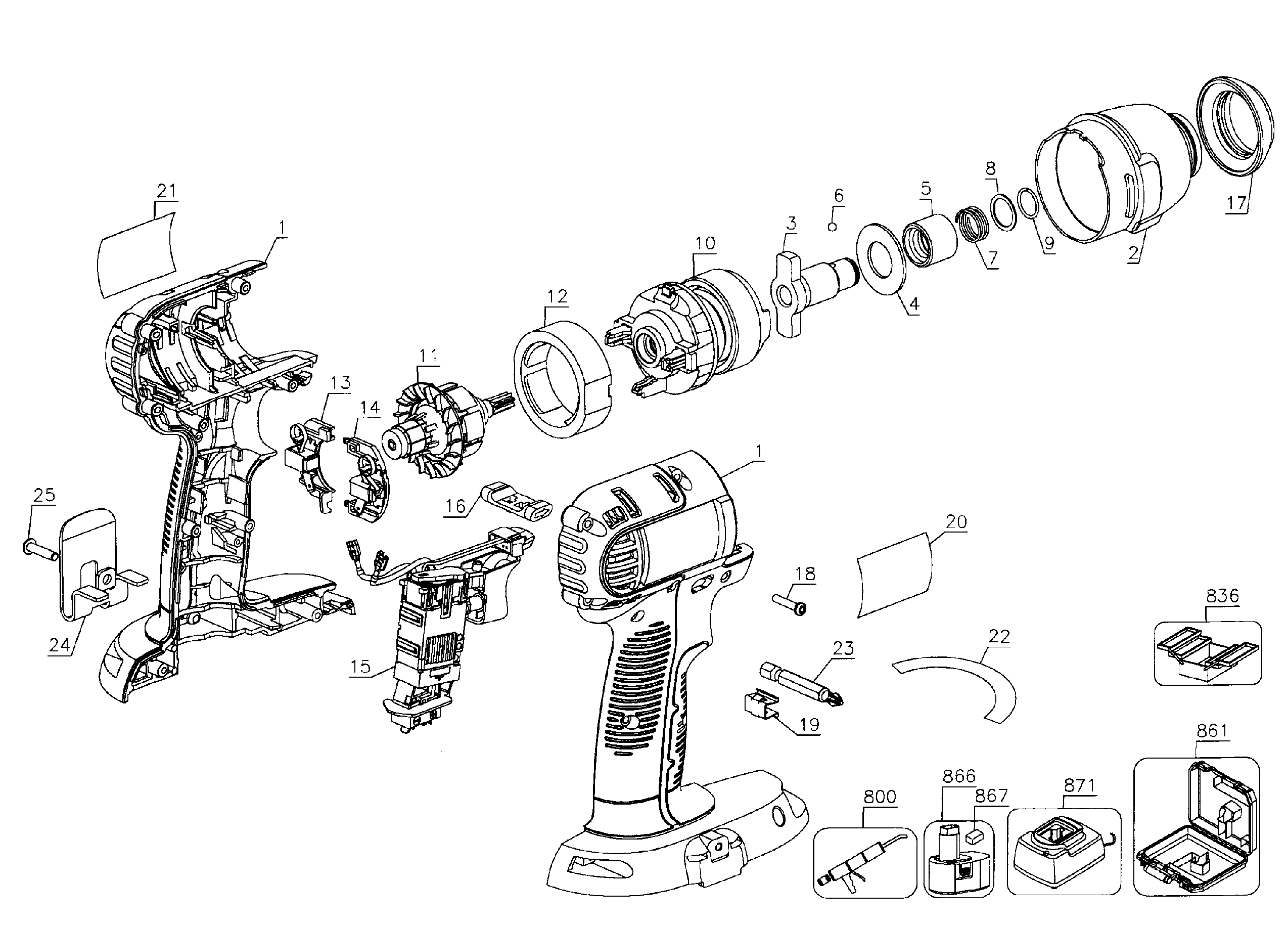

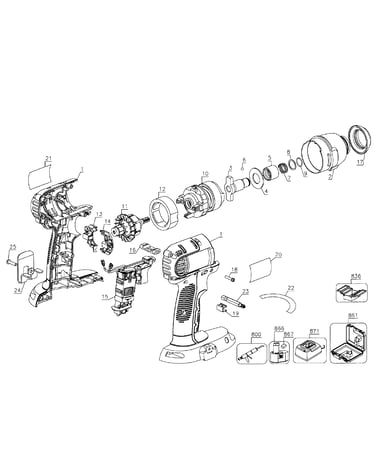

Drill assy diagram

Label warn

Part #650676-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Belt Clip 659916-00SV
#24

Drill assy diagram

Power tool belt clip

Part #659916-00SV

The manufacturer no longer makes this part, and there's no substitute part

Spring 151359-00
#7

Drill assy diagram

Spring

Part #151359-00

The manufacturer no longer makes this part, and there's no substitute part

Cone 642886-00
#17

Drill assy diagram

Cone

Part #642886-00

The manufacturer no longer makes this part, and there's no substitute part

Washer-ure 642883-00
#4

Drill assy diagram

Washer-ure

Part #642883-00

The manufacturer no longer makes this part, and there's no substitute part

Serv Tool 233945-00
#836

Drill assy diagram

Serv tool

Part #233945-00

The manufacturer no longer makes this part, and there's no substitute part

Vsr Switch N019952
#15

Drill assy diagram

Vsr switch

Part #N019952

The manufacturer no longer makes this part, and there's no substitute part

Kitbox N028249
#861A

Drill assy diagram

Kitbox

Part #N028249

The manufacturer no longer makes this part, and there's no substitute part

Bit Scrdri 607906-22
#23

Drill assy diagram

Bit scrdri

Part #607906-22

The manufacturer no longer makes this part, and there's no substitute part

Armature 646694-03SV
#11

Drill assy diagram

Armature

Part #646694-03SV

The manufacturer no longer makes this part, and there's no substitute part
