Model # 72180009400 Official Kenmore microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore 72180009400 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

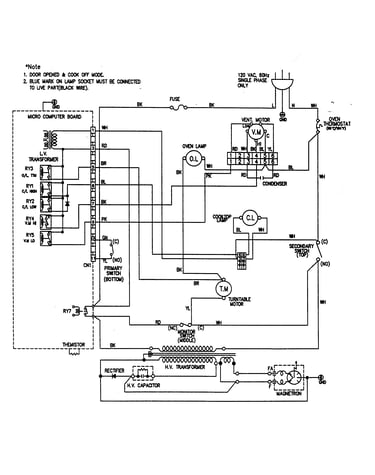

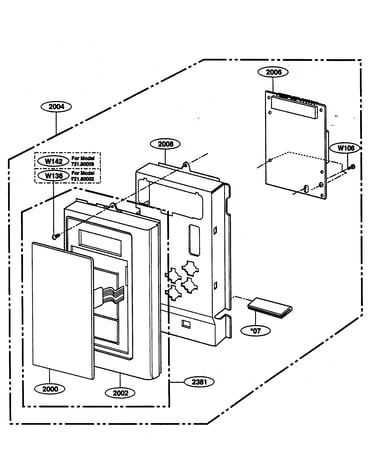

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Magnetron 6324W1A001B
#5009

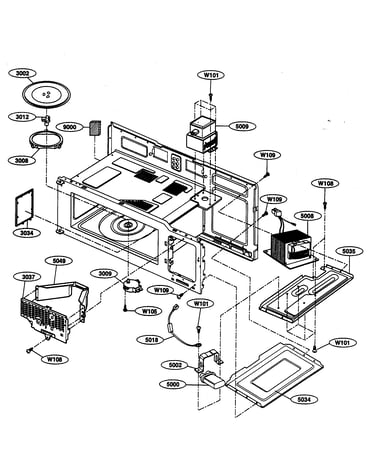

Interior parts 1 diagram

Magnetron

Part #6324W1A001B

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d) 6912W1Z004B
#3028

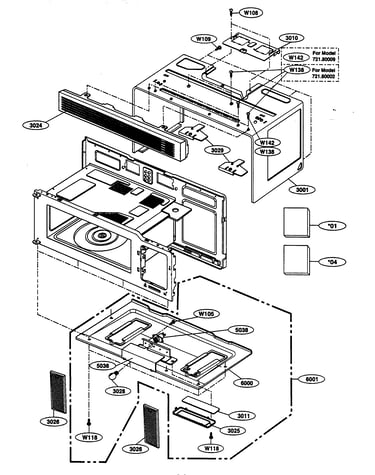

Oven cavity diagram

Microwave light bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d)

Part #6912W1Z004B

BEST SELLER
$9.85 |
9% OFF Phone Price : $10.85
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, Eae61082101) 0CZZW1H004B
#5000

Interior parts 1 diagram

Microwave high-voltage capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, eae61082101)

Part #0CZZW1H004B

BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Door Interlock Switch 6600W1K003D
#4002

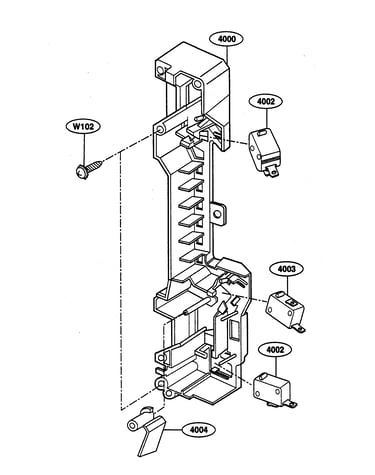

Latch board diagram

Microwave door interlock switch

Part #6600W1K003D

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K003D. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Door Latch Hook (replaces 4026w2a015a) 4026W2A019C
#1006

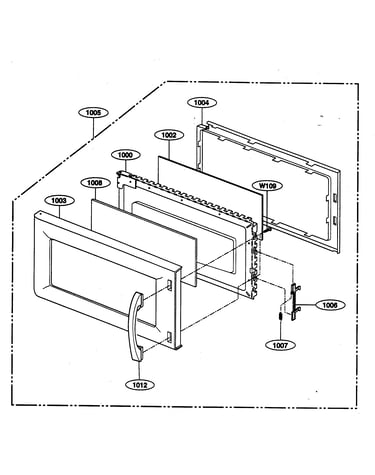

Door assy diagram

Microwave door latch hook (replaces 4026w2a015a)

Part #4026W2A019C

BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Exhaust Damper Bracket (replaces 3b72144a) 4810W1A151A
#6010

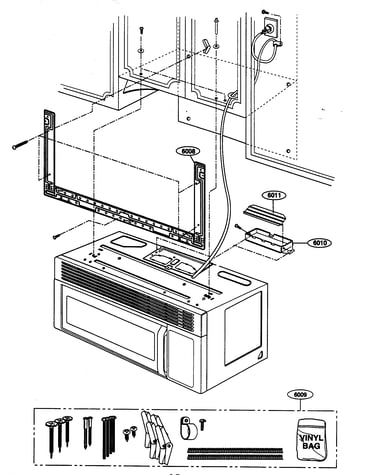

Installation parts diagram

Microwave exhaust damper bracket (replaces 3b72144a)

Part #4810W1A151A

BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Microwave Vent Damper Door (replaces 3b71432a) 4900W1A001B
#6011

Installation parts diagram

Microwave vent damper door (replaces 3b71432a)

Part #4900W1A001B

BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Microwave Light Bulb (replaces 3b70067a) 6912W1Z004A
#5015

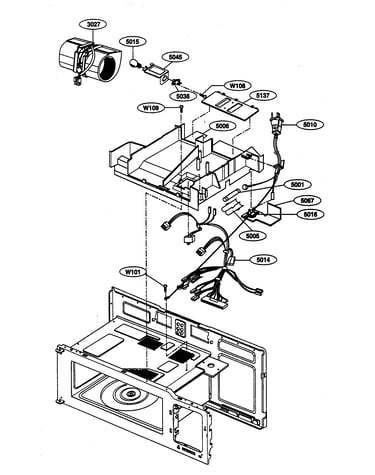

Interior parts 2 diagram

Microwave light bulb (replaces 3b70067a)

Part #6912W1Z004A

BEST SELLER
This item is not returnable
$5.36 |
16% OFF Phone Price : $6.36
In Stock
Microwave Mounting Plate (replaces 3300w1a003d, 3301w0a003a) 3300W0A030A
#6008

Installation parts diagram

Microwave mounting plate (replaces 3300w1a003d, 3301w0a003a)

Part #3300W0A030A

BEST SELLER
$28.28 |
15% OFF Phone Price : $33.28
In Stock
Microwave Grease Filter 5230W1A012A
#3026

Oven cavity diagram

Microwave grease filter

Part #5230W1A012A

$8.18 |
11% OFF Phone Price : $9.18
In Stock
