White-Westinghouse FU169LRW2 upright freezer - lw30890140 Parts
Here are the diagrams and repair parts for White-Westinghouse FU169LRW2 upright freezer - lw30890140, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for FU169LRW2 Freestanding Freezers

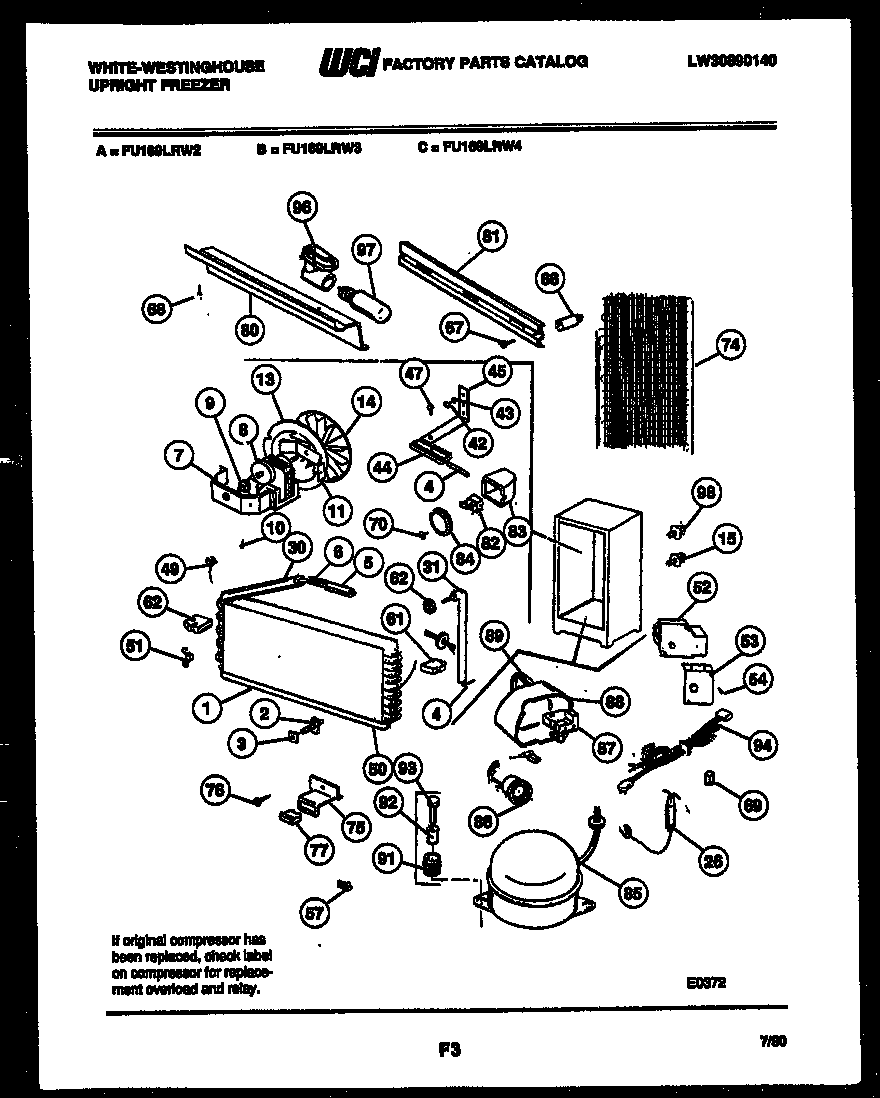

System and automatic defrost parts diagram
Filter
Part #08000027Replaced by #5303305677
Manufacturer substitutionThis part replaces 08000027. Substitute parts can look different from the original.In Stock$25.3619% OFF Phone Price : $31.36
Qty
System and automatic defrost parts diagram
Timer
Part #08037967Replaced by #5304518034

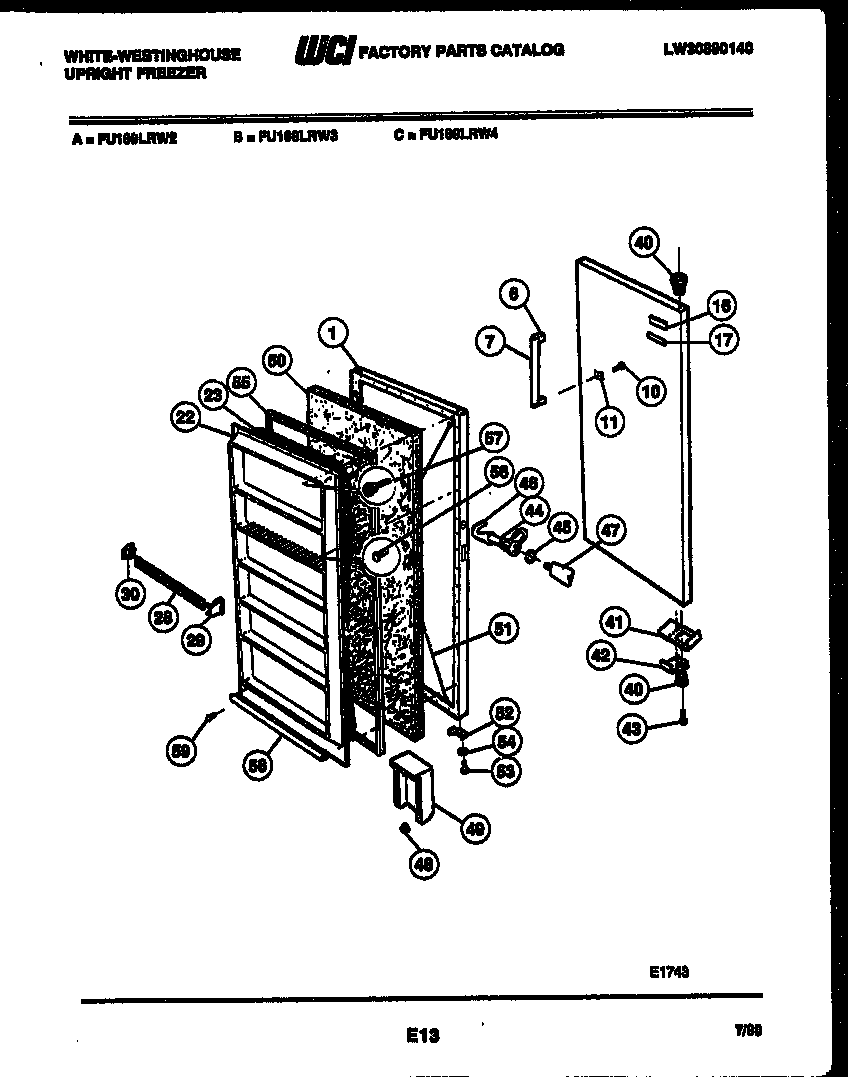

Manufacturer substitutionThis part replaces 08037967. Substitute parts can look different from the original.In Stock$33.2215% OFF Phone Price : $39.22QtyDoor parts diagram
Key
Part #08037402Replaced by #297147700
Manufacturer substitutionThis part replaces 08037402. Substitute parts can look different from the original.In Stock$9.3110% OFF Phone Price : $10.31QtySystem and automatic defrost parts diagram
Bulb
Part #3091423Replaced by #5304517886
Manufacturer substitutionThis part replaces 3091423. Substitute parts can look different from the original.In Stock$54.7110% OFF Phone Price : $60.71QtySystem and automatic defrost parts diagram
Thermostat
Part #3016814Replaced by #5303917954
Manufacturer substitutionThis part replaces 3016814. Substitute parts can look different from the original.In Stock$27.3918% OFF Phone Price : $33.39QtySystem and automatic defrost parts diagram
Clip
Part #06599536Replaced by #5308000110
Manufacturer substitutionThis part replaces 06599536. Substitute parts can look different from the original.In Stock$36.2632% OFF Was : $53.58QtySystem and automatic defrost parts diagram
Relay
Part #3204565Replaced by #216594300

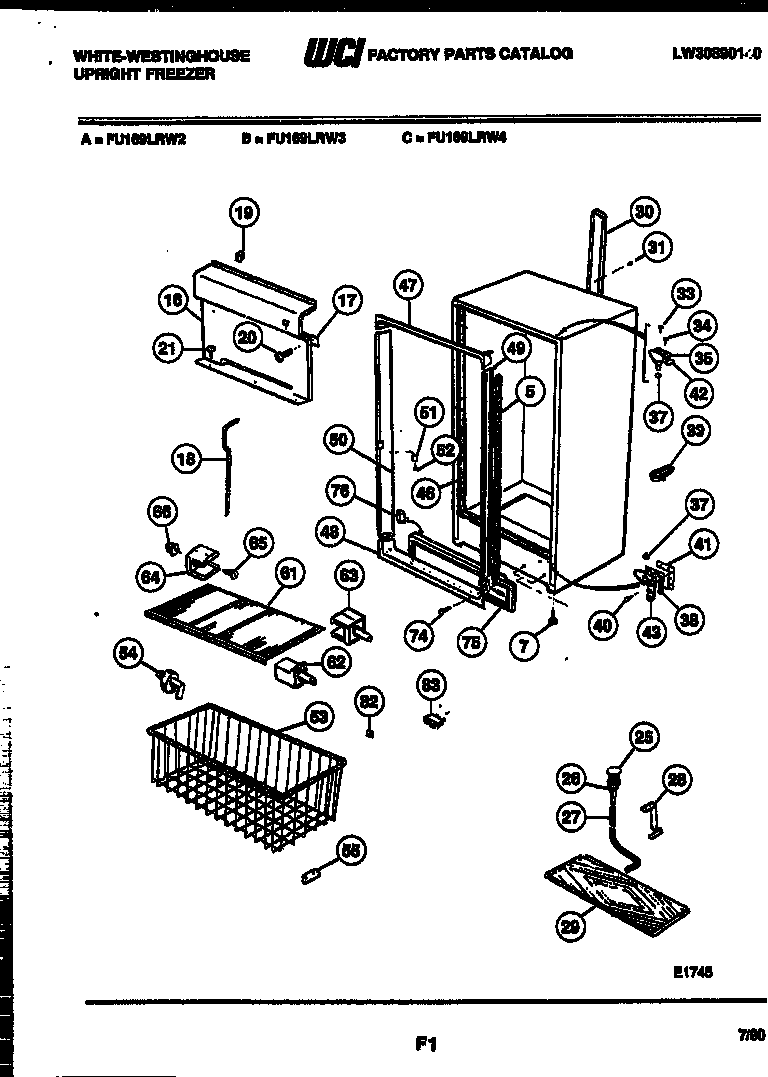

Manufacturer substitutionThis part replaces 3204565. Substitute parts can look different from the original.In Stock$16.4742% OFF Was : $28.18QtyCabinet parts diagram
Drain Hose
Part #08037416Replaced by #5304512272
Manufacturer substitutionThis part replaces 08037416. Substitute parts can look different from the original.This item is not returnableIn Stock$17.9010% OFF Phone Price : $19.90QtyDoor parts diagram
End Cap
Part #09948967Replaced by #5303925377
Manufacturer substitutionThis part replaces 09948967. Substitute parts can look different from the original.In Stock$41.3213% OFF Phone Price : $47.32QtyDoor parts diagram
End Cap
Part #09948968Replaced by #5303925377
Manufacturer substitutionThis part replaces 09948968. Substitute parts can look different from the original.In Stock$41.3213% OFF Phone Price : $47.32Qty
