Thermador
Dishwasher

Model # TD6500WC Official Thermador dishwasher

Here are the diagrams and repair parts for Official Thermador TD6500WC dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Upper Front Panel 01-37-802
#5

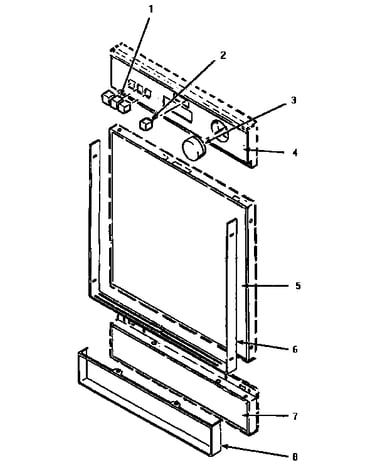

Control panel/panel diagram

Upper front panel

Part #01-37-802

The manufacturer no longer makes this part, and there's no substitute part

Trim, Lower Panel, White 01-37-738
#8

Control panel/panel diagram

Trim, lower panel, white

Part #01-37-738

The manufacturer no longer makes this part, and there's no substitute part

Panel, Lower Front 01-37-803
#7

Control panel/panel diagram

Panel, lower front

Part #01-37-803

The manufacturer no longer makes this part, and there's no substitute part

Latch Knob 01-37-801
#2

Control panel/panel diagram

Latch knob

Part #01-37-801

The manufacturer no longer makes this part, and there's no substitute part

Panel, Front Control 01-37-800
#4

Control panel/panel diagram

Panel, front control

Part #01-37-800

The manufacturer no longer makes this part, and there's no substitute part

Button, Push (3) 01-37-798
#1

Control panel/panel diagram

Button, push (3)

Part #01-37-798

The manufacturer no longer makes this part, and there's no substitute part

Trim, Upper Panel 01-37-737
#6

Control panel/panel diagram

Trim, upper panel

Part #01-37-737

The manufacturer no longer makes this part, and there's no substitute part

Timer Knob 01-37-799
#3

Control panel/panel diagram

Timer knob

Part #01-37-799

The manufacturer no longer makes this part, and there's no substitute part
