KitchenAid KGCU407VSS01 30" professional cooktop (stainless)

KitchenAid KGCU407VSS01 30" professional cooktop (stainless) Parts

Here are the diagrams and repair parts for KitchenAid KGCU407VSS01 30" professional cooktop (stainless), as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KGCU407VSS01 Cooktops

  • Range Spark Module for KitchenAid KGCU407VSS01 - Part WPW10475147

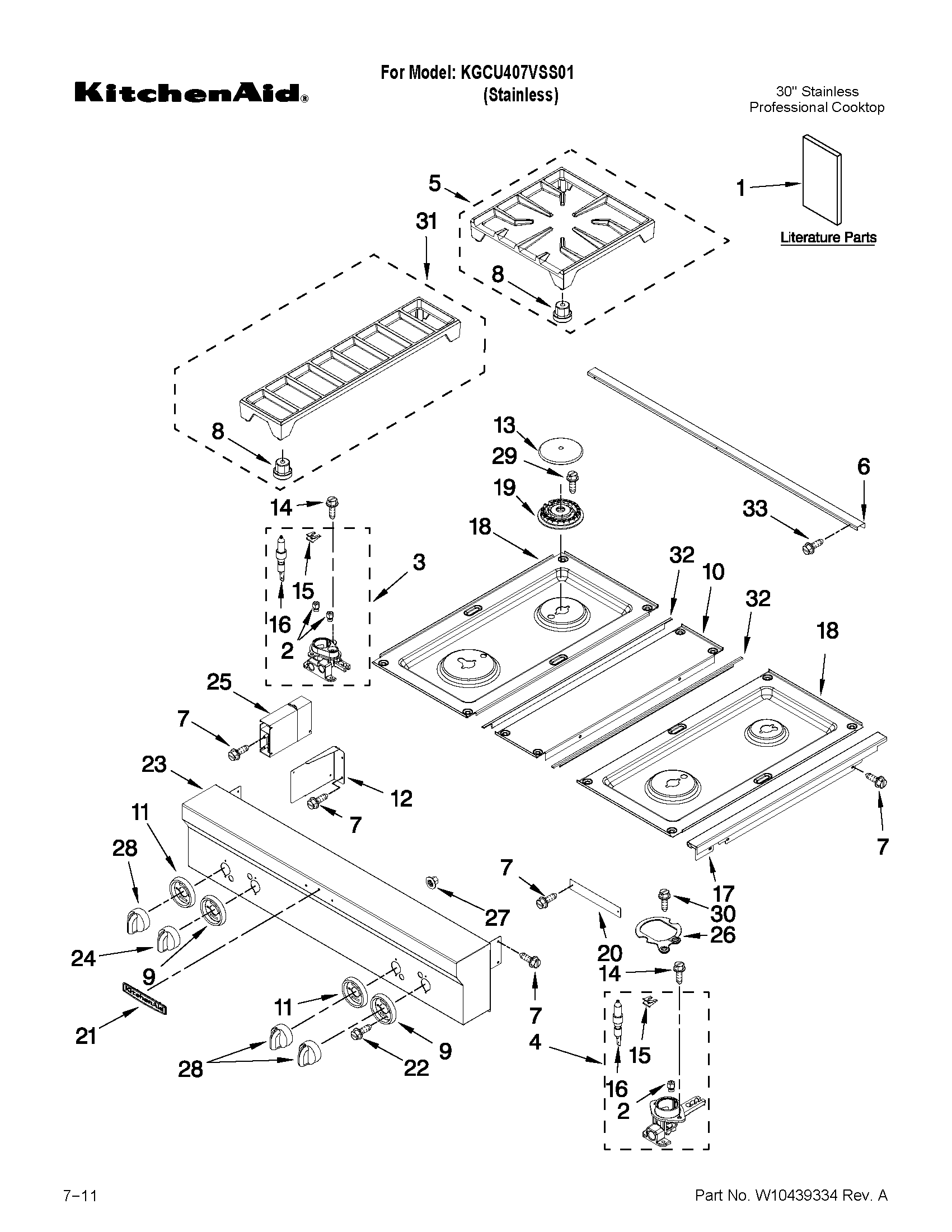

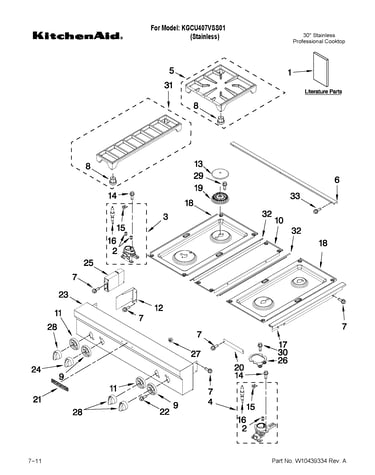

    Cooktop, burner and grate parts diagram

    Module- Sp

    Part #7431P038-60

    Replaced by #WPW10475147

    Info Icon
    Manufacturer substitution
    This part replaces 7431P038-60. Substitute parts can look different from the original.
    In Stock
    $199.83
    6% OFF Phone Price : $211.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Igniter for KitchenAid KGCU407VSS01 - Part W10833887

    Cooktop, burner and grate parts diagram

    Surface Igniter

    Part #W10256047

    Replaced by #W10833887

    Info Icon
    Manufacturer substitution
    This part replaces W10256047. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $17.81
    10% OFF Phone Price : $19.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Valve And Igniter Switch, Left Front for KitchenAid KGCU407VSS01 - Part WPW10385582

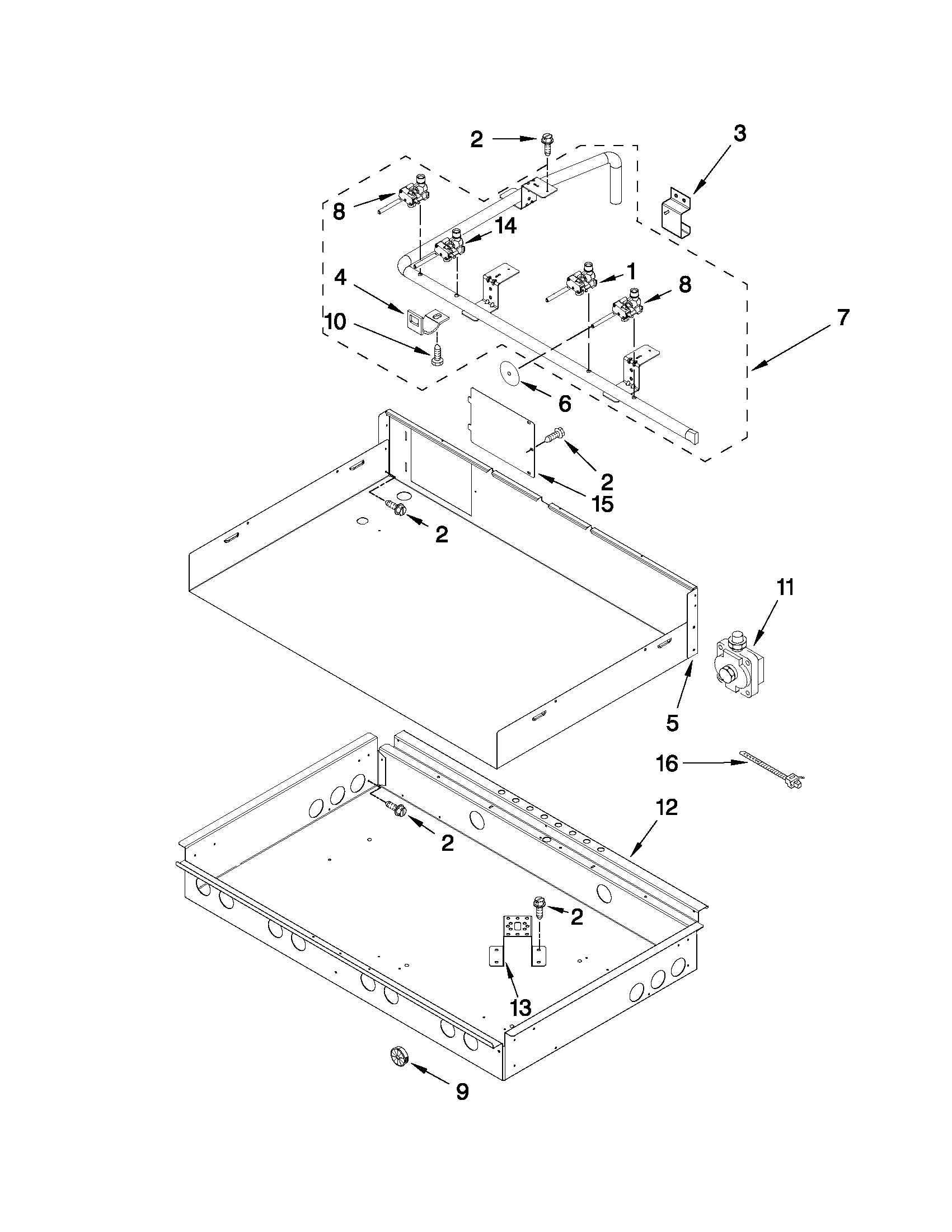

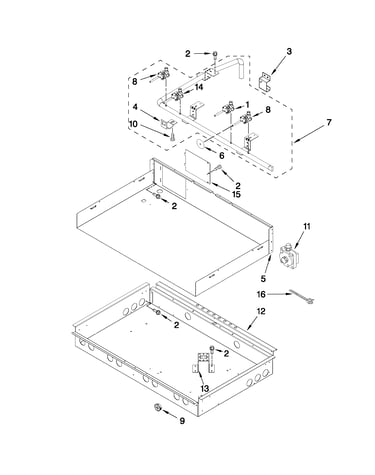

    Burner box, gas valves, and switches diagram

    Cooktop Burner Valve

    Part #W10385582

    Replaced by #WPW10385582

    Info Icon
    Manufacturer substitution
    This part replaces W10385582. Substitute parts can look different from the original.
    In Stock
    $192.29
    6% OFF Phone Price : $204.29Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Valve, Right Rear for KitchenAid KGCU407VSS01 - Part WPW10385583

    Burner box, gas valves, and switches diagram

    Cooktop Burner Valve

    Part #W10385583

    Replaced by #WPW10385583

    Info Icon
    Manufacturer substitution
    This part replaces W10385583. Substitute parts can look different from the original.
    In Stock
    $183.64
    6% OFF Phone Price : $195.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Igniter Clip for KitchenAid KGCU407VSS01 - Part 8286863

    Cooktop, burner and grate parts diagram

    Range Surface Burner Igniter Clip

    Part #8286863
    In Stock
    $37.33
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Head for KitchenAid KGCU407VSS01 - Part WPW10256027

    Cooktop, burner and grate parts diagram

    Range Burner Head

    Part #W10256027

    Replaced by #WPW10256027

    Info Icon
    Manufacturer substitution
    This part replaces W10256027. Substitute parts can look different from the original.
    In Stock
    $43.73
    35% OFF Was : $67.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Cap for KitchenAid KGCU407VSS01 - Part WPW10256034

    Cooktop, burner and grate parts diagram

    Range Surface Burner Cap

    Part #W10256034

    Replaced by #WPW10256034

    Info Icon
    Manufacturer substitution
    This part replaces W10256034. Substitute parts can look different from the original.
    In Stock
    $108.64
    10% OFF Phone Price : $120.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for KitchenAid KGCU407VSS01 - Part WPW10373929

    Cooktop, burner and grate parts diagram

    Range Screw

    Part #W10373929

    Replaced by #WPW10373929

    Info Icon
    Manufacturer substitution
    This part replaces W10373929. Substitute parts can look different from the original.
    In Stock
    $69.78
    Minus Item
    Qty
    Plus Item
  • Holder Orifice for KitchenAid KGCU407VSS01 - Part WPW10364555

    Cooktop, burner and grate parts diagram

    Cooktop Holder Orifice

    Part #W10364555

    Replaced by #WPW10364555

    Info Icon
    Manufacturer substitution
    This part replaces W10364555. Substitute parts can look different from the original.
    In Stock
    $68.19
    8% OFF Phone Price : $74.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooktop Wire Harness for KitchenAid KGCU407VSS01 - Part W10116174

    Optional parts diagram

    Cooktop Wire Harness

    Part #W10116174
    In Stock
    $137.08
    Minus Item
    Qty
    Plus Item
