KitchenAid KMHC319EBL3 microwave/hood combo Parts

Here are the diagrams and repair parts for KitchenAid KMHC319EBL3 microwave/hood combo, as well as links to manuals and error code tables, if available.

KitchenAid KMHC319EBL3 microwave/hood combo
By Schematic

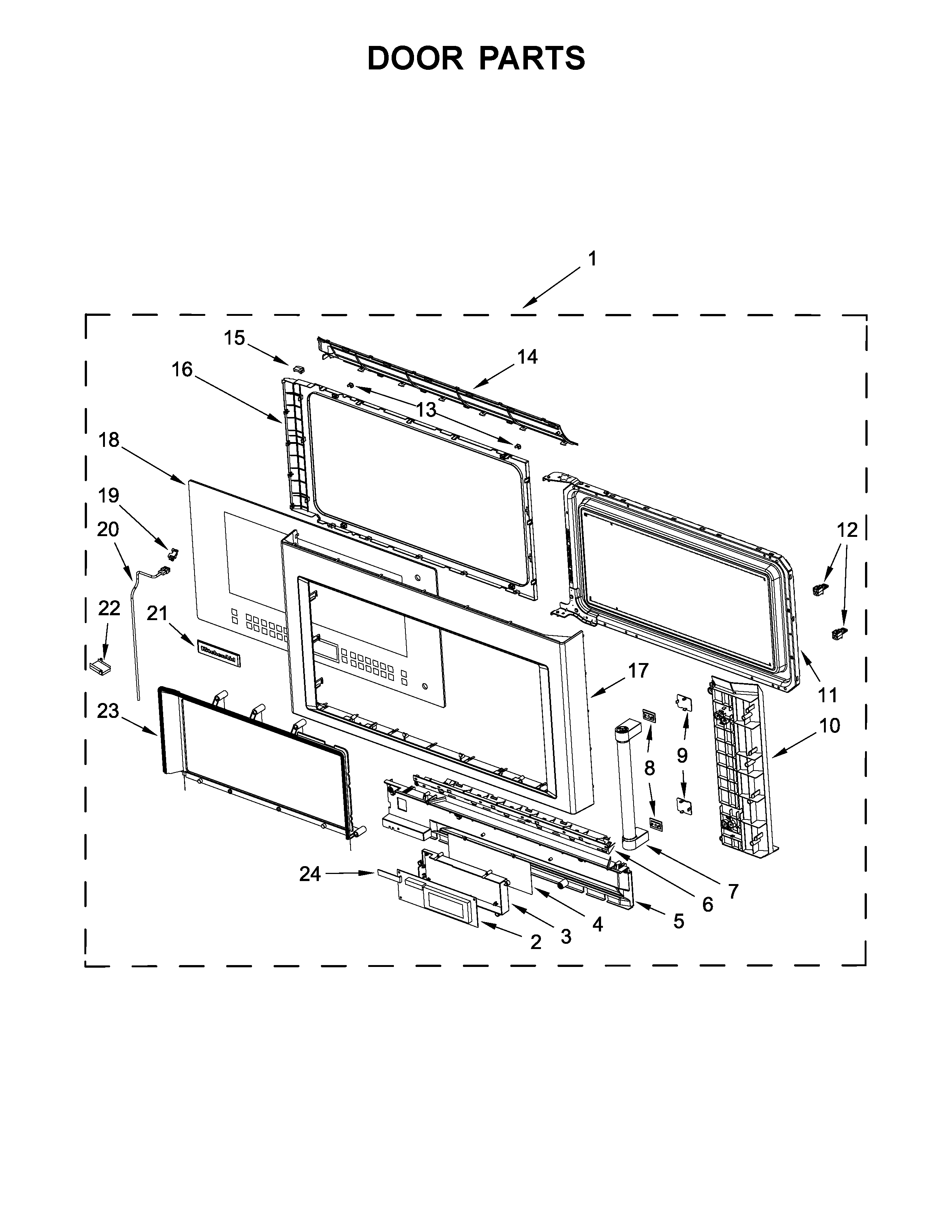

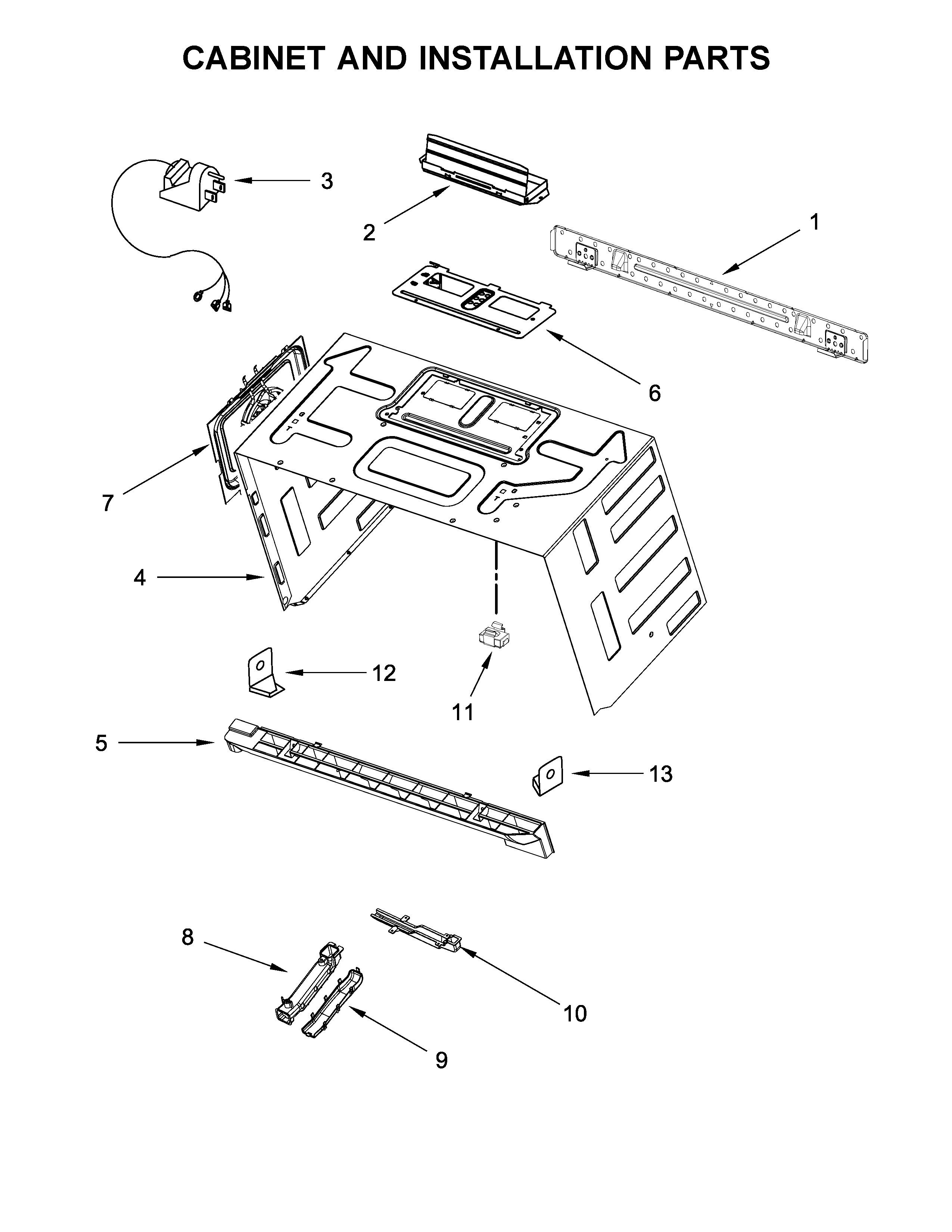

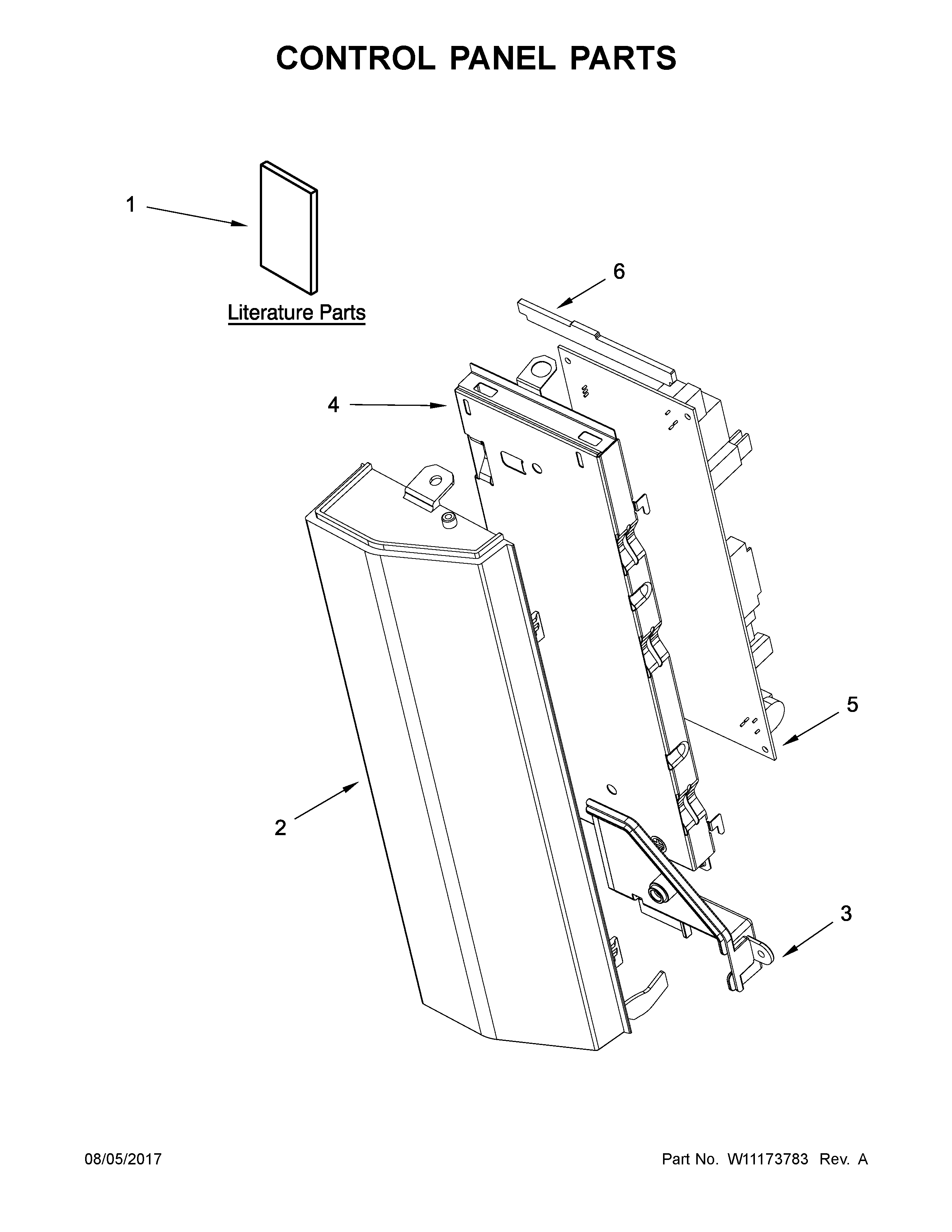

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KMHC319EBL3 Microwave/Hood Combo

  • Microwave High-voltage Diode for KitchenAid KMHC319EBL3 - Part W11256462

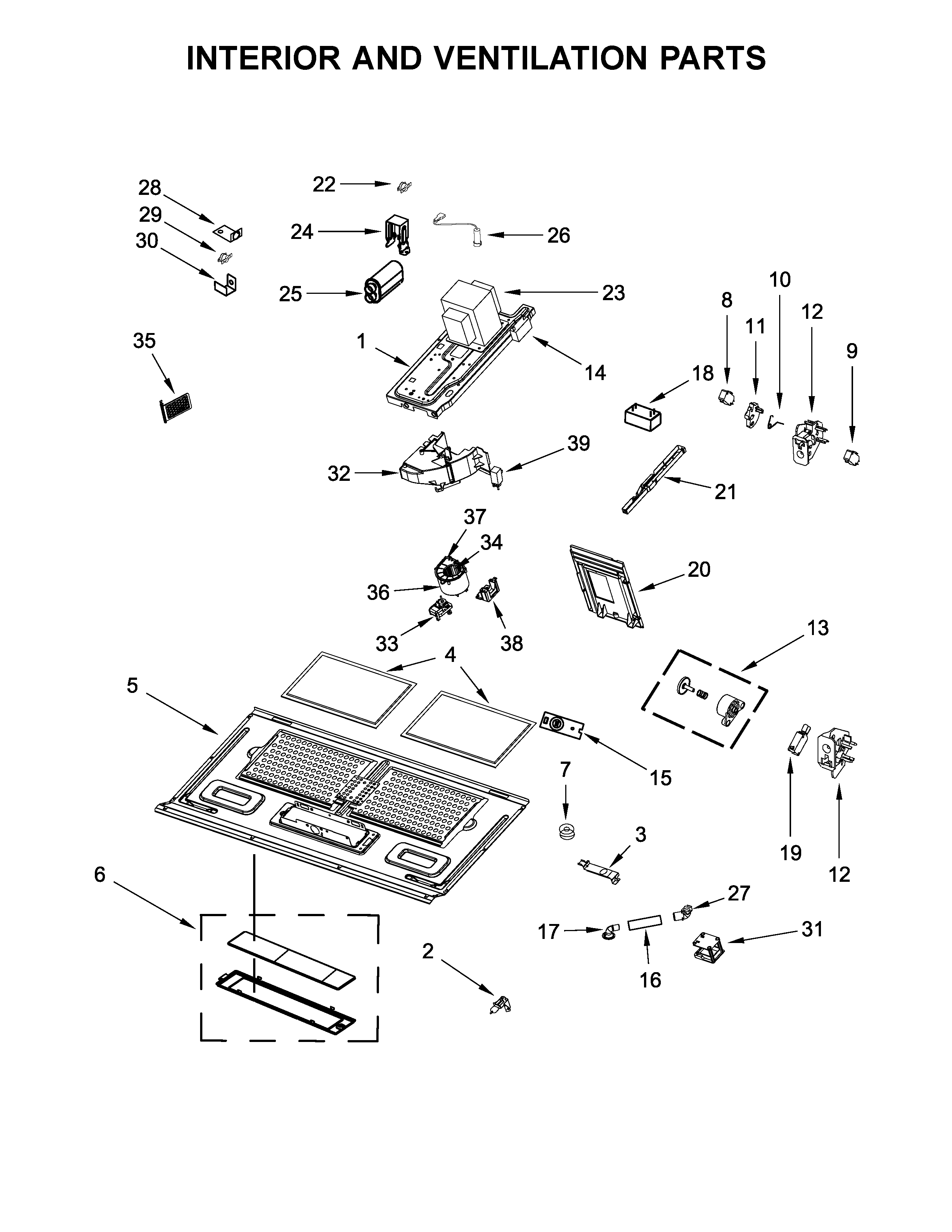

    Interior and ventilation parts diagram

    Diode

    Part #W10575765

    Replaced by #W11256462

    Info Icon
    Manufacturer substitution
    This part replaces W10575765. Substitute parts can look different from the original.
    In Stock
    $27.65
    18% OFF Phone Price : $33.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for KitchenAid KMHC319EBL3 - Part W10269458

    Interior and ventilation parts diagram

    Microwave Door Interlock Switch

    Part #W10269458
    In Stock
    $22.87
    21% OFF Phone Price : $28.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for KitchenAid KMHC319EBL3 - Part W10727360

    Interior and ventilation parts diagram

    Microwave Door Switch

    Part #W10269457

    Replaced by #W10727360

    Info Icon
    Manufacturer substitution
    This part replaces W10269457. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.33
    16% OFF Phone Price : $6.33Info Icon
    Minus Item
    Qty
    Plus Item
  • R Ceramic Fu for KitchenAid KMHC319EBL3 - Part W11707984

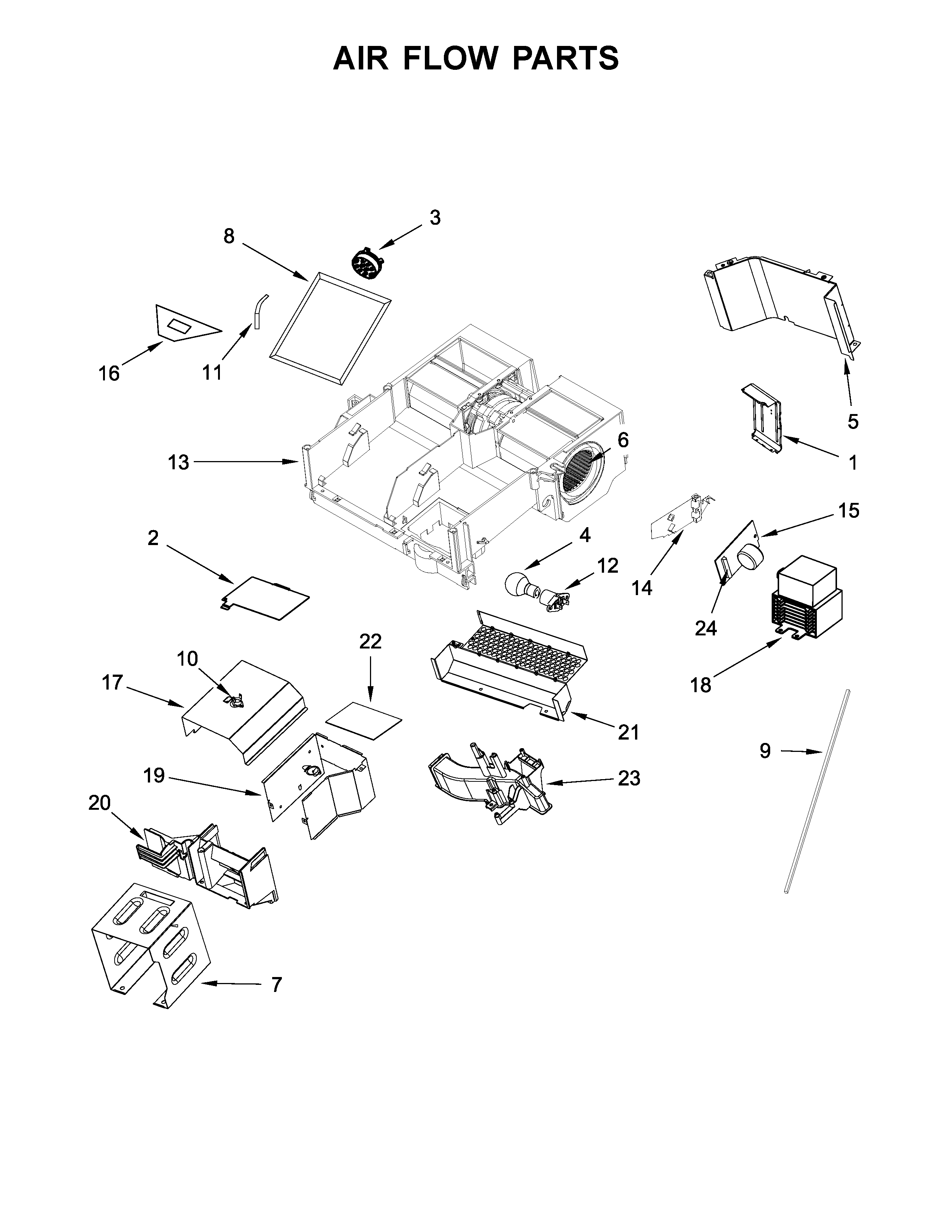

    Air flow parts diagram

    Microwave Fuse

    Part #W10138793

    Replaced by #W11707984

    Info Icon
    Manufacturer substitution
    This part replaces W10138793. Substitute parts can look different from the original.
    In Stock
    $73.63
    8% OFF Phone Price : $79.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Surface Light Bulb, 40-watt for KitchenAid KMHC319EBL3 - Part 8206232A

    Air flow parts diagram

    Lamp Assembly

    Part #4393681

    Replaced by #8206232A

    Info Icon
    Manufacturer substitution
    This part replaces 4393681. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.73
    15% OFF Phone Price : $6.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Upper for KitchenAid KMHC319EBL3 - Part WP8206419

    Interior and ventilation parts diagram

    Microwave Door Interlock Support, Upper

    Part #8206419

    Replaced by #WP8206419

    Info Icon
    Manufacturer substitution
    This part replaces 8206419. Substitute parts can look different from the original.
    In Stock
    $13.31
    13% OFF Phone Price : $15.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for KitchenAid KMHC319EBL3 - Part W10211974

    Interior and ventilation parts diagram

    Microwave Door Interlock Switch

    Part #W10211974
    In Stock
    $38.26
    14% OFF Phone Price : $44.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Lower for KitchenAid KMHC319EBL3 - Part WPW10156813

    Interior and ventilation parts diagram

    Interlock

    Part #W10156813

    Replaced by #WPW10156813

    Info Icon
    Manufacturer substitution
    This part replaces W10156813. Substitute parts can look different from the original.
    In Stock
    $8.14
    11% OFF Phone Price : $9.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Louver Motor Cam Plate for KitchenAid KMHC319EBL3 - Part W10562613

    Interior and ventilation parts diagram

    Cam Plate

    Part #W10156811

    Replaced by #W10562613

    Info Icon
    Manufacturer substitution
    This part replaces W10156811. Substitute parts can look different from the original.
    In Stock
    $12.85
    13% OFF Phone Price : $14.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for KitchenAid KMHC319EBL3 - Part WPW10466420

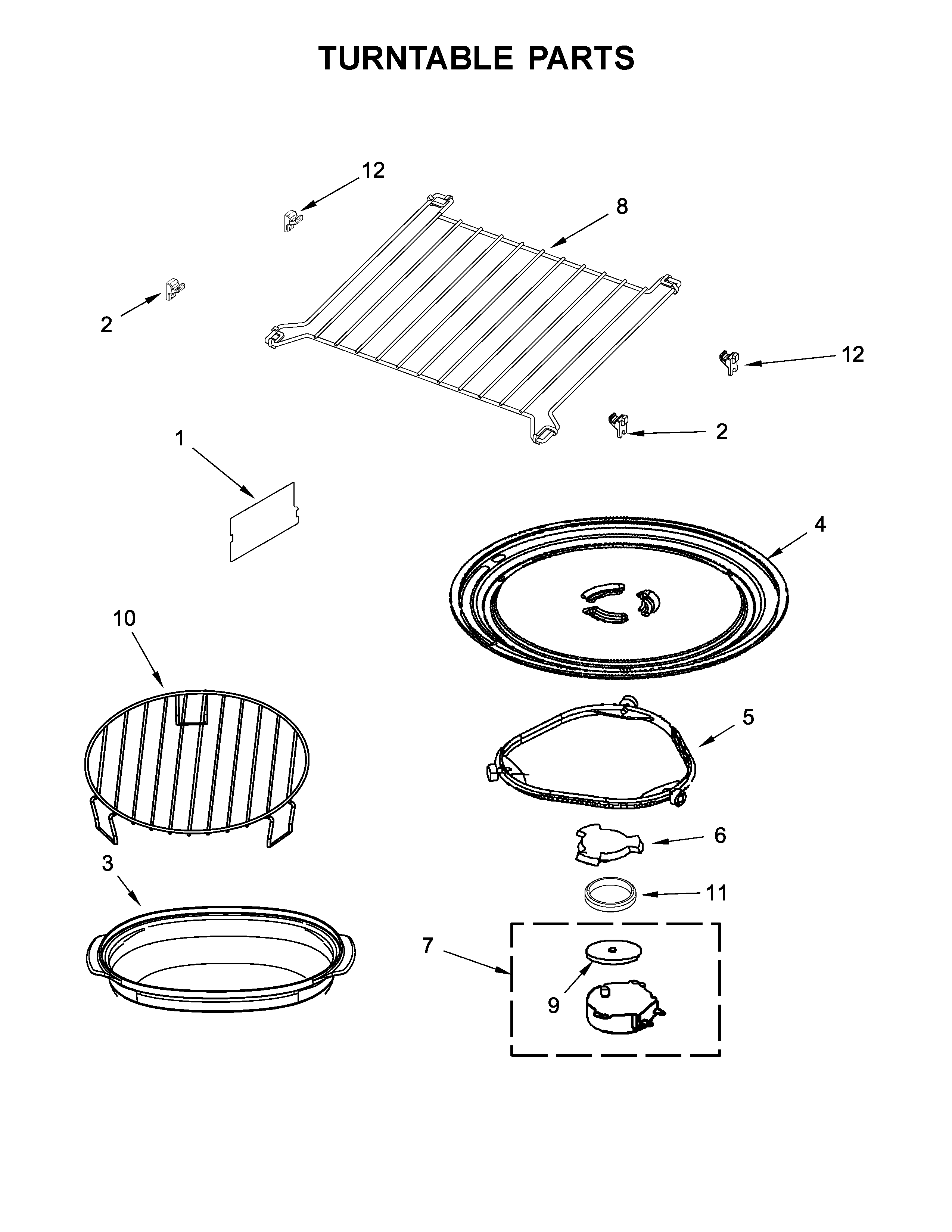

    Turntable parts diagram

    Turntable Motor

    Part #W10466420

    Replaced by #WPW10466420

    Info Icon
    Manufacturer substitution
    This part replaces W10466420. Substitute parts can look different from the original.
    In Stock
    $40.12
    13% OFF Phone Price : $46.12Info Icon
    Minus Item
    Qty
    Plus Item
