Kenmore 6289497360 electric range Parts
Here are the diagrams and repair parts for Kenmore 6289497360 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 6289497360 Ranges

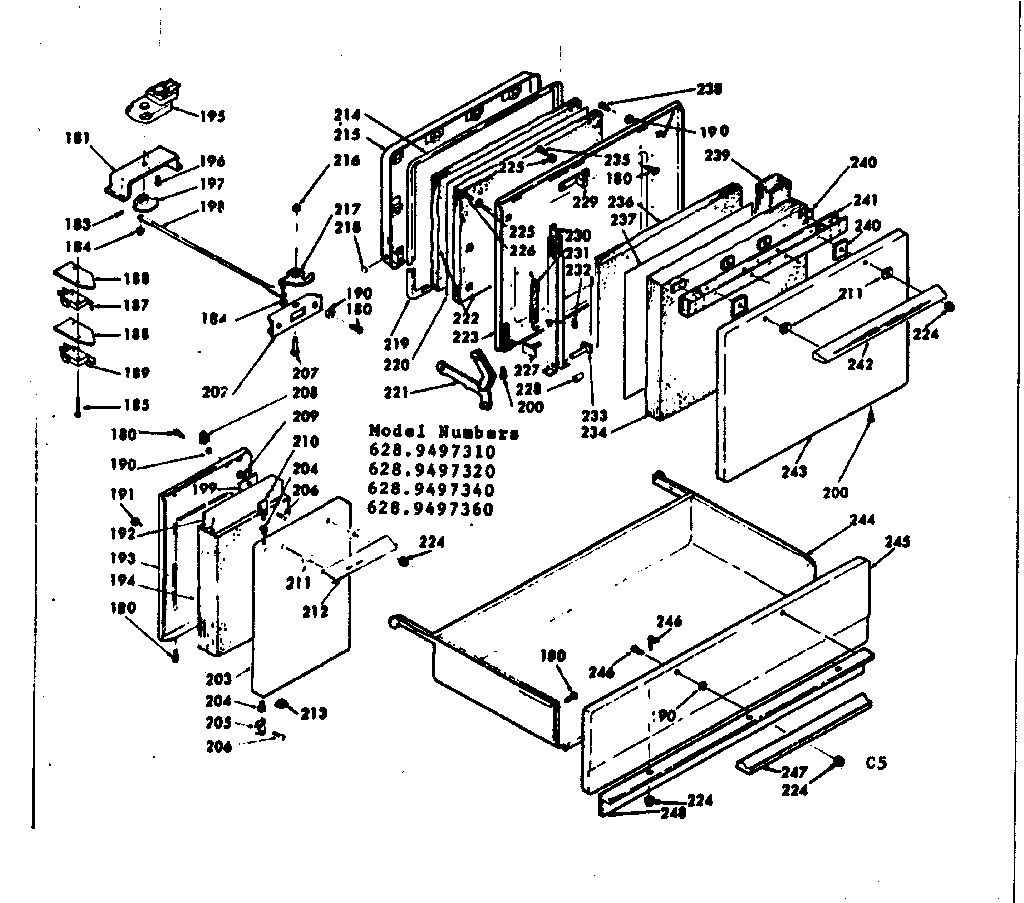

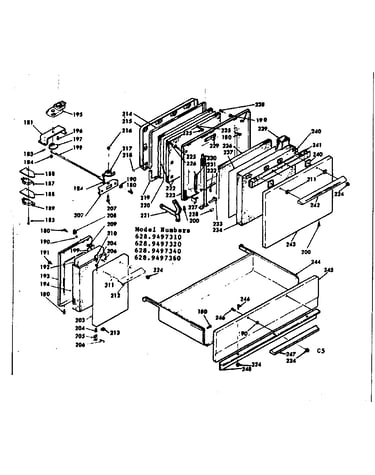

Doors, latch mechanism & drawer diagram
Catch
Part #1308079Replaced by #131658800
Manufacturer substitutionThis part replaces 1308079. Substitute parts can look different from the original.In Stock$45.1112% OFF Phone Price : $51.11
Qty

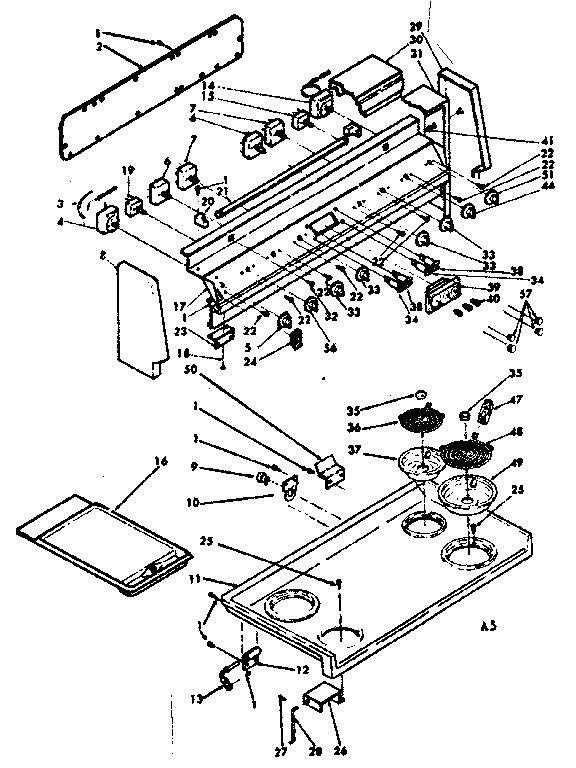

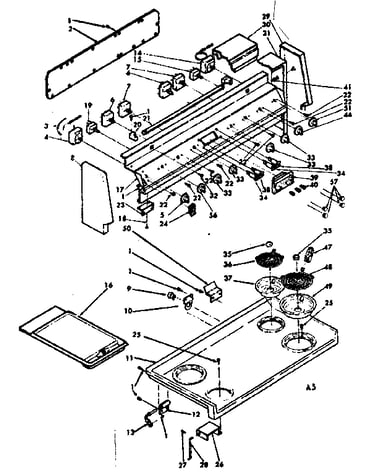

Backguard & cooktop assembly diagram
Pan
Part #1307595Replaced by #316048414

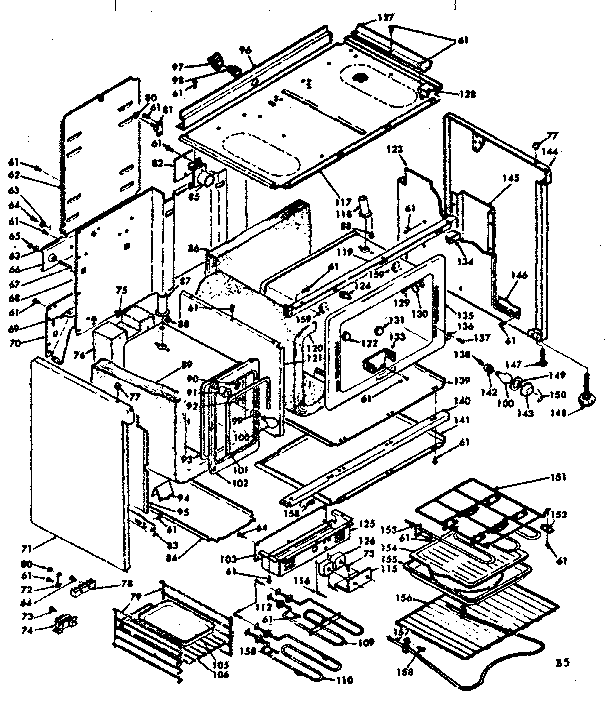

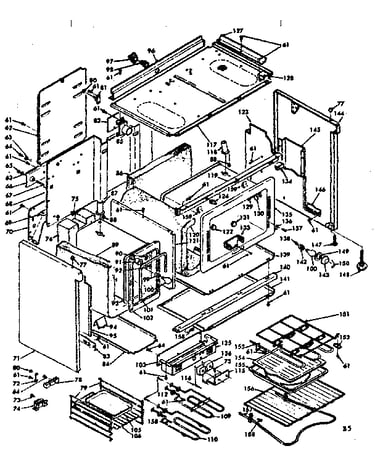

Manufacturer substitutionThis part replaces 1307595. Substitute parts can look different from the original.In Stock$10.7416% OFF Phone Price : $12.74QtyBody assembly diagram
Range Screw
Part #1164479This item is not returnableIn Stock$3.3023% OFF Phone Price : $4.30QtyBackguard & cooktop assembly diagram
Switch
Part #1304663
The manufacturer no longer makes this part, and there's no substitute part
Backguard & cooktop assembly diagram
Pilot Light
Part #1308988Replaced by #5301167858
Manufacturer substitutionThis part replaces 1308988. Substitute parts can look different from the original.In Stock$133.06QtyBody assembly diagram
Broil Grill
Part #1301276Replaced by #5304442087
Manufacturer substitutionThis part replaces 1301276. Substitute parts can look different from the original.In Stock$45.3612% OFF Phone Price : $51.36QtyBackguard & cooktop assembly diagram
Nut
Part #GM274796Replaced by #08015925
Manufacturer substitutionThis part replaces GM274796. Substitute parts can look different from the original.In Stock$25.22QtyBody assembly diagram
Pan Grille
Part #1305854Replaced by #5304465211
Manufacturer substitutionThis part replaces 1305854. Substitute parts can look different from the original.In Stock$147.848% OFF Phone Price : $159.84QtyDoors, latch mechanism & drawer diagram
Hinge Arm
Part #1308114Replaced by #5301167506
Manufacturer substitutionThis part replaces 1308114. Substitute parts can look different from the original.In Stock$157.94QtyBody assembly diagram
Terminal Block
Part #1189558Replaced by #5304409888
Manufacturer substitutionThis part replaces 1189558. Substitute parts can look different from the original.In Stock$24.5620% OFF Phone Price : $30.56Qty
