Whirlpool GGE390LXS03 30" electric freestanding range Parts
Here are the diagrams and repair parts for Whirlpool GGE390LXS03 30" electric freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for GGE390LXS03 Ranges

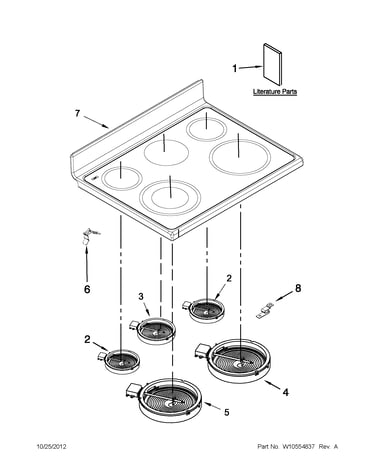

Cooktop parts diagram
Range Dual Radiant Surface Element
Part #W10204680Replaced by #WPW10204680
Manufacturer substitutionThis part replaces W10204680. Substitute parts can look different from the original.In Stock$264.02$12.00 OFF Phone Price : $276.02
Qty

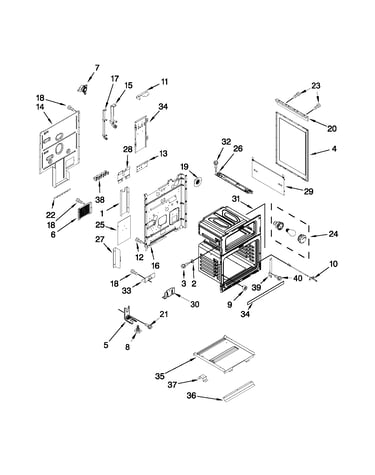

Chassis parts diagram
Insulation
Part #W10204079Replaced by #WPW10204079
Manufacturer substitutionThis part replaces W10204079. Substitute parts can look different from the original.In Stock$115.08QtyOptional parts (not included) diagram
Paint Bz
Part #242756Replaced by #8212471
Manufacturer substitutionThis part replaces 242756. Substitute parts can look different from the original.In Stock$103.39QtyChassis parts diagram
Screw- Sho
Part #7101P434-60Replaced by #WP7101P434-60

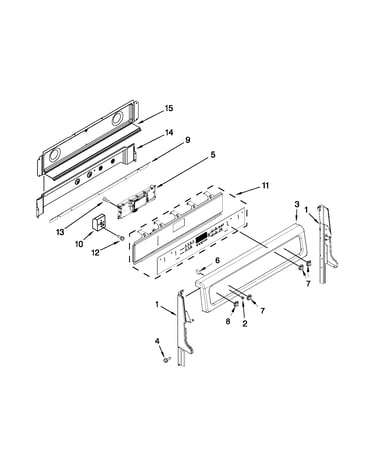

Manufacturer substitutionThis part replaces 7101P434-60. Substitute parts can look different from the original.In Stock$28.64QtyControl panel parts diagram
Light- Ind
Part #7407P136-60Replaced by #WP74004153
Manufacturer substitutionThis part replaces 7407P136-60. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyChassis parts diagram
Rear Cover
Part #W10260583Replaced by #W10668730
Manufacturer substitutionThis part replaces W10260583. Substitute parts can look different from the original.In Stock$131.658% OFF Phone Price : $143.65QtyChassis parts diagram
Heat Shield
Part #W10253469Replaced by #W10548601
Manufacturer substitutionThis part replaces W10253469. Substitute parts can look different from the original.In Stock$128.39QtyChassis parts diagram
Range Anti-tip Bracket Screw
Part #7101P485-60Replaced by #WP7101P485-60
Manufacturer substitutionThis part replaces 7101P485-60. Substitute parts can look different from the original.In Stock$28.2618% OFF Phone Price : $34.26QtyCooktop parts diagram
Panel
Part #W10260946Replaced by #WPW10260946
Manufacturer substitutionThis part replaces W10260946. Substitute parts can look different from the original.In Stock$126.01QtyOptional parts (not included) diagram
Spray Paint (white)
Part #350939Replaced by #285006
Manufacturer substitutionThis part replaces 350939. Substitute parts can look different from the original.This item is not returnableIn Stock$45.0912% OFF Phone Price : $51.09Qty
