Hotpoint RGB524PPA4AD gas range Parts
Here are the diagrams and repair parts for Hotpoint RGB524PPA4AD gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for RGB524PPA4AD Ranges

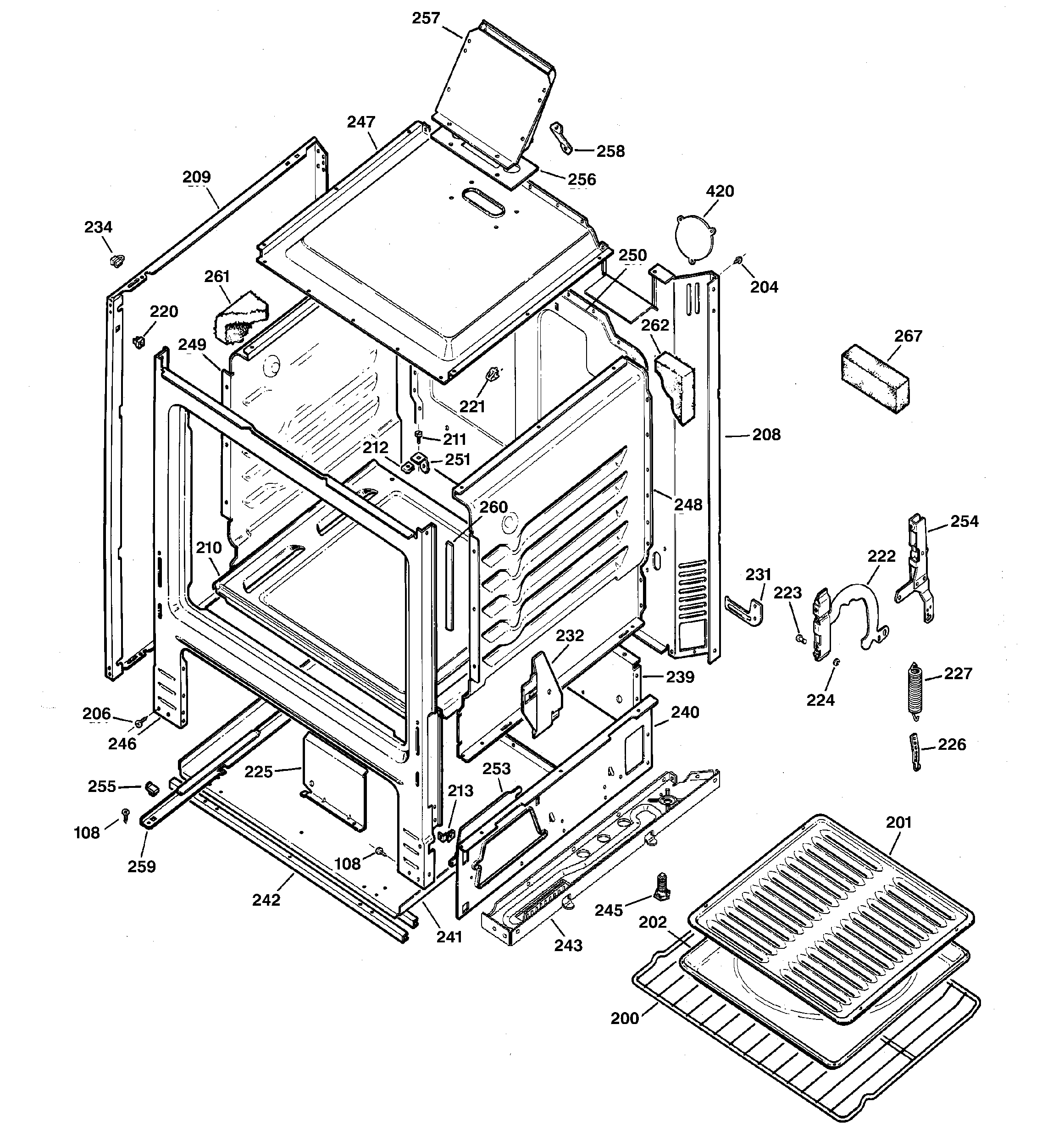

Body parts diagram
Oven Rack
Part #WB48K0004Replaced by #WB48T10095
Manufacturer substitutionThis part replaces WB48K0004. Substitute parts can look different from the original.In Stock$63.259% OFF Phone Price : $69.25
Qty

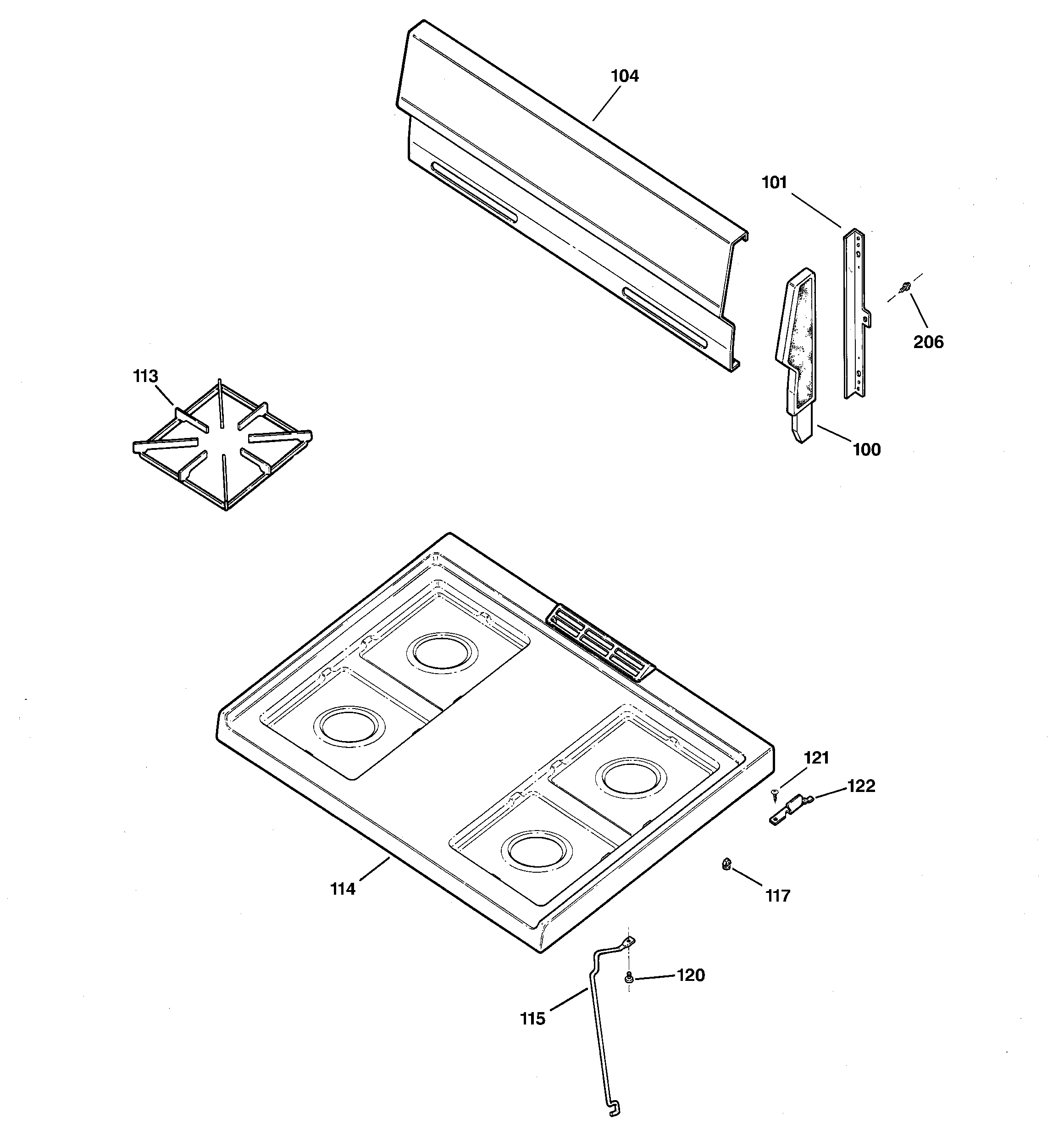

Cooktop diagram
Cooktop (ad)
Part #WB62K10002Replaced by #WB62K10064
Manufacturer substitutionThis part replaces WB62K10002. Substitute parts can look different from the original.In Stock$136.848% OFF Phone Price : $148.84QtyBody parts diagram
Kenmore Elite Range Leveling Leg
Part #WB02X10521This item is not returnableIn Stock$14.6112% OFF Phone Price : $16.61QtyCooktop diagram
Range Main Top (white)

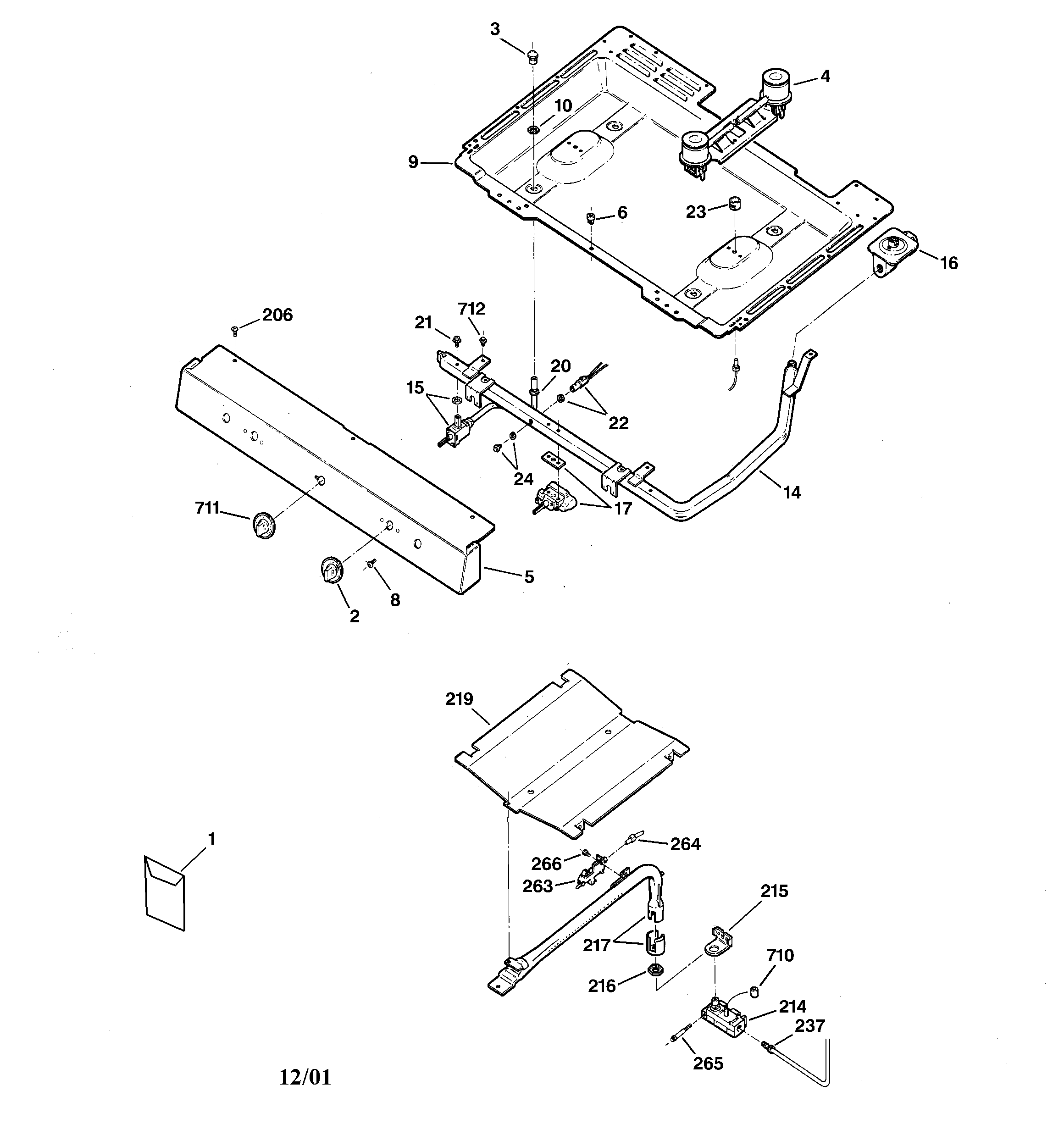

In Stock$277.13$12.00 OFF Phone Price : $289.13QtyGas & burner parts diagram
Lock Nut
In Stock$52.39QtyBody parts diagram
Insul Ovback
Part #WB35K0016Replaced by #WB35K16

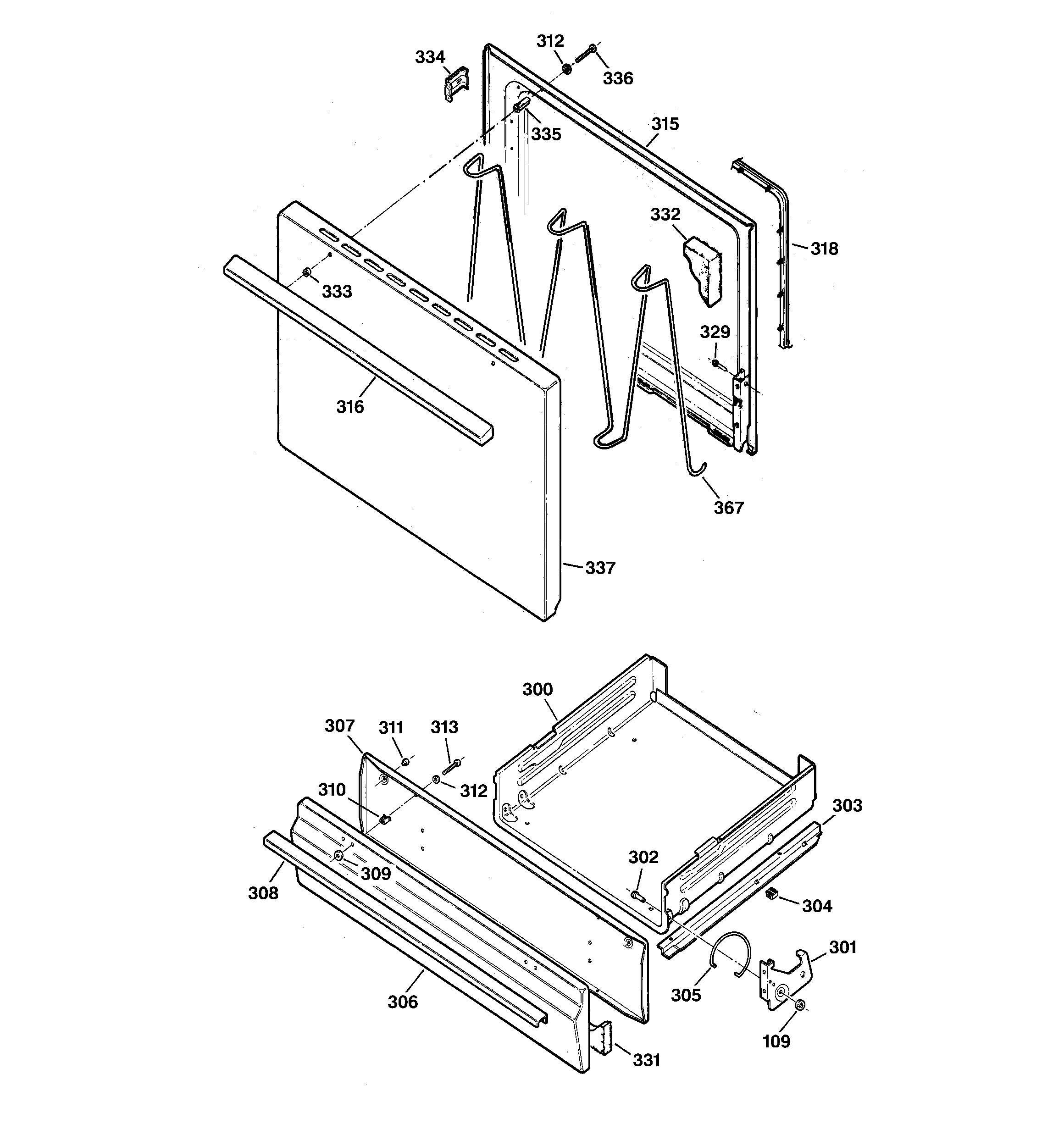

Manufacturer substitutionThis part replaces WB35K0016. Substitute parts can look different from the original.In Stock$51.2510% OFF Phone Price : $57.25QtyDoor & drawer parts diagram
Bumper
Part #WB02K0015Replaced by #WB2K15
Manufacturer substitutionThis part replaces WB02K0015. Substitute parts can look different from the original.In Stock$10.9016% OFF Phone Price : $12.90QtyScrew
Part #WB01K0021Replaced by #WR01X10065
Manufacturer substitutionThis part replaces WB01K0021. Substitute parts can look different from the original.This item is not returnableIn Stock$8.3811% OFF Phone Price : $9.38QtyDoor & drawer parts diagram
Washer
Part #WB01X0119Replaced by #WB02X32440
Manufacturer substitutionThis part replaces WB01X0119. Substitute parts can look different from the original.In Stock$34.54QtyGas & burner parts diagram
Burner Valve
Part #WB21K0038Replaced by #WB21K38
Manufacturer substitutionThis part replaces WB21K0038. Substitute parts can look different from the original.In Stock$63.699% OFF Phone Price : $69.69Qty
