Kenmore 11629911 vacuum cleaner & attachment set Parts
Here are the diagrams and repair parts for Kenmore 11629911 vacuum cleaner & attachment set, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 11629911 Vacuum Cleaners

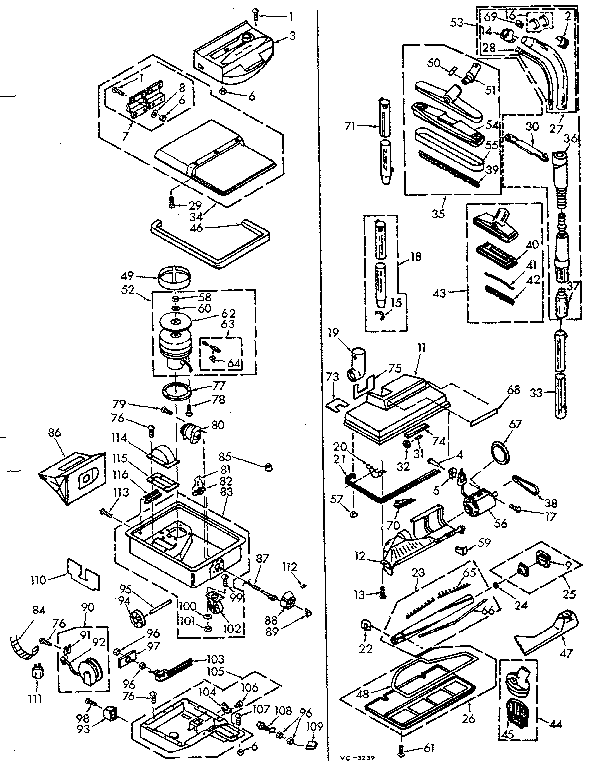

Unit parts diagram
Belt
Part #721808
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Machine Screw
Part #680765
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Cover Screw
Part #762315
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Retainer
Part #723313
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Screw
Part #681230
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Brush
Part #722235
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Nameplate
Part #722219
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Power Cord
Part #569389
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Screw
Part #107697
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Spring
Part #667704
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your vacuum cleaners
Choose a symptom to see related vacuum cleaner repairs.
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring fail…
Main causes: lack of power, bad power cord, drive motor failure, wiring failure…
Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor…
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose…
Repair guides for canister vacuums
How to replace a vacuum beater bar
Replace the brush roll if the bristles ares worn or the cylinder is damaged.…
Repair time and Difficulty
 30 minutes or less
How to replace a vacuum suction motor
The suction motor on a vacuum creates the draw of air at the cleaning head that picks up dirt. If the vacuum won't run, …
Repair time and Difficulty
 15 minutes or less
How to replace a vacuum power head ribbed drive belt
Some canister vacuums have a ribbed drive belt that spins the brush roll on a power brush attachment. If the brush roll …
Repair time and Difficulty
 30 minutes or less
Effective articles & videos to help repair your vacuum cleaners
Use the advice and tips in these articles and videos to get the most out of your vacuum.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Follow this advice to keep your vacuum in good working order.…
Find the answers to frequently asked questions about vacuum cleaners.…
