Craftsman 917375611 lawn mower Parts

Craftsman model 917.375611 is identified by its model number in the documentation, but the year of manufacture is not encoded in the model number itself. To determine the year, we use the mower’s product/serial number label and match it to the date-coding method shown in your owner's manual.

Where to find the date information

Look for the product label in one of these common spots on a Craftsman walk-behind mower:

• On the rear of the deck near the discharge opening
• On the top of the deck near the engine mounting area
• Near the height adjuster or rear skirt area
• On the handle bracket area

How to decode the year (what to check)

Different Craftsman walk-behind mowers use different date formats, so the fastest path is to confirm the exact code printed on your label.

• Find the serial number (not just the model number)
• Write down any date code printed separately (sometimes labeled “DOM” or similar)
• Note whether the code is 6 digits, 8 digits, or includes letters
• Compare the format to the identification details in the owner's manual

Quick guide: model number vs. serial/date code

Item	What it tells you	Example	Used to find year?
Model number	Design and parts match	917.375611	No
Serial number/date code	Build date tracking	Varies by unit	Yes

Why it matters

The build year helps us match the correct parts and specifications for your Craftsman 917.375611, especially for wear items like the drive system, wheels, and blade hardware where running changes can occur.

Last updated: February 2026

For the Craftsman walk-behind mower model 917375611, use unleaded regular gasoline. For best starting and to protect the carburetor and fuel system, use fresh fuel and avoid higher-ethanol blends that can cause storage and running problems; see the fuel specs in the owner's manual.

Recommended fuel for model 917375611

Use these guidelines when filling the tank:

• Fuel type: Unleaded regular gasoline
• Use fresh gas: Old fuel can cause hard starting and rough running
• Avoid high-ethanol fuel: Higher ethanol blends increase the chance of moisture absorption and fuel separation during storage
• Do not mix oil in the gas: This mower uses a 4-cycle engine with separate engine oil
• Fill carefully: Leave a little space for fuel expansion and wipe up spills

Quick spec check (from the manual)

Item	Specification
Gasoline capacity	1.6 quarts
Gasoline type	Unleaded regular

If the mower will sit for more than a few weeks

Alcohol-blended fuels can form gum deposits and acids during storage, which can damage fuel system parts like the carburetor, fuel hose, and tank. To reduce problems:

• Run the engine until the tank and carburetor are empty before long storage
• Use fresh fuel at the start of the next season
• If you use fuel stabilizer, add it to the gasoline before storage and run the engine briefly to circulate it

Why it matters

Using the correct gasoline and keeping it fresh helps prevent clogged carburetor jets, sticky intake valves, and no-start issues. It also reduces the chance you will need fuel-system service when you are ready to mow.

Last updated: February 2026

For the Craftsman 917375611 walk-behind mower, the drive belt is listed in the owner’s manual as a V-belt (part name: “V-Belt”). For exact belt length and cross-section, match the belt by the model’s parts list and the belt markings, then replace with the correct OEM belt.

The correct belt for this model

In the 917.375611 parts list, the drive belt is identified as:

• V-belt (drive belt for the self-propel system)
• Manual parts list name: V-Belt
• Common replacement approach: match by model number 917375611 and the belt’s printed size code

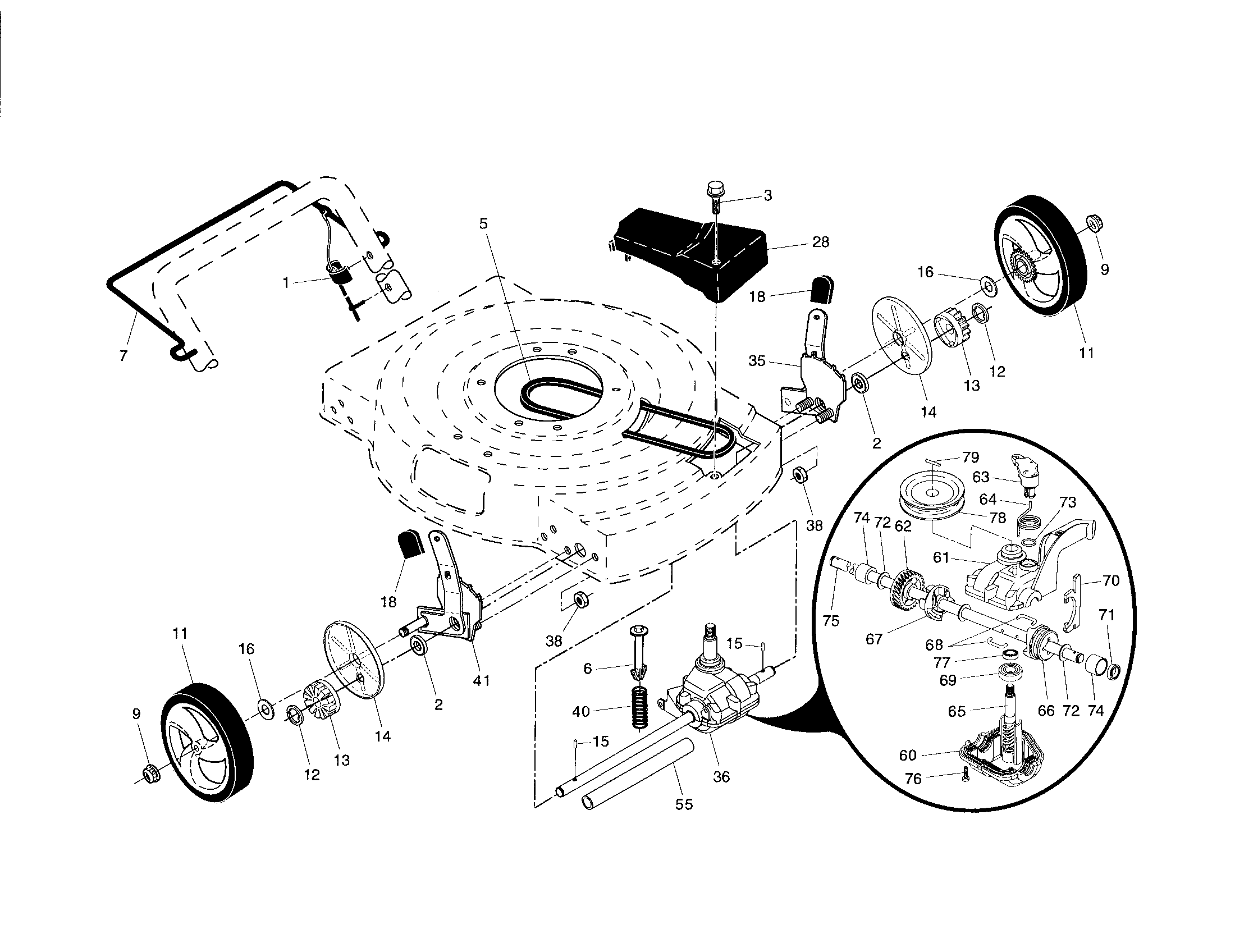

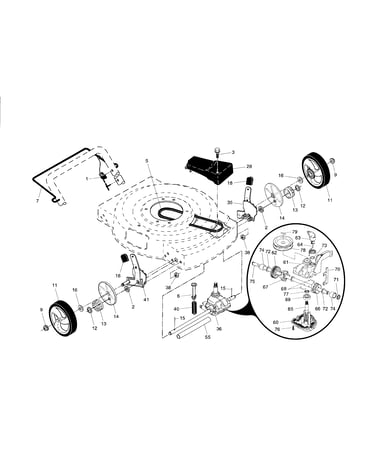

A confirmed belt listing for this model is the belt 532157769. For diagrams, routing, and service notes, use the owner's manual.

How to confirm you have the right belt

• Verify your mower model is 917375611 (from the product label).
• Compare the old belt’s printed numbers/letters to the replacement listing.
• Inspect for belt wear: glazing, cracks, fraying, or stretched length.
• Check the drive system for binding (idler, pulleys, transmission input) before installing a new belt.
• After installation, confirm the drive engages smoothly and the belt tracks centered on pulleys.

Quick comparison: “riding mower belt size” vs walk-behind belt

Mower type	Typical belt description	Applies to 917375611?
Riding mower/tractor	Long deck or ground-drive belt, model-specific lengths	No
Walk-behind self-propel	Short V-belt for transmission/drive	Yes

Why it matters

Using the correct OEM-spec V-belt keeps the self-propel drive from slipping, overheating, or jumping off the pulleys. A belt that is even slightly off in width or length can cause poor traction or premature belt failure.

Last updated: February 2026

To drain oil on your Craftsman lawn mower model 917375611, warm the engine briefly, disconnect the spark plug wire, then remove the bottom oil drain plug and catch the oil in a suitable container. Reinstall the plug securely and refill to the full mark on the dipstick (typically about 20 oz on an oil change). See the owner's manual for the exact procedure and oil recommendations.

Step-by-step: draining and refilling engine oil

• Run the mower for a few minutes so the oil drains faster (warm oil flows better).
• Turn the engine off and disconnect the spark plug wire so it cannot contact the plug.
• Set the mower on a level surface.
• Place a drain pan under the engine.
• Remove the bottom oil drain plug and let the oil drain completely.
• Reinstall and tighten the drain plug securely.
• Refill through the oil fill spout; check the dipstick and fill to the full line.

Oil amount and change interval (what to expect)

The manual guidance for this mower is:

Task	Typical amount	When to do it
Initial oil fill (new mower)	18 oz	Before first use
Oil change refill	About 20 oz	Every 25 hours or each season

Oil type and viscosity basics

Use a high-quality detergent oil rated API SG-SL. Choose viscosity by temperature (common choices are SAE 30 for warmer weather or 5W-30/10W-30 for easier cold starts). If you use multi-viscosity oil above 32°F, check the oil level more often because oil consumption can increase.

Why it matters

Running low on oil or leaving dirty oil in the crankcase accelerates engine wear and can cause smoking, hard starting, and shortened engine life. A clean oil change schedule is one of the best ways to keep a gas walk-behind mower reliable.

Disposal tip

Pour the used oil into a sealed container and take it to a local oil recycling drop-off (many auto parts stores and service centers accept used oil).

Last updated: February 2026

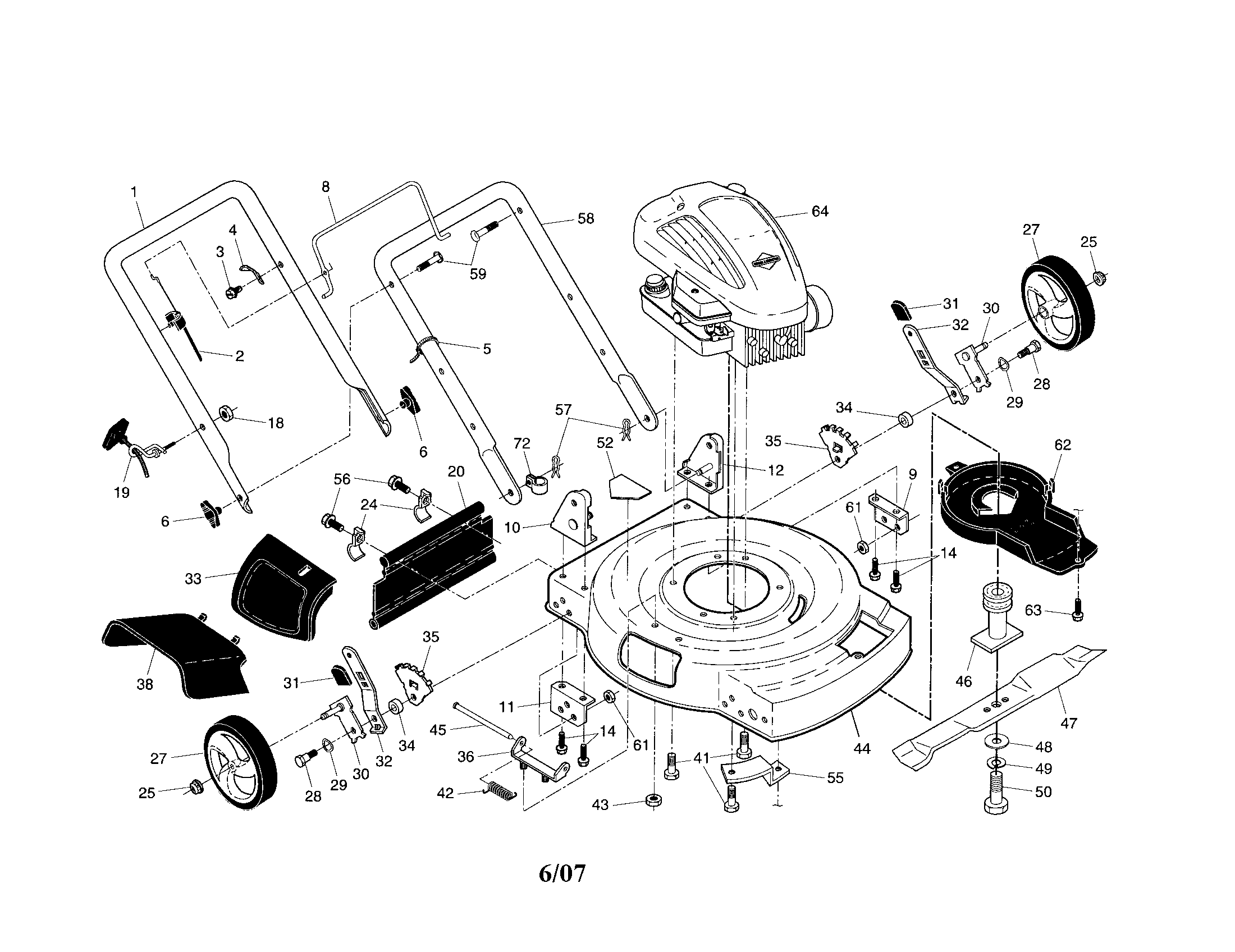

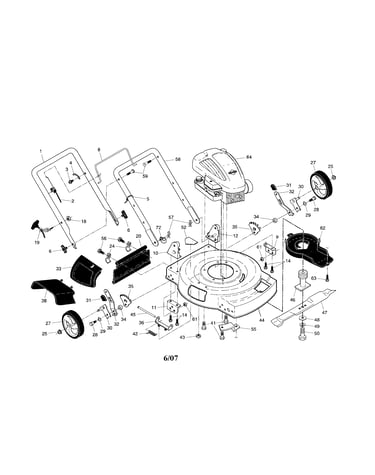

The model number is 917.375611 (often written without the dot as 917375611). You’ll find it on the mower’s model label and in the parts diagrams in the owner's manual for this Craftsman walk-behind mower.

Where to find the model number on the mower

Use the model number to match the correct Craftsman parts list and diagrams.

• Check the model label on the mower deck, rear housing, or handle support area
• Look for 917.375611 (or 917375611) printed near the Craftsman branding
• Copy it exactly as shown on the label
• Use it when selecting parts like the blade, belt, wheels, or control cables

Model number vs. part numbers (what’s different)

The model number identifies the mower; part numbers identify individual replacement parts.

Identifier	What it identifies	Example from this model’s parts list
Model number	The complete mower for diagrams and fit	917.375611
Part number	A specific replacement part	194231X460
Part ID	Sears PartsDirect catalog ID for the part	583719501

Common parts that require the exact model number

These are fit-critical items where the correct model number prevents ordering the wrong part.

• Blade (deck and cutting system)
• Drive belt and transmission components
• Wheels and wheel hardware
• Zone control cable and drive control parts

Example part you can match using the diagrams: lawn mower wheel and tire, 8 x 1.75-in 583719501.

Why it matters

Craftsman walk-behind mowers can look similar across years; using 917.375611 ensures the diagrams and replacement parts match your exact deck, drive system, and handle controls.

Last updated: February 2026
