Frigidaire
Wall Oven/Microwave Combo

Model # FGMC2765PFC Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC2765PFC wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

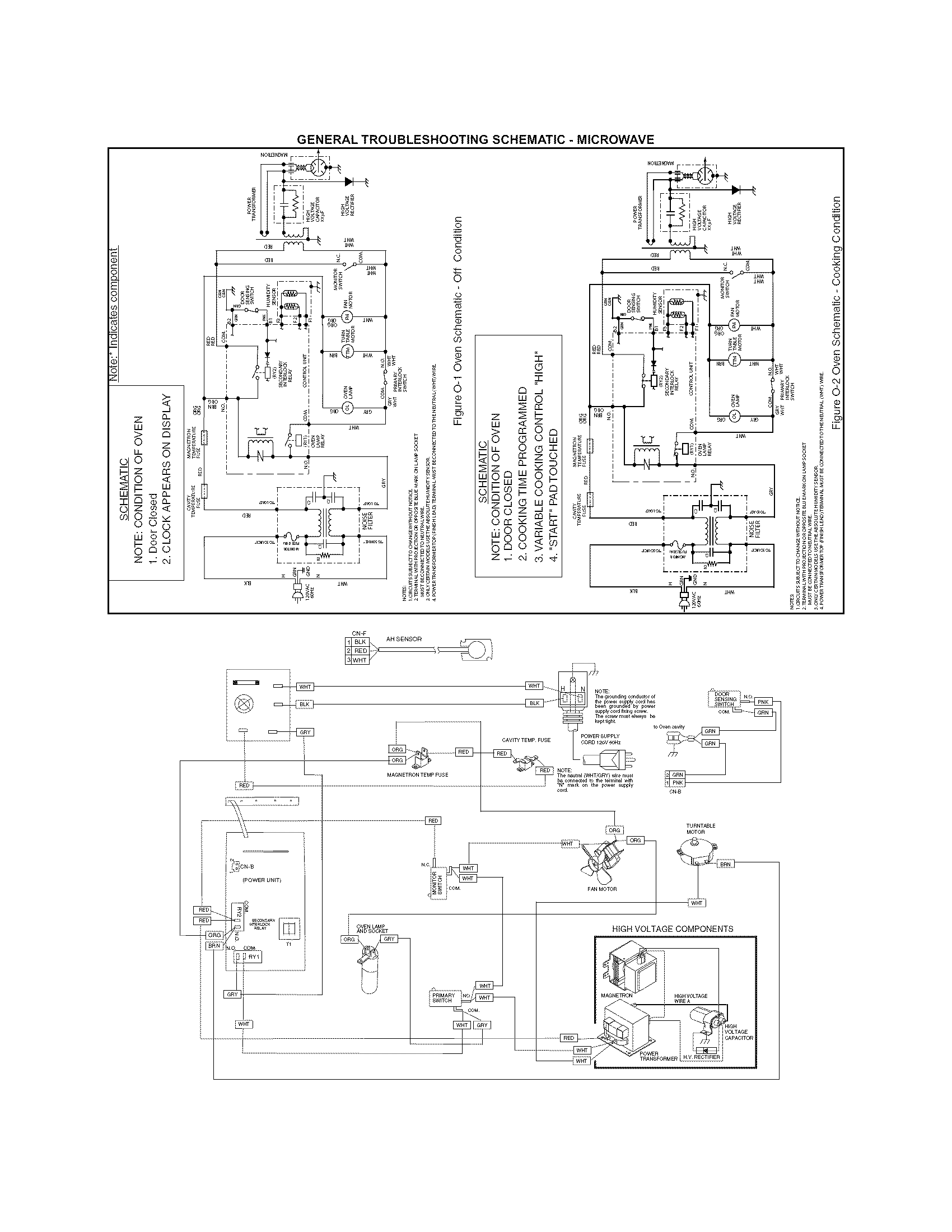

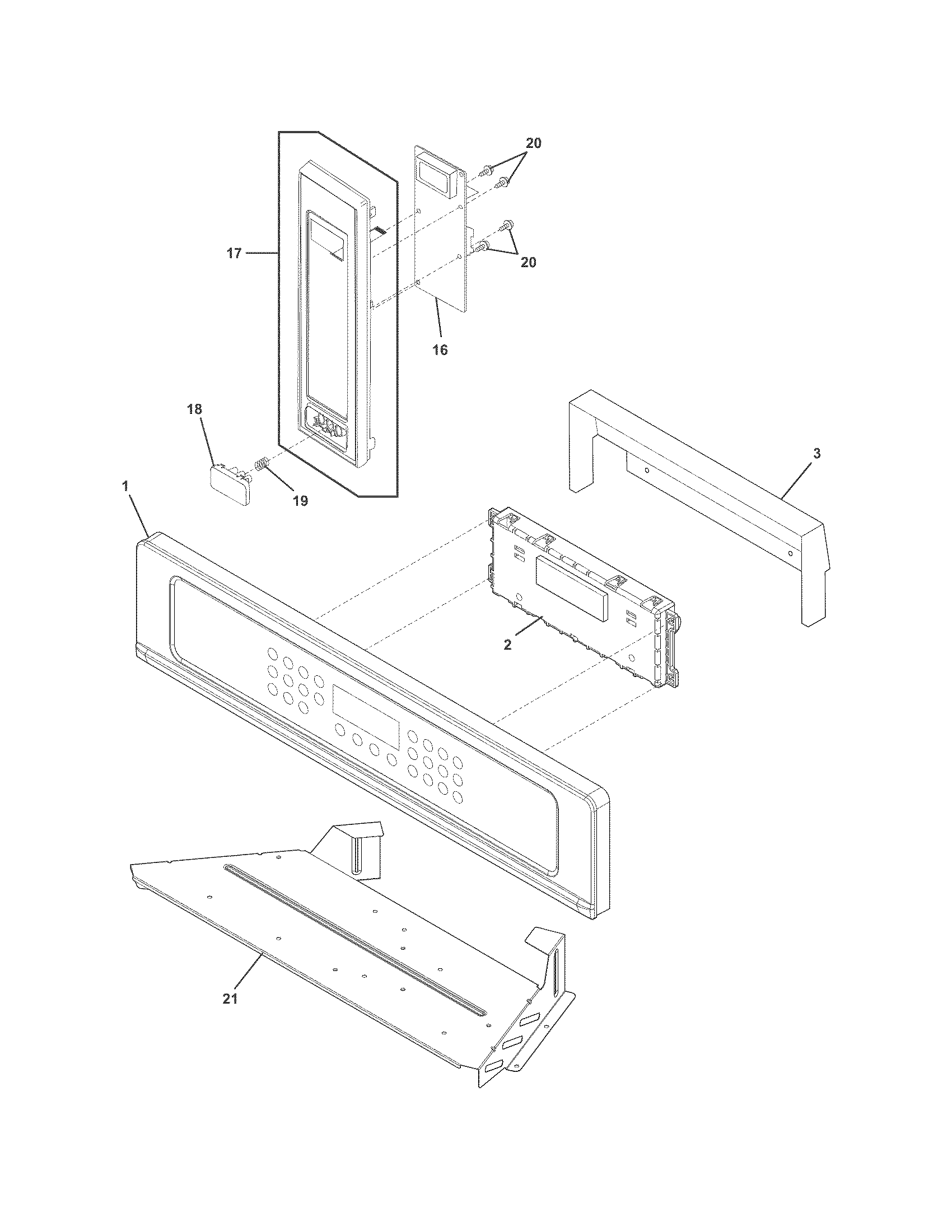

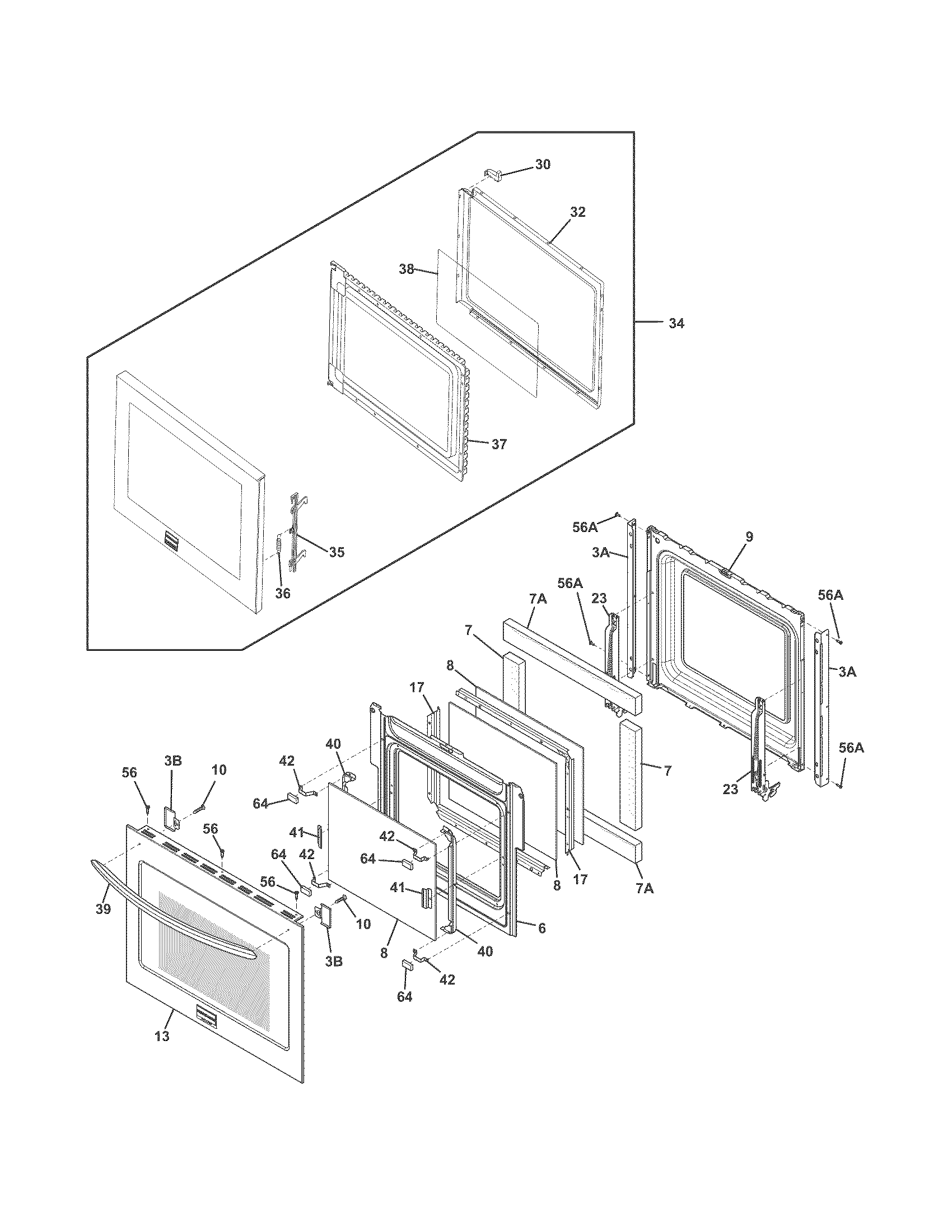

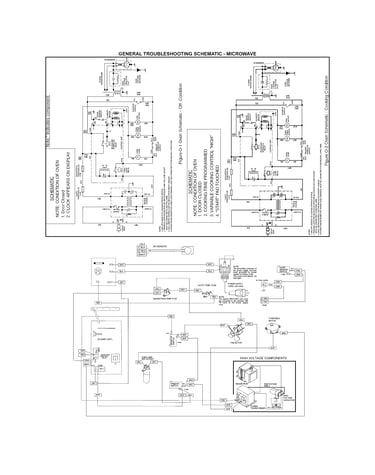

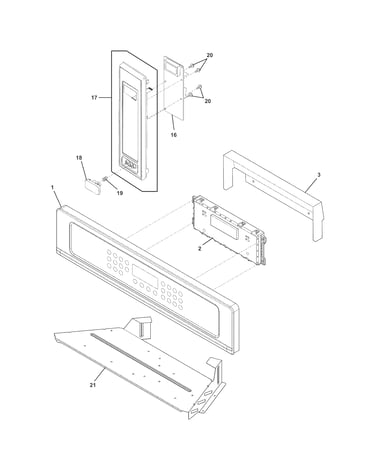

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |

Range Oven Temperature Sensor 318562500
#37

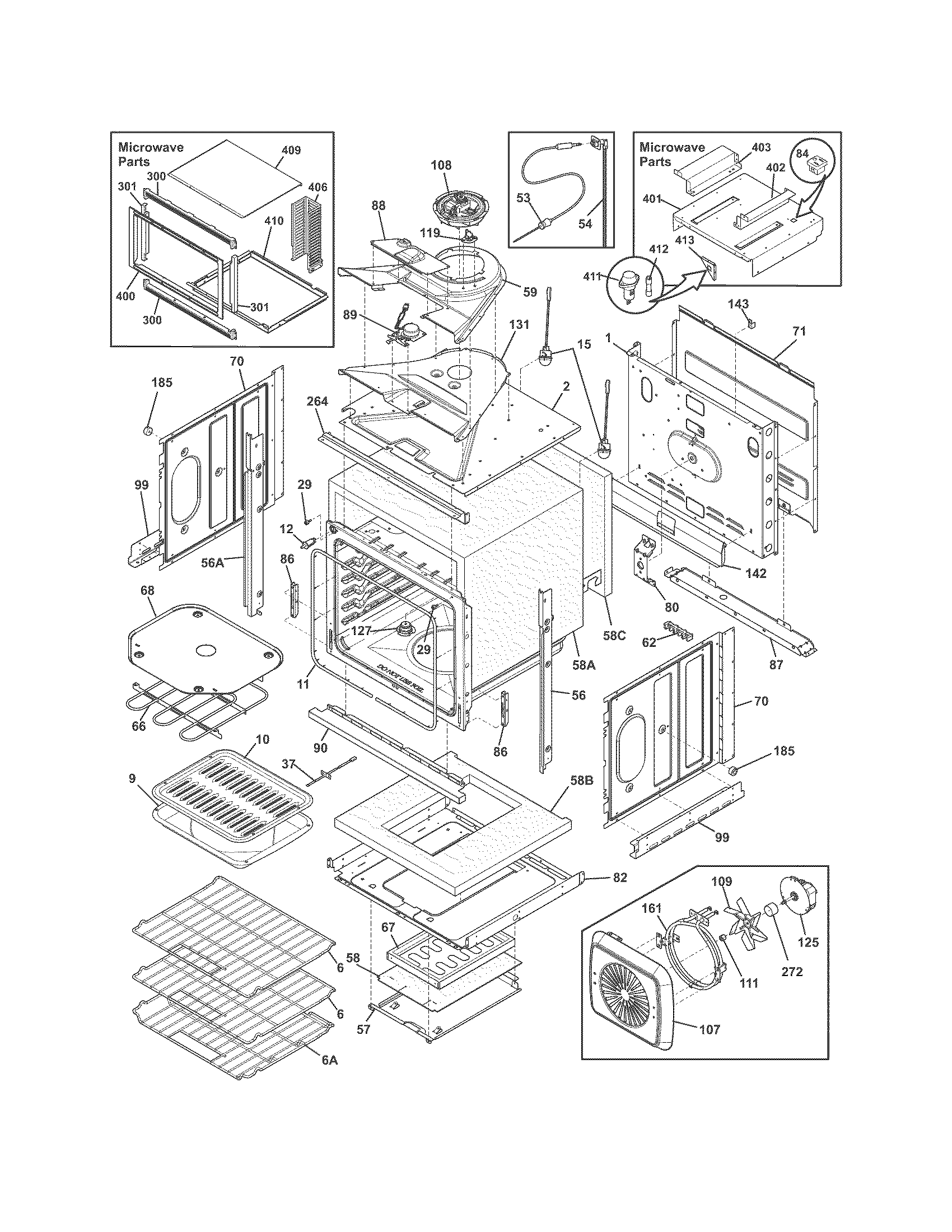

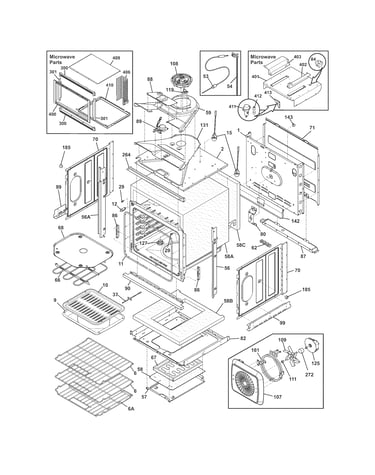

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$33.57
13% OFF Phone Price : $38.57
In Stock
Range Oven Light Bulb (replaces 808564103) 318946500
#NI

Lower oven diagram

Range oven light bulb (replaces 808564103)

Part #318946500

BEST SELLER
$41.50
11% OFF Phone Price : $46.50
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105
Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Screw 316021110
Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Oven Door Switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, P351140) 316445501
#12

Lower oven diagram

Range oven door switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, p351140)

Part #316445501

$63.47
7% OFF Phone Price : $68.47
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

$19.99
9% OFF Phone Price : $21.99
In Stock
Microwave Glass Turntable Tray 5304440868
#46

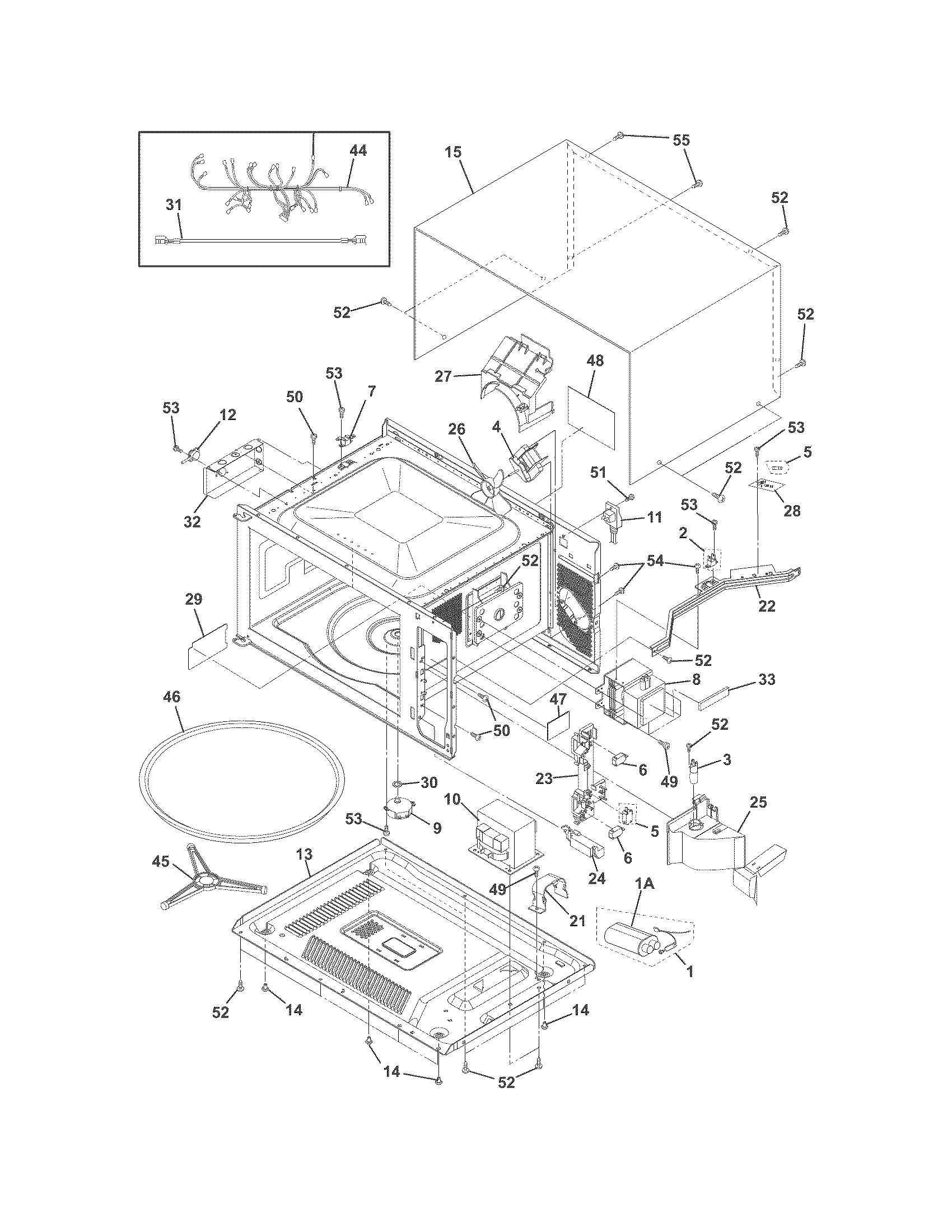

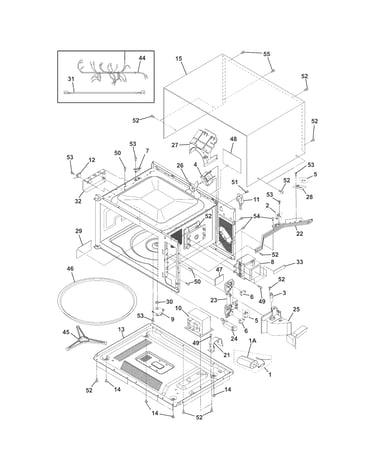

Microwave diagram

Microwave glass turntable tray

Part #5304440868

Replaced by #5304529482

?
Manufacturer substitution
This part replaces 5304440868. Substitute parts can look different from the original.
$85.30
6% OFF Phone Price : $90.30
In Stock
Lever 5304464899
#24

Microwave diagram

Lever

Part #5304464899

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304464899. Substitute parts can look different from the original.
$51.29
9% OFF Phone Price : $56.29
In Stock
Range Control Panel Cooling Fan 318575612
#108

Lower oven diagram

Range control panel cooling fan

Part #318575612

$167.94
6% OFF Phone Price : $177.94
In Stock
