Model #SWTJ21WN Speed Queen commercial washer

Here are the diagrams and repair parts for Speed Queen SWTJ21WN commercial washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

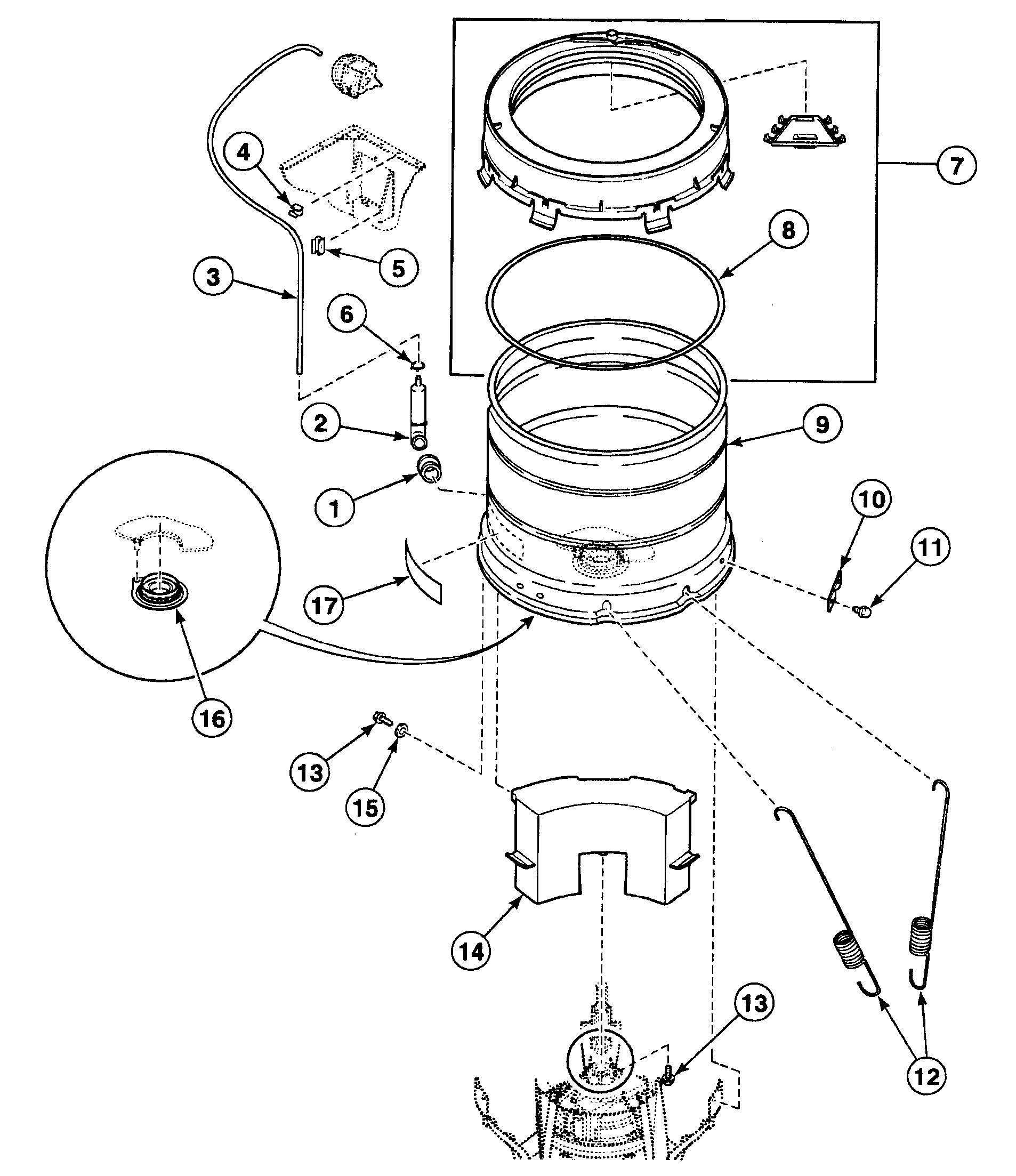

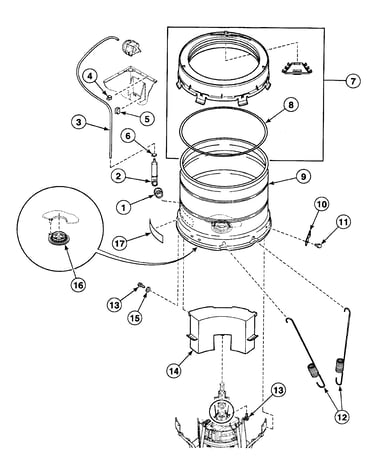

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 257 parts

Laundry Appliance Idler Pulley Shaft

#11

Motor assy Diagram

Laundry appliance idler pulley shaft

Part #56461P

The manufacturer no longer makes this part, and there's no substitute part

Helix

#10

Brake assy Diagram

Helix

Part #38008
This item is not returnable
$5.55

In Stock

Washer Hub and Seal Kit

#6

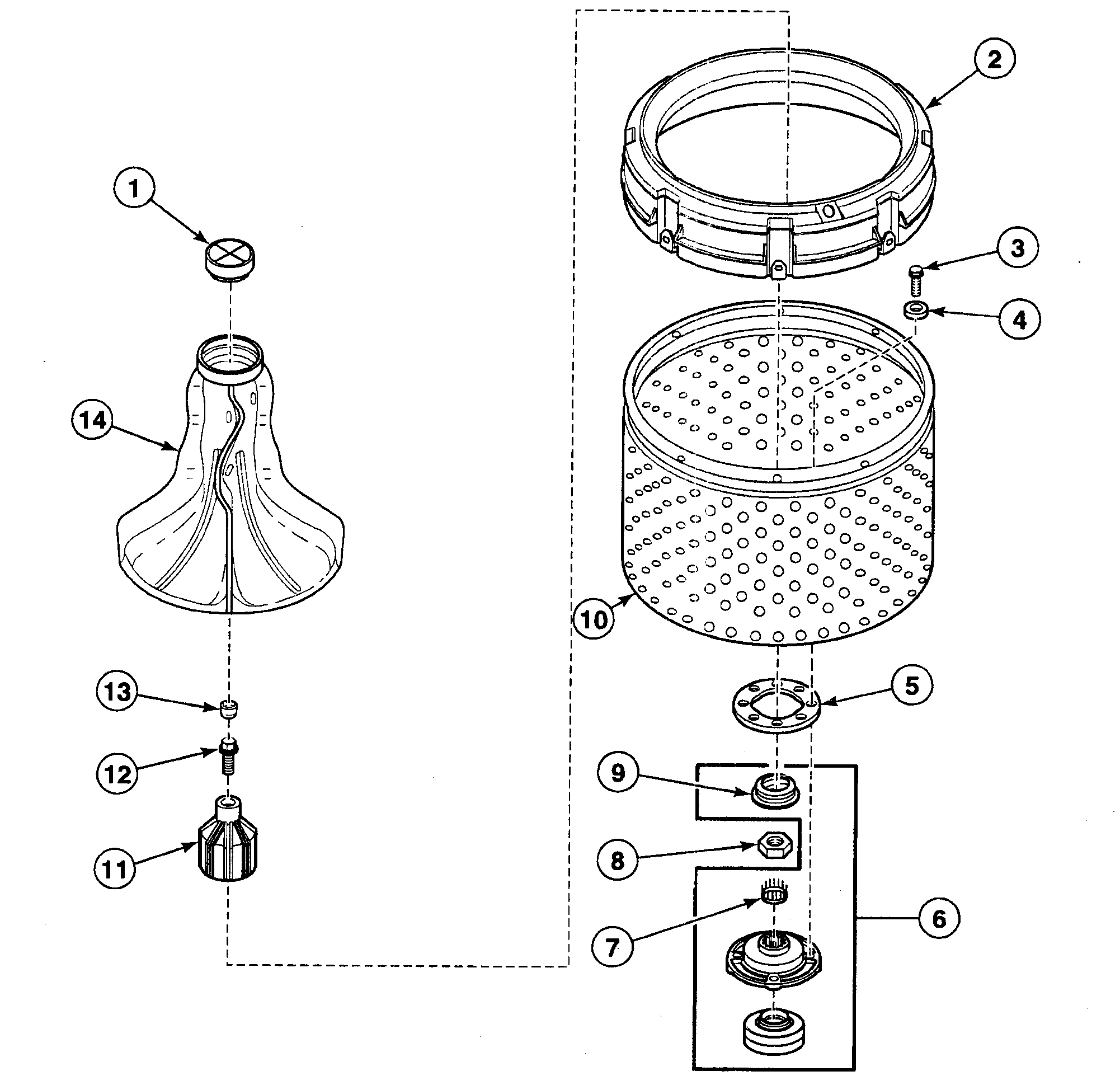

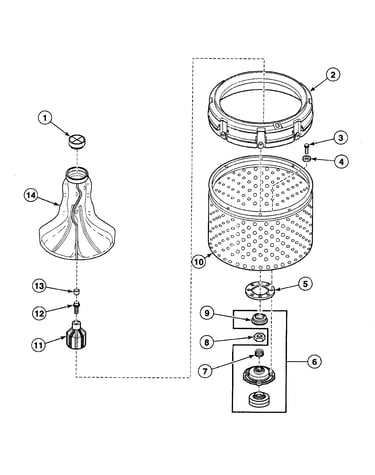

Agitator assy Diagram

Washer hub and seal kit

Part #766P3A

The manufacturer no longer makes this part, and there's no substitute part

Washer Drain Pump

#17

Motor assy Diagram

Washer drain pump

Part #201566P
$23.19

In Stock

Washer Nut

#8

Agitator assy Diagram

Washer nut

Part #29220

The manufacturer no longer makes this part, and there's no substitute part

Washer Drive Block

#11

Agitator assy Diagram

Washer drive block

Part #39508P

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp

#3

Valve assy Diagram

Hose clamp

Part #800803

The manufacturer no longer makes this part, and there's no substitute part

Washer Pump

#17A

Motor assy Diagram

Washer pump

Part #201442P

The manufacturer no longer makes this part, and there's no substitute part

Laundry Center Control Transformer

#23

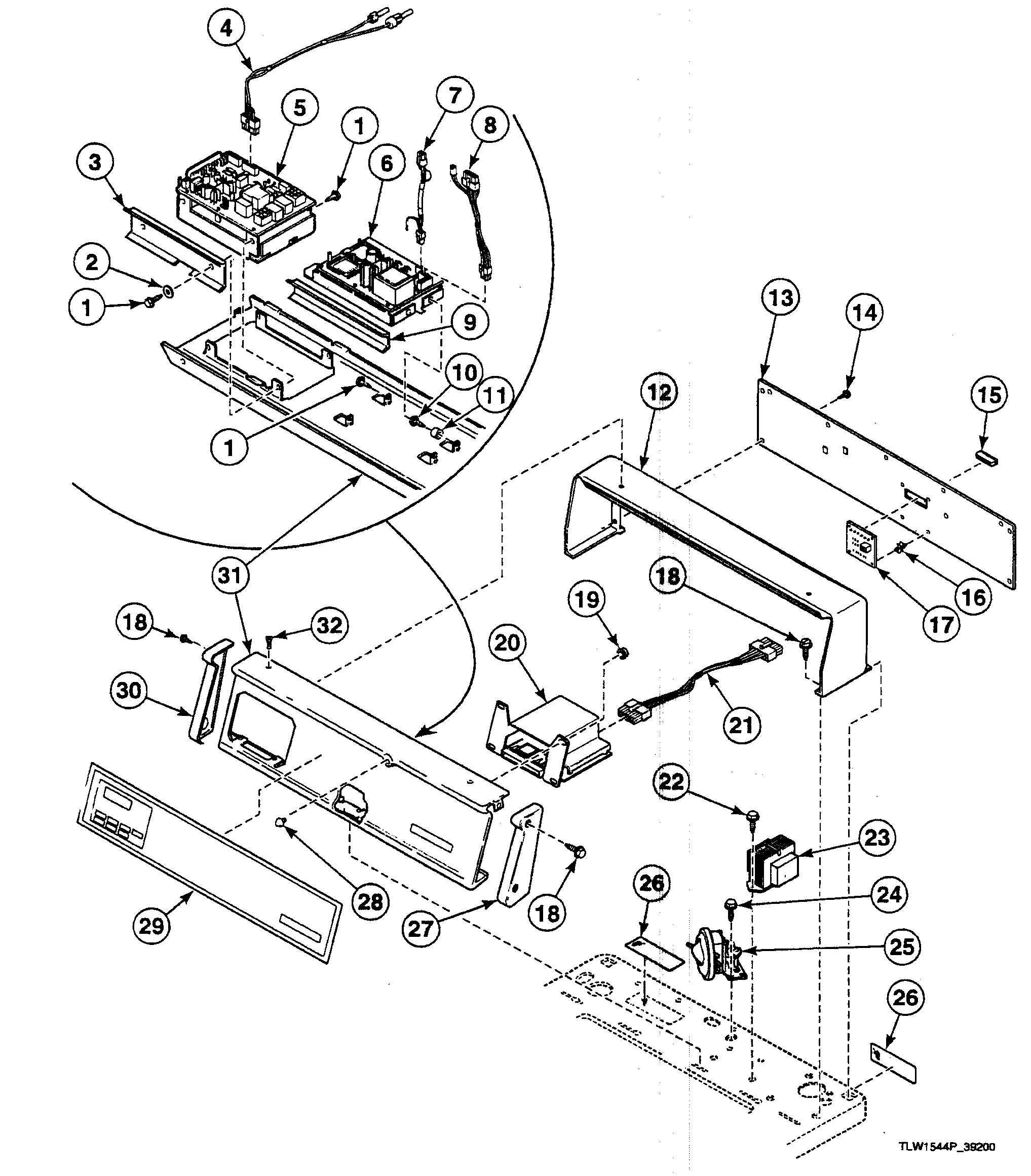

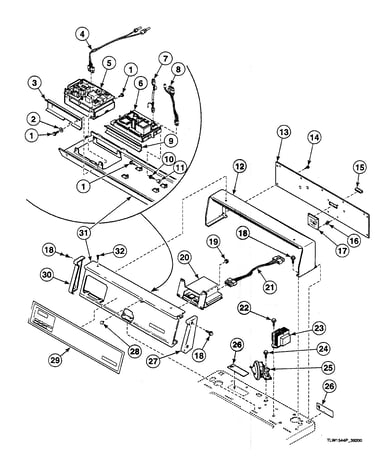

Control panel Diagram

Laundry center control transformer

Part #210018P

The manufacturer no longer makes this part, and there's no substitute part

End Cap-r

#27

Control panel Diagram

End cap-r

Part #210108W

The manufacturer no longer makes this part, and there's no substitute part

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
