Model # F5900-900 Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover F5900-900 carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 102 parts |

#71K

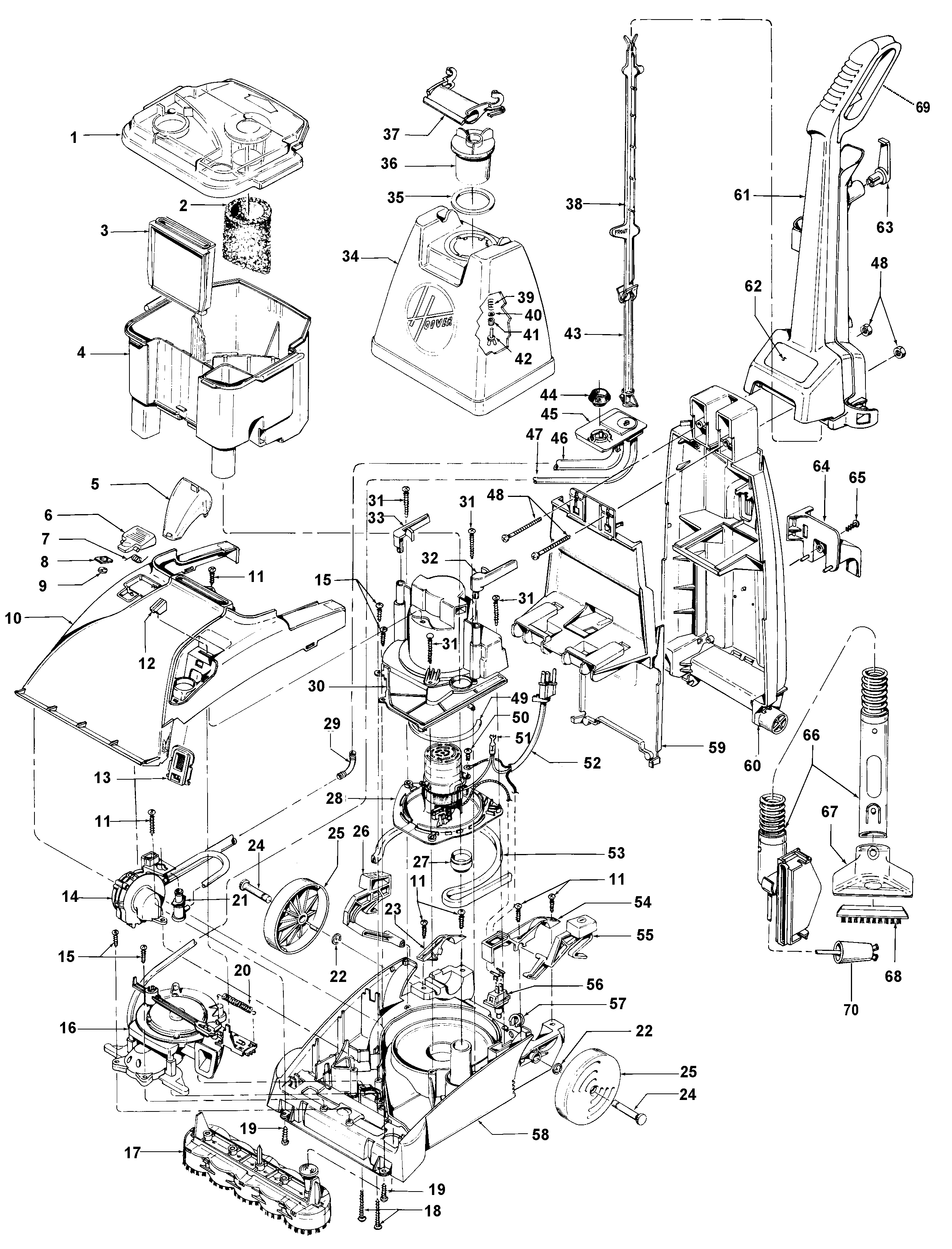

Motor, hose, handle, tank, pump diagram

Label

Part #51855032

The manufacturer no longer makes this part, and there's no substitute part

#71C

Motor, hose, handle, tank, pump diagram

Sprayer

Part #43412003

The manufacturer no longer makes this part, and there's no substitute part

#71L

Motor, hose, handle, tank, pump diagram

Label

Part #51865024

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base Plate And Beater Bar Cover Assembly 42274005

#58

Motor, hose, handle, tank, pump diagram

Vacuum base plate and beater bar cover assembly

Part #42274005

The manufacturer no longer makes this part, and there's no substitute part

#65

Motor, hose, handle, tank, pump diagram

Vacuum screw

Part #21447003

The manufacturer no longer makes this part, and there's no substitute part

Motor, hose, handle, tank, pump diagram

Carpet cleaner recovery tank lid

Part #42272111

The manufacturer no longer makes this part, and there's no substitute part

#53

Motor, hose, handle, tank, pump diagram

Motor seal

Part #38781048

The manufacturer no longer makes this part, and there's no substitute part

#71

Motor, hose, handle, tank, pump diagram

Carpet cleaner float retainer

Part #38719027

The manufacturer no longer makes this part, and there's no substitute part

#49

Motor, hose, handle, tank, pump diagram

Carpet cleaner motor seal

Part #34113004

The manufacturer no longer makes this part, and there's no substitute part

#19

Motor, hose, handle, tank, pump diagram

Vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part
