Model # 919153080 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919153080 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 67 parts  |
Label
#2

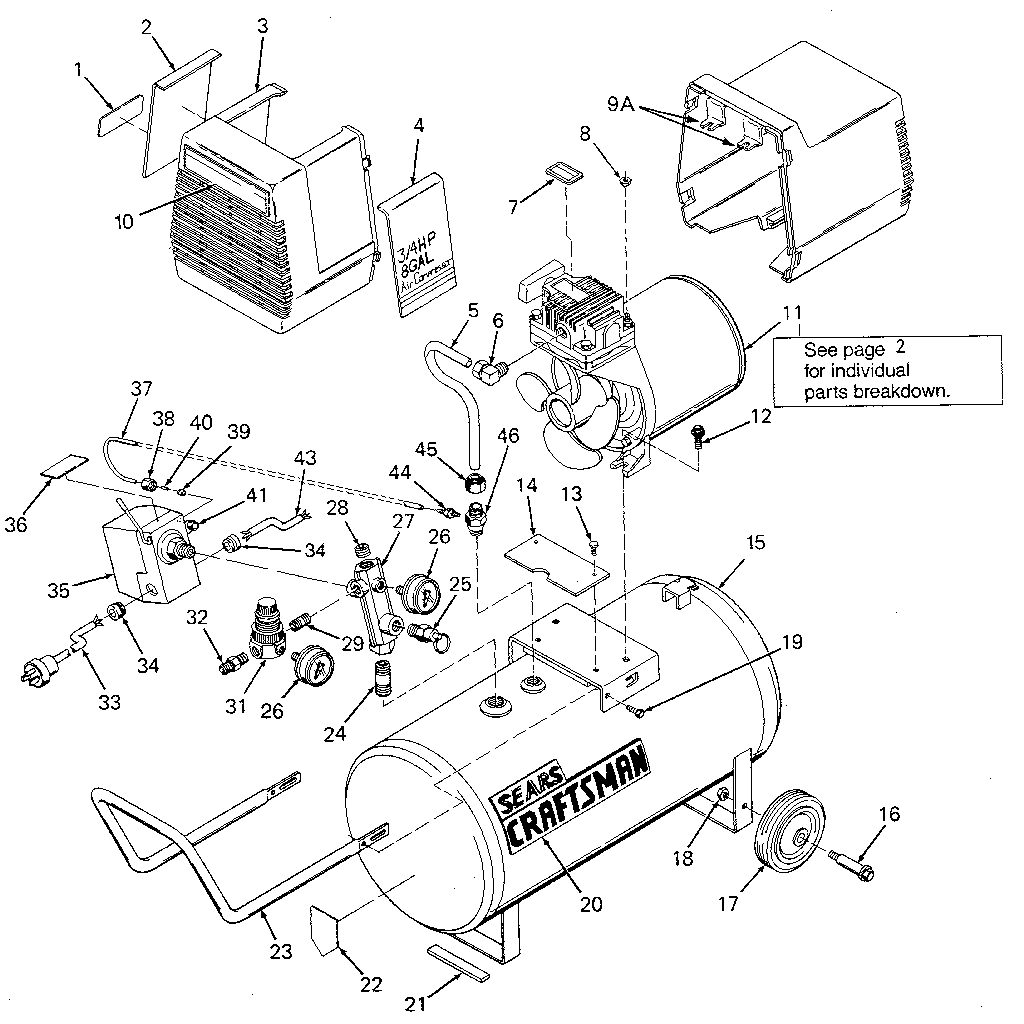

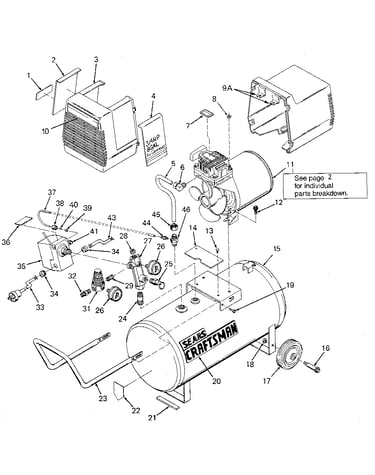

Air compressor diagram

Label

Part #LA-1977

The manufacturer no longer makes this part, and there's no substitute part

Label
#4

Air compressor diagram

Label

Part #LA-2065

The manufacturer no longer makes this part, and there's no substitute part

Label
#1

Air compressor diagram

Label

Part #LA-2069

The manufacturer no longer makes this part, and there's no substitute part

Fastener
#13

Air compressor diagram

Fastener

Part #SSN-8001

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Relief Valve
#41

Air compressor diagram

Air compressor pressure relief valve

Part #KK-4315

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Reed Valve Screw
#53

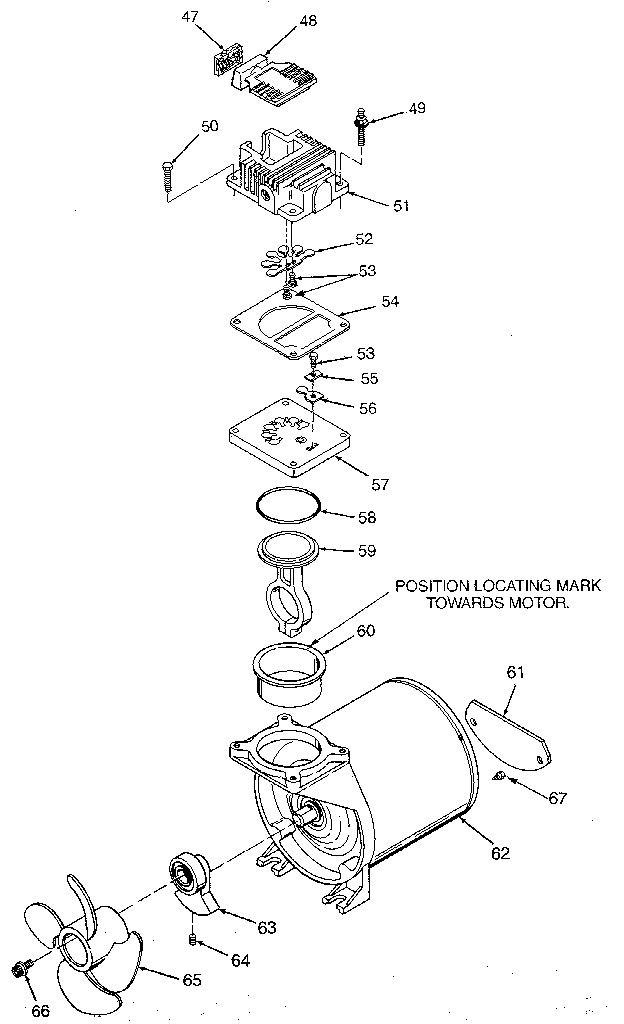

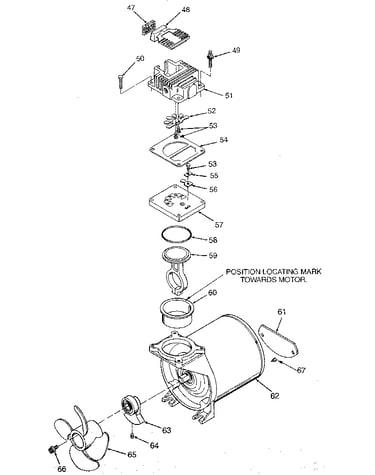

Compressor pump diagram

Air compressor reed valve screw

Part #SSF-9821

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut
#45

Air compressor diagram

Air compressor compression nut

Part #SSP-7813

The manufacturer no longer makes this part, and there's no substitute part

Screw
#12

Air compressor diagram

Screw

Part #SSF-928

The manufacturer no longer makes this part, and there's no substitute part

Plate
#14

Air compressor diagram

Plate

Part #CAC-333-1

The manufacturer no longer makes this part, and there's no substitute part

Pipe Plug
#28

Air compressor diagram

Pipe plug

Part #SS-3222-CD

The manufacturer no longer makes this part, and there's no substitute part
