Admiral A3478XRA-N gas freestanding range Parts
Here are the diagrams and repair parts for Admiral A3478XRA-N gas freestanding range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

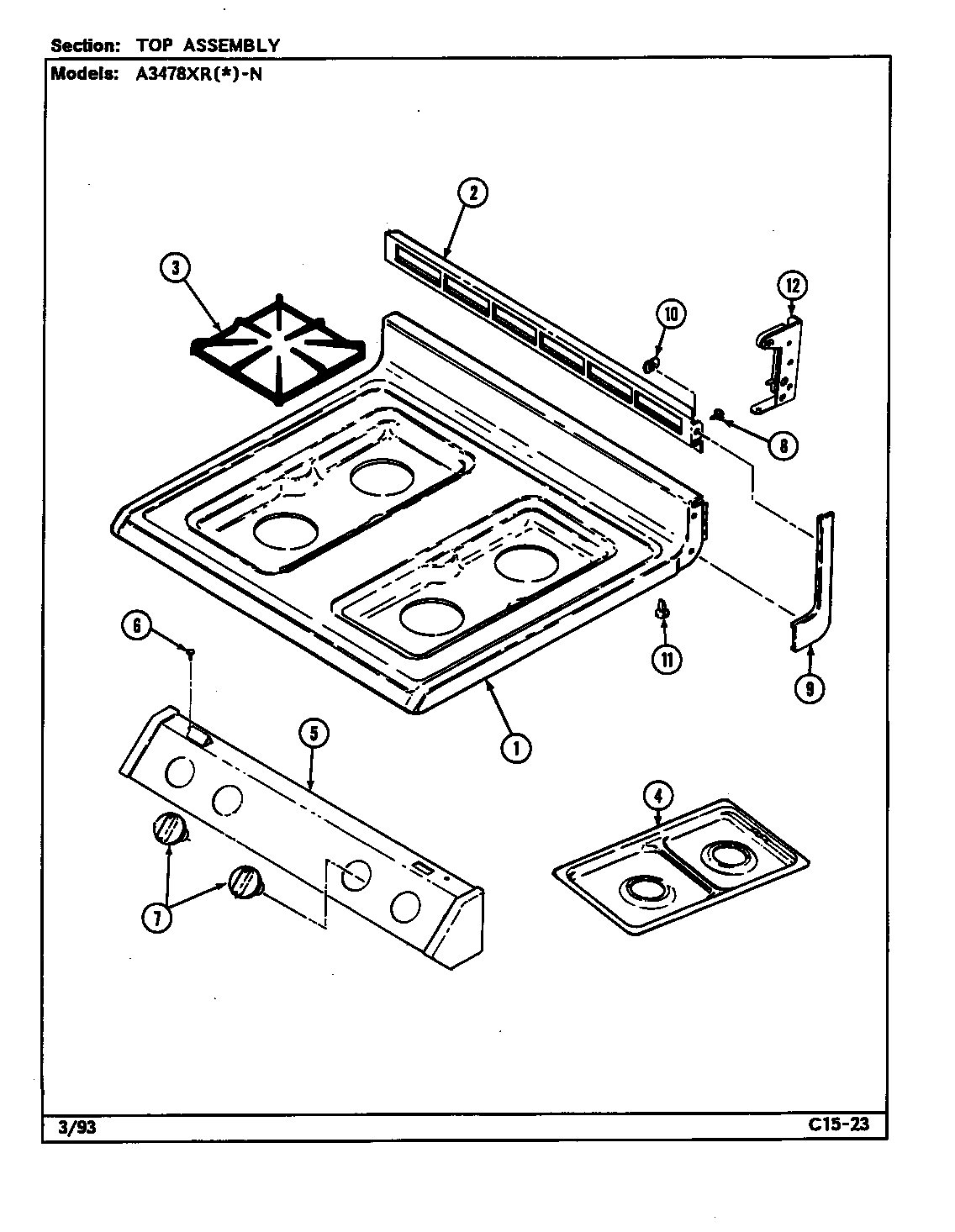

Browse Parts for A3478XRA-N Ranges

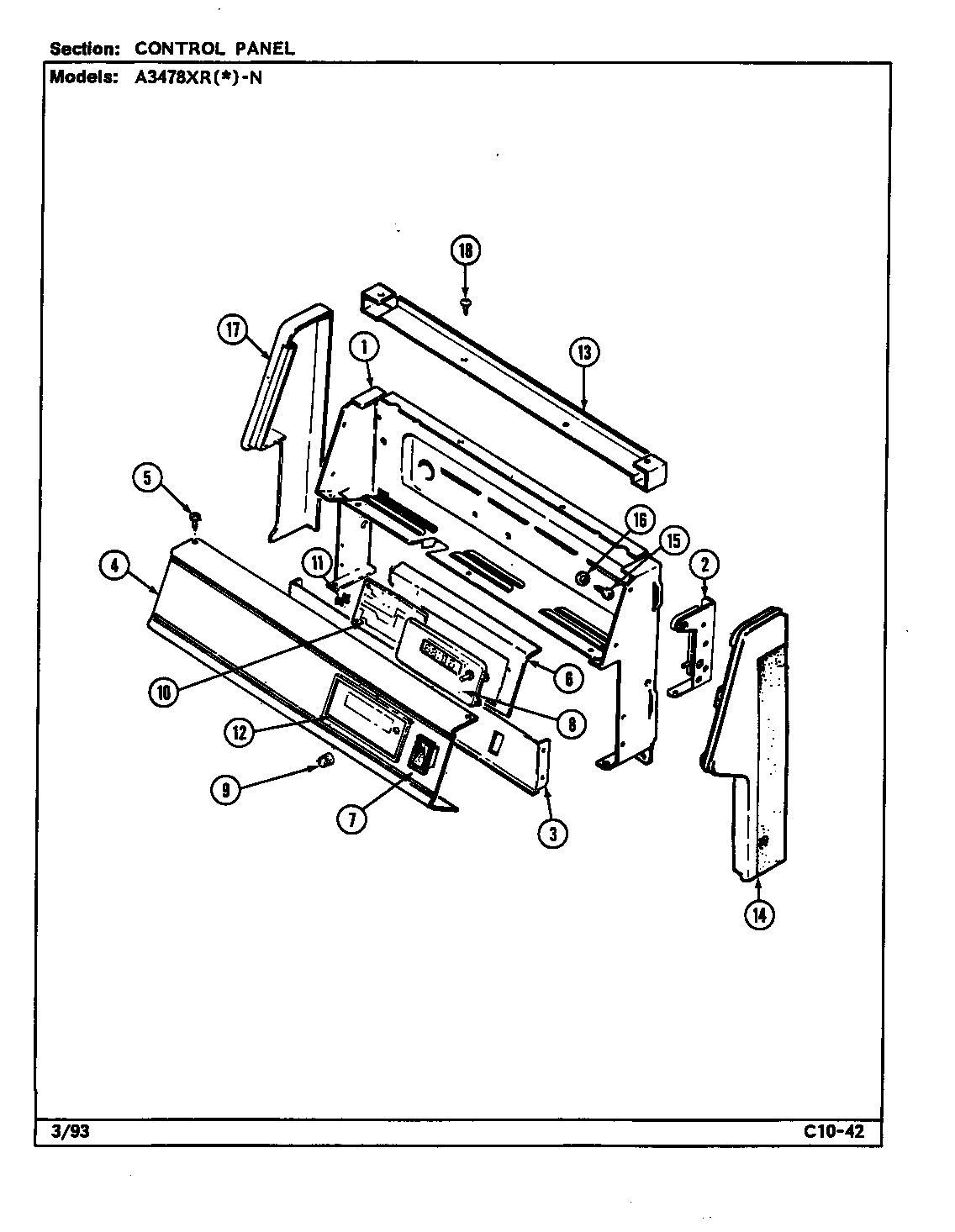

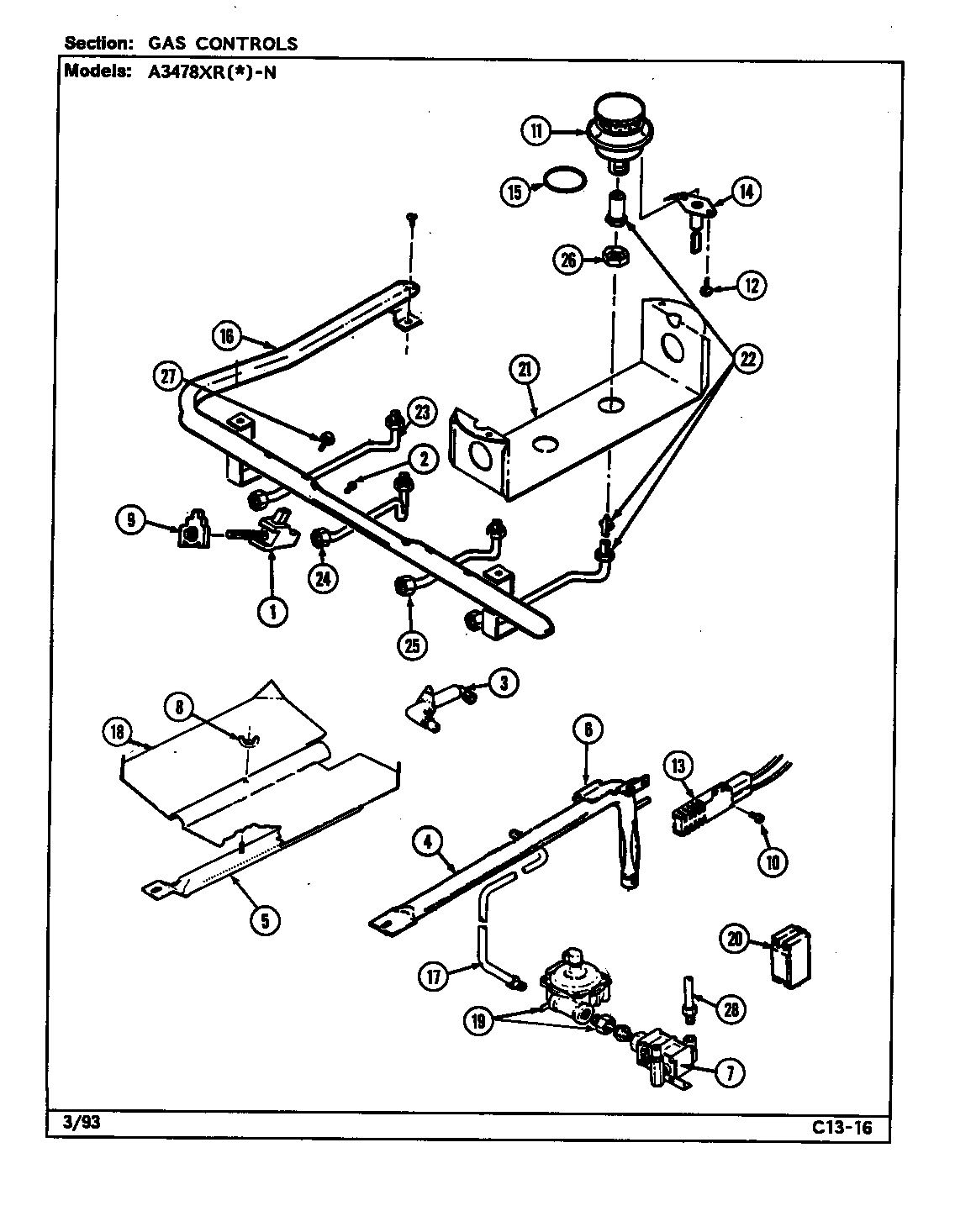

Control system diagram
Oven Igniter
Part #7432P076-60Replaced by #12400035
Manufacturer substitutionThis part replaces 7432P076-60. Substitute parts can look different from the original.In Stock$38.7713% OFF Phone Price : $44.77
Qty
Control system diagram
Sealed Burner
Part #3412D017-09Replaced by #WP3412D024-09
Manufacturer substitutionThis part replaces 3412D017-09. Substitute parts can look different from the original.In Stock$64.808% OFF Phone Price : $70.80QtyControl system diagram
Burner Seal
Part #3412D018-09Replaced by #WP3412D024-09

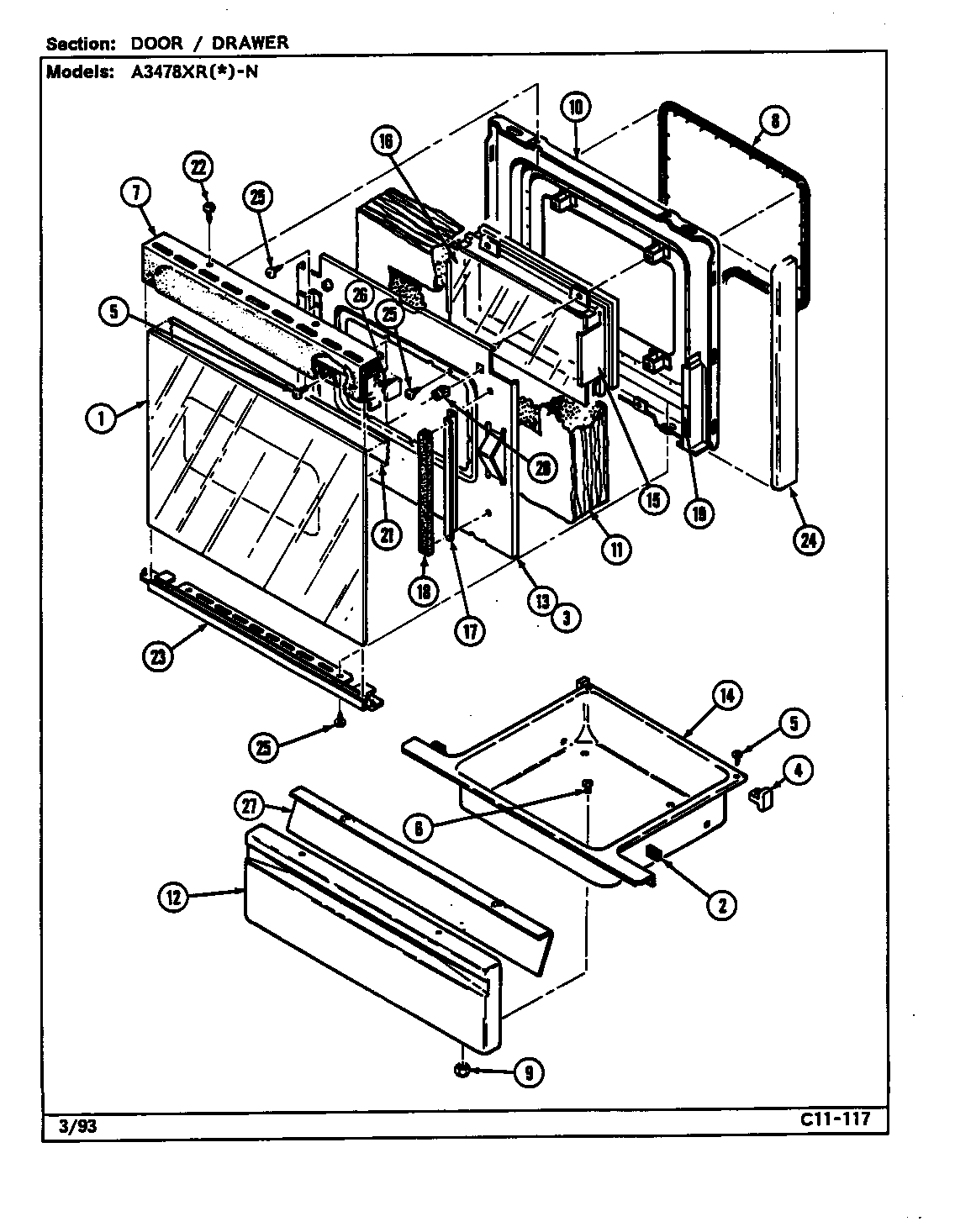

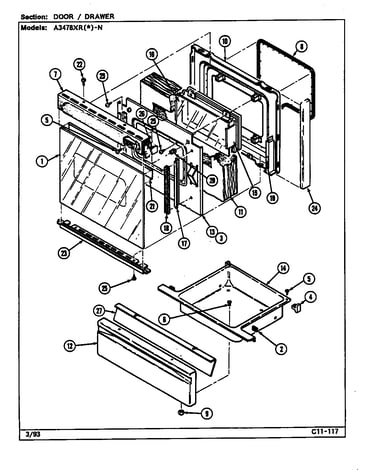

Manufacturer substitutionThis part replaces 3412D018-09. Substitute parts can look different from the original.In Stock$64.808% OFF Phone Price : $70.80QtyDoor/drawer diagram
Door Gasket
Part #7201P046-60Replaced by #WPW10162384
Manufacturer substitutionThis part replaces 7201P046-60. Substitute parts can look different from the original.In Stock$84.057% OFF Phone Price : $90.05QtyControl system diagram
Screw
Part #7101P315-60Replaced by #WP59002061
Manufacturer substitutionThis part replaces 7101P315-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyDoor/drawer diagram
Bracket Screw
Part #7101P040-60Replaced by #WP98008545

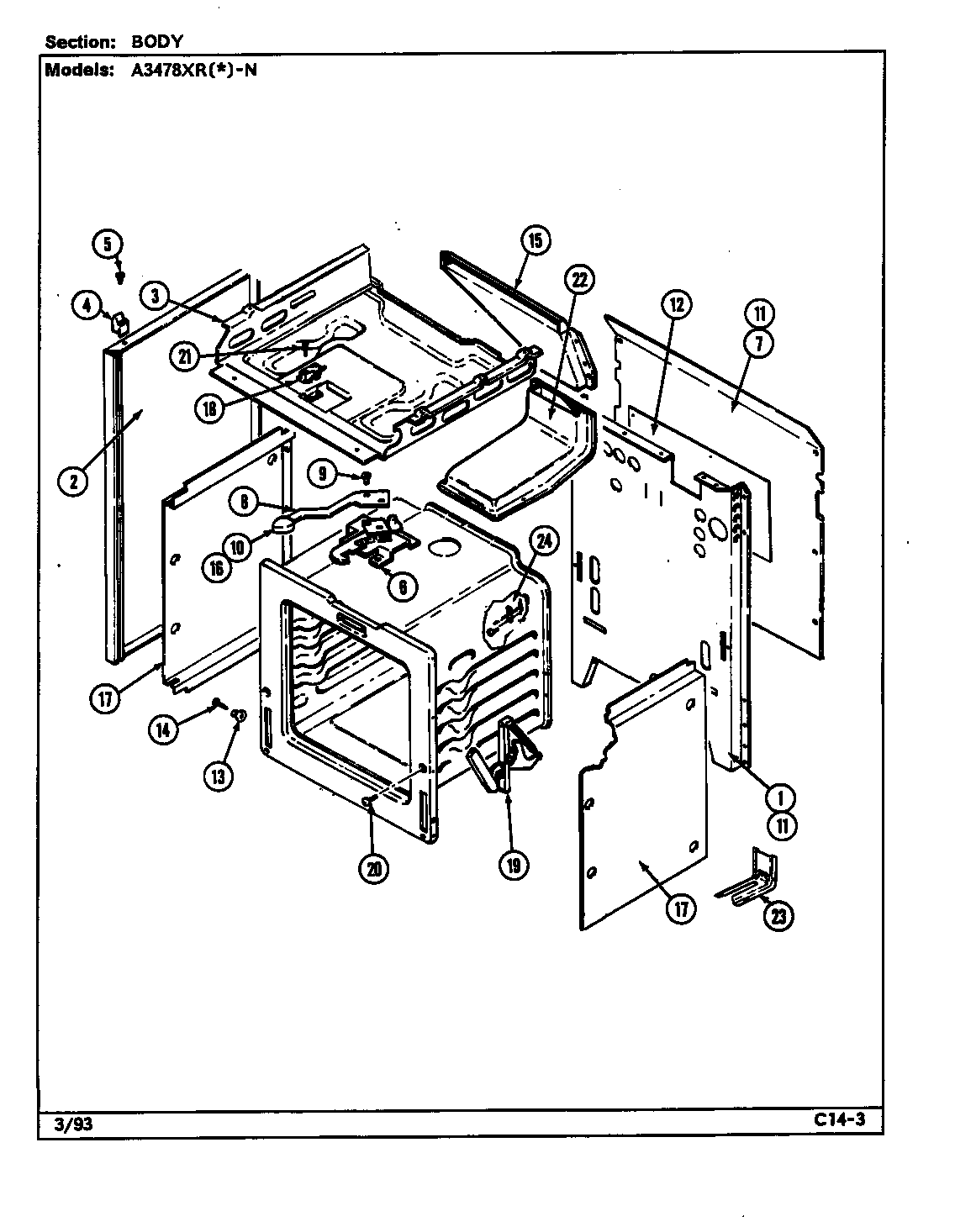

Manufacturer substitutionThis part replaces 7101P040-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.4715% OFF Phone Price : $6.47QtyBody diagram
"bracket, Ant"
Part #3801F218-51Replaced by #WP3801F656-51

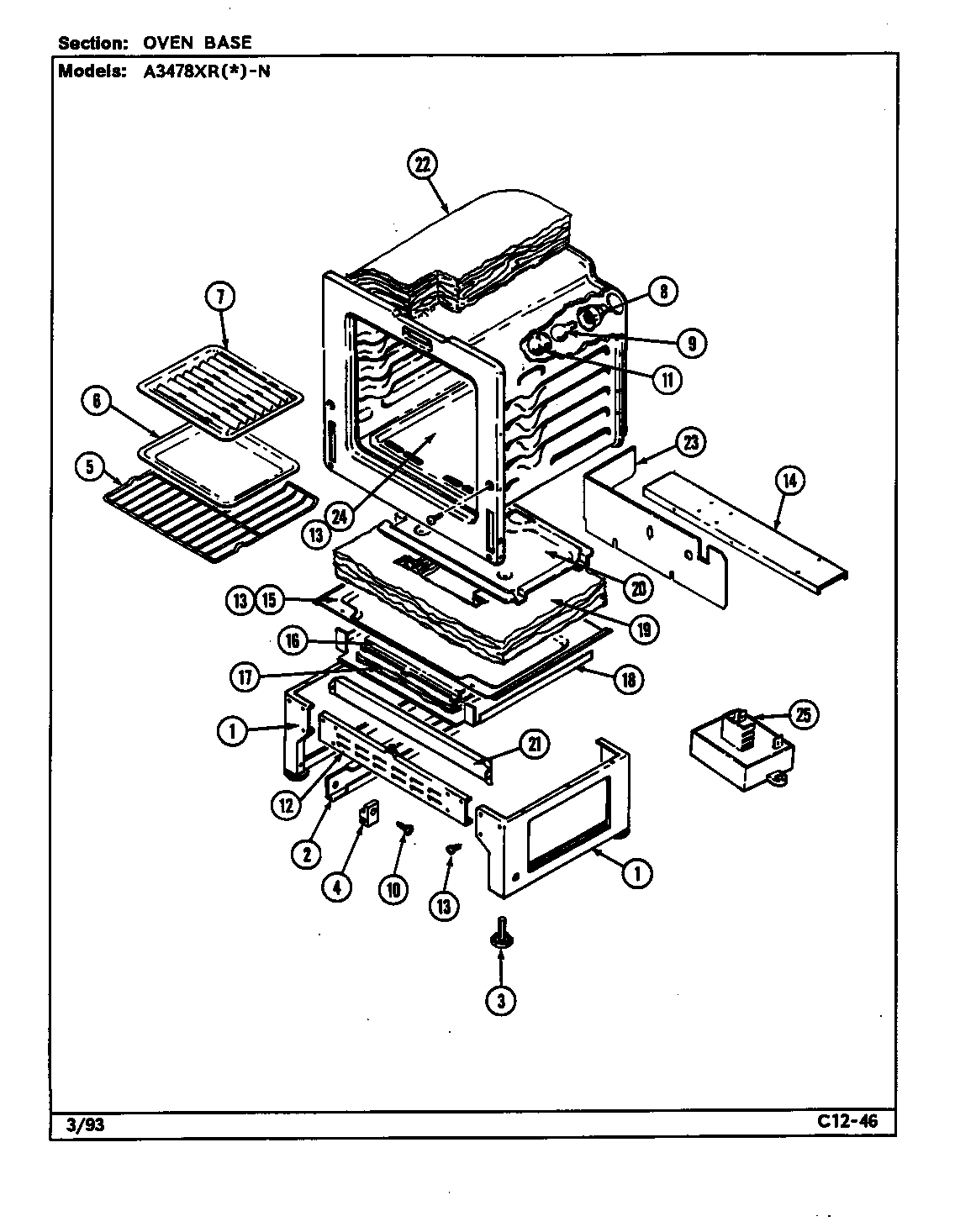

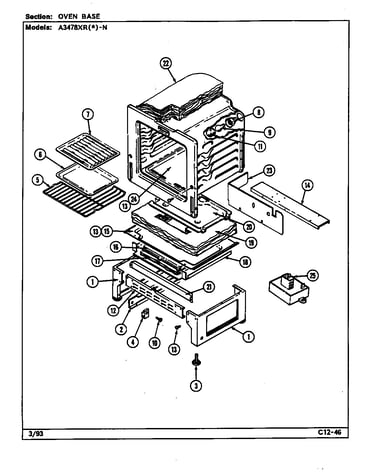

Manufacturer substitutionThis part replaces 3801F218-51. Substitute parts can look different from the original.This item is not returnableIn Stock$5.7415% OFF Phone Price : $6.74QtyBase diagram
Broiler Pan
Part #3401F020-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3401F020-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyBase diagram
Cover Bulb
Part #7724P047-60Replaced by #WP9781049
Manufacturer substitutionThis part replaces 7724P047-60. Substitute parts can look different from the original.In Stock$58.179% OFF Phone Price : $64.17QtyControl panel diagram
Screw
Part #7118P019-60Replaced by #WPY706189
Manufacturer substitutionThis part replaces 7118P019-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21Qty
