Model # 271281510 Official Craftsman brush cutter

Here are the diagrams and repair parts for Official Craftsman 271281510 brush cutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

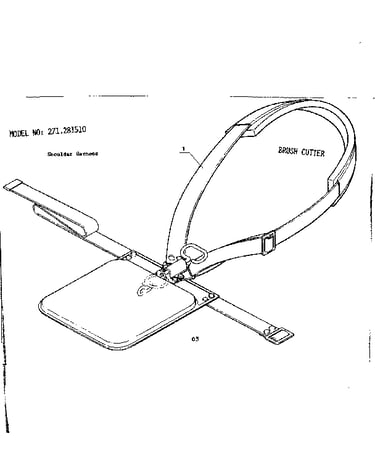

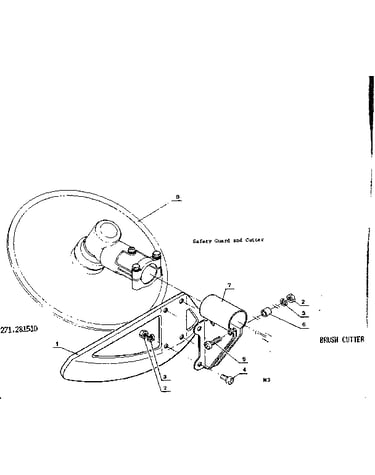

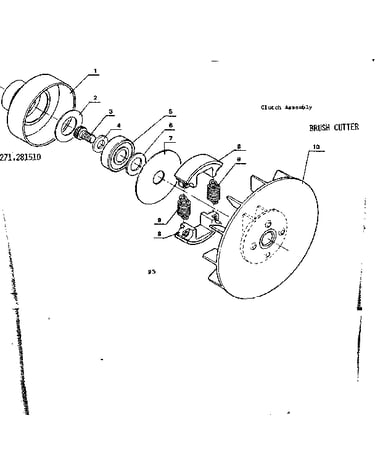

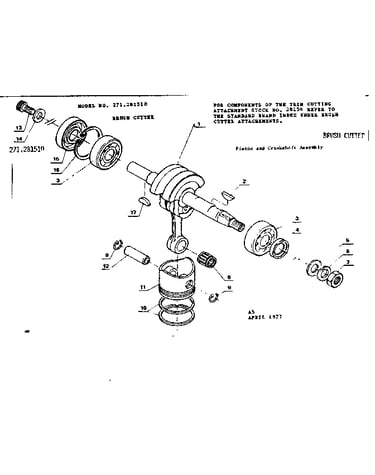

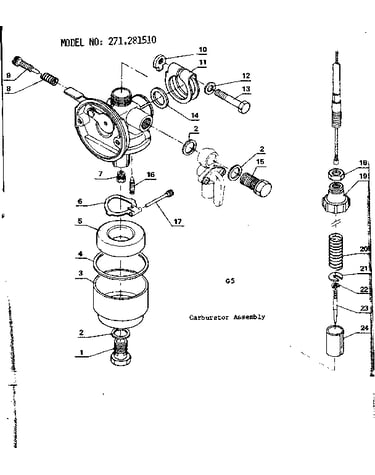

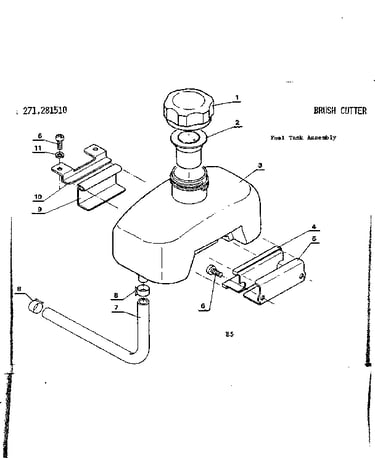

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Spark Plug 159010-00330
#17

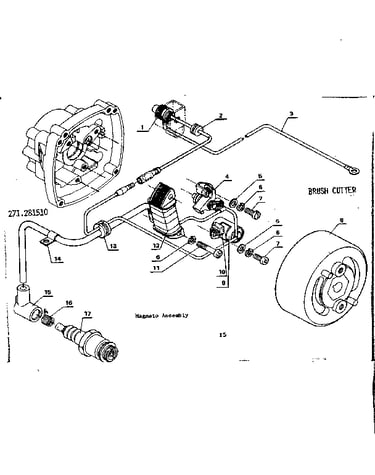

Magnetoassembly diagram

Spark plug

Part #159010-00330

Replaced by #CJ8

?
Manufacturer substitution
This part replaces 159010-00330. Substitute parts can look different from the original.
This item is not returnable
$2.15 |
55% OFF MSRP : $4.80
In Stock
Packing 100242-04630
#11

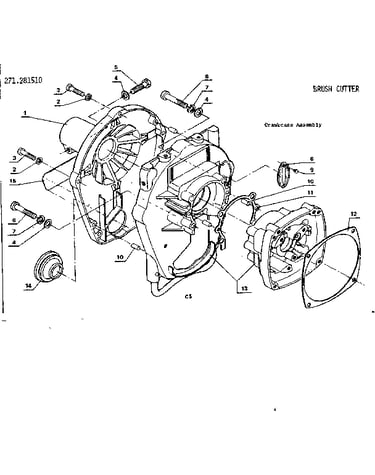

Crankcase assembly diagram

Packing

Part #100242-04630

The manufacturer no longer makes this part, and there's no substitute part

Packing 101010-04630
#1

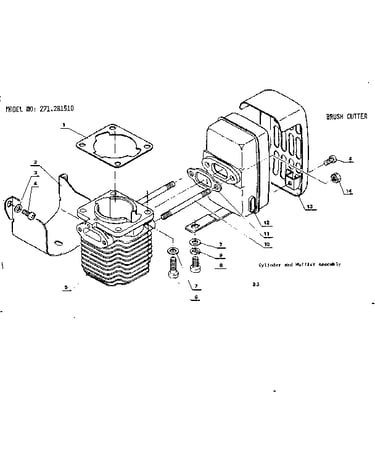

Cylinder and muffler assembly diagram

Packing

Part #101010-04630

The manufacturer no longer makes this part, and there's no substitute part

Washer 900600-00006
#11

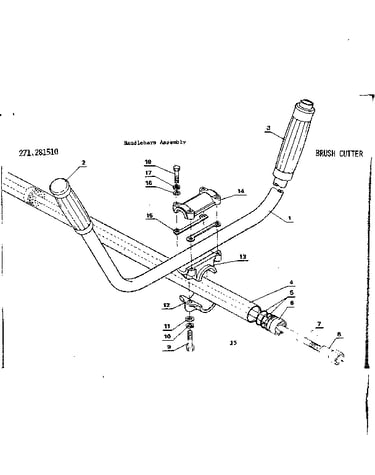

Handlebar assembly diagram

Washer

Part #900600-00006

The manufacturer no longer makes this part, and there's no substitute part

Fit Tool 897506-04130
#10

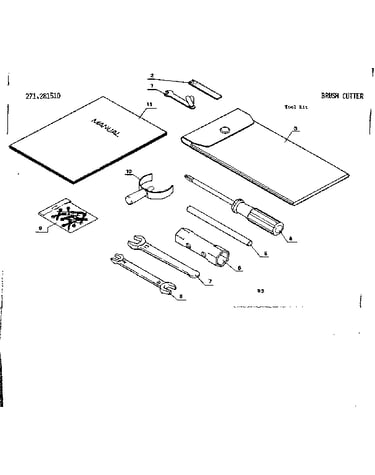

Tool kit diagram

Fit tool

Part #897506-04130

The manufacturer no longer makes this part, and there's no substitute part

Drive Shaft 610310-05330
#9

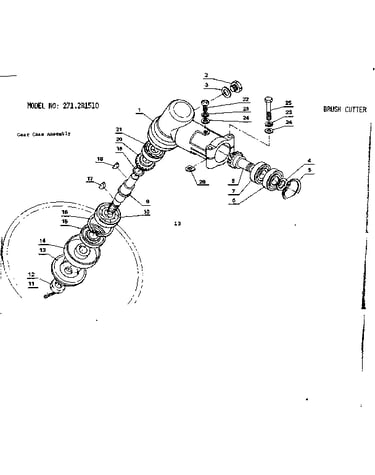

Gear case assembly diagram

Drive shaft

Part #610310-05330

The manufacturer no longer makes this part, and there's no substitute part

Fuel Cock 132200-00511
#11

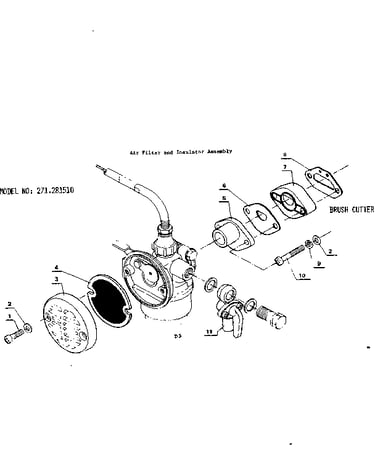

Air filter and insulator assembly diagram

Fuel cock

Part #132200-00511

The manufacturer no longer makes this part, and there's no substitute part

Handle Cap 177244-02830
#9

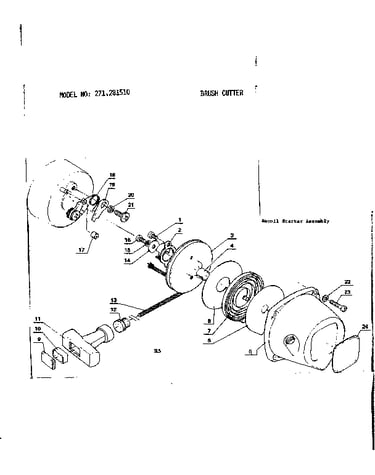

Recoil starter assembly diagram

Handle cap

Part #177244-02830

The manufacturer no longer makes this part, and there's no substitute part

Clip 159110-04630
#14

Magnetoassembly diagram

Clip

Part #159110-04630

The manufacturer no longer makes this part, and there's no substitute part

Lever Holder 178024-05330
#4

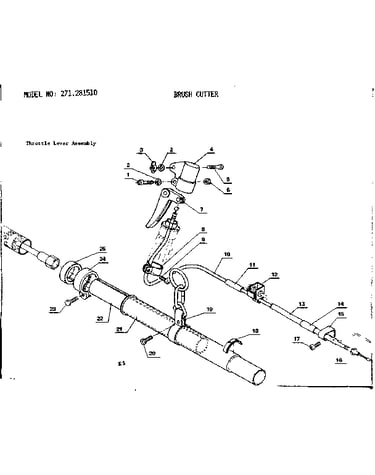

Throttle lever assembly diagram

Lever holder

Part #178024-05330

The manufacturer no longer makes this part, and there's no substitute part
