Kenmore 1102970093 compact washer Parts
Here are the diagrams and repair parts for Kenmore 1102970093 compact washer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

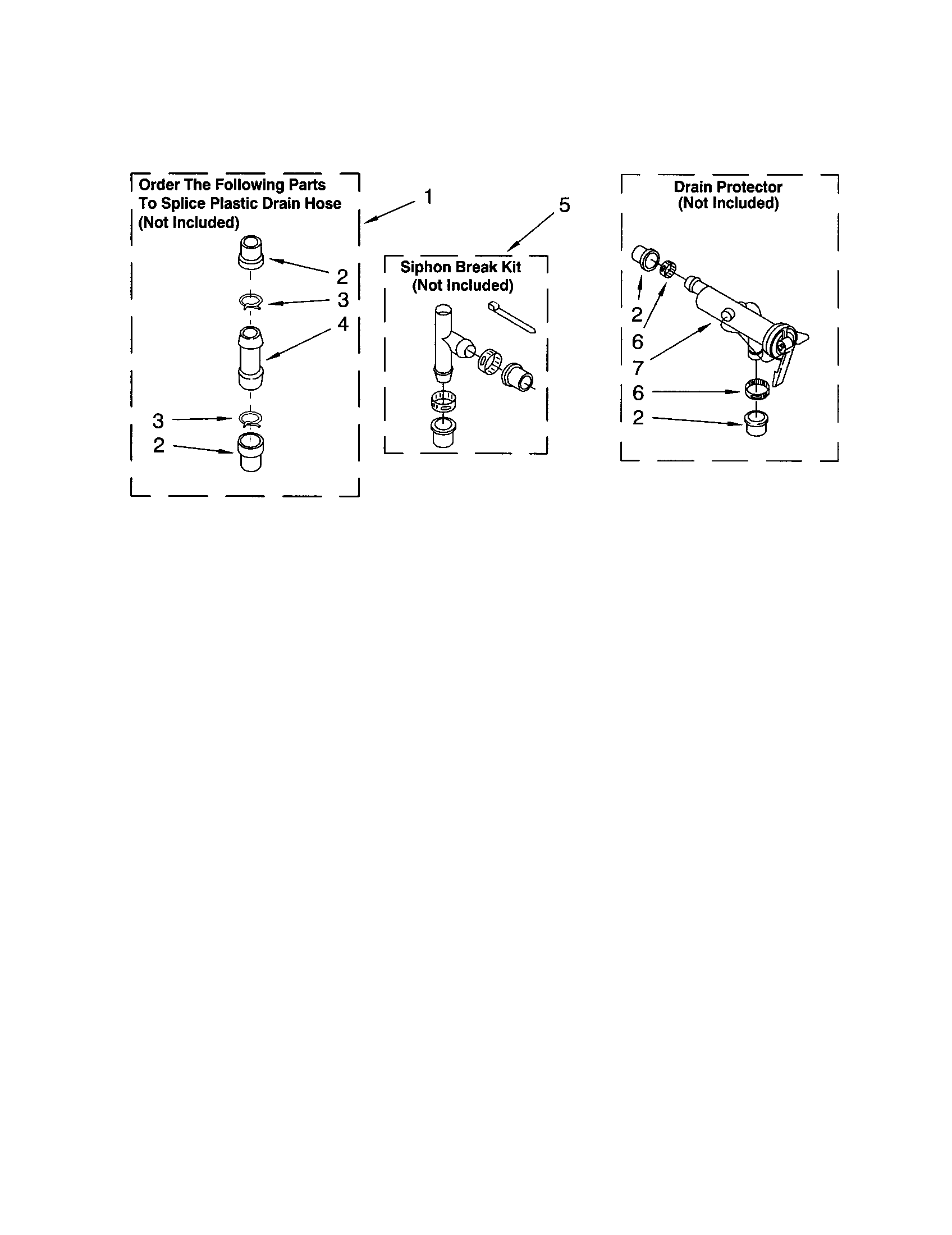

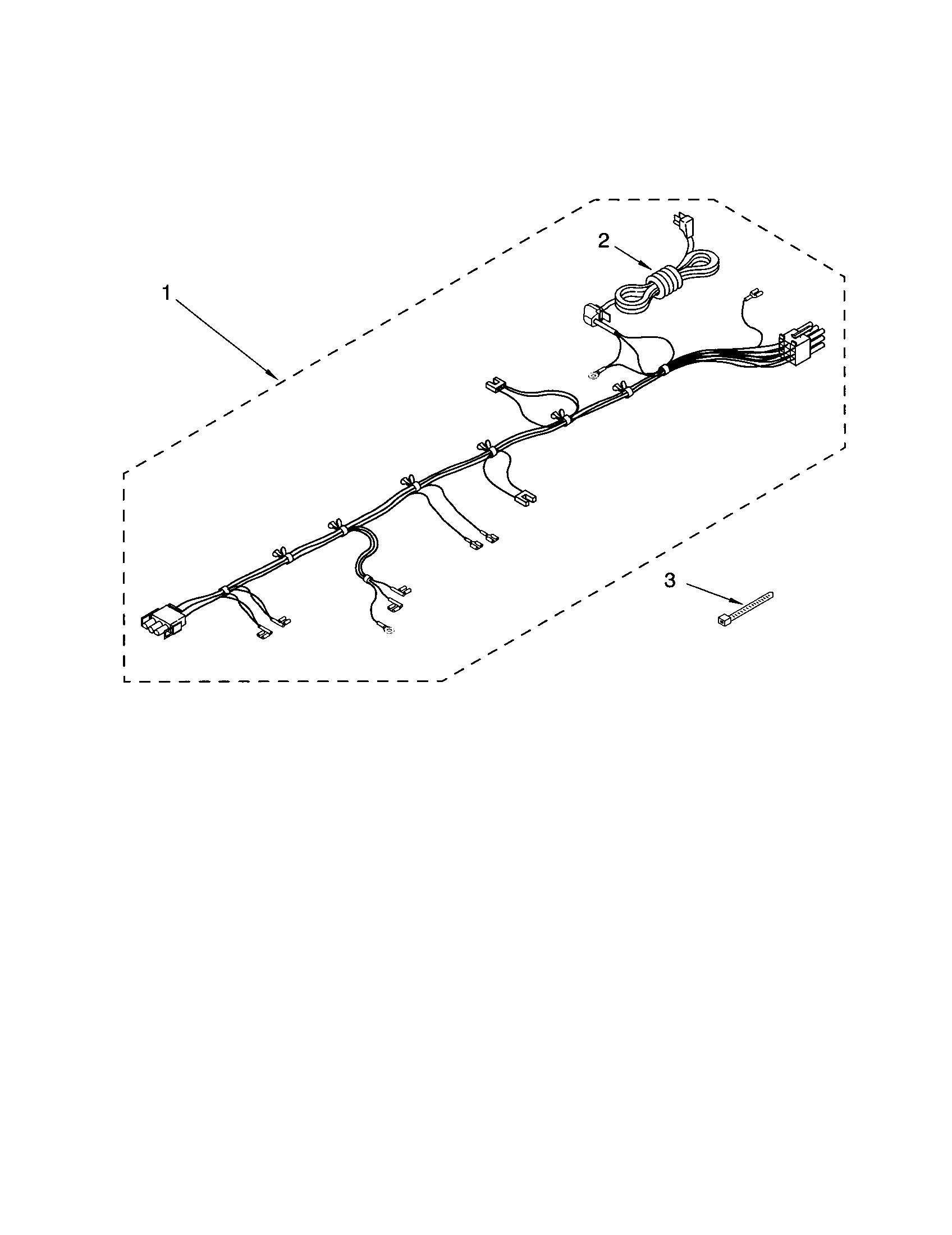

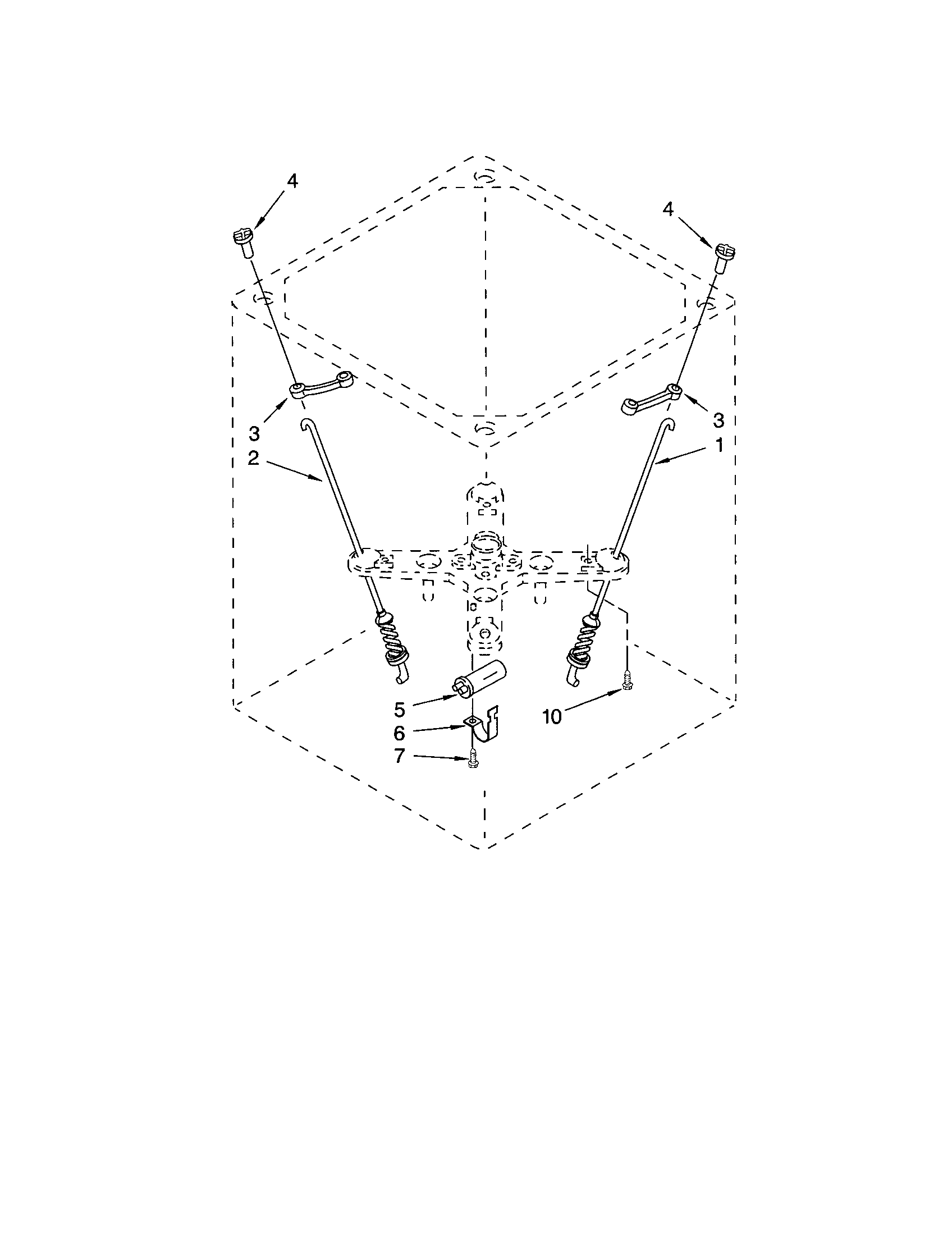

SELECT DIAGRAM
Browse Parts for 1102970093 Compact Washer

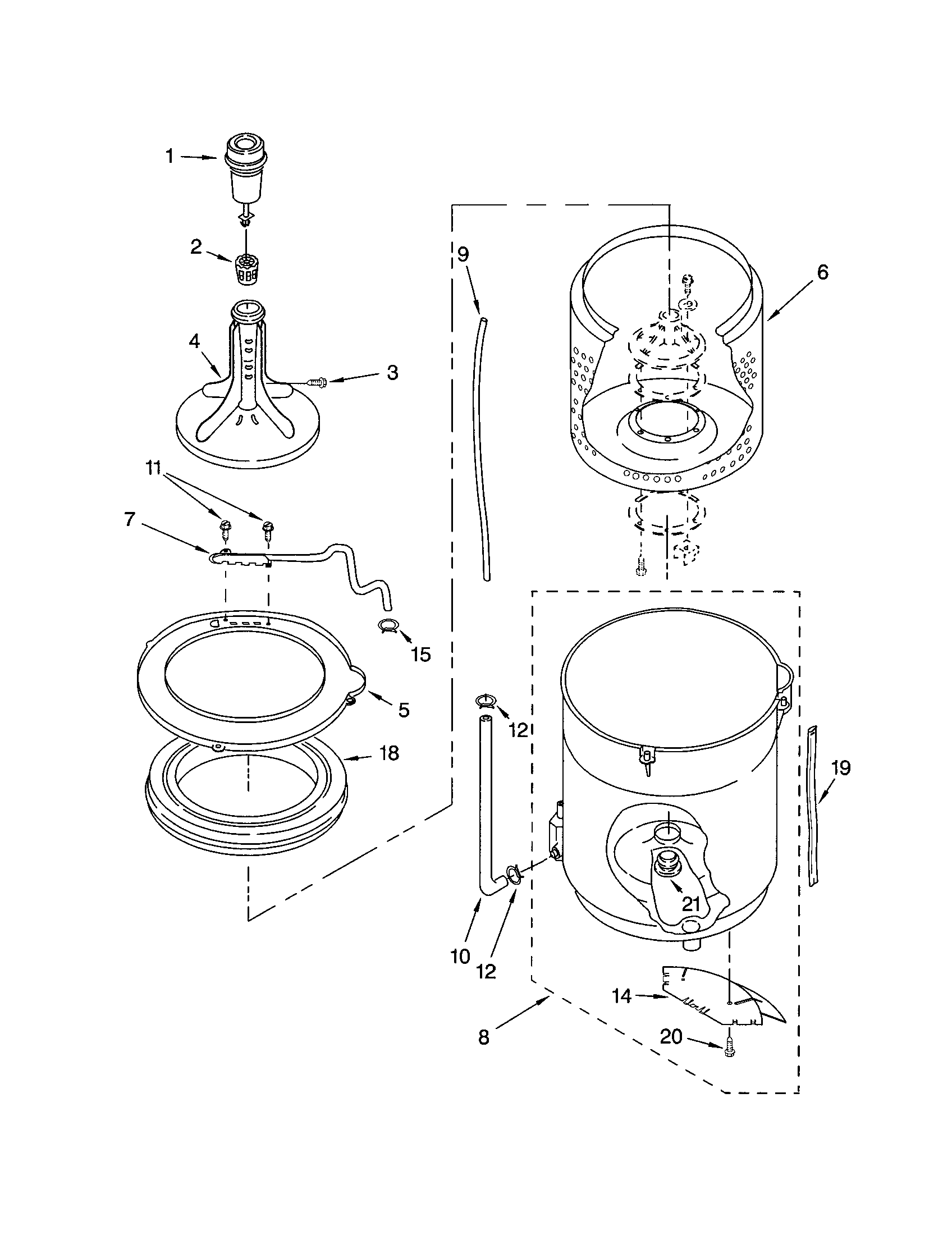

Agitator, basket and tub diagram
Hose-wl
Part #3430159Replaced by #WP353244
Manufacturer substitutionThis part replaces 3430159. Substitute parts can look different from the original.In Stock$49.7511% OFF Phone Price : $55.75
Qty
Agitator, basket and tub diagram
Clamp
Part #370452Replaced by #WP596669
Manufacturer substitutionThis part replaces 370452. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7317% OFF Phone Price : $5.73QtyMiscellaneous parts diagram
Washer Faucet Adapter
Part #3374592Replaced by #WPW10254672

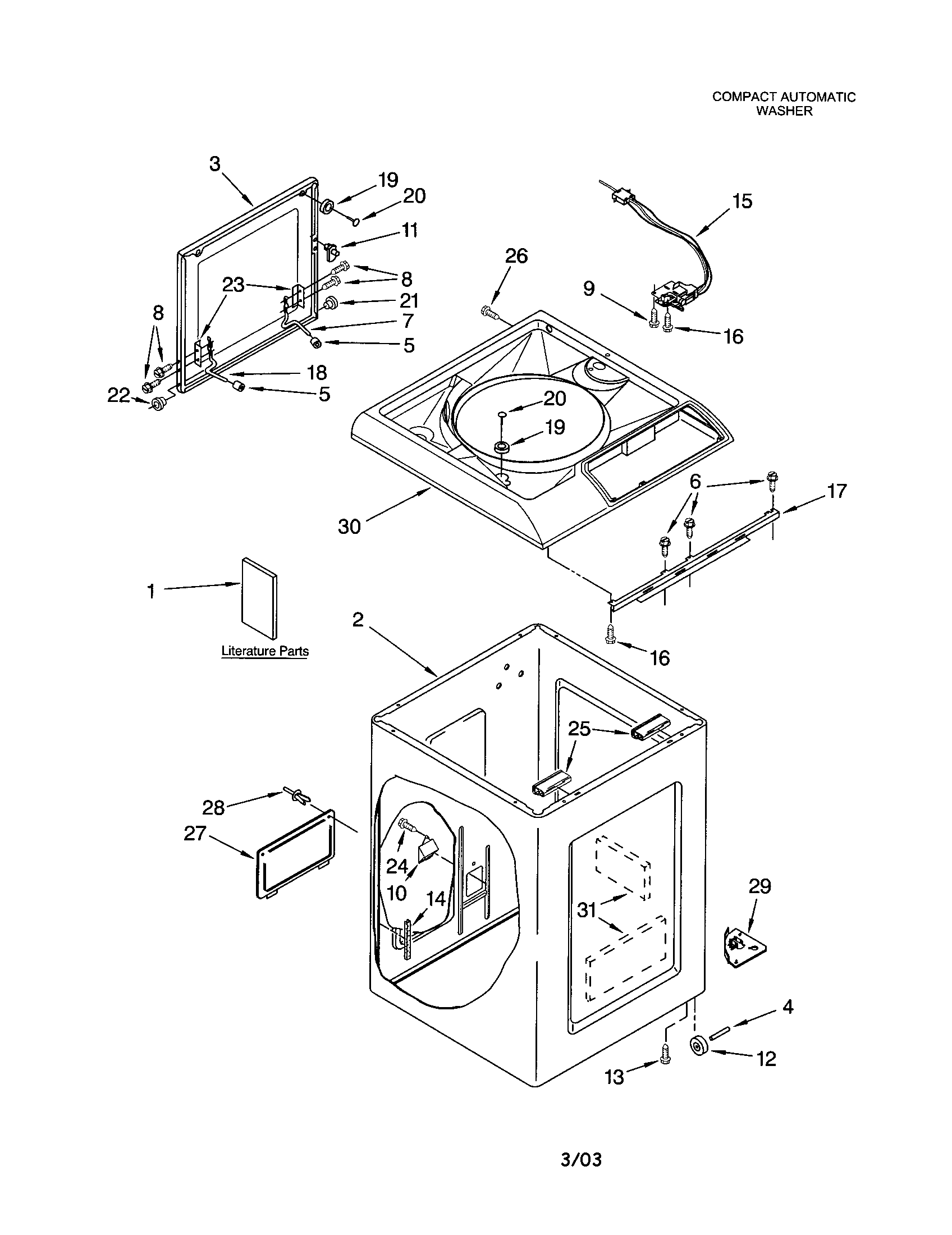

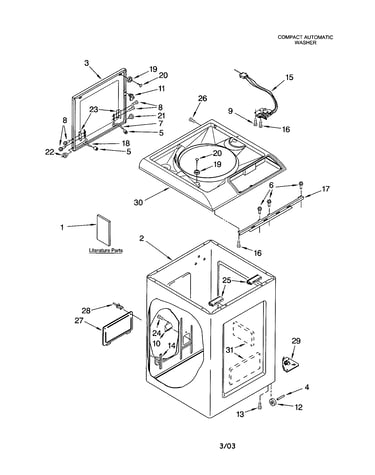

Manufacturer substitutionThis part replaces 3374592. Substitute parts can look different from the original.In Stock$42.5512% OFF Phone Price : $48.55QtyTop and cabinet diagram
Screw
Part #3351355Replaced by #WPW10119828
Manufacturer substitutionThis part replaces 3351355. Substitute parts can look different from the original.This item is not returnableIn Stock$4.1319% OFF Phone Price : $5.13Qty#NI03
All parts diagram
Appliance Spray Paint (white)

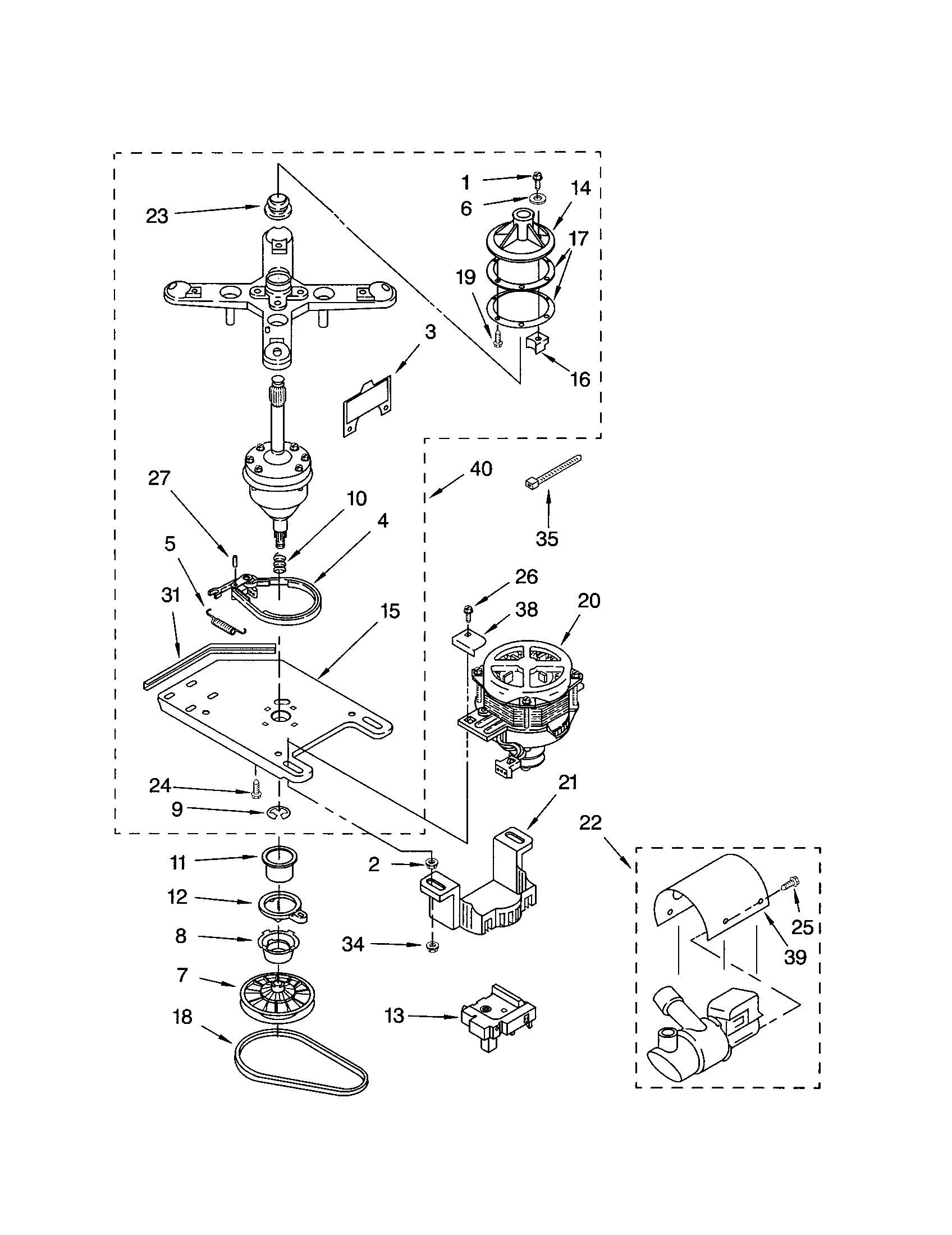

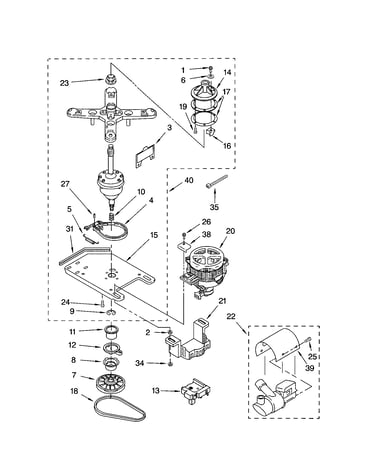

Part #350930This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00QtyTransmission, motor and pump diagram
E-ring
Part #3934678Replaced by #WP354987
Manufacturer substitutionThis part replaces 3934678. Substitute parts can look different from the original.This item is not returnableIn Stock$9.719% OFF Phone Price : $10.71QtyMiscellaneous parts diagram
Hose Clamp
Part #356138Replaced by #WP356138
Manufacturer substitutionThis part replaces 356138. Substitute parts can look different from the original.In Stock$36.09QtyWashing Machine Washer
Part #16123Replaced by #WP16123
Manufacturer substitutionThis part replaces 16123. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyTop and cabinet diagram
Washer Door Strike
Part #358684Replaced by #WP358684

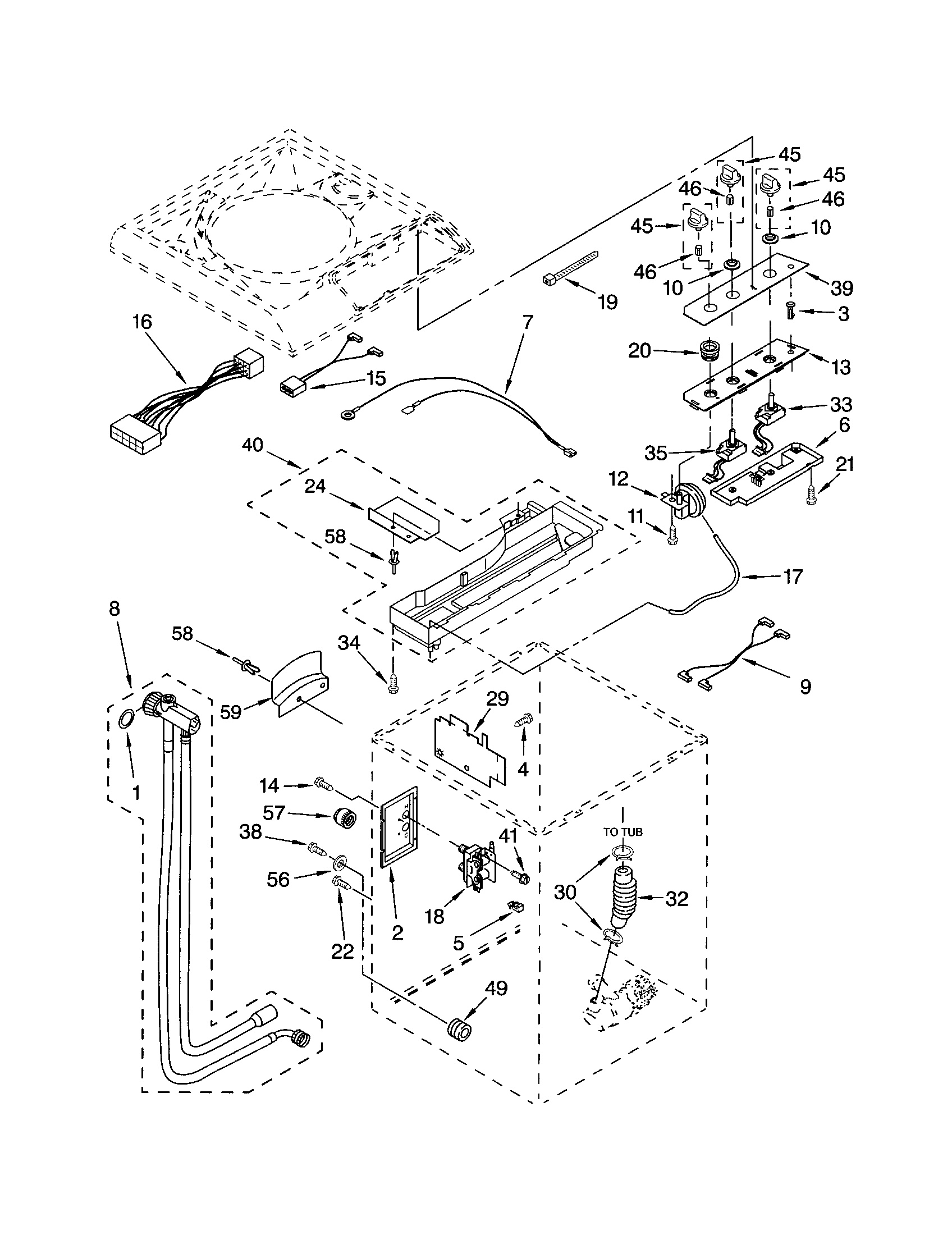

Manufacturer substitutionThis part replaces 358684. Substitute parts can look different from the original.This item is not returnableIn Stock$6.6713% OFF Phone Price : $7.67QtyControls and rear panel diagram
Washer Screw, #10-24 X 3/8-in
Part #3351614Replaced by #WP3351614
Manufacturer substitutionThis part replaces 3351614. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91Qty
