Model #113221741 Craftsman 10" benchtop table saw

Here are the diagrams and repair parts for Craftsman 113221741 10" benchtop table saw, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

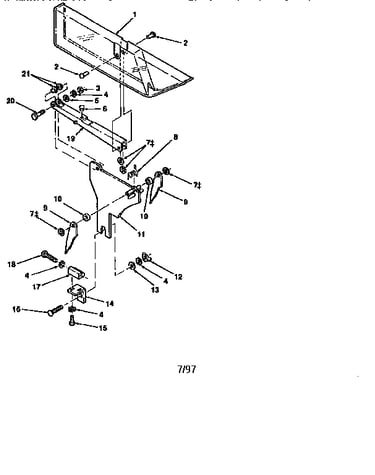

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 132 parts

    Pan Head Screw, M4 x 12 (Black)

    #1

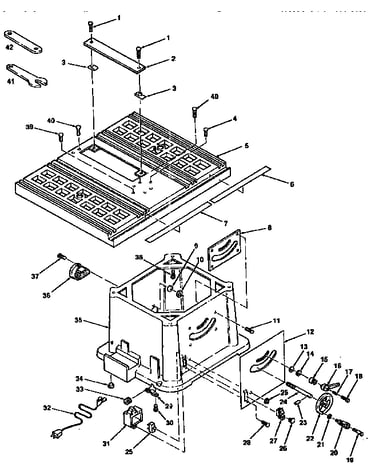

    Figure 2 Diagram

    Pan head screw, m4 x 12 (black)

    Part #817357-1

    The manufacturer no longer makes this part, and there's no substitute part

    Roll Pin

    #23

    Figure 2 Diagram

    Roll pin

    Part #813249-132

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Circuit Breaker

    #25

    Figure 2 Diagram

    Table saw circuit breaker

    Part #823050

    The manufacturer no longer makes this part, and there's no substitute part

    Knob (Black)

    #1

    Figure 4 Diagram

    Knob (black)

    Part #823065

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Hex Nut

    #10

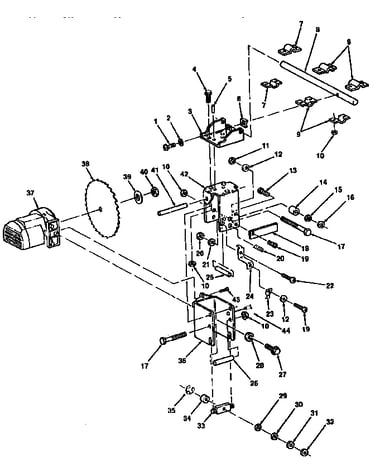

    Figure 3 Diagram

    Table saw hex nut

    Part #822488

    The manufacturer no longer makes this part, and there's no substitute part

    Table Saw Rip Fence Handle

    #16

    Figure 5 Diagram

    Table saw rip fence handle

    Part #823185

    The manufacturer no longer makes this part, and there's no substitute part

    Retainer Ring

    #35

    Figure 3 Diagram

    Retainer ring

    Part #820632-1

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut

    #29

    Figure 3 Diagram

    Hex nut

    Part #823018

    The manufacturer no longer makes this part, and there's no substitute part

    Nylon Washer (White)

    #14

    Figure 2 Diagram

    Nylon washer (white)

    Part #60545

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #22

    Figure 3 Diagram

    Screw

    Part #805517

    The manufacturer no longer makes this part, and there's no substitute part
