Amana PK5-3J/P54629-58C package unit - pk series Parts
Here are the diagrams and repair parts for Amana PK5-3J/P54629-58C package unit - pk series, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM

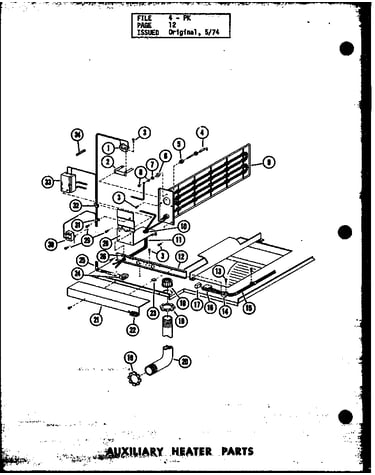

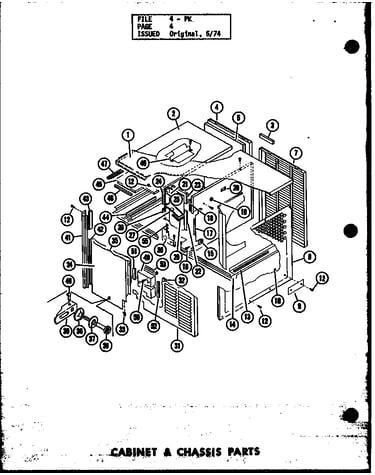

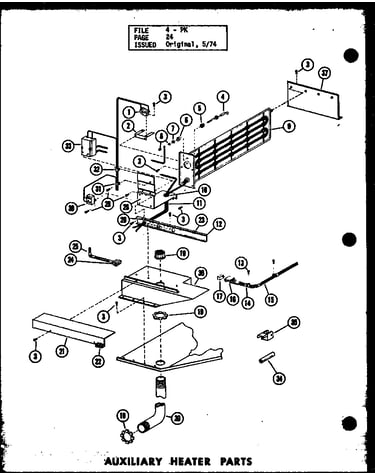

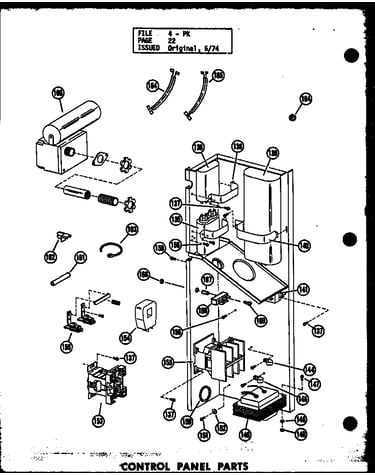

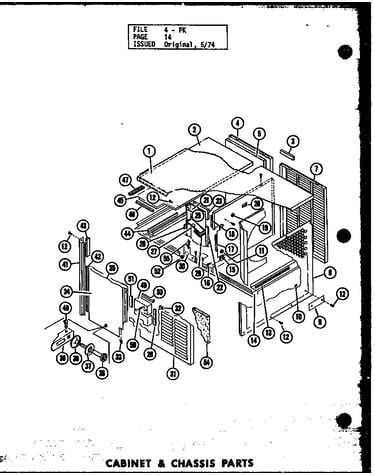

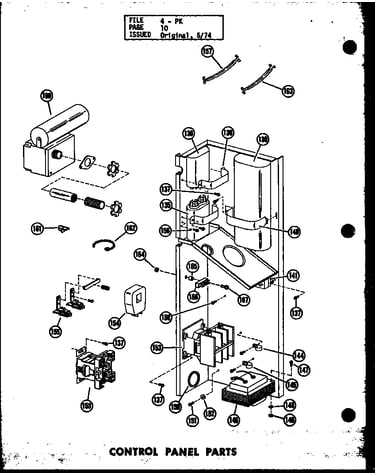

Browse Parts forPK5-3J/P54629-58C Package Unit - PK Series

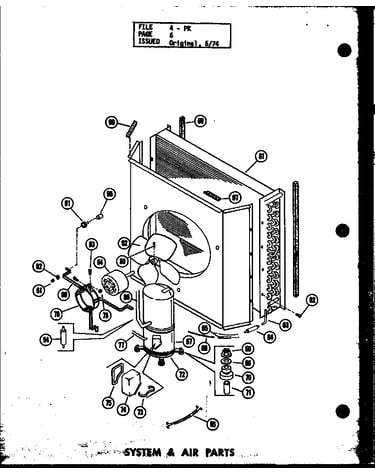

System & air parts (pk2.5-1h/p54565-12c) (pk3-1h/p54565-15c) (pke3-3h/p54565-7c) diagram
Sleeve, Motor Mount
Part #M0800001
The manufacturer no longer makes this part, and there's no substitute part
Capacitor
Part #D5515607
The manufacturer no longer makes this part, and there's no substitute part

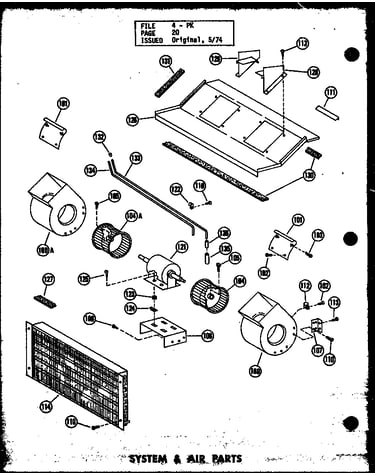

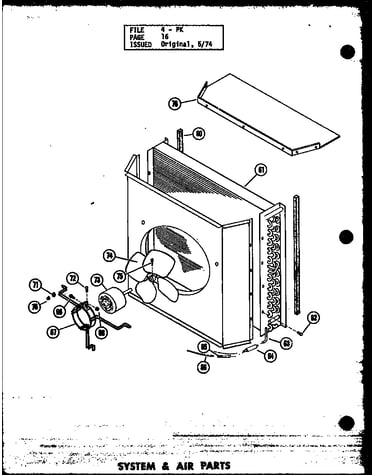

System & air parts (pk3.5-1k/p54629-16c) (pk3.5-1k/p54629-38c) (pk4-1j/p54629-19c) (pk4-1j/p54629-55c) (pk4-3j/p54629-20c) (pk5-1j/p54629-21c) (pk5-1j/p54629-57c) (pk5-3j/p54629-22c) (pk5-3j/p54629-58c) (pke5-3k/p54629-36c) diagram
Coil, Evaporator Assembly
Part #D5480503
The manufacturer no longer makes this part, and there's no substitute part
Blower Wheel, Evaporator
Part #M0102309
The manufacturer no longer makes this part, and there's no substitute part

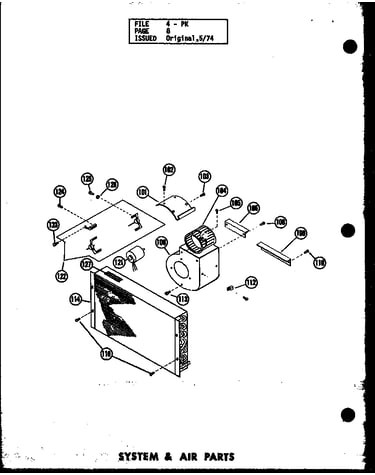

System & air parts (pk2.5-1h/p54565-12c) (pk3-1h/p54565-15c) (pke3-3h/p54565-7c) diagram
Spring
Part #A4610101
The manufacturer no longer makes this part, and there's no substitute part

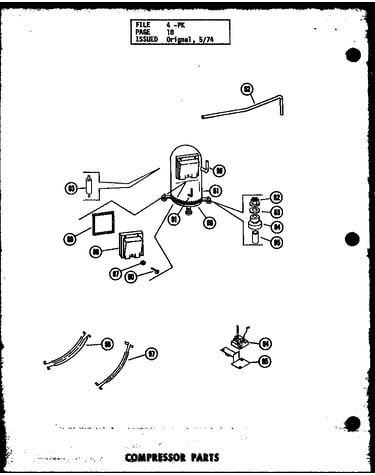

Compressor parts (pk3.5-1k/p54629-16c) (pk3.5-1k/p54629-38c) (pk4-1j/p54629-19c) (pk4-1j/p54629-55c) (pk4-3j/p54629-20c) (pk5-1j/p54629-21c) (pk5-1j/p54629-57c) (pk5-3j/p54629-22c) (pk5-3j/p54629-58c) (pke5-3k/p54629-36c) diagram
Overload
Part #D4991506
The manufacturer no longer makes this part, and there's no substitute part
System & air parts (pk2.5-1h/p54565-12c) (pk3-1h/p54565-15c) (pke3-3h/p54565-7c) diagram
Blade Fan, 16" Dia., 5 Blade, 45 Degrees Pitch A1645-5
Part #C5806201
The manufacturer no longer makes this part, and there's no substitute part
System & air parts (pk2.5-1h/p54565-12c) (pk3-1h/p54565-15c) (pke3-3h/p54565-7c) diagram
Motor, Evap. Blower, W/ground Wire, 1/,3 H.p., 230 V. 60
Part #M0305802
The manufacturer no longer makes this part, and there's no substitute part
System & air parts (pk2.5-1h/p54565-12c) (pk3-1h/p54565-15c) (pke3-3h/p54565-7c) diagram
Nut
Part #M0283610
The manufacturer no longer makes this part, and there's no substitute part
System & air parts (pk2.5-1h/p54565-12c) (pk3-1h/p54565-15c) (pke3-3h/p54565-7c) diagram
Angle, Evaporator Blower Mounting
Part #B5196501
The manufacturer no longer makes this part, and there's no substitute part
